Zeitler EZ100 Pull Line Blower for 2-4in (50-150mm) Duct and Conduit

Zeitler EZ100 Pull Line Blower for 2-4in (50-150mm) Duct and Conduit


Alternative Views:


TTS PRICE: $3,593.99

STATUS: ON ORDER


Availability: Special Order 2-3 Weeks
PRODUCT CODE: ZEI-EZ100
QUANTITY:

PRODUCT DESCRIPTION


The EZ-100 takes over where the EZ-50 left off. This EZ-100 Pull Line Blowing Kit is equipped with shuttles to blow 53lb draw line through 2-4 inch ducts and conduits, over very long distances (current record 1.8 miles).

The EZ100 Pull Line Blower by Zeitler has been developed especially for network construction or anyone needing to get wire and cables through long distances of large duct or conduit. It is suitable for cable ducts from 2in to 4in (internal diameter). The pull line can be blown or aspirated. Water, small residues, impurities or other items can often be pushed through with the shuttle in only one operation.

Features:
  • Blow or suck pull line (tensile strength up to 300 kg - sold separately) without compressor
  • For all commercial pipe work (internal diameter from 2 to 4in)
  • With special conduit blow line equipment also for small diameters from 1 in
  • For all network construction such as civil engineering, ground work, roads, tunnels, bridges
  • For lengths of 3,300 feet and more (current record 9,350ft / 1.75 miles)
  • Huge time saving in cable feeding
  • Cleaning, taking water out, calibrating and line feeding in one step
  • Lightweight and compact
  • Excellent accessibility, even in confined spaces
  • Easy to handle
  • Double function (pull line blowing and pull line suction mode)
  • Fits easily in any car trunk

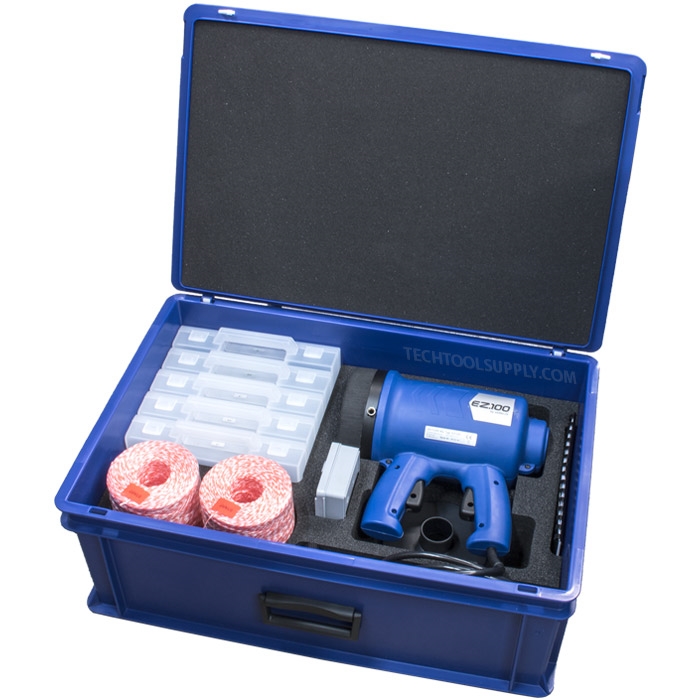

  • Kit Includes:

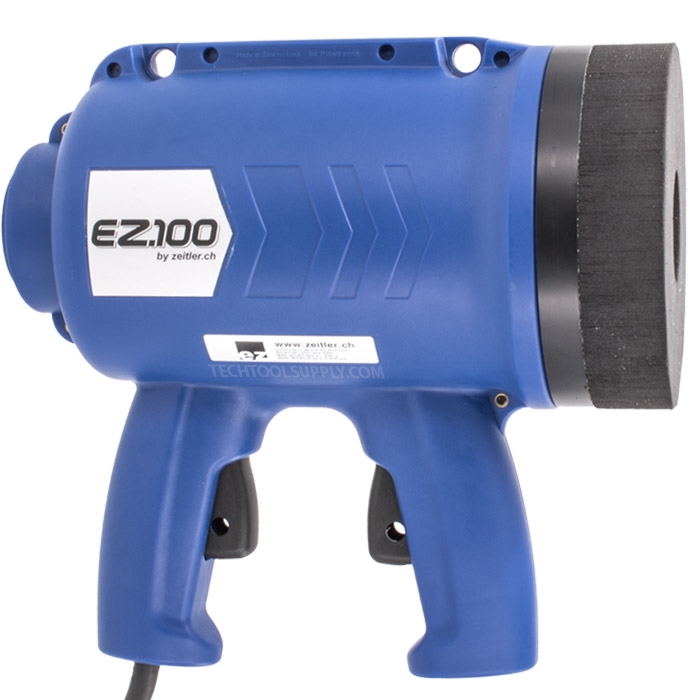

  • 1 - EZ100 Pull Line Blower (aka Stringing Gun)
  • 2 - Pull line rolls (ø 1mm, approx. 3000 feet, tensile strength approx 53 lb)
  • 1 - Suction unit

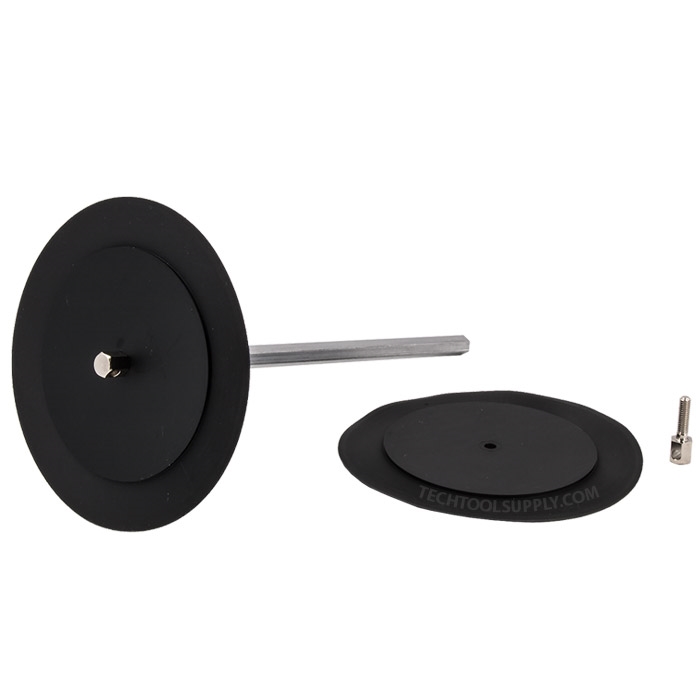

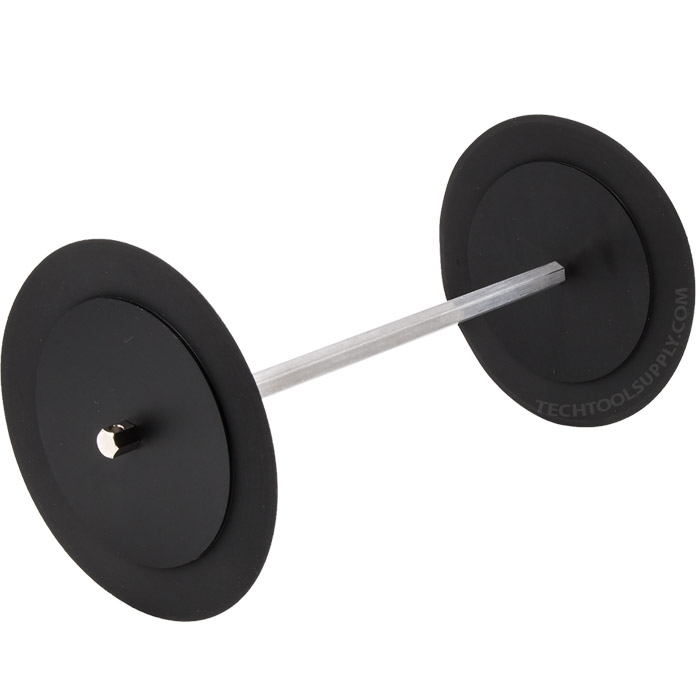

  • 5 - Shuttle Sizes: 2in, 2.5in, 3in, 3.5in, and 4in

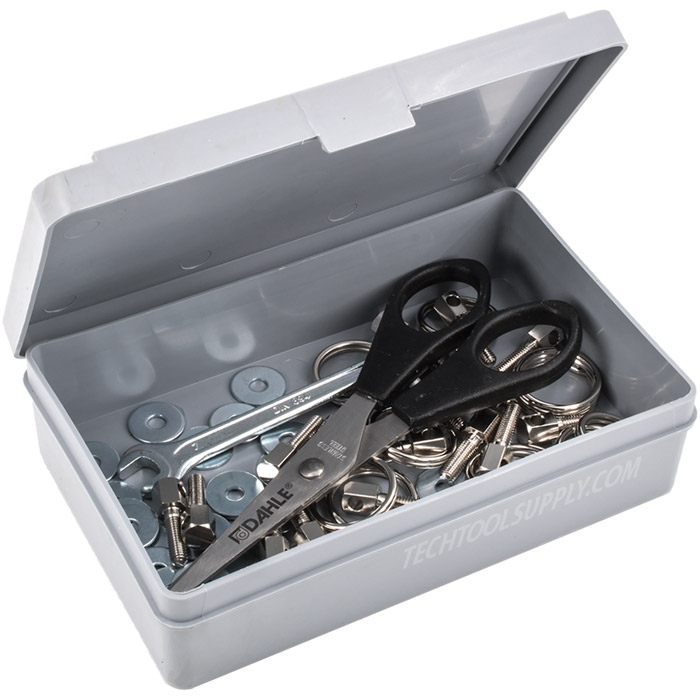

  • 1 - Box with assembly material for shuttles
  • Operating Instructions

  • Additional Shuttles up to 5.75in are available for purchase separately
    EZ-100 Pull Line Blower Operation Manual
