Vanco SPOTFD1 Spot for Dot

Vanco SPOTFD1 Spot for Dot


Alternative Views:


TTS PRICE: $161.99

STATUS: ON ORDER

Free Shipping

Availability:
Normally Ships Same Day

PRODUCT CODE: VAN-SPOTFD1
QUANTITY:

PRODUCT DESCRIPTION

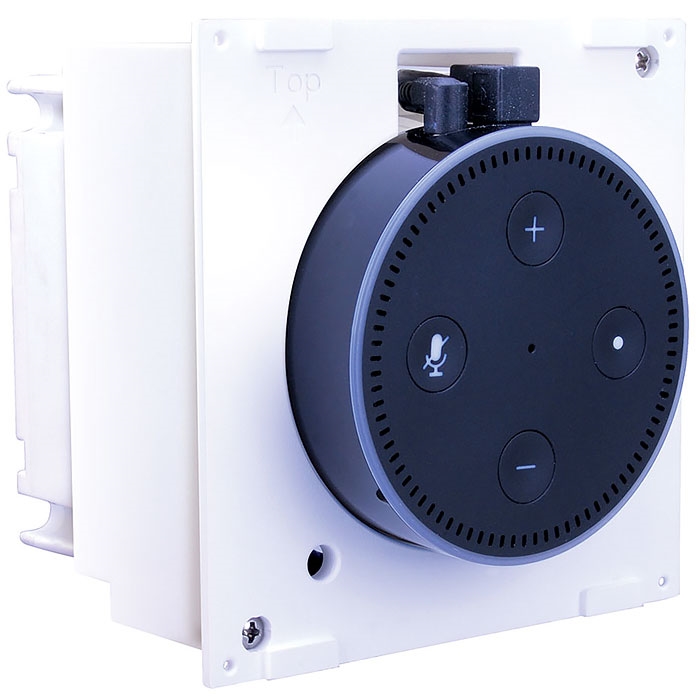

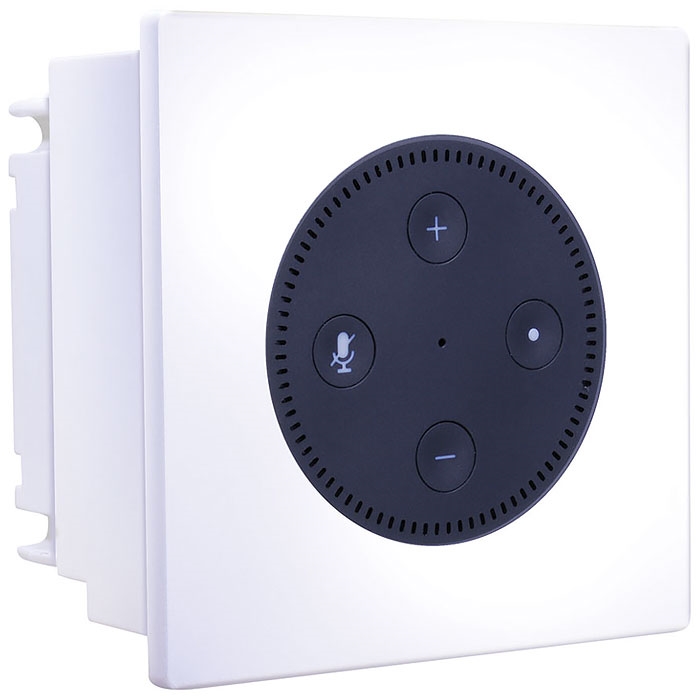

Spot For Dot is a wall mount station for the Amazon Echo Dot (2nd generation) with a built in 80-watt amplifier to deliver music and information amplified to any set of speakers. The unique design also allows audio input from a variable line level source, such as a phone, tablet or TV (headphone or variable audio output) to be connected and played through the amplifier to almost any kind of speaker(s). Perfect for a 2 channel setup with Alexa voice control available at any time. For a clean look with no wiring exposed, the Spot For Dot is a great solution. Include one in every room for wireless distributed audio! Spot For Dot mounts within a standard 2x4 stud wall at least 35/8" depth, and can be tapped into the main electrical wiring for a seamless appearance.

Vanco International recommends that you use a professional electrician to install the Spot for Dot due to the power requirements.

Features:
  • An amplified in-wall solution that powers and is controlled by the Amazon Echo Dot
  • Encloses and flush mounts the Amazon Echo Dot
  • Can be used with almost any in-wall, in-ceiling, or in-room speaker
  • 25 Watts x 2 Channels 8 Ohm
  • 40 Watts x 2 Channels 4 Ohm
  • 110-240 V 50/60Hz
  • Can support up to 4 speakers being connected through a single amp
  • Aux line in from any audio source such as a TV
  • White and almond faceplates included
  • Amazon Echo Dot (2nd generation) sold separately

  • Amp:
  • Amp Power Output: 25W x 2 (RMS @ 8Ω), 40W x 2 (RMS @ 4Ω)
  • Speaker Terminal: 4-Pin Screw Terminal Connector
  • Variable Audio Input: 3.5mm Stereo Jack
  • Audio Input Formats: Analog
  • Total Harmonic Distortion (THD): Less than 1%
  • Signal to Noise: Dot input 91db AUX input 101db
  • Frequency Response: 20-20khz +- 1db
  • Adjustable Volume: Fixed (requires variable audio source)
  • Line Level Input Sensitivity: Dot - 410mV, AUX - 652mV

  • Power:
  • Amperage: 15a
  • Voltage: 110v-240v
  • Certifications: ETL, cETL, CE, FCC, PSE, RCM, & RoHS
  • Termination: 3-Wire Screw down
  • Grounding: Yes

  • Specifications:
  • Dimension (WxDxH): 5" x 5" x 4"
  • Weight: 1.31 lbs

  • Kit Includes:
  • Spot For Dot
  • Manual
  • Factory Reset Tool
  • Cut-out Template

  • Spot for Dot Installation Guide
