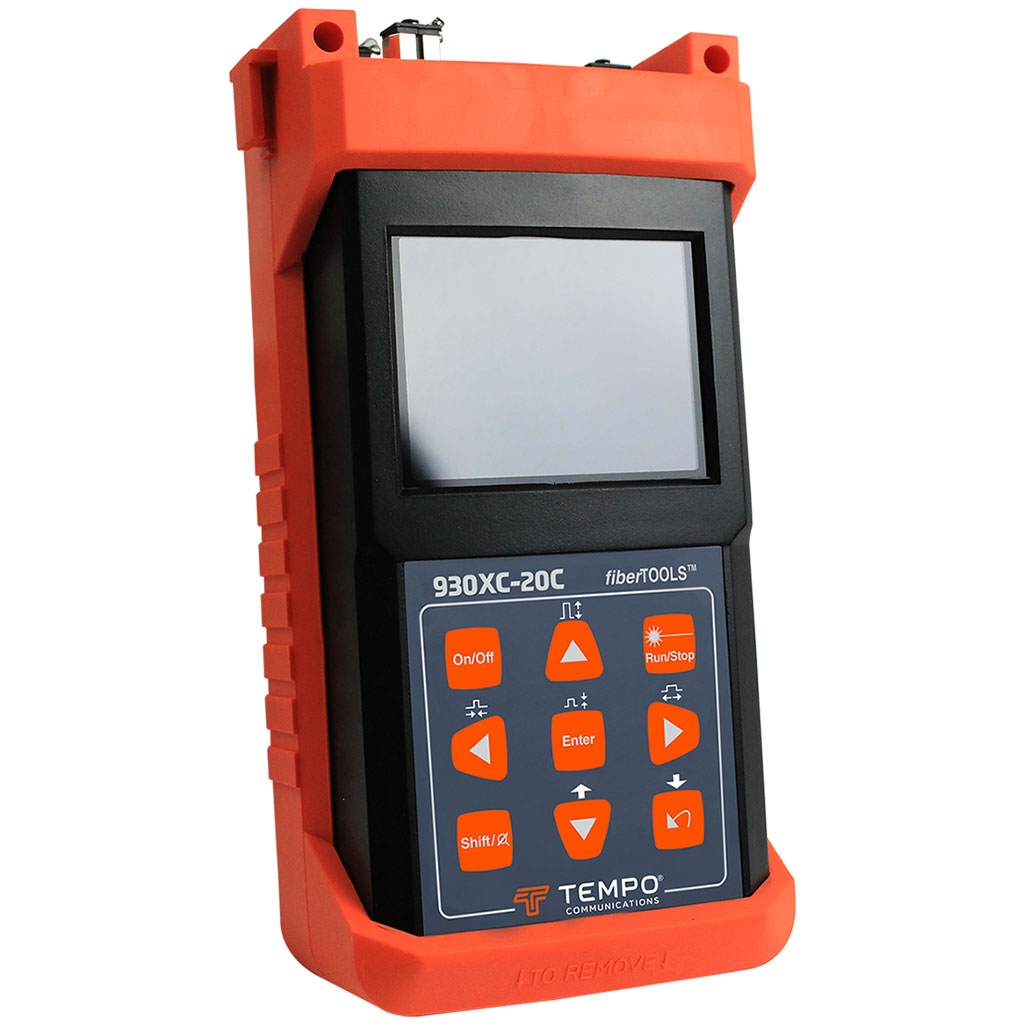

The 930XC-20C OTDR from Tempo is an easy-to-use, full-featured handheld test instrument that is capable of measuring the length to a fault or the length of singlemode fiber optic cables. The 930XC also measures the reflectance and insertion loss of reflective and non-reflective events.
The easy-to-learn user interface shortens the learning curve so that even inexperienced technicians can measure, qualify, and troubleshoot today’s and tomorrow’s high-bandwidth fiber networks. Professional test reports are easily generated using industry-standard SOR files that can be saved as a PDF for full documentation.
Features:
Validate installed fiber networks for compliance to design requirements
Monitor and troubleshoot faults in fiber links
Short learning curve allows the technician to be productive quickly
Locate faults quickly so that fiber installations can restored with low down time
High dynamic range to shoot through high loss components
Easy to use “single button” interface with “Auto Test” mode
Optical power meter, stabilized laser source, and visual fault locator included standard with all models
Free Trace Viewer documentation program is included with all kits
Macrobend Analysis
Link Viewer that provides a linear Pass/Fail analysis
Specifications:
Wavelength (± 20nm): 1310/1550
Dynamic Range (dB)a: 35
Event Deadzone (m)b: 1m
Attenuation Deadzone: 4.5m
Pulsewidth: 5, 10, 30, 100, 300, 1us, 2.5us, 10us, 20us
Selectable Ranges (km): 0.3, 1.3, 2.5, 5, 10, 20, 40, 80, 120, 160, 240
Average Time: 15s/30s/1 min/2 min/3 min
Distance Measurement Accuracy: ±(1m + 5 X 10-5 x distance + sampling space)

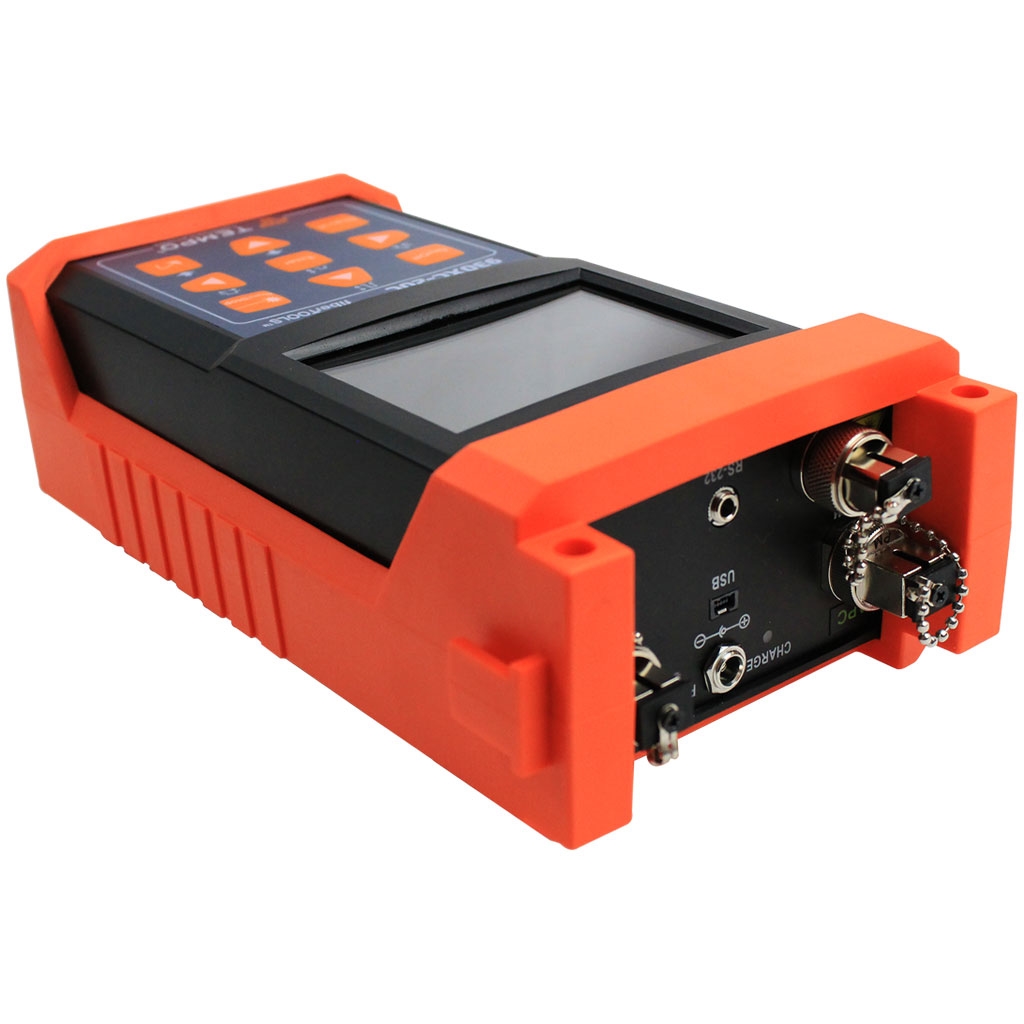

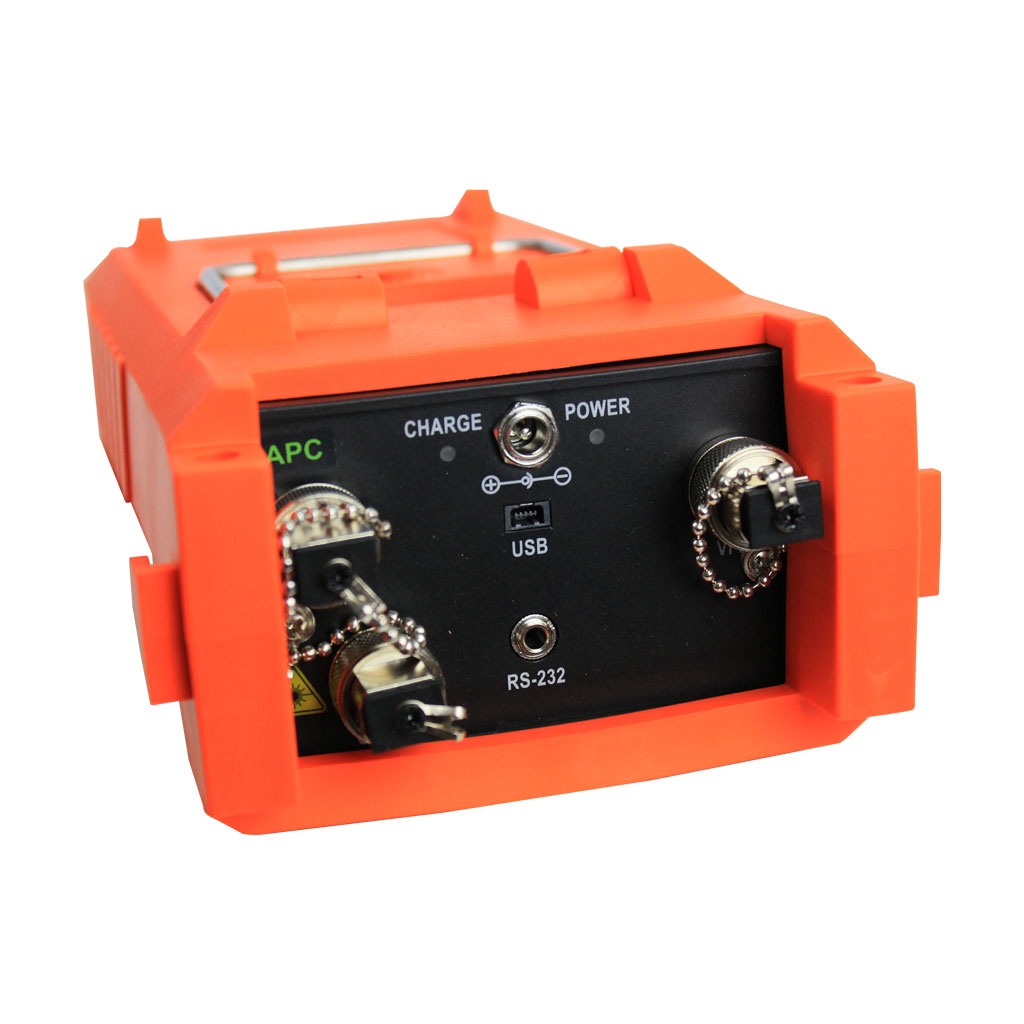

Connector Type: PC or APC (interchangeable FC, SC, ST)
Reflection Detect Accuracy: ±4 dB
Attenuation Detect Accuracy: ±0.05 dB/dB
Measurement Data Storage: 1,000 test curves
Data Transmission: RS-232/USB port
Visual Fault Locator (VFL): -3dBm; 650nm
Optical Power Meter (OPM): InGaAs
OPM Wavelengths: 850, 1300, 1310, 1490, 1550, 1625nm
OPM Range: +6 to -70dBm (+6 to -60dBm 850nm)
OPM Display resolution: 0.01dB
OPM MOD Identification: 1kHz, 2kHz
Stabilized laser Source (SLS): Wavelength same as selected in OTDR mode ≤ -7dBm
Power Supply: NiMH chargeable battery/AC adapter
Battery Life: Support over 8 hours operating on one charge or over 20 hours standby
Operating Temperature: -10° to 50° C
Storage Temperature: -20° to 60° C
Relative Humidity: 0 to 95% (non-condensing)
Weight: 1.9 lbs. (0.87 kg)
Dimensions: 7.7” H x 3.9” W x 2.4” L (196mm x 100mm x 64mm)
Compliance: CE, FCC, UL
Fiber Analysis Software: Version 3.2

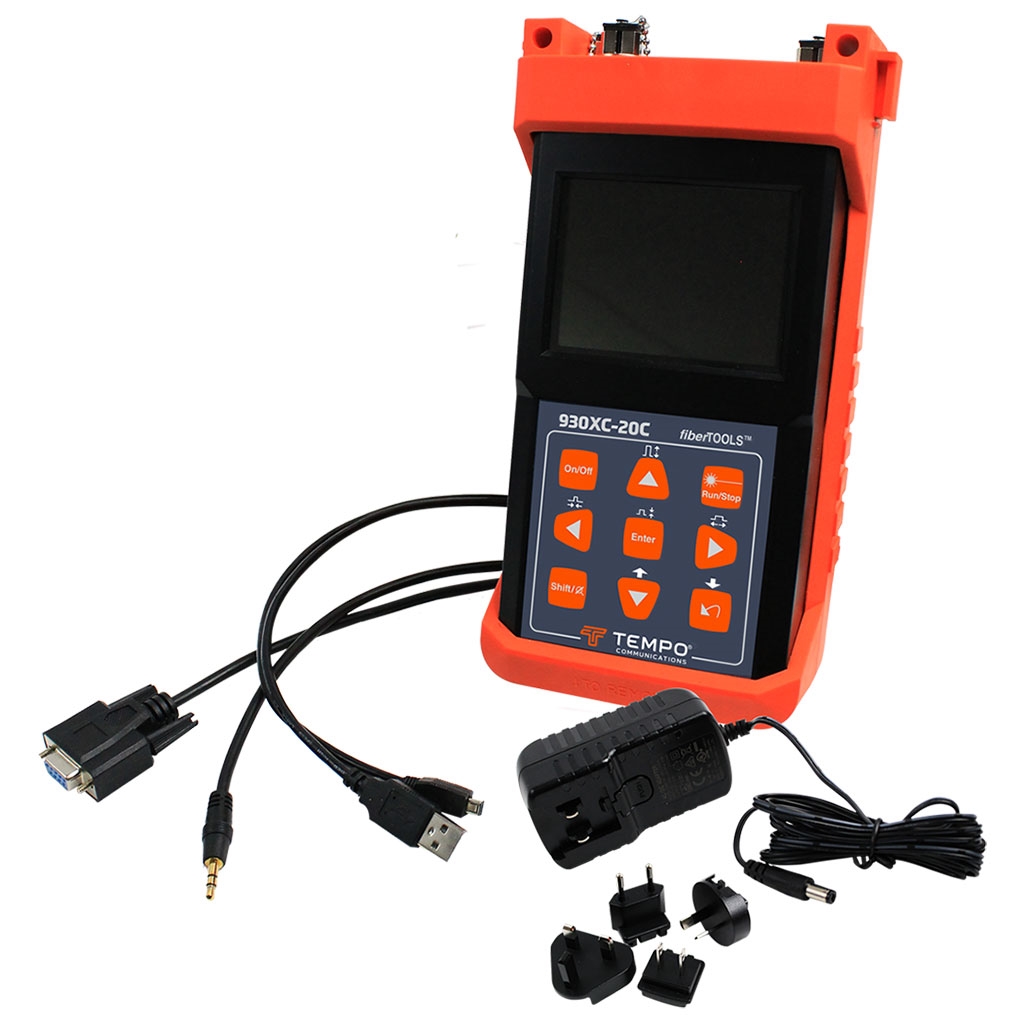

Kit Includes:
Instrument
Rechargeable battery
OTDR Trace Viewer software
Installation disk
Data transfer cable
AC adapter
Protective cover
Carrying case
Warranty card
|
|
|
 |
|
 |
|
