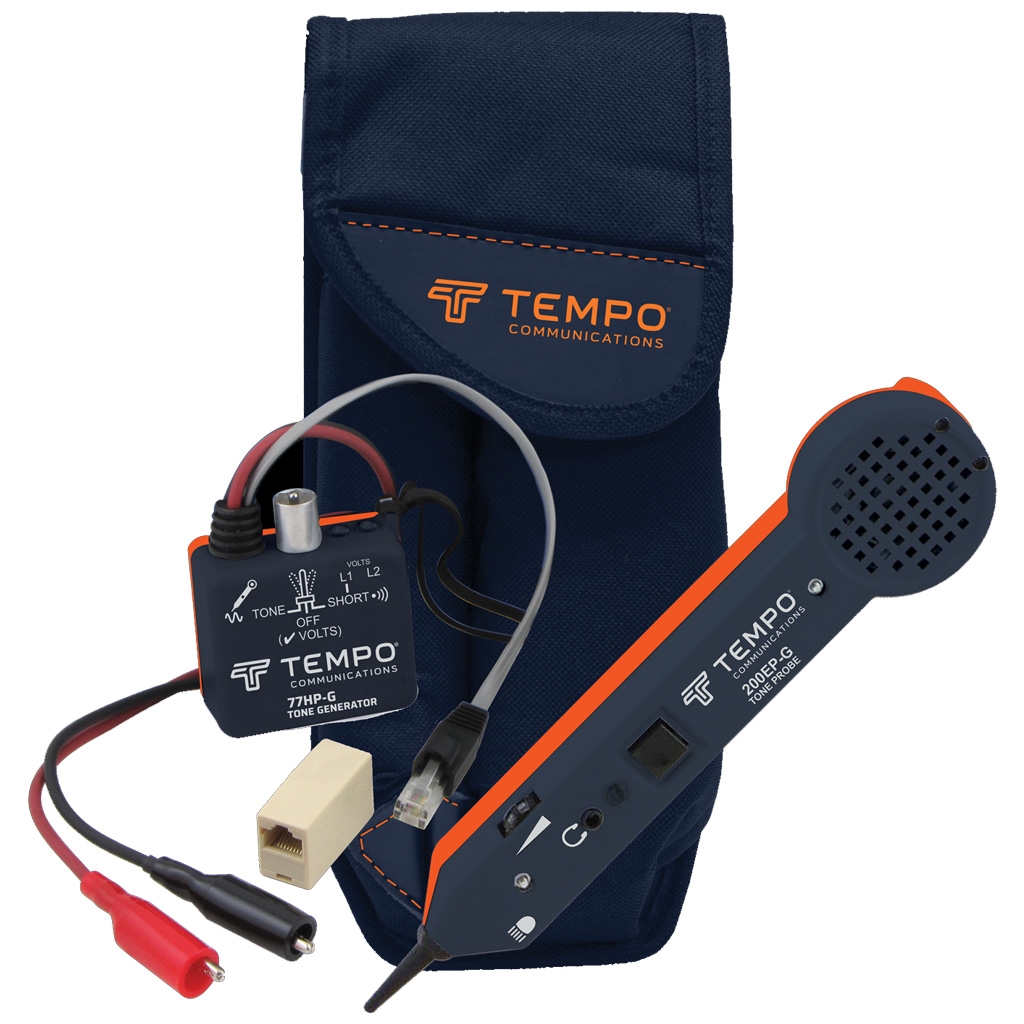

The 701K-G from Tempo supplies you with a tone probe and a tone generator, both very powerful and time-saving tools when you're in the field. The tone probe, when used in conjunction with the tone generator is designed to identify and trace wires or cables within a group without damaging the insulation. Both devices are housed in high impact plastic cases and each is powered by one 9 volt battery. The 701K-g is great for tracking down unlabeled wires that are both terminated and unterminated.
Features of Probe:
Resistive plastic carbon-fiber tip to prevent accidental shorts when probing wires
Adjustable volume sensitivity control
Battery compartment
Recessed terminal ports for handset connection
Spring-loaded ON/OFF/flashlight button
LED
Headset jack (acoustically protected)
High power flashlight
Specifications of Probe:
Gain (nominal): 30 db
Input Impedance (nominal): 100 MΩ
Probe Tip Resistance (min): Metal tip - 0Ω, Plastic tip - 300Ω
Headset: 3.5mm stereo plug; 8 ohms minimum
Battery: 1 9VDC
Battery Life (nominal): 50 hrs
Length: 9.0"
Width: 2.2"
Depth: 1.1"
Weight: 5.2oz
Operating/Storage Temperature: 32°F to 122°F
Features of Tone Generator:
Battery compartment
Toggle switch
LEDs
Test leads
Modular cord
Specifications of Tone Generator:
Talk Battery (into 600 Ω): 4.6VDC
Output Power (into 600 Ω): +10 dBm
Resistive Short Visual Indication: <10 kΩ
Resistive Short Audio Indication: <200 kΩ
Output Frequency (nominal): Tone - alternating 890/960 Hz, Warbling: Slow - 1.3 Hz, Fast - 6 Hz
Voltage Protection (into 600 Ω circuit): 52 VDC
Battery: 9 VDC
Battery Life: 50 hours
Length: 1.25"
Width: 2.5"
Height: 2.25"
Weight: 4.5oz
Operating Temperature: 32°F to 122°F
Storage Temperature: -58°F to 167°F
Kit Includes:
77HP Tone Generator
200EP Inductive Probe
Woven Carry Case
3 Different Probe Tips
Requires 2 9v batteries (NOT INCLUDED)
Greenlee/Tempo's Tone & Probe Comparison Chart
|
|
