Swift KR12A AIO Ribbon Fusion Fiber Splicer

Swift KR12A AIO Ribbon Fusion Fiber Splicer


TTS PRICE: $13,026.00

STATUS:  IN STOCK


Availability:
Normally Ships Same Day

PRODUCT CODE: AI-KR12A
QUANTITY:

PRODUCT DESCRIPTION

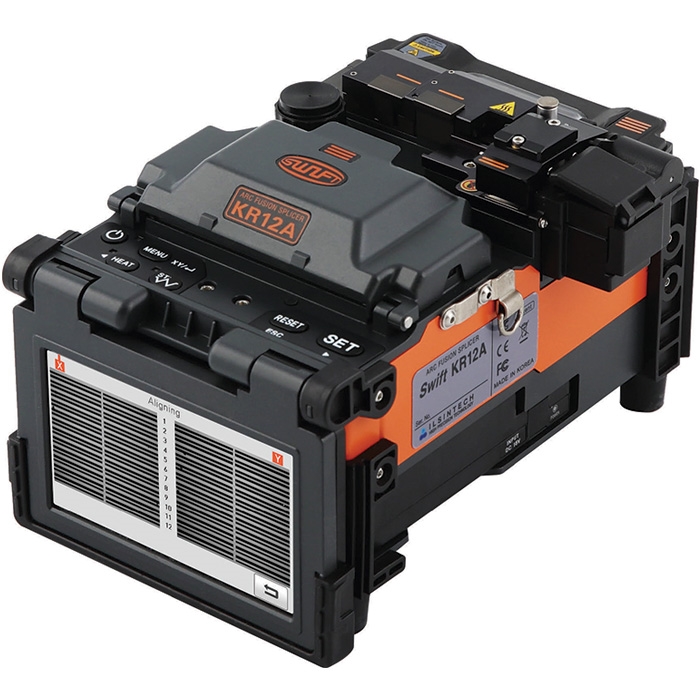

The Swift KR12A All In One Ribbon Splicer by America Ilsintech. This premium fusion splicer offers a strong option for in-field fiber splices that delivers superior optical performance and improved productivity. Integrated with 5 functions in one unit, the KR12A can strip, clean, cleave, splice and protect in less time and with better results. In addition the rotating blade life can handle up to 75,000 fiber splices and unit maintenance can be achieved through an online connection.

Features:
  • Remote maintenance via Internet
  • The fusion splicer with All-In-One system provides the best workability. Integrated 5 functions in one unit (stripping, cleaning, cleaving, splicing, and protecting).
  • No scratches on fiber by thermal stripping (extended tensile of fiber strength by 2 kgf more)
  • Wide 127mm (5.0 in) Color LCD monitor with electrostatic touch screen and bidirectional operating system
  • Powerful lithium polymer battery with large capacity (6000mAh)
  • Resistance to shock, dust, and water
  • User friendly GUI

    • Specifications:
  • Fiber alignment: Ribbon
  • Applicable type of fibers: SM (G.652); MM (G.651); DS (G.653); NZDS (G.655)
  • Fiber count: Single fiber; 2-12 ribbon fiber
  • Applicable fiber dimensions (Single): Cladding diameter: 125㎛; Coating diameter 250: 900㎛
  • Applicable fiber dimensions (Ribbon): Cladding diameter: 125㎛; Ribbon fiber thickness 0.25 to 0.40mm
  • Fiber setting and cleaved length: 10mm
  • Splicing modes: Splice mode: 300, Heat mode: 100; Strip mode: 50
  • Typical splice loss: SM: 0.05dB, MM: 0.02dB, DS: 0.08dB, NZDS: 0.08dB
  • Return loss: > 60dB (typical)
  • Splicing time: Typical 20 sec. with standard SM (ITU-T G.652)
  • Sleeve heating time: 1~2 core 20 sec.; 4-12 core 50 sec.
  • Applicable protection sleeve: 40mm, 60mm (fiber)
  • Storage of splice result: The last 10,000 results to be stored in the internal memory.(Image 10,000 results)
  • Tension test: 2N/4.4N (option)
  • Operating condition: Altitude: 0-3,660m above sea level, Temperature: -10ºC ~ 50ºC (-14ºF ~ 122ºF); Humidity: 0~95%; Wind: 15m/s, non-condensing, dust proof, water proof, shock proof
  • Storage condition: Temperature: -40ºC~ 80ºC (40ºF ~ 176ºC); Humidity: 0~95%
  • Dimension: 136(W) x 215(L) x 132(H) mm (excluding bumper)
  • Weight: 2.3kg (including battery)
  • Viewing method and display: Two CMOS cameras and 127mm (5.0 in) color LCD monitor with Electrostatic touch screen
  • Fiber view and magnification: X/Y : 20X; Max 60X
  • Power supply: 100~240V AC
  • No. of splice cycles with battery: Typical 236 cycles (6000mAh)
  • Electrode life: Up to 3,000 splices
  • Terminals: USB, External power (DC 12V (available for car cigar jack)); DC output 13.2-16.8V
  • Blade life: Up to 75,000 fibers

    • Included:
  • 1 - Arc fusion splicer: SWIFT KR12A
  • 1 - Battery: K3360 (6000mAh)
  • 1 - AC adapter: 100-240V
  • 1 - Instructions for use
  • 1 - Spare electrode: EI-28
  • 1 - Transporting case
  • 1 - Hard Case
  • 1 - Cooling tray
  • 1 - Tool box
  • 1 - USB cable
  • 1 - Fiber holder: H7 Series
  • 1 - Upgrade cable

    • Comparison between Swift Fusion Splicers
