Swift K33A AIO Core Alignment Fusion Splicer

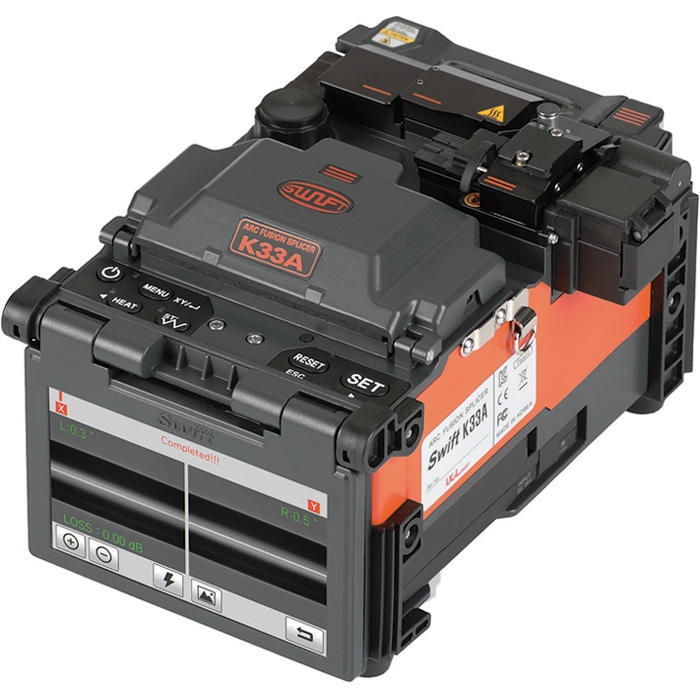

Swift K33A AIO Core Alignment Fusion Splicer


TTS PRICE: $10,500.00

STATUS:  IN STOCK


Availability:
Normally Ships Same Day

PRODUCT CODE: AI-K33A
QUANTITY:

PRODUCT DESCRIPTION


America Ilsintech introduces the Swift K33A, a premium IPAAs All In One Core Alignment splicer. The K33A offers Ilsintech’s exclusive All In One system that provides the best workability, integration 5 functions into one unit (striping, cleaning, cleaving, splicing, and protecting). This compact and rugged fiber splicer is ideal for medium and long range optical circuit, LAN, CATV, FTTx. With a rotating blade that can allow up to 75,000 cleaves, the K33A combines long-lasting durability with high precision performance.

Features:
  • Remote maintenance via Internet
  • The fusion splicer with All-in-One system provides the best work-ability with integrated 5 functions in one unit (stripping, cleaning, cleaving, splicing, and protecting)
  • No scratches on fiber by thermal stripping (extended tensile of fiber strength by 3kg more)
  • Wide 127mm (5.0 in) Color LCD monitor with electrostatic touch screen & bidirectional operation system
  • Powerful lithium polymer battery with large capacity (6000mAh)
  • Resistance to shock, dust, and water
  • Compatible with Fusion Splice-On Connector (FSOC) in accordance with the industry standard
  • Rotating blade allows up to 75,000 cleaves

    • Specifications:
  • Fiber alignment: IPAAS Core Alignment
  • Applicable type of fibers: SM (G.652); MM (G.651); DS (G.653); NZDS (G.655); SM (G.657 A2/B2); SM (G.657 B3)
  • Fiber count: Single fiber
  • Applicable fiber dimensions: Cladding diameter: 80~150㎛, Coating diameter: 100㎛-1000㎛
  • Fiber setting and cleaved length: 250㎛,: 5-16mm; 900㎛: 8-16mm
  • Splicing modes: Splice mode: 100, Heat mode: 50
  • Typical splice loss: SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB
  • Return loss: > 60dB (typical)
  • Splicing time: Typical 9 sec.
  • Sleeve heating time: 9 sec. (IS-45 sleeve, IS-45 mode), 13 sec. (IS-60 sleeve, IS-60 mode)
  • Applicable protection sleeve: 40mm or 60mm (fiber)/28mm or 32mm (connector)
  • Storage of splice result: The last 10,000 results to be stored in the internal memory.(Image 10,000 results)
  • Tension test: 2N/4.4N (Option)
  • Operating condition: Altitude: 0-5,000m above sea level, Temperature: -10ºC ~ 50ºC (-14ºF ~ 122ºF); Humidity: 0~95%; Wind: 15m/s, non-condensing, dust proof, water proof, shock proof
  • Storage condition: Temperature: -40ºC~ 80ºC (-40ºF ~ 176ºC); Humidity: 0~95%
  • Dimension: 136(W) x 215(L) x 137(H) mm (excluding bumper)
  • Weight: 2.45kg (including battery)
  • Viewing method and display: Two CMOS cameras and 127mm (5.0 in) color LCD monitor with Electrostatic touch screen
  • Fiber view and magnification: X/Y : 200X; Max 400X
  • Power supply: 100~240V AC
  • No. of splice cycles with battery
  • Typical 282 cycles (6000mAh)
  • Electrode life: Up to 10,000 splices
  • Blade life: Up to 75,000 fibers
  • Terminals: USB, external power (DC 12V available for car cigar jack)

    • Included:
  • 1 - Arc fusion splicer: SWIFT K33A
  • 1 - Battery: K3360 (6000mAh)
  • 1 - AC adapter: 100-240V
  • 1 - Instructions for use
  • 1 - Spare electrode: EI-23
  • 1 - Transporting case
  • 1 - Hard Case
  • 1 - Cooling tray
  • 1 - Tool box
  • 1 - Cleaver: CS-07FT

    • Comparison between Swift Fusion Splicers
    K33A Manual
