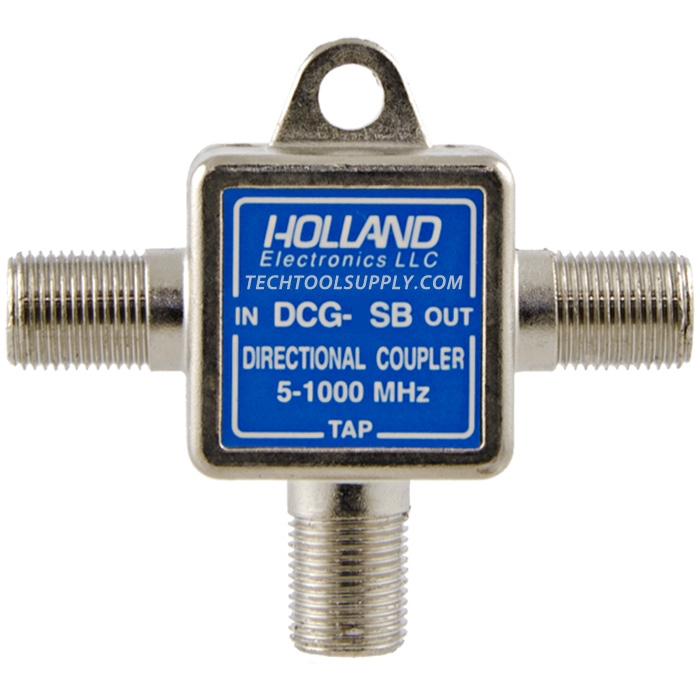

Single Port Tap / Directional Coupler - 24dB

Single Port Tap / Directional Coupler - 24dB


TTS PRICE: $2.79

STATUS:  IN STOCK

Free Shipping

Availability:
Normally Ships Same Day

PRODUCT CODE: DCG-24SB
QUANTITY:

PRODUCT DESCRIPTION


The DCG-SB Series of high quality directional couplers have been developed to support the latest advancements in distribution requirements. High return loss and low insertion loss make the DCG-SB Series ideal for any application. Advanced PCB design assures consistent performance.

Features:
  • PCB Design
  • High Up-Stream Isolation (Tap-Out)
  • High Return Loss
  • Precision Machined Threads

    • Specifications:
  • Tap Value: 24 dB
  • 1 GHz Bandwidth
  • 130 dB RFI Shielding (Solder-back)

    • Insertion Loss (dB) (Max) (In-Out):
  • 5 - 47: .7
  • 48 - 450: .6
  • 451 - 750: .8
  • 751 - 1000: 1

    • Isolation (dB) (Out - Tap):
  • 5 - 47: 40
  • 48 - 450: 40
  • 451 - 750: 35
  • 751 - 1000: 30
    		•
