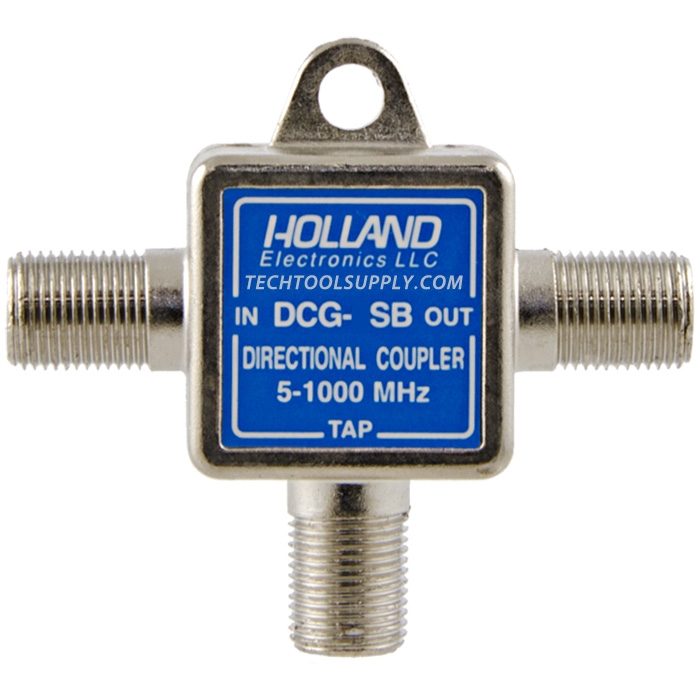

Single Port Tap / Directional Coupler - 12dB

Single Port Tap / Directional Coupler - 12dB


TTS PRICE: $2.79

STATUS:  IN STOCK

Free Shipping

Availability:
Normally Ships Same Day

PRODUCT CODE: DCG-12SB
QUANTITY:

PRODUCT DESCRIPTION


The DCG-SB Series of high quality directional couplers have been developed to support the latest advancements in distribution requirements. High return loss and low insertion loss make the DCG-SB Series ideal for any application. Advanced PCB design assures consistent performance.

Features:
  • PCB Design
  • High Up-Stream Isolation (Tap-Out)
  • High Return Loss
  • Precision Machined Threads

    • Specifications:
  • Tap Value: 12 dB
  • 1 GHz Bandwidth
  • 130 dB RFI Shielding (Solder-back)

    • Insertion Loss (dB) (Max) (In-Out):
  • 5 - 47: 1
  • 48 - 450: 1
  • 451 - 750: 1.3
  • 751 - 1000: 1.5

    • Isolation (dB) (Out - Tap):
  • 5 - 47: 30
  • 48 - 450: 28
  • 451 - 750: 25
  • 751 - 1000: 22
    		•

    Average Customer Review: Average Customer Review: 5 of 5 5 of 5 Total Reviews: 1 WRITE A REVIEW

      So far, this Product Review was helpful to 0 TTS Customers.

    5 of 5 Works as expected October 28, 2017
    Reviewer: David Dusza from Boyce, LA United States
    Easy to connect and use.
