Simply45 Shielded Cat6/6a (external ground) - 50pc Jar

Simply45 Shielded Cat6/6a (external ground) - 50pc Jar


Alternative Views:
TTS PRICE: $92.99

STATUS:  IN STOCK

Free Shipping

Availability:
Normally Ships Same Day

PRODUCT CODE: S45-1150
QUANTITY:

PRODUCT DESCRIPTION

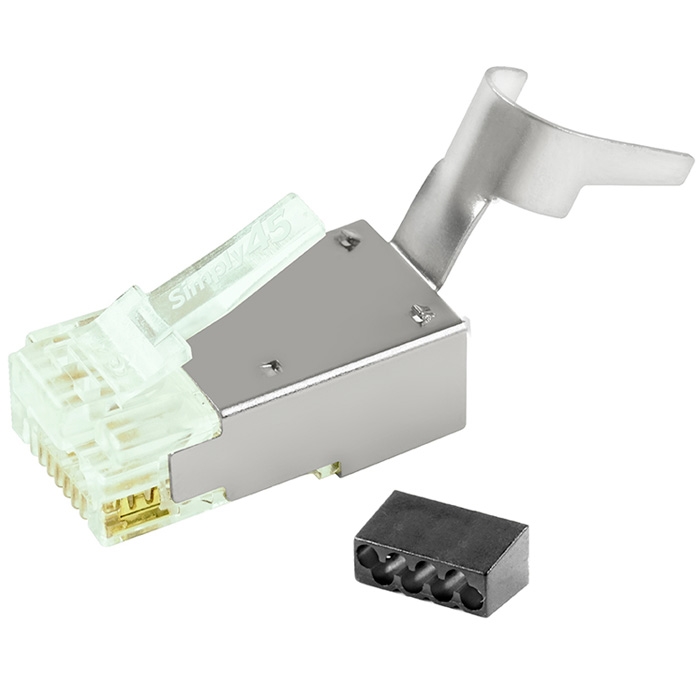

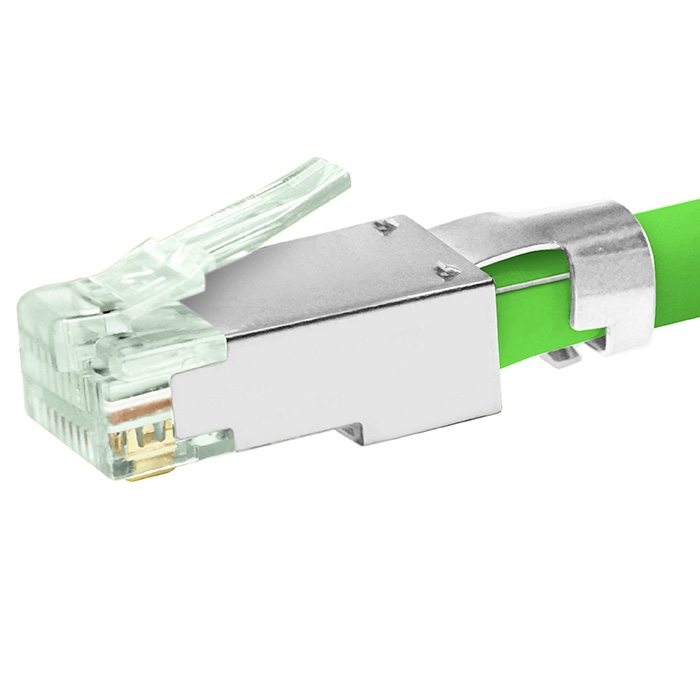

The Simply45® S45-1150 RJ45 shielded modular plug provides better signal isolation and terminated performance than other shielded RJ45 modular plugs for larger diameter Shielded LAN cables using PE (solid polyethylene) insulated wire conductors.

The S45-1150 supports performance standards: ANSI/TIA 568.2-D for Cat6a and Cat6; ISO/IEC 11801 Class Ea and E. Supports 10GBaseT performance applications over PE insulated shielded twisted pair cables.

Bar45™ Load Bar. The exclusive Simply45® Bar45™ are load bars designed to match specific Simply45® RJ45 modular plugs to improve termination performance and SIMPLIFY the termination process. The innovative S45-1150 Bar45™ are designed specifically for our part S45-1150 and are the easiest to use load bars ever made for larger shielded LAN cables such as Cat6 STP and Cat6a F/UTP with PE insulated wires.

Features:

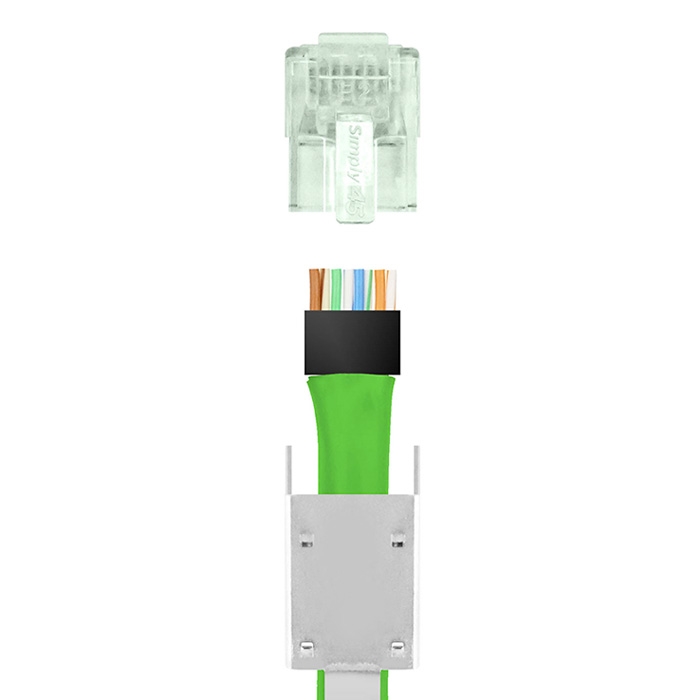

  • Innovative 2 Piece Body Design
  • Easier to Load Large OD Cables
  • BarS45™ Load Bar Technology
  • Improved Crosstalk Performance
  • 3 Prong Pin Design
  • 50µ of True 24ct Gold Plating
  • Commercial "Plenum" Rated
  • Recommended for Data/PoE/PoH
  • Color Tinted Plug & Matching Lid

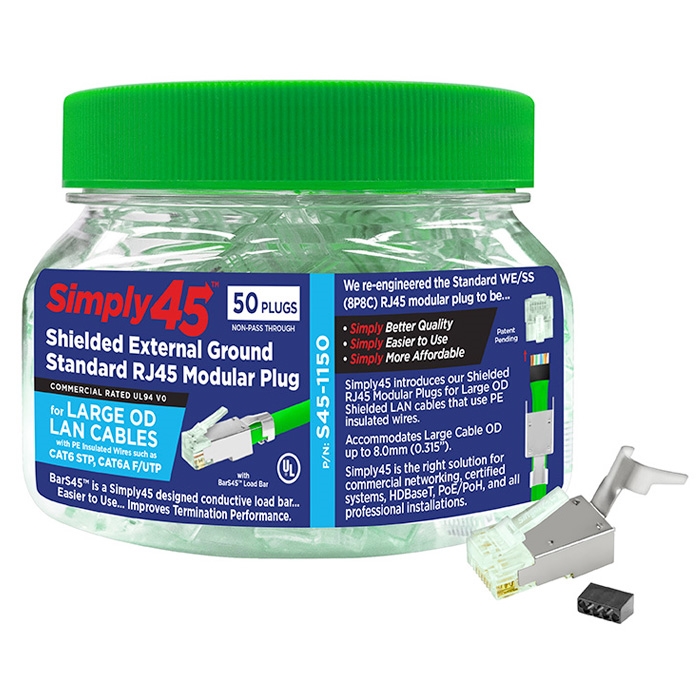

  • Wide Mouth Jar for Easy Access
  • UL Listed
  • Compliant with industry standards
  • Limited Lifetime Warranty
  • Patent Pending

    • Specifications:
  • Performance: Meets or Exceeds ANSI/TIA 568-D.2; ISO/IEC 11801 Class D; ANSI/TIA 1096-A; IEC 60603-7
  • Wire Cond(s) OD: 23 AWG: 1.10mm - 1.20mm (0.043” - 0.047”)
  • Max LAN Cable OD: 8.0mm (0.315”)
  • Supports PoE/PoH: Yes
  • Cable Fire Resistance Ratings: Commercial Rated, CMP, CMR, CM, CMX, LSZH up to B2ca EuroClass
  • Flame Autoextinguish: UL94 V0, IEC 60695-11-10
  • Contact Material: Phosphor Bronze - .012" thick
  • Contact Plating: Min 50 Micro-Inch Pure Gold - 24 Carat Hard Gold Plate in contact area over 100 Micro-Inch Min Nickel Plating. Exceeds ANSI/TIA-1096-A specifications (formerly FCC Part 68)
  • Plug Material: Polycarbonate
  • Shielded Material: Hard Brass
  • Shielded Plating: 80 Micro-Inch minimum Nickel Plating
  • Plug Tolerances and Dimensions: Meets ANSI/TIA-1096-A specifications (formerly FCC Part 68)
  • Conductor Type(s): Solid and Stranded
  • Operating Temperature: -40º C to +70º C
  • Insertion/Extraction Life: 2000 Minimum Cycles
  • Contact Resistance: 20 Milli-Ohms maximum
  • Current/Voltage: 30 VAC/42 VDC at 1.5 Amps
  • Compliance: UL Listed, RoHS, FCC, NEC
    		•
