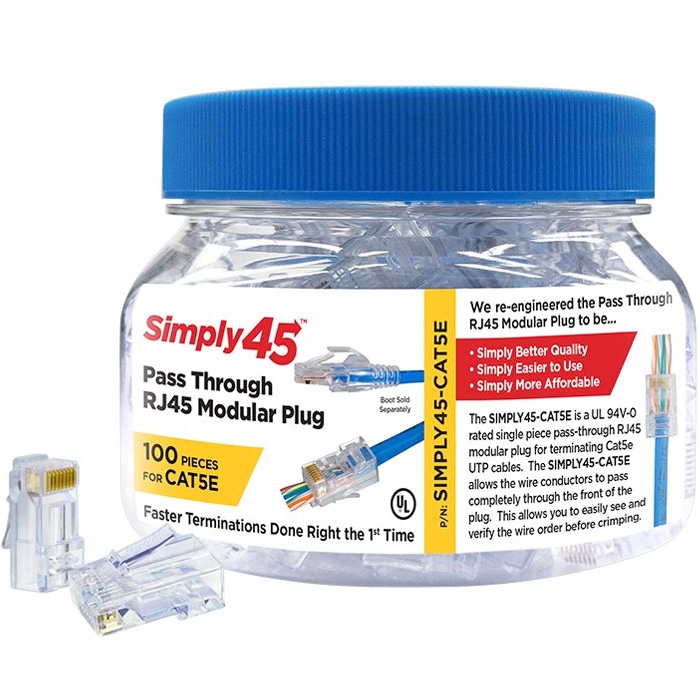

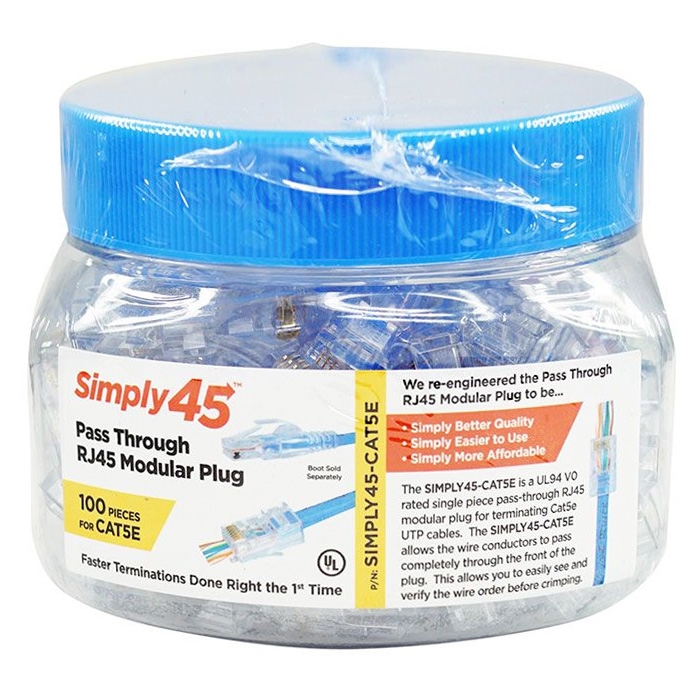

Simply45 Pass Through Cat5e UTP - 100pc Jar

Simply45 Pass Through Cat5e UTP - 100pc Jar


Alternative Views:
TTS PRICE: $55.92

STATUS:  IN STOCK

Free Shipping

Availability:
Normally Ships Same Day

PRODUCT CODE: S45-1500
QUANTITY:

PRODUCT DESCRIPTION

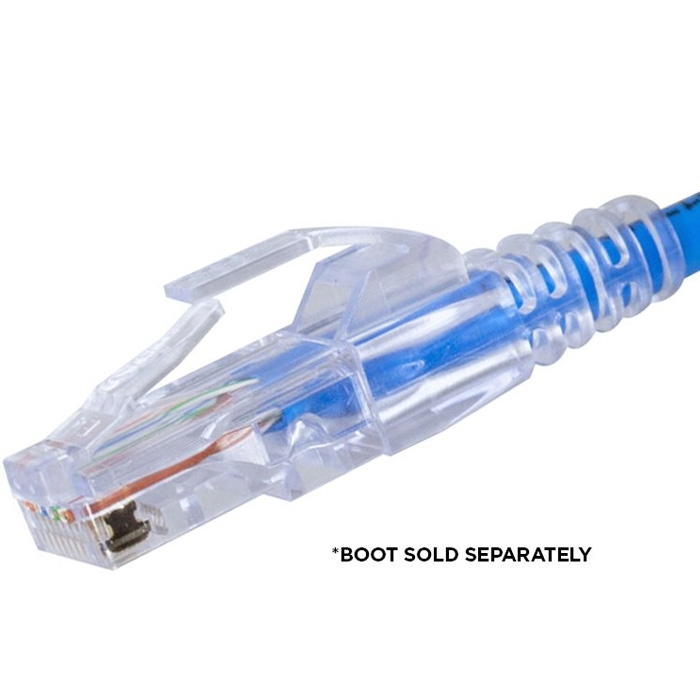

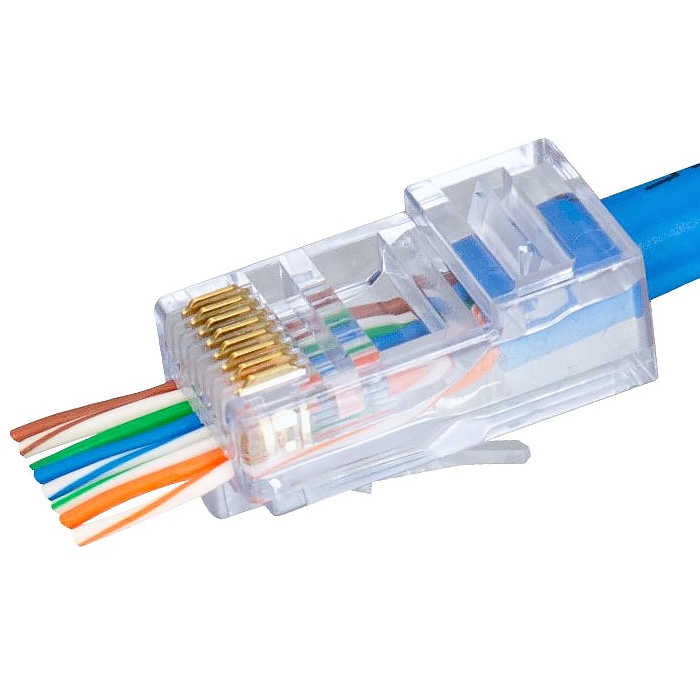

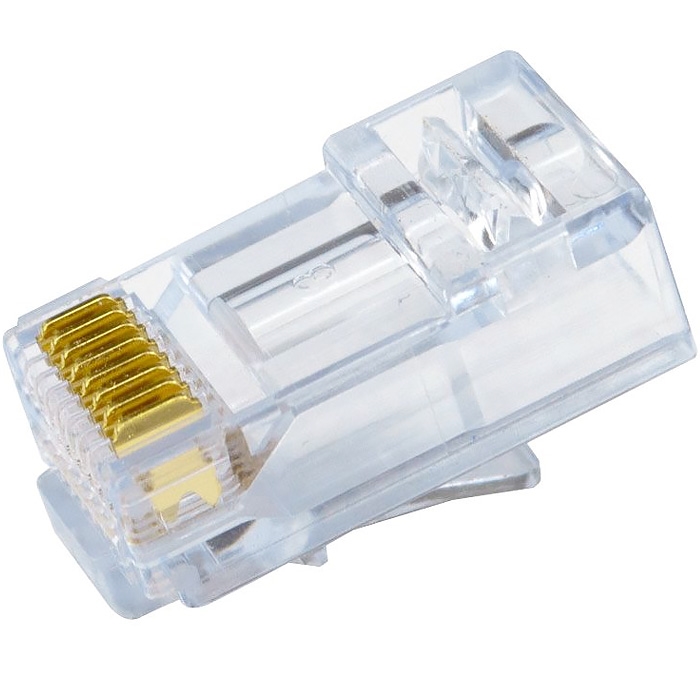

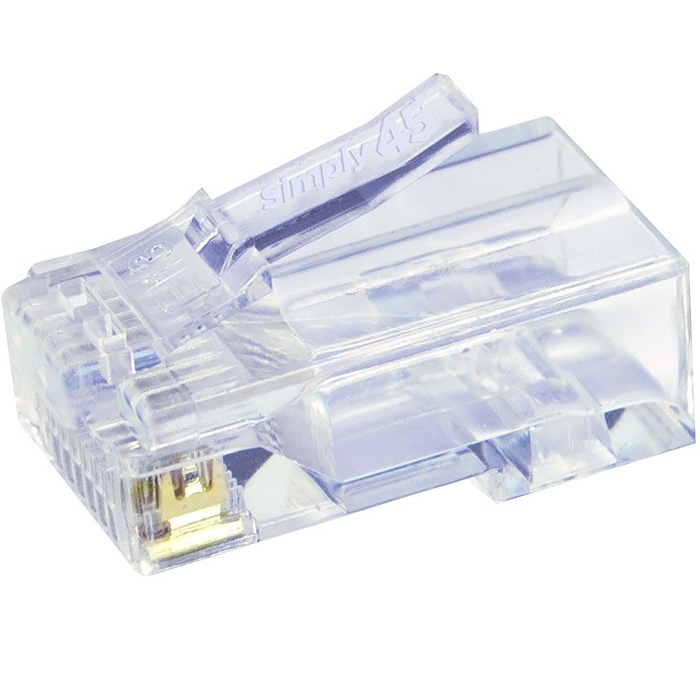

The SIMPLY45™ S45-1500 is a translucent single piece RJ45 that allows Cat5e twisted-pair wire conductors to completely pass through the plug and out the front. This allows you to easily see and verify the wire alignment order before crimping.

It is typically used for most Cat5e UTP (unshielded) 24 AWG solid cable. It can also be used for other unshielded cables such as Cat5e Stranded, Cat6 Stranded, and Cat6a Stranded.

Compatibility: Because of the improved features of Simply45's UTP connectors, the SIMPLY45 CRIMPER is the only tool that will properly crimp their connectors. Other Manufacturers tools are not compatible with these connectors.

Features:
  • Maintains wire pair twist synchronization at termination for improved cable performance
  • Improved design and engineering
  • Superior connectivity performance
  • Color-coded for easy plug identification
  • Fully compliant with all PoE and PoH standards
  • UTP and STP Cables – Cat5e Solid or Stranded

    • Specifications:
  • Quantity: 100pcs
  • Performance: Meets or Exceeds ANSI/TIA 568-C.2; ISO/IEC 11801 Class D; ANSI/TIA 1096-A; IEC 60603-7
  • Cat5e UTP Wire Cond(s) OD: 24AWG, Up to 0.039"-0.041" (1.00mm-1.05mm)
  • Max Cable Outer Diameter: 0.2402" (6.10mm)
  • Supports PoE/PoH: Yes
  • Cable Fire Resistance Ratings: CMP Plenum, CMR, CM, CMX, LSZH EN50575:2014 up to B2ca-s1a,d1,a1
  • Flame Autoextinguish: UL94 V0, IEC 60695-11-10
  • Contact Material: Phosphor Bronze - .012" thick
  • Contact Plating: Min 50 Micro-Inch Pure Gold - 24 Carat Hard Gold Plate in contact area over 100 Micro-Inch Min Nickel Plating. Exceeds ANSI/TIA-1096-A specifications (formerly FCC Part 68)
  • Plug Material: Polycarbonate
  • Plug Tolerances & Dimensions: Meets ANSI/TIA-1096-A specifications (formerly FCC Part 68)
  • Conductor Type(s): Solid and Stranded
  • Operating Temperature: -40º C to +70º C
  • Insertion/Extraction Life: 2000 Minimum Cycles
  • Contact Resistance: 20 Milli-Ohms max
  • Current/Voltage: 30 VAC/42 VDC at 1.5 Amps
  • Compliance: UL Listed, RoHS, FCC, NEC

    • Simply45 Crimp Tool Connector Compatability
    Simply45 Connector Compatability Chart
    Simply45 Fire Resistance Specifications
    Simply45 Technical Bulletin
