Simply45 Pass Through Cat5e STP (internal ground) - 50pc Jar

Simply45 Pass Through Cat5e STP (internal ground) - 50pc Jar


Alternative Views:
TTS PRICE: $68.00

STATUS:  IN STOCK

Free Shipping

Availability:
Normally Ships Same Day

PRODUCT CODE: S45-1550
QUANTITY:

PRODUCT DESCRIPTION

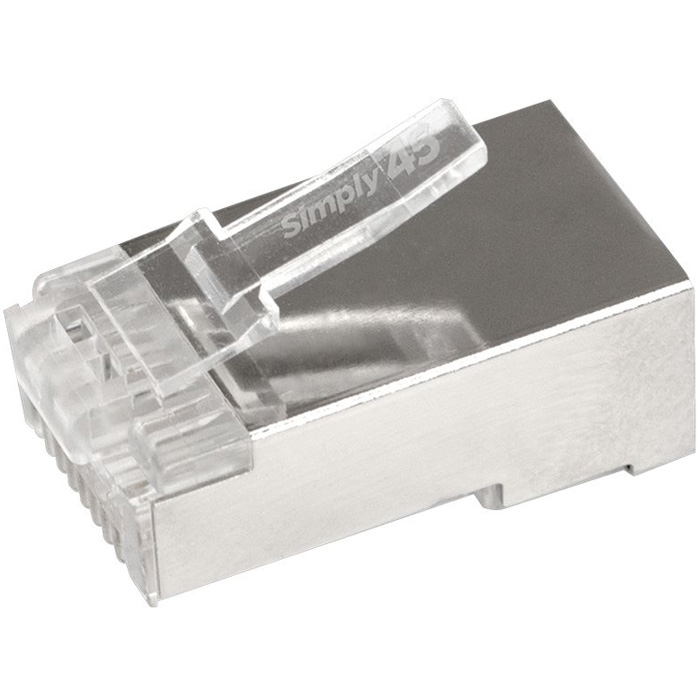

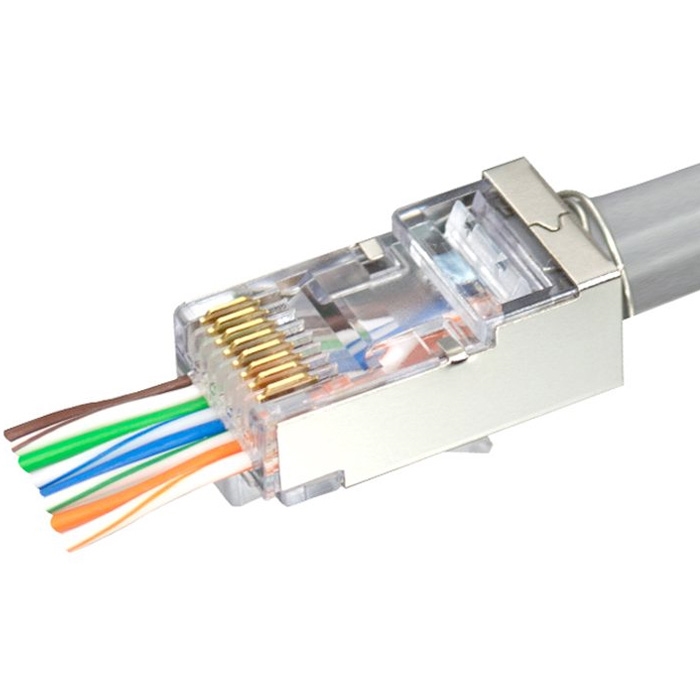

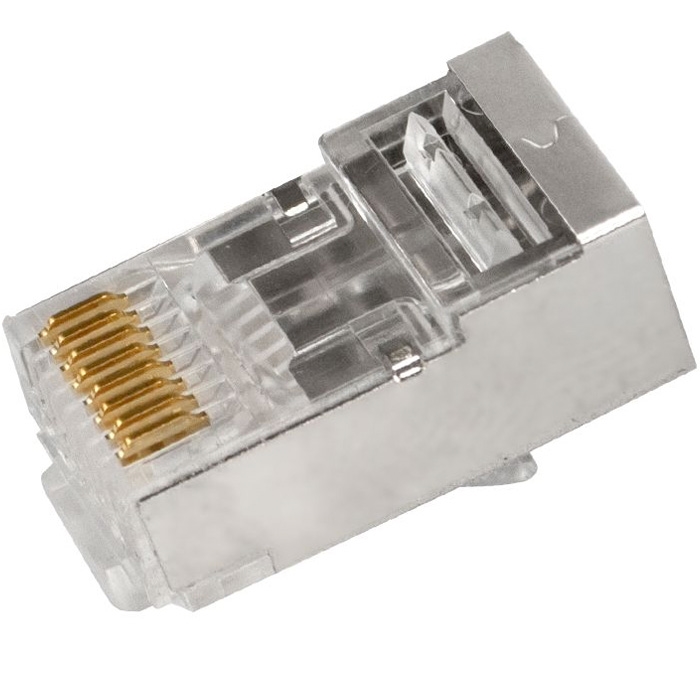

The SIMPLY45™ S45-1550 Shielded plug is a fully shielded single piece RJ45 with internal ground that allows Cat5e twisted-pair wire conductors to completely pass through the plug and out the front. This allows you to see and verify the wire alignment order before crimping.

Compatibility: Because of the improved features of Simply45's UTP connectors, the SIMPLY45 CRIMPER is the only tool that will properly crimp their connectors. Other Manufacturers tools are not compatible with these connectors.

Features:
  • Maintains wire pair twist synchronization at termination for improved cable performance
  • Improved design and engineering
  • Superior connectivity performance
  • Color-coded for easy plug identification
  • Fully compliant with all PoE and PoH standards

    • Specifications:

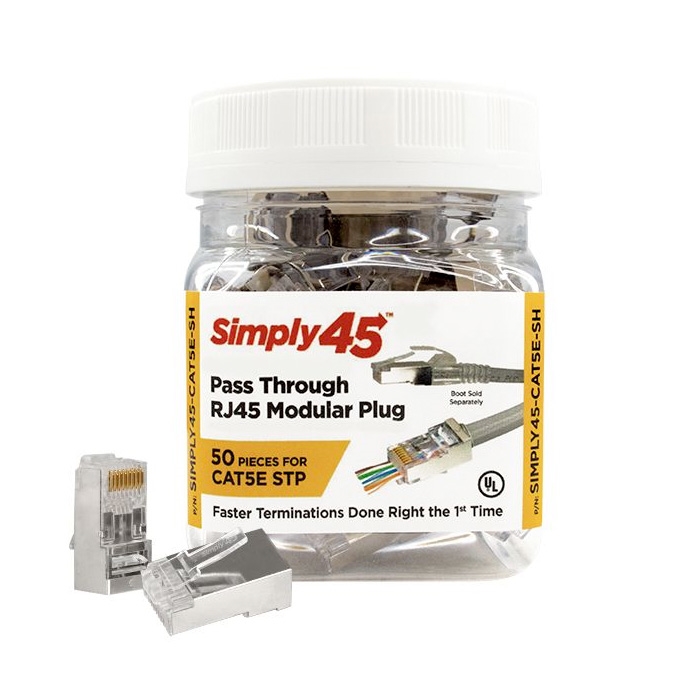

  • Quantity: 50pc
  • Performance: Meets or Exceeds ANSI/TIA 568-C.2; ISO/IEC 11801 Class D; ANSI/TIA 1096-A; IEC 60603-7
  • Cat5e STP Wire Cond(s) OD: 24AWG, Up to 0.039"-0.041" (1.00mm-1.05mm)
  • Max Cable Outer Diameter: 0.2402'' (6.10mm)
  • Supports PoE/PoH: Yes
  • Cable Fire Resistance Ratings: CMP Plenum, CMR, CM, CMX, LSZH EN50575:2014 up to B2ca-s1a,d1,a1
  • Flame Autoextinguish: UL94 V0, IEC 60695-11-10
  • Contact Material: Phosphor Bronze - .012" thick
  • Contact Plating: Min 50 Micro-Inch Pure Gold - 24 Carat Hard Gold Plate in contact area over 100 Micro-Inch Min Nickel Plating. Exceeds ANSI/TIA-1096-A specifications (formerly FCC Part 68)
  • Plug Material: Polycarbonate
  • Shielded Material: Hard Brass
  • Shielded Plating: 80 Micro-Inch minimum Nickel Plating
  • Plug Tolerances and Dimensions: Meets ANSI/TIA-1096-A specifications (formerly FCC Part 68)
  • Conductor Type(s): Solid and Stranded
  • Operating Temperature: -40º C to +70º C
  • Insertion/Extraction Life: 2000 Minimum Cycles
  • Contact Resistance: 20 Milli-Ohms maximum
  • Current/Voltage: 30 VAC/42 VDC at 1.5 Amps
  • Compliance: UL Listed, RoHS, FCC, NEC

    • Simply45 Crimp Tool Connector Compatability
    Simply45 Connector Compatability Chart
    Simply45 Fire Resistance Specifications
    Simply45 Technical Bulletin
