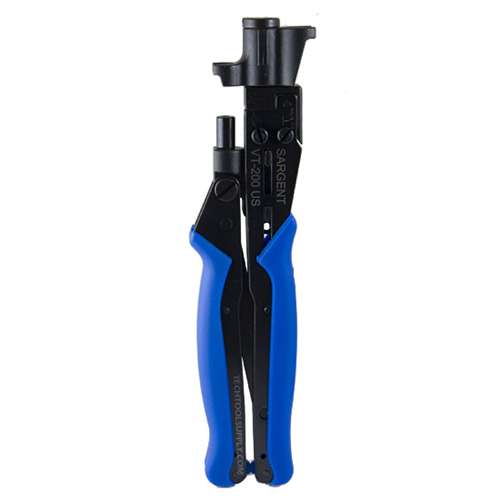

The SAR 200 US compression tool utilizes Rostra's unique popular handle design characteristic. Its front-load design allows ease of compression in confined areas and is specifically designed to work for use on EX6XL/EX59XL, for the perfect compression every time. With its rotatable head it quickly and easily alternates between RG6/59 and RG11/7 applications with a quick simple twist. The 200 US is also designed for use with RG6/59 & RG11/7 environmentally sealed F connectors by PPC, Gilbert, Thomas & Betts, Digicon, and more.
Features:
Comfortable Grips
Hardened Steel Construction
Rotatable Head
Black Oxide Finish
Specifications:
Crimp/HEX/Wire Sizes: RG6/59 & RG11/7
Connector/Terminal Type: Compression F Connectors
8.25 in. long
Compatibility:
PPC:
CMP6, CMP6Q, CMP59, CMP59Q, CMP11, EX6XL, EX59XL, EX59XLHE, EX6XLWS, EX6LP, EX7, EX7N716, EX11, EX11N716, EX320QR, EX320N716
Thomas & Betts: Snap-N-Seal (SNS)
DIGICON: DS6, DS59, DS6Q, DS59Q, DS11, DS7
GILBERT - UltraEase: GF-UE-59, GF-UE-59Q, GF-UE-6, GF-UE- 6Q, GF-UE-5.1
** Please Note: PPC currently manufactures two versions of RG6/59 compression connectors: the EX6/EX59 and the EX6XL/EX59XL. These two different styles of connectors differ in size and require two completely different compression tools. This tool is designed for the EX6XL/EX59XL. Please refer to part VT-300 for EX6/EX59.
CIFA# 39451
|
|
|
 |
|
 |
|
