Ripley Miller FOC-SS Fiber Optic Cleaver

Home > Categories > Fiber Prep & Termination >

TTS PRICE: $164.99

STATUS:

IN STOCK

Availability:

Normally Ships Same Day

PRODUCT CODE: RIP-46490

QUANTITY:

PRODUCT DESCRIPTION

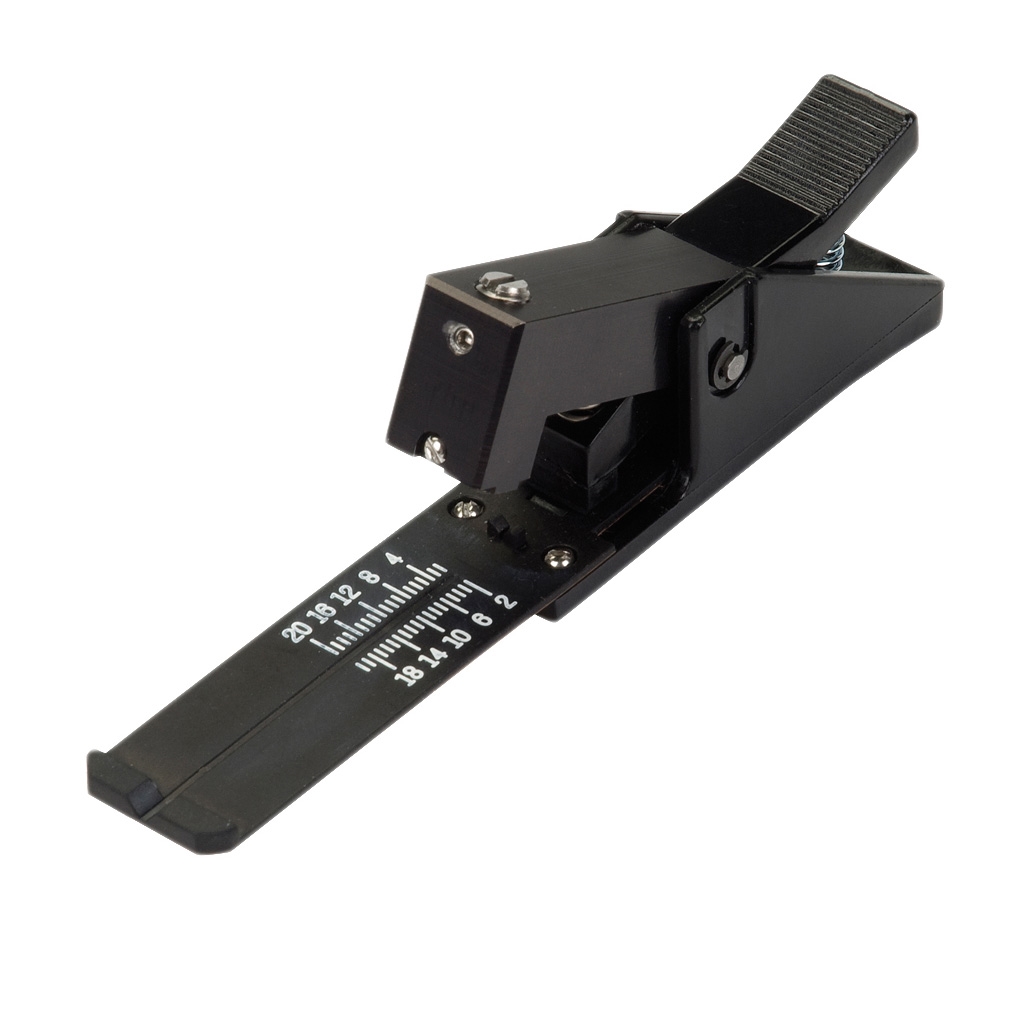

Ripley Miller's FOC-SS is designed for fiber cleaving applications that include field termination of fiber connectors and mechanical splices as well as laboratory applications.

Features:

Small, lightweight and easy to use

Graduated leaf spring scale, which allows cleave lengths of 2.0 mm to 20.0 mm

“Score and Snap” leaf spring function is easy, fast and is the preferred method by many fiber installers

Precise cleave endface angle of less than 2 degrees

Supplied with a standard carbide cleaving blade capable of over 6,000 consistent cleaves

Designed for single mode and multimode fiber with cladding O.D. diameter of 125 micron with no operator tool adjustments

Cleaver and instructions come in a 2.12 oz (60g) hard plastic case that measures 5.38 x 3.38 x 1.13 in. (137 x 86 x 29 mm)

Made in the U.S.A.

Specifications:

Cladding O.D. Diameter: 125 micron

Cleave Angle: less than 2 degrees

Cleave Lengths: 2.0 mm to 20.0 mm

Cleaver Dimension: 4.88 x 0.79 x 1.57 in. (124 x 20 x 40 mm)

Weight: 2.12 oz (60g)

Miller FOC-SS Instruction Sheet
