Ripley Miller Corning RocketRibbon Access Tool

Ripley Miller Corning RocketRibbon Access Tool


Alternative Views:


TTS PRICE: $331.99


STATUS:  IN STOCK

Free Shipping

Availability:
Normally Ships Same Day

PRODUCT CODE: RIP-MB07-7000
QUANTITY:

PRODUCT DESCRIPTION

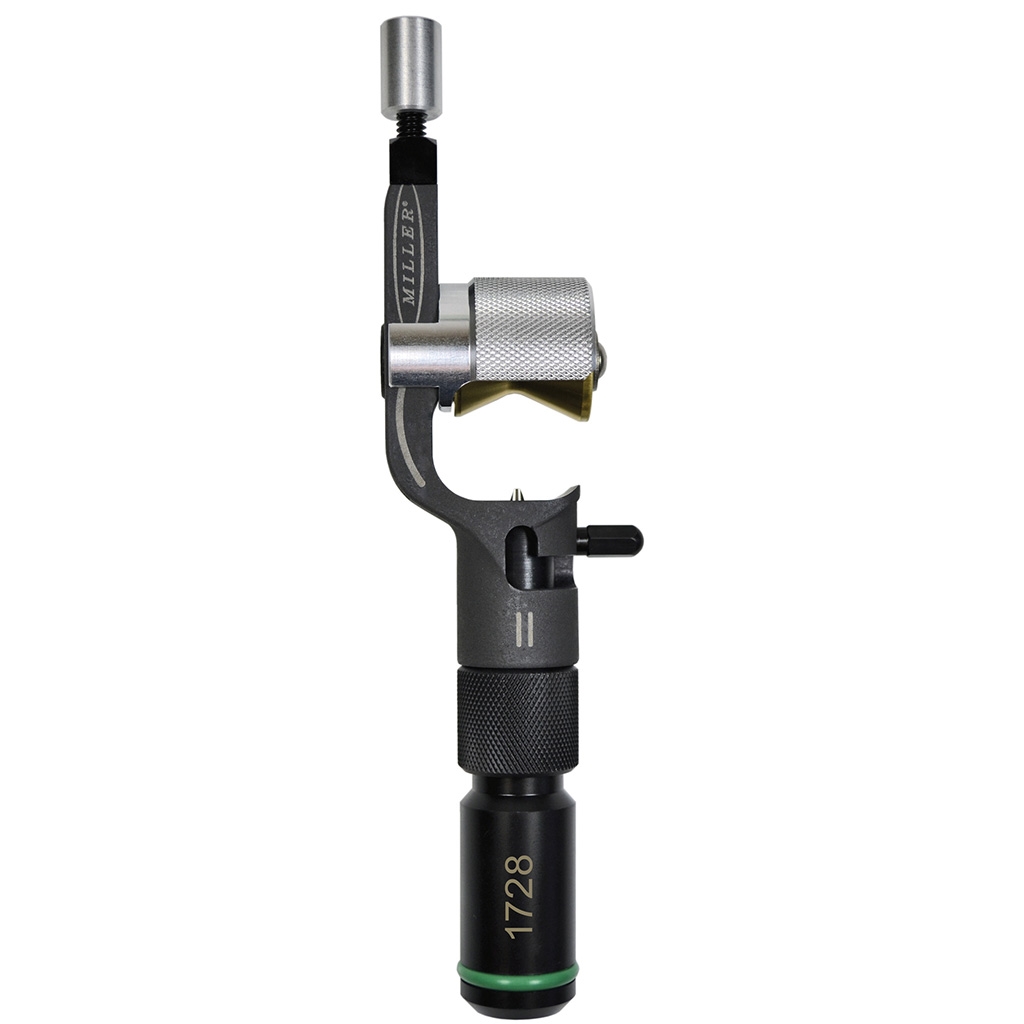

The Miller MB-07 Cable Slitter from Ripley Tools is designed specifically for Corning’s RocketRibbon Extreme Density Cable, which has a fiber count of 1728. “Corning required a reliable tool to access fiber in midspan applications with higher repeatability than using a field knife, which has the potential to damage cable and fiber,” Ripley explains. The MB07-7000 midspan access tool has been certified by Corning for use with the RocketRibbon 1728. The slitter is constructed with an aluminum body; it enables end or midspan cable preparation to access subunits and ripcords without damaging the fiber. The design includes a safety shielded factory-set tool steel blade with a unique finger “comfort grip” and brass guide wheel to reduce drag while performing longitudinal cuts.

Features:

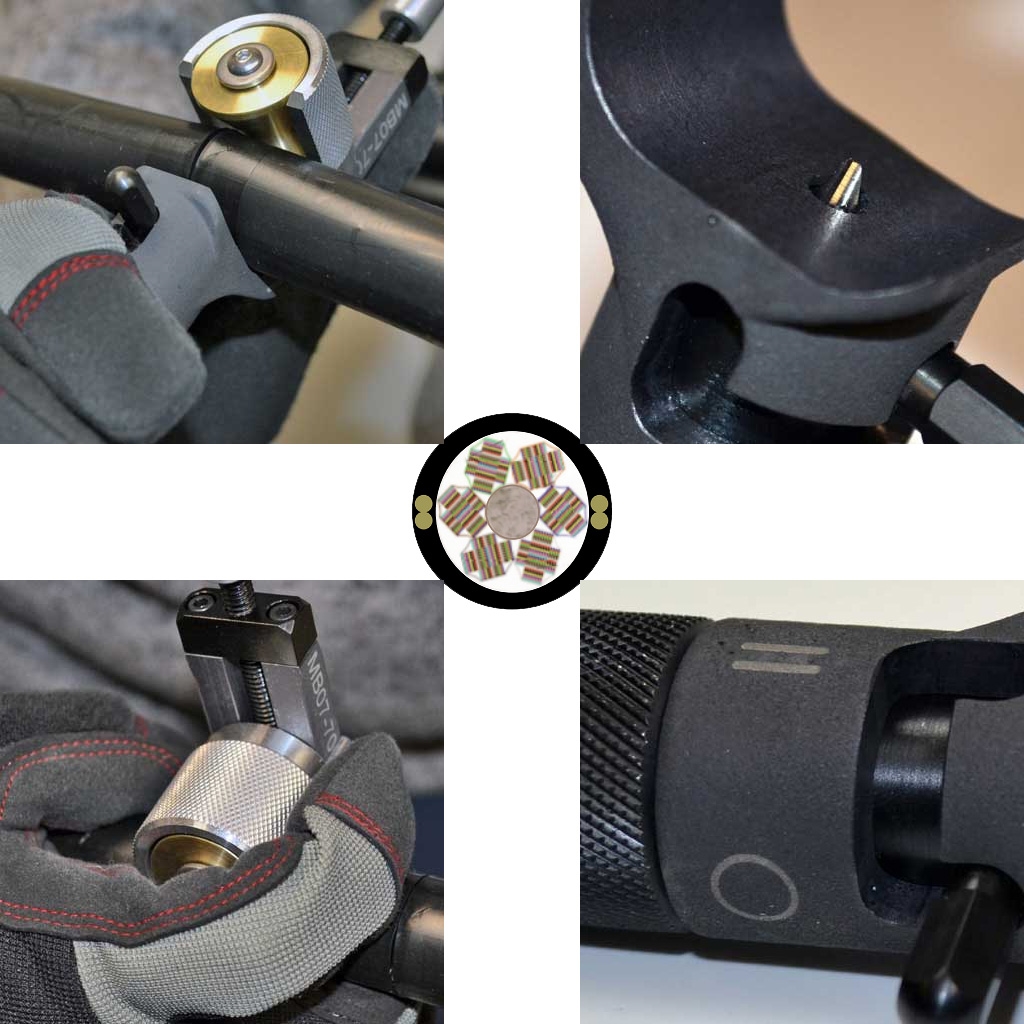

  • Precision factory-set blade depth ensures no fiber damage
  • Shielded blade promotes safe operation and prevents injuries
  • Compatible with Corning RocketRibbon™ 1728, 864 & 432 Cables
  • Single brass guide wheel reduces drag while performing longitudinal cuts
  • Ergonomic handle provides greater leverage during ring cuts and finger grip provides comfortable hand positioning during longitudinal cuts
  • Rugged aluminum tool body and high-performance tool steel blade ensures longevity
  • Efficiently performs ring and longitudinal cuts on cable mid-span or end — no blade adjustment necessary

  • Specifications:
  • Cable Access: Mid-Span, End
  • Cable Compatibility: Corning RocketRibbon™ Cable
  • Material: Aluminum
  • Dimensions: 7.7″ x 2.0″ x 1.375″ (195.6 x 50.8 x 34.9 mm)
  • Weight: 11.12 oz (315.25 g)
  • Replacement Blade Part #: MB07-7500 (not included)
