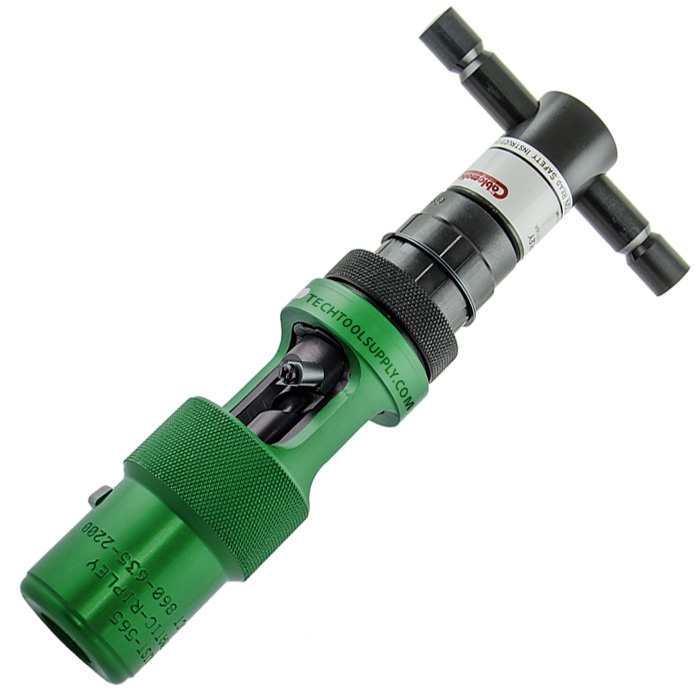

The QCST-840 conveniently attaches the jacket stripper body (QJST) to the main body of the coring and stripping tool by means of a "quick-change" rotating body ring. With Ripley's Quick Change Coring and Stripping tool, you can accurately strip the jacket, core out the dielectric, strip and bevel the aluminum sheath, all in one! Use this trunk tool on Times Fiber TX and CommScope P3 cables.

The QJST color coded jacket stripping body is removed and used in a 2 step operation when using flooded cables:
STEP 1 - Remove the jacket with the removable QJST.
STEP 2 - Remove flooding compound from cable and use the QCST coring and stripping tool body to complete the preparation.

Features:

All-In-One

Jacket stripping body (QJST), when used separately to remove the jacket on flooded cable, is uniquely designed to automatically provide 3.50 inch (88.9mm) of jacket removal when rotated to the end of the body

Jacket stripper body and coring / stripping tool guide sleeve are all color coded for easy cable identification

Pre-set jacket blade assures no scoring or nicking of aluminum sheath

Chamfered strip stop is factory installed

Rugged, durable, all-metal construction

Heat treated sheath cutting blade produces a smooth beveled edge and can be replaced without the expense of replacing the entire coring bit

Spiral-fluted, heat treated steel bit

Use of CC-100 or CC-200 Center Conductor Cleaner/Scraper removes residual dielectric which remains on the conductor after coring and stripping

Specifications:

1" (25.4 mm) stop for 412-750 tools and a 1-1/16" (27 mm) stop for 840-1160 tools

Ratchet "T" handle and a separate 3/8 inch (9.5mm) drill adapter

Cable Type: 840

Body Color: Green

Length: 8.1 in.

Weight: 1 lb 4 oz.

Made in the U.S.A
