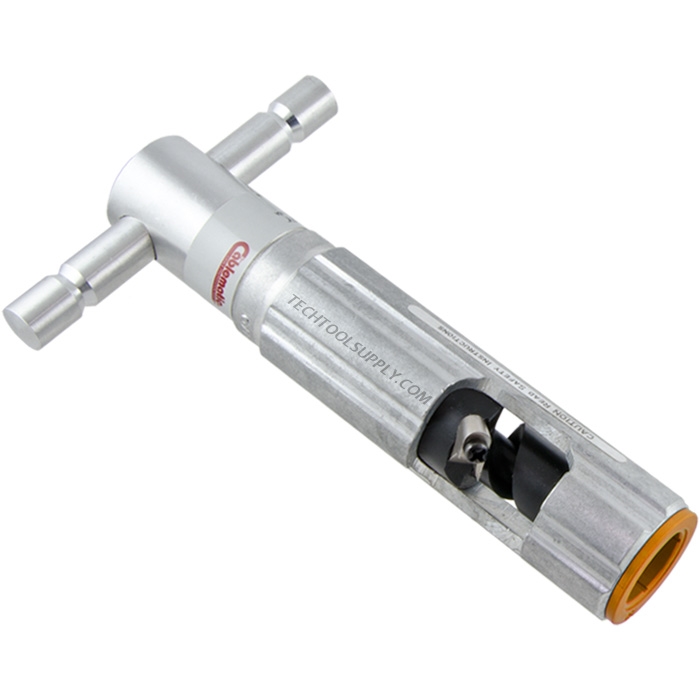

Ripley's CST-21000-R is for those who prefer the ratcheting mechanism over the non-ratcheting CST-21000. It is designed as a combination tool that cores dielectric foam, bevels the aluminum sheath and strips the polyethylene jacket of the trunk and distribution cable by hand or drill application. This coring tool is designed for use with the following: CommScope P1, P3 Cable Guard Cable; Times Fiber T4, T6, T10 Cable; Alcatel Cable Benelux - ACE Cable.

Features:

Combination tool cores and strips in one fast and precise operation

Heat treated sheath cutting blade produces a smooth beveled edge and can be replaced without the expense of replacing the entire coring bit

Spiral-fluted, heat-treated steel coring bit

Rugged, durable, all-metal construction

Color coded cable guide sleeves for easy cable size identification

Specifications:

Manual or drill operation; CST tools have a standard "T" handle with a built-in 3/8 inch (9.5mm) drill adapter

Ratcheting

Cable Type: 1000

Sleeve Color: Orange

Length: 6.83 in.

Width: 1.61 lbs.

Feature Sheet & Sizing Info
CST Instruction Sheet
