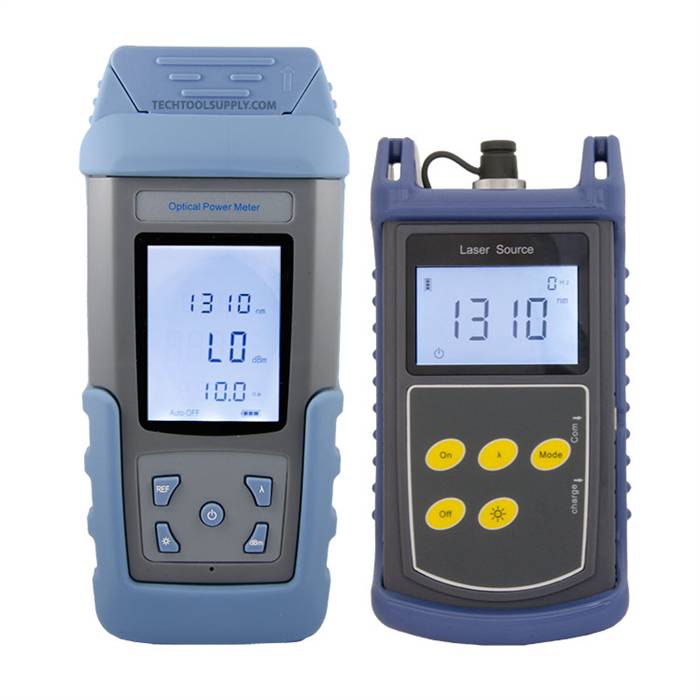

This affordable Fiber Optic combo kit is great for both new and veteran fiber techs alike! The Kit Includes: 1x ST800K-B Power Meter, 1x RMT-ST815B Laser Power Source, 2x FC Adapters (Pre Installed), 2x SC Adapters, 2x ST Adapters, 2x LC Adapters, 6x AA Batteries, and 2x Operation Manuals. If you are looking for a kit that also includes all of the necessary tools for installing fiber connectors, have a look at the
RMT-ST3900 Kit.

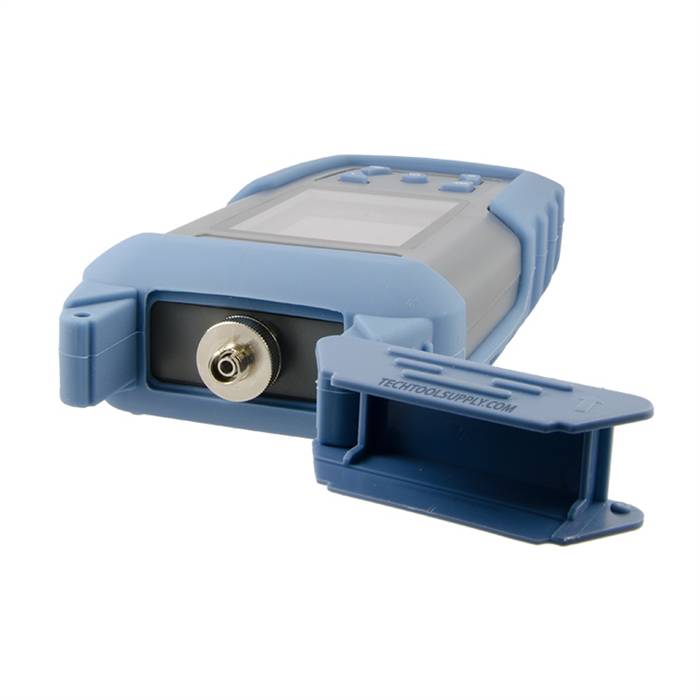

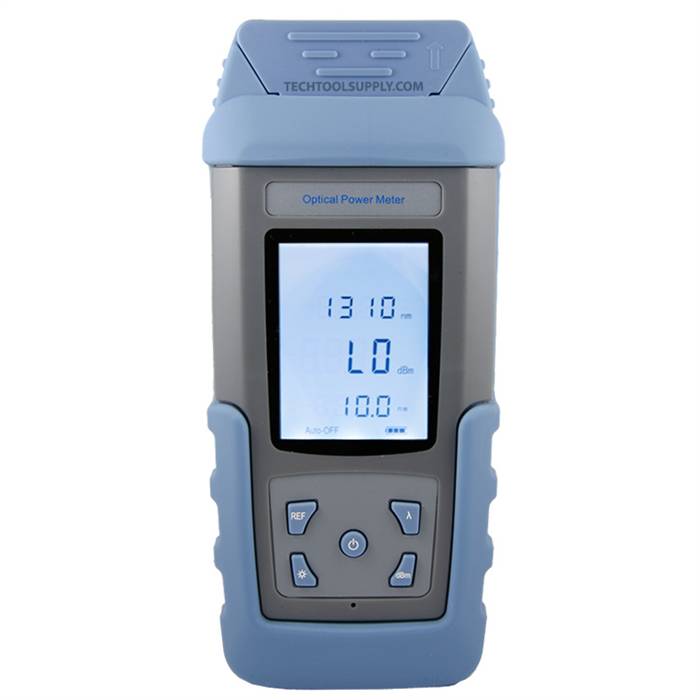

Optical Power Meter
With a wide range of functions, ST800K-B optical power meter is a powerful tool for use in fiber-optic installation and maintenance. Its rugged, durable construction makes it the perfect choice for a wide range of field applications.
The ST800K-B Optical Power Meter can test optical power within the range of 800~1700nm wave length. There are six kinds of wavelength calibration points: 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm. The ST800K can be used for linearity and non-linearity testing and can display both direct and relative testing of optical power.
Features:
Multi-Wavelength Precise Measurement
Absolute Power Measurement of dBm or xW
Relative Power Measurement of dB
Auto-Off Function
270, 330, 1K, 2KHz Frequency Light Identification and Indication
Low Voltage Indication

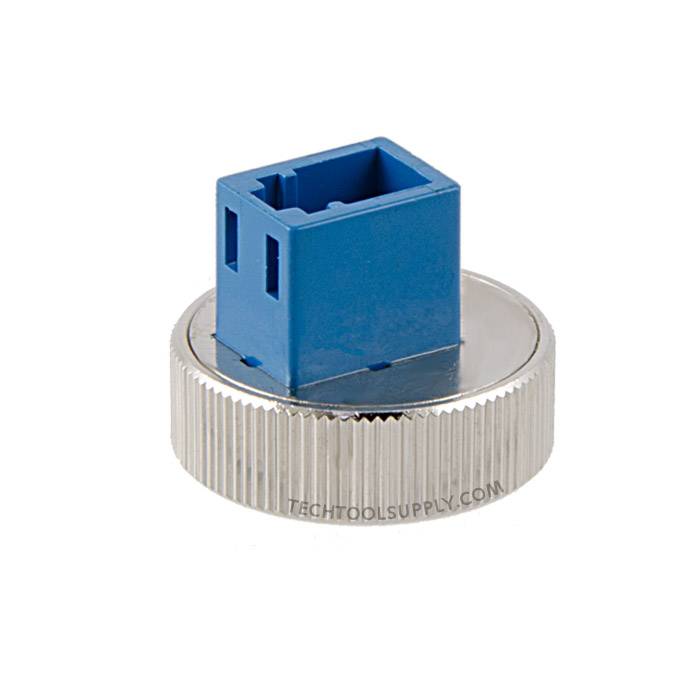

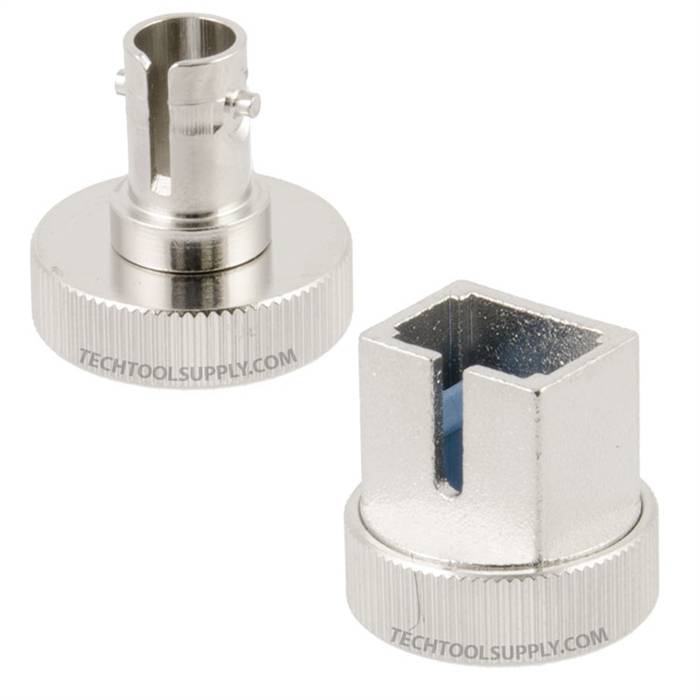

Versatile Adapters Work With: LC, FC, ST, and SC
Handheld, Large LCD Backlight Display, Easy-to-Use
1 Year Warranty
Specifications:
Power testing range (dBm): -50 to +26 (Click Here for -70 to +3dBm version)
Wavelength range (nm): 800-1700nm
Detector type: InGaAs
Standard wavelength(nm): 850, 1300, 1310, 1490, 1550, 1625
Tolerance: ±5%
Resolution: Linearity: 0.1%, Logarithm: 0.01dBm
Connectors: LC, FC, ST, and SC
Working Temperature (°C): -10 to +50
Storage Temperature (°C): -30 to +60
Weight(g): .95lbs (430g) (without Batteries)
Dimension (mm): 7.87in x 3.54in x 1.69in (200mm x 90mm x 43mm)
Battery Type: 4x AA
Working Battery Duration: 150 Hours
Auto-Off: 10 Minutes

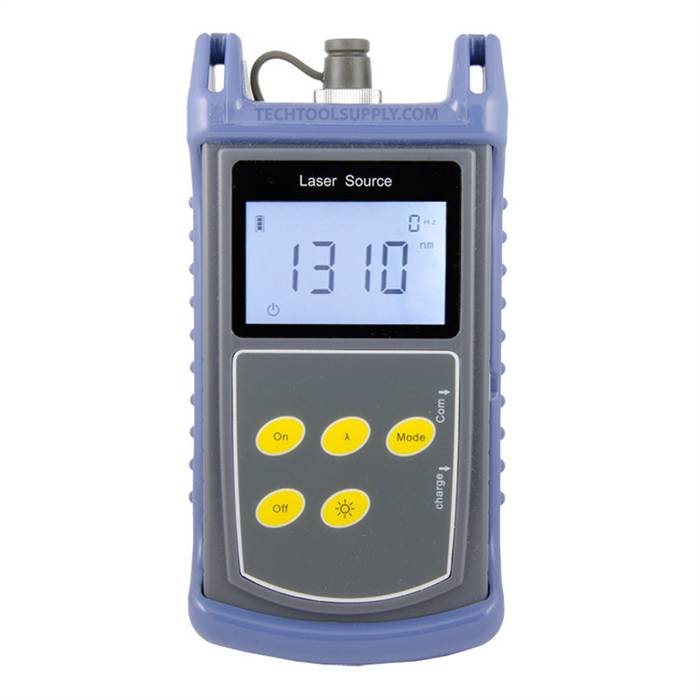

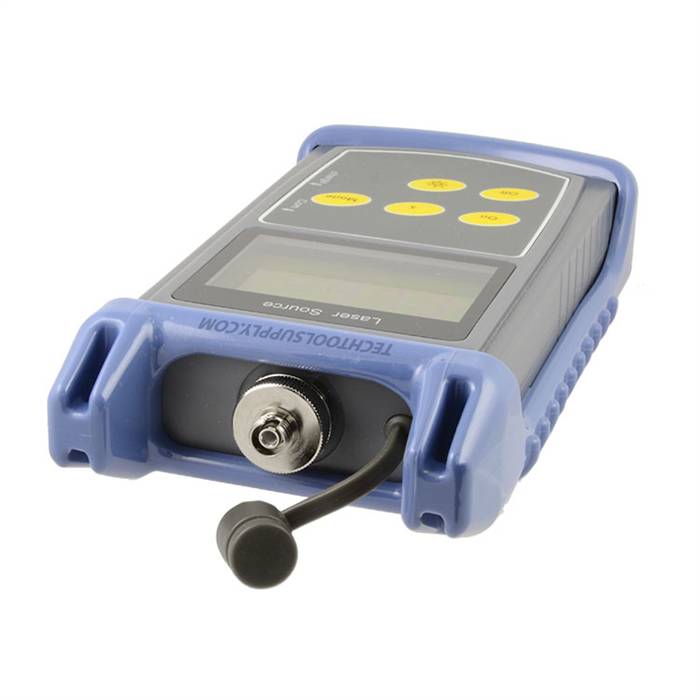

Laser Power Source
The ST815B Series handheld optical light source is a feature rich high quality device at a fraction of competing models. The ST815B's Highly stable output power and wavelength make it the ideal instrument for optical network installation, trouble shooting, and maintenance.
Together with the
ST800K-B (included) or ST800K-D (not included) optical power meter, it is a perfect solution for fiber optic network applications.
Features:
Continuous Light, Modulated Light Output
Output Double Wavelength Through One Port
High Stabilization
Auto-Off 10 Minutes
Supports LC, FC, SC, and ST Adapters
Big Display LCD
LED Backlight Switch On/Off
Auto Close Back Light in 8 Seconds Without Operation
AAA Battery
Battery Voltage Display
Low Voltage Checking and Shut Off to Save Energy
Identify the Wavelength Automatically
1 Year Warranty
Specifications:
Emitter Type: Fabry_Perot LD/DFB-LD
Output Wavelength Switch(nm): 1310±20nm, 1550±20nm, 1490±20nm
Spectral Width (nm): < 5
Output Optical Power (dBm):> -7
Optical Output Mode: CW/270Hz, 1kHz, 2kHz
Optical Interface: FC,SC,ST
Power Stability (dB) (Short time): < ±0.05 / 15min
Power Stability (dB) (Long time): < ±0.10 / 5h
Working Temperature (°C): 0 to +40
Storage Temperature (°C): -10 to +70
Weight: .485lbs (.22kg)
Dimensions: 6.3in x 3in x 1.1in (160mm x 76mm x 28mm)
Battery Type: 2x AA Batteries
Battery Working Duration (h): 15 Hours
Low Voltage Warning: < 7.2V
Package Includes:
ST815B Light Source
Protective Shell
2x AA Batteries
Cotton Swabs
Users Manual
|
|
|
 |
|
 |
|
