RMT Laser Source - 1310/1550 FC ST SC LC

RMT Laser Source - 1310/1550 FC ST SC LC


Alternative Views:
TTS PRICE: $224.99

STATUS: ON ORDER

Free Shipping

Availability:
Normally Ships Same Day

PRODUCT CODE: RMT-ST815B
QUANTITY:

PRODUCT DESCRIPTION

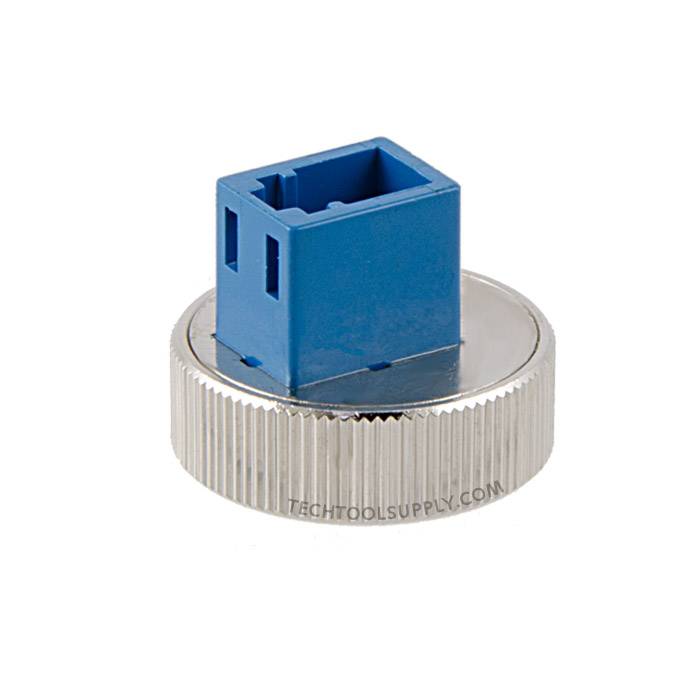

In addition to working with FC, ST, and SC connectors, the RMT-ST815B Laser Source has an upgraded style Laser head which is compatible with LC connectors (adapter included).

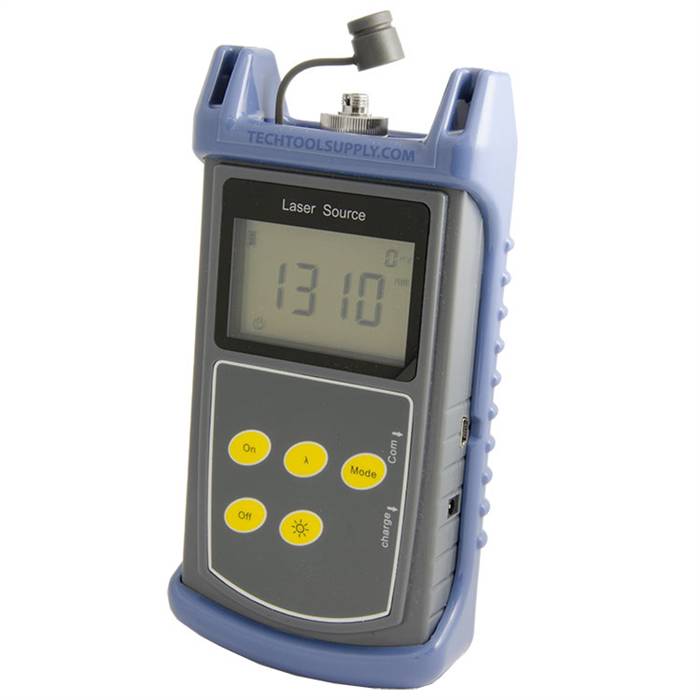

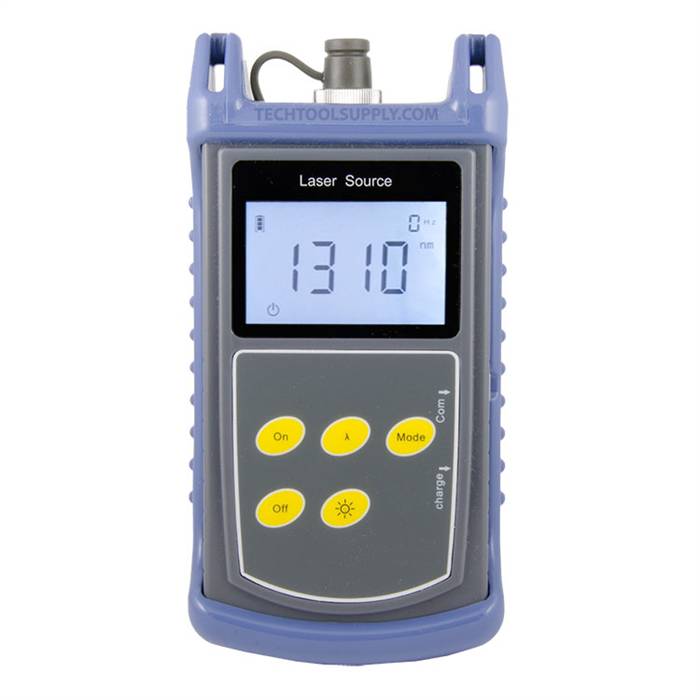

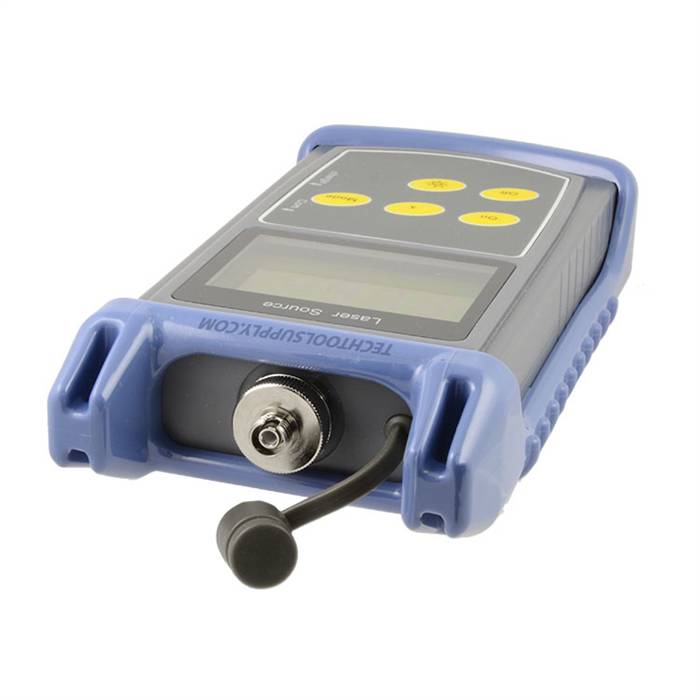

The ST815B Series handheld optical light source is a feature rich high quality device at a fraction of competing models. The ST815B's Highly stable output power and wavelength make it the ideal instrument for optical network installation, trouble shooting, and maintenance.

Together with the ST800K-B (not included) or ST800K-D (not included) optical power meter, it is a perfect solution for fiber optic network applications.

Features:
  • Continuous Light, Modulated Light Output
  • Output Double Wavelength Through One Port
  • High Stabilization
  • Auto-Off 10 Minutes

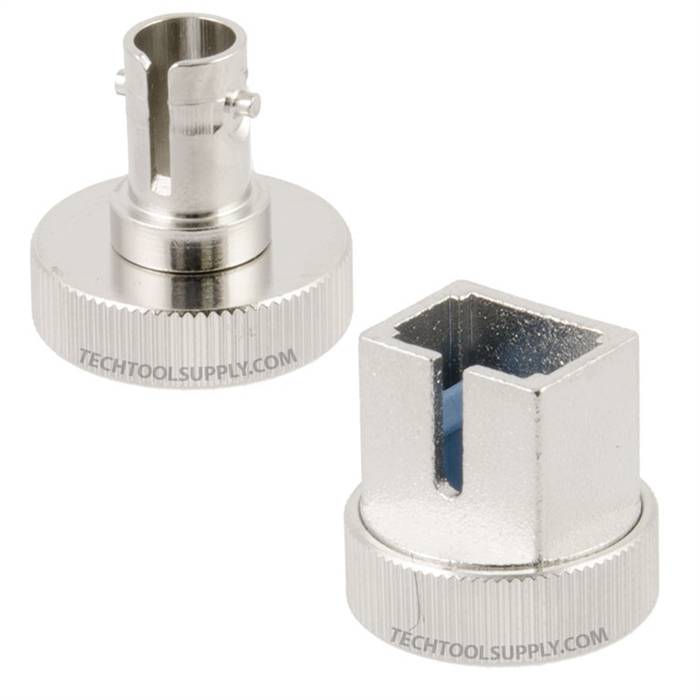

  • Supports LC, FC, SC, and ST Adapters
  • Big Display LCD
  • LED Backlight Switch On/Off
  • Auto Close Back Light in 8 Seconds Without Operation
  • AAA Battery
  • Battery Voltage Display
  • Low Voltage Checking and Shut Off to Save Energy
  • Identify the Wavelength Automatically
  • 1 Year Warranty

    • Specifications:
  • Emitter Type: Fabry_Perot LD/DFB-LD
  • Output Wavelength Switch(nm): 1310±20nm, 1550±20nm
  • Spectral Width (nm): < 5
  • Output Optical Power (dBm):> -7
  • Optical Output Mode: CW/270Hz, 1kHz, 2kHz
  • Optical Interface: FC,SC,ST
  • Power Stability (dB) (Short time): < ±0.05 / 15min
  • Power Stability (dB) (Long time): < ±0.10 / 5h
  • Working Temperature (°C): 0 to +40
  • Storage Temperature (°C): -10 to +70
  • Weight: .485lbs (.22kg)
  • Dimensions: 6.3in x 3in x 1.1in (160mm x 76mm x 28mm)
  • Battery Type: 2x AA Batteries
  • Battery Working Duration (h): 15 Hours
  • Low Voltage Warning: < 7.2V

    • Package Includes:
  • ST815B Light Source
  • Protective Shell
  • 2x AA Batteries
  • Cotton Swabs
  • Users Manual
    •
