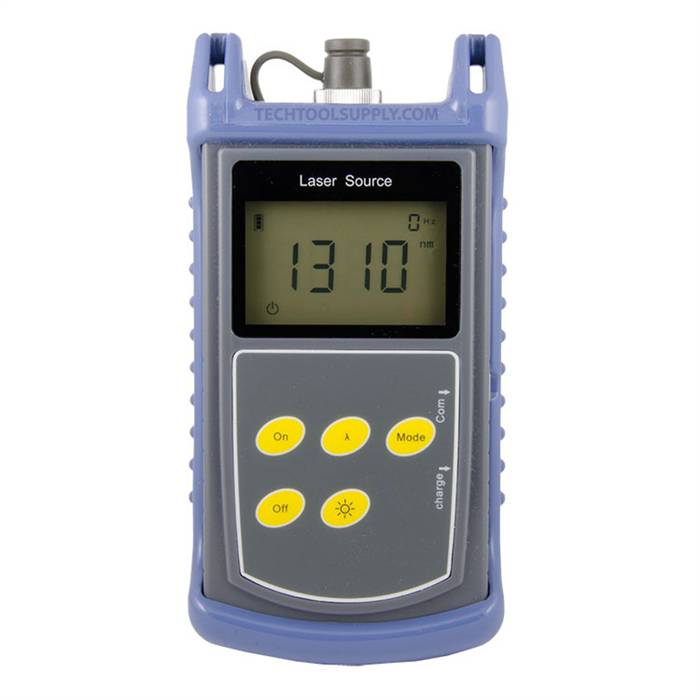

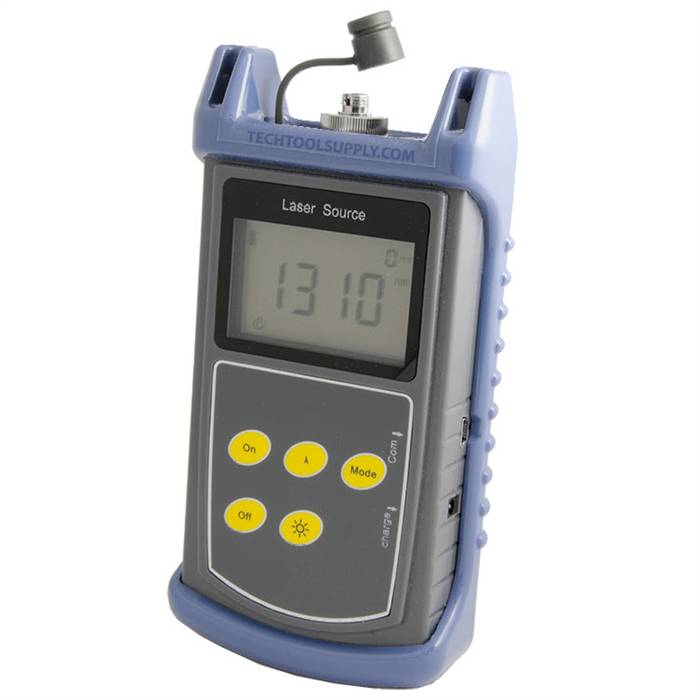

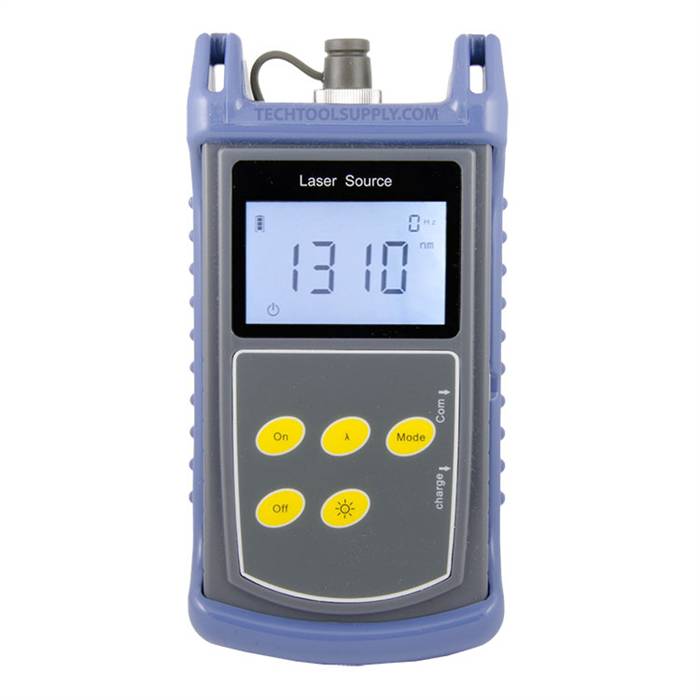

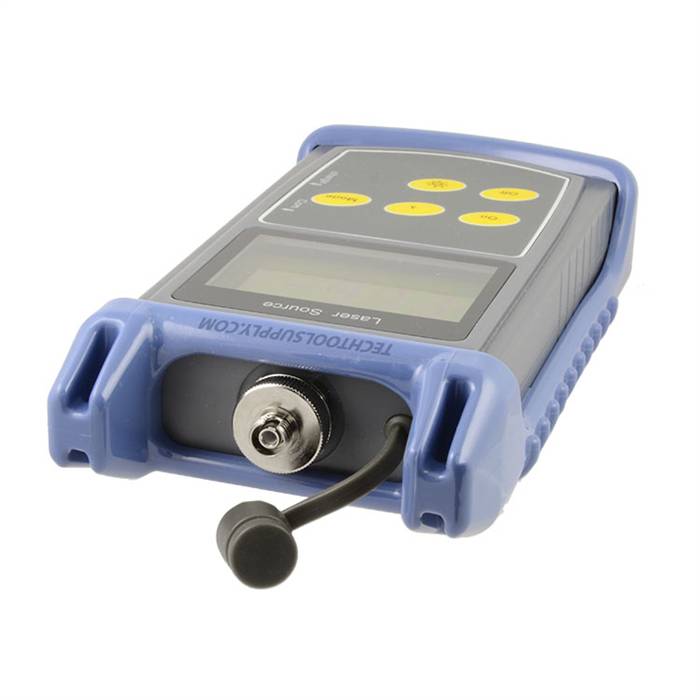

The ST815 Series handheld optical light source is a feature rich high quality device at a fraction of competing models. The ST815's Highly stable output power and wavelength make it the ideal instrument for optical network installation, trouble shooting, and maintenance.
Together with the
ST800K-A (not included) or ST800K-C (not included) optical power meter, it is a perfect solution for fiber optic network applications.
Features:
Continuous Light, Modulated Light Output
Output Double Wavelength Through One Port
High Stabilization
Auto-Off 10 Minutes

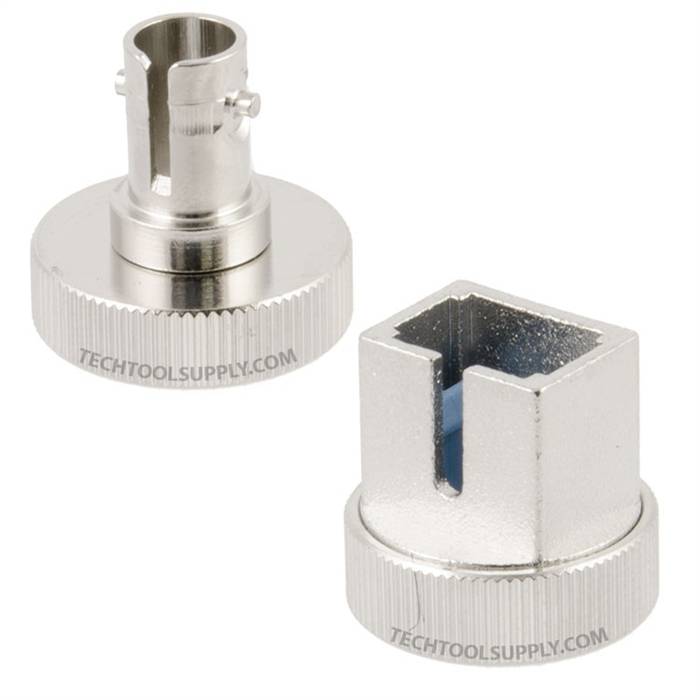

Supports FC, SC, and ST Adapters
Big Display LCD
LED Backlight Switch On/Off
Auto Close Back Light in 8 Seconds Without Operation
AAA Battery
Battery Voltage Display
Low Voltage Checking and Shut Off to Save Energy
Identify the Wavelength Automatically
1 Year Warranty
Specifications:
Emitter Type: Fabry_Perot LD/DFB-LD
Output Wavelength Switch(nm): 1310±20nm, 1550±20nm
Spectral Width (nm): < 5
Output Optical Power (dBm):> -7
Optical Output Mode: CW/270Hz, 1kHz, 2kHz, 330Hz
Optical Interface: FC,SC,ST
Power Stability (dB) (Short time): < ±0.05 / 15min
Power Stability (dB) (Long time): < ±0.10 / 5h
Working Temperature (°C): 0 to +40
Storage Temperature (°C): -10 to +70
Weight: .485lbs (.22kg)
Dimensions: 6.3in x 3in x 1.1in (160mm x 76mm x 28mm)
Battery Type: 2x AA Batteries
Battery Working Duration (h): 15 Hours
Low Voltage Warning: < 7.2V
Package Includes:
ST815 Light Source
Protective Shell
2x AA Batteries
Cotton Swabs
Users Manual
If you are looking for a kit that also includes all of the necessary tools for installing fiber connectors, have a look at the
RMT-ST3900 Kit
|
|
|
