RMT Fiber Optical Laser Power Source - 1310/1550/850/1300nm

RMT Fiber Optical Laser Power Source - 1310/1550/850/1300nm


Alternative Views:
TTS PRICE: $303.99

STATUS:  IN STOCK

Free Shipping

Availability:
Normally Ships Same Day

PRODUCT CODE: RMT-ST815C
QUANTITY:

PRODUCT DESCRIPTION

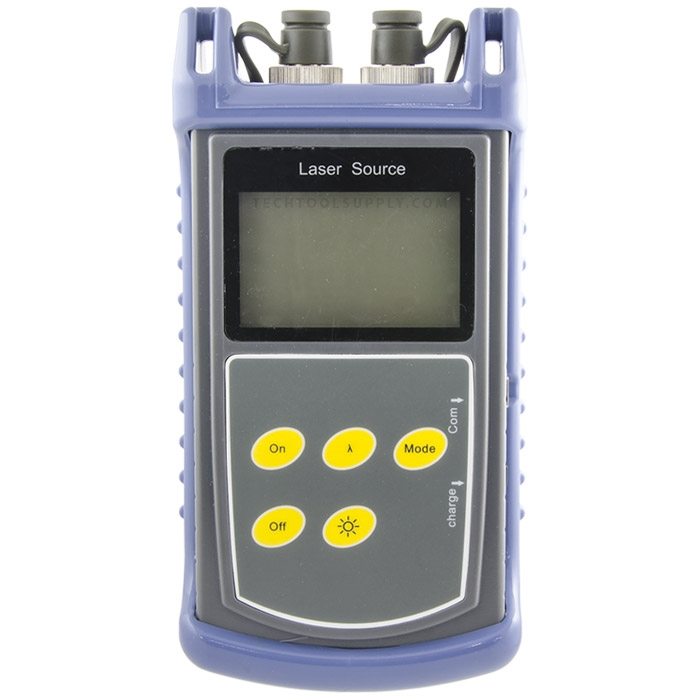

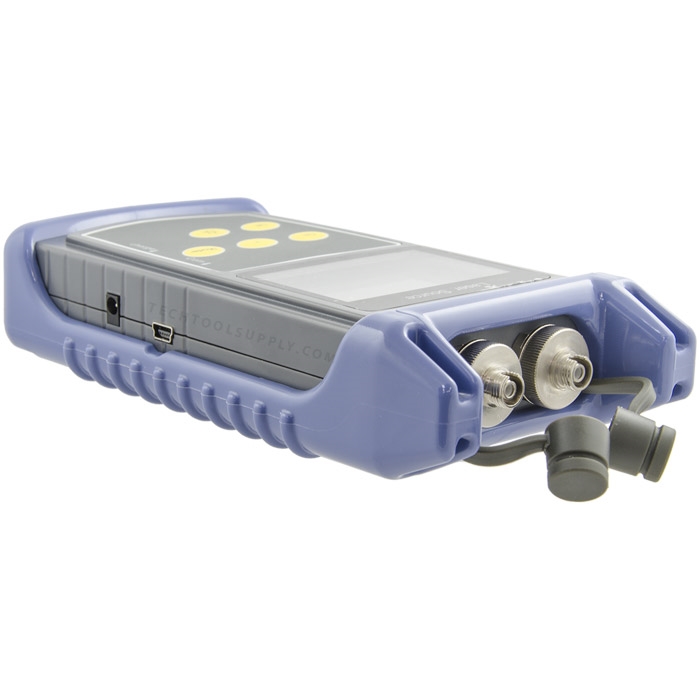

The ST815C Laser Source can support stable laser signal on many wavelengths, it can identify fiber, test fiber loss and continuity, and help to evaluate the transmission quality of a fiber chain.

With features such as it's durable structure, large LCD display with backlight and friendly operation interface, the ST815 advanced stability handheld optical light source provides convenience for your technician's in the field.

Together with the ST800K-A (not included) or ST800K-C (not included) optical power meter, it is a perfect solution for fiber optic network applications.

Features:
  • Continuous Light, Modulated Light Output
  • Output Double Wavelength Through One Port
  • High Stabilization
  • Auto-Off 10 Minutes
  • Supports FC, SC, and ST Adapters
  • Big Display LCD
  • LED Backlight Switch On/Off
  • Auto Close Back Light in 8 Seconds Without Operation
  • AAA Battery
  • Battery Voltage Display
  • Low Voltage Checking and Shut Off to Save Energy
  • Identify the Wavelength Automatically
  • 1 Year Warranty

    • Specifications:
  • Emitter Type: Fabry_Perot LD/DFB-LD
  • Output Wavelength Switch(nm): 1310±20nm, 1550±20nm, 850±20nm, 1300±20nm
  • Spectral Width (nm): +/- 5
  • Output Optical Power (dBm): +/- -7
  • Optical Output Mode: CW/270Hz, 1kHz, 2kHz, 330Hz
  • Optical Interface: FC,SC,ST
  • Power Stability (dB) (Short time): +/- ±0.05 / 15min
  • Power Stability (dB) (Long time): +/- ±0.10 / 5h
  • Working Temperature (°C): 0 to +40
  • Storage Temperature (°C): -10 to +70
  • Weight: .485lbs (.22kg)
  • Dimensions: 6.3in x 3in x 1.1in (160mm x 76mm x 28mm)
  • Battery Type: 2x AA Batteries
  • Battery Working Duration (h): 15 Hours
  • Low Voltage Warning: +/- 7.2V

    • Package Includes:
  • ST815C Light Source
  • Protective Shell
  • 2 - AA Batteries
  • Cotton Swabs

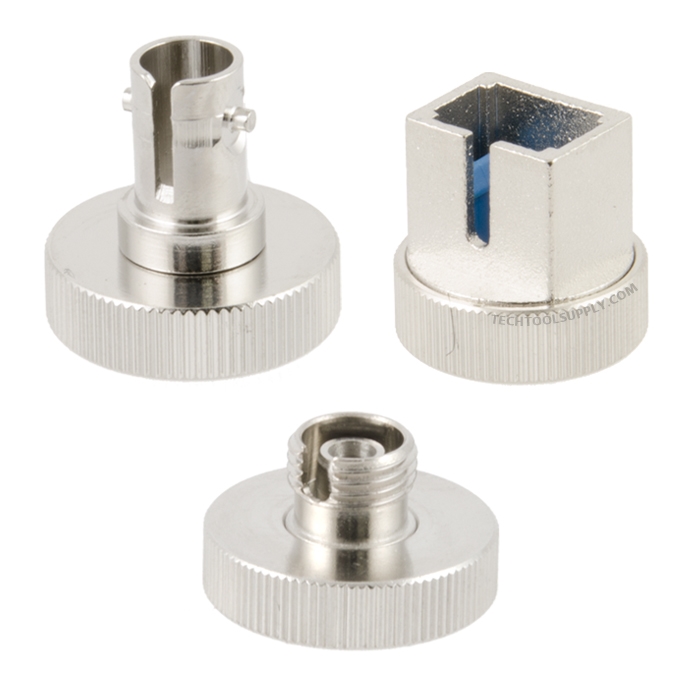

  • 2 - ST Adapters
  • 2 - SC Adapters
  • 2 - FC Adapters
    •
