Platinum Tools ezEX-44 Shielded CAT6 Connectors

Home > Categories > Connectors & Adapters > ezEX-RJ45 Connectors >

Platinum Tools ezEX-44 Shielded CAT6 Connectors - Jar of 50

Alternative Views:

TTS PRICE: $96.04

STATUS: ON ORDER

Availability:

Normally Ships Same Day

PRODUCT CODE: PLA-202050J

QUANTITY:

PRODUCT DESCRIPTION

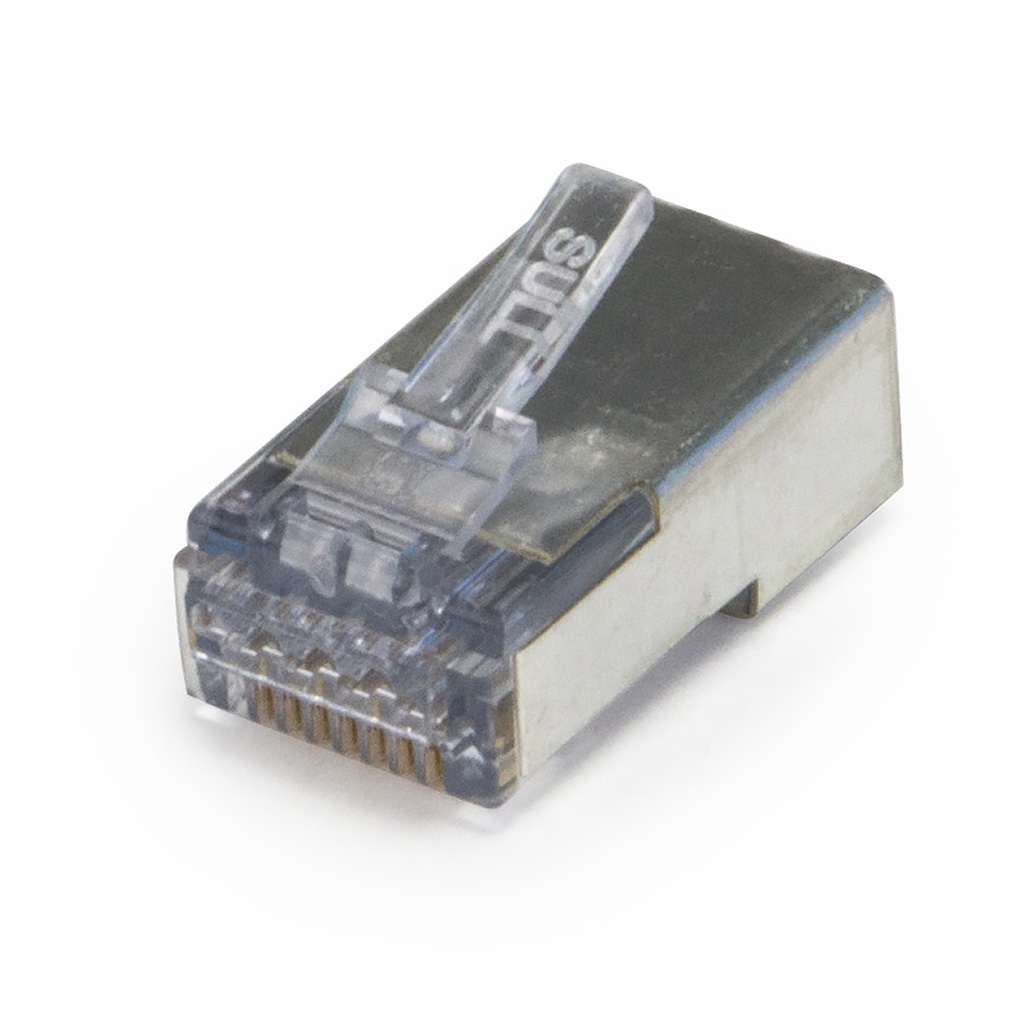

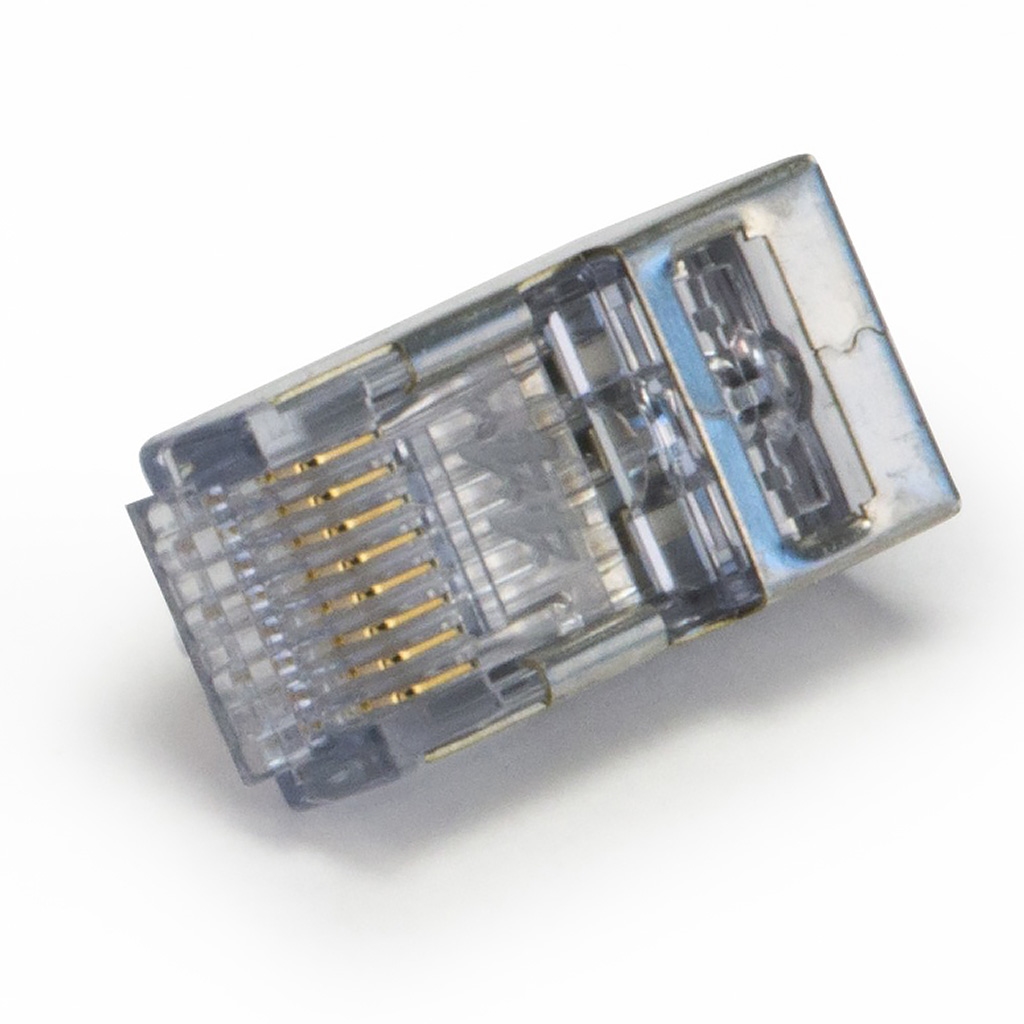

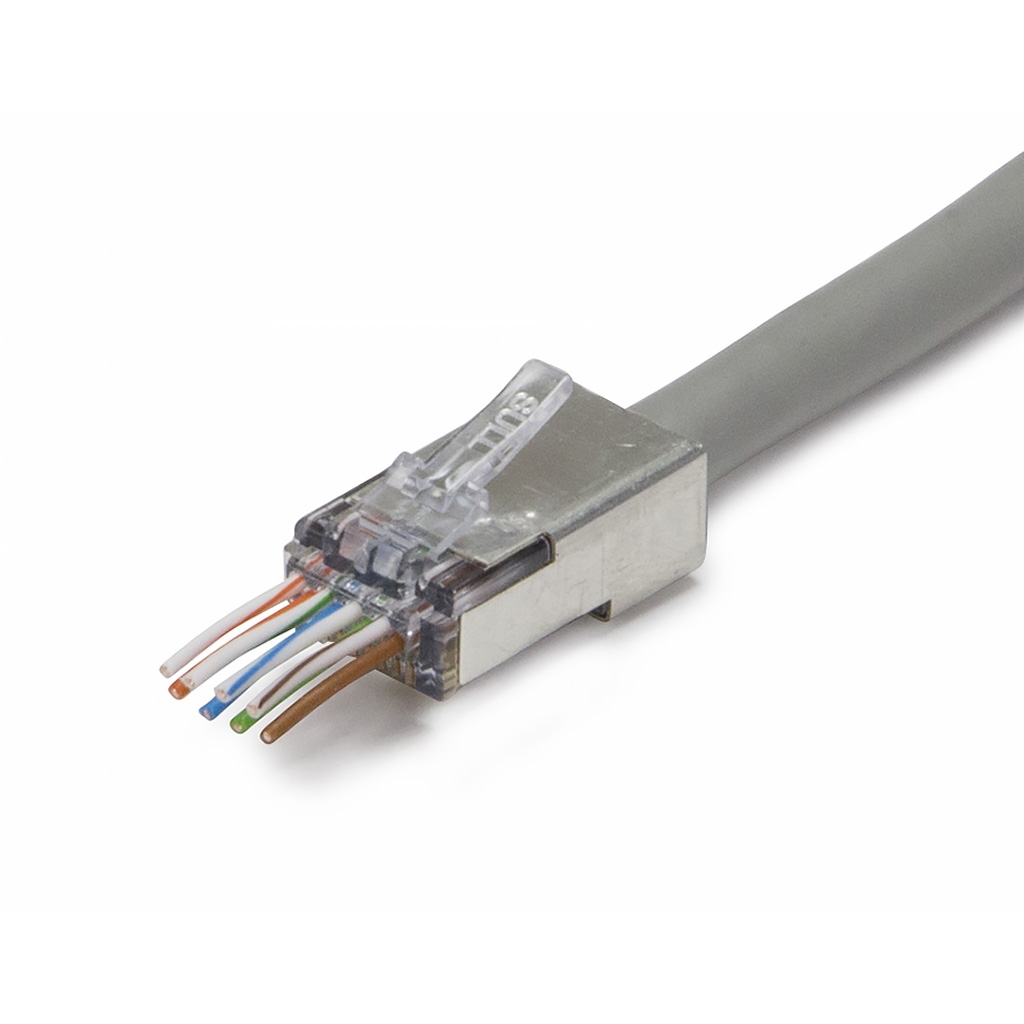

The 202050J shielded, patented ezEX-RJ45 connector from Platinum Tools is designed for larger cables and conductors. They feature a unique integrated Hi-Lo stagger load bar and allow ‘big’ conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating.

This connector is typically used with Cat6/6A and can only be terminated with the EXO Crimp Frame and EXO-EX Die (100061C), found here: Platinum Tools EXO Crimp Frame w/ EXO-EX Die.

Features:

Hi-Lo stagger to isolate each conductor

Simple one piece/pass through design, no bars or liners

Shielded 5e/6/6A complaint

50 micron gold plated contacts

Made in the USA

US Patents 9,543,729 B2; 10,116,082 B2; & 10,573,990 B2. Foreign patents

Specifications:

Quantity: 50 connectors

Insulation Diameter (Conductor) - Size range: 0.039” – 0.044” (1.0 –1.12mm)

Max Outer Diameter: 0.280” (7.1mm)

Solid or Stranded: 24-22 AWG

Compliance: TAA, TIA, RoHS, UL & FCC
