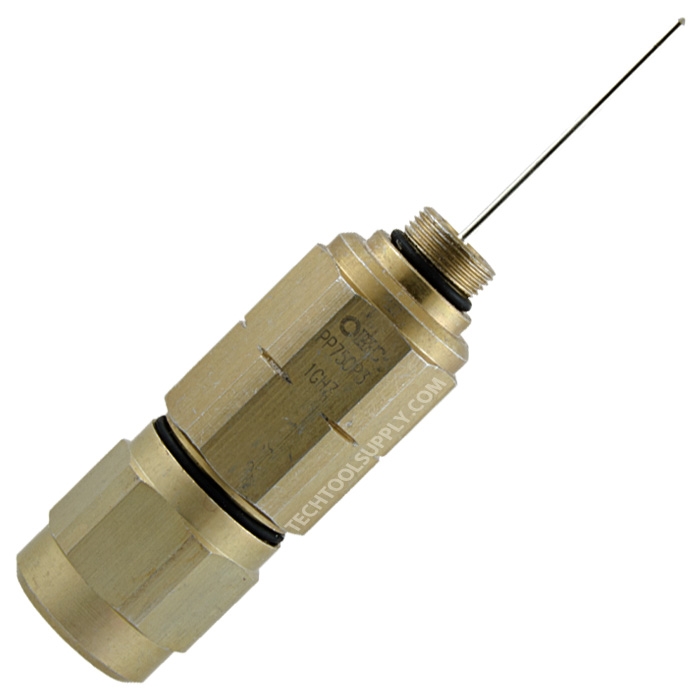

PPC Hardline 2pc Pin Connector for .750 P3 Cable

PPC Hardline 2pc Pin Connector for .750 P3 Cable


Alternative Views:
TTS PRICE: $16.59

STATUS:  IN STOCK

Free Shipping

Availability:
Normally Ships Same Day

PRODUCT CODE: BEL-PP750P3
QUANTITY:

PRODUCT DESCRIPTION


PPC 2-piece hardline connectors are renowned for their quality, performance, reliability, and ease of installation.

They are designed to handle the challenges of today’s digital cable networks. Our connectors also boast an unusual feature which is a key advantage for our customers: reusability.

During routine, as well as most emergency maintenance, our connectors can be reused without damage and boast an unusual feature which is a key advantage for our customers: reusability: our connectors can often be reused without damage.

Specifications:
  • Bandwidth: 0 MHz to 1 GHz
  • Impedance: 75 Ohms
  • Return Loss: Better than -30 dB to 1 GHz
  • Insertion Loss: Less than .10 dB to 1 GHz
  • Operating Voltage Rating: 90 Volts (@ 60 Hz continuous AC)
  • Operating Current Rating: 20 Amps (@ 60 Hz continuous AC)
  • Cable Retention Force: Pounds
  • Operating Temperature Range: -40 to +140 degrees fahrenheit

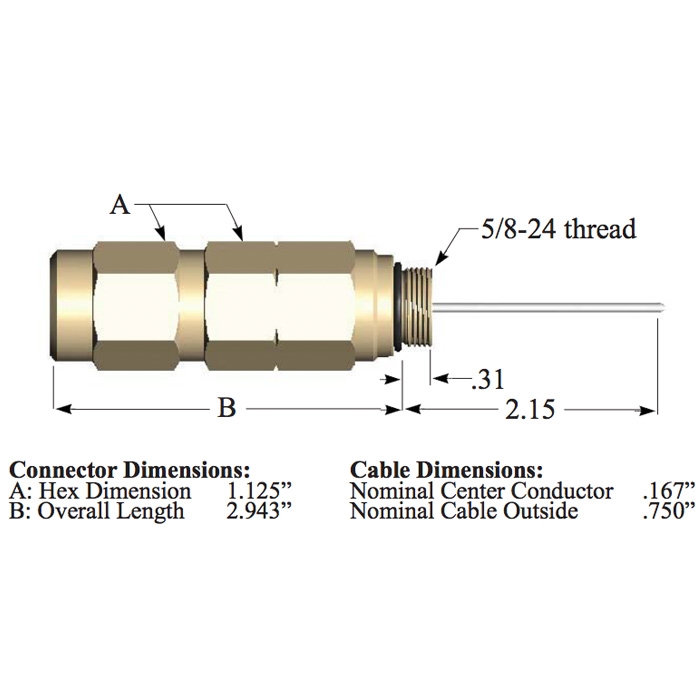

  • Connector Dimensions:
    • Hex Dimension 1.125”
    • Overall Length 2.943”
  • Cable Dimensions:
    • Nominal Center Conductor .167”
    • Nominal Cable Outside .750”
    •
