Klein Tools USB-A Digital Meter

Klein Tools USB-A Digital Meter


Alternative Views:
TTS PRICE: $17.99

STATUS:  IN STOCK

Free Shipping

Availability:
Normally Ships Same Day

PRODUCT CODE: KLN-ET900
QUANTITY:

PRODUCT DESCRIPTION

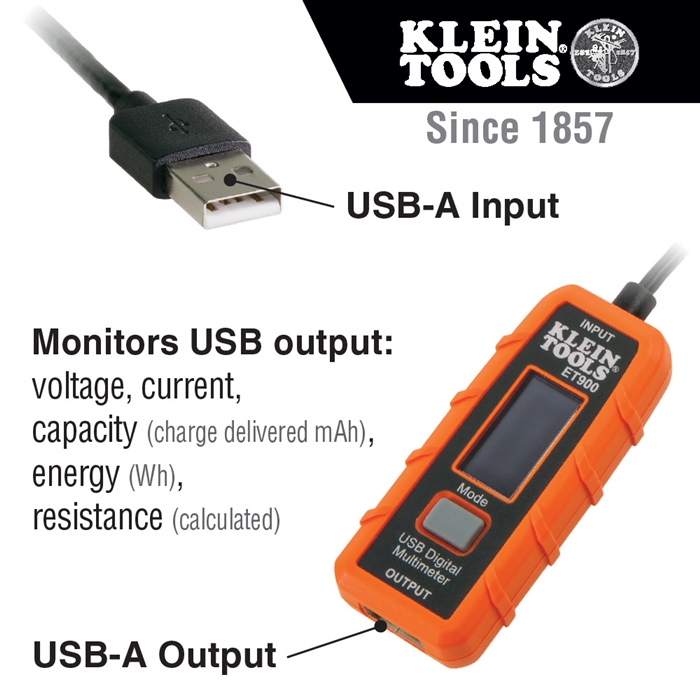

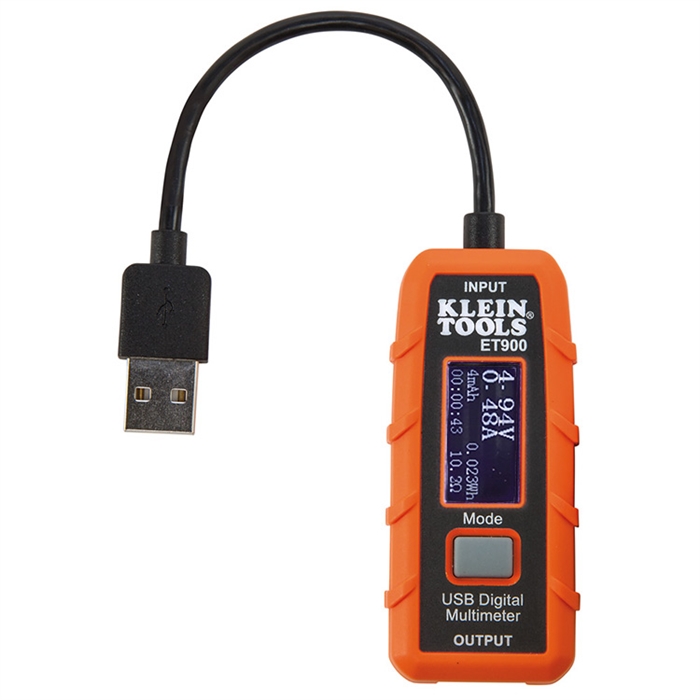

The Klein Tools ET900 is a USB digital meter for common standard USB-A (Type A) ports including Qualcomm Quick ChargeŽ ports. It accurately and reliably measures and displays the USB port voltage, current, capacity, energy, and resistance simultaneously. It can function with any USB-A port that has the ability to deliver power. It requires NO batteries as it draws power from the power source to function.

Features:
  • 3 to 20V DC; Current: 0.05 to 3A
  • Continuously monitor up to 1000 hours of voltage, current, capacity/charge delivered, energy, and resistance (calculated)
  • Tests most common standard USB-A ports, including Qualcomm Quick ChargeŽ ports
  • Store and recall up to 10 readings
  • Voltage and current overload detection
  • Hi-resolution LCD for clear visibility in environments with low ambient lighting
  • Durable cable to allow easy access to hard-to-reach ports
  • Rugged, pocket-sized, and light weight Klein industrial design stands up to jobsite demands
  • Built to withstand a 6-foot (2m) drop
  • No batteries needed; powered by the USB port being tested

    • Specifications:
  • Type: USB-A (Type A)
  • Application: USB Port Voltage, Current, Capacity, Energy and Resistance (Calculated)
  • Special Features: Klein Tools' Most Compact USB Meter
  • Voltage: 3 to 20V DC
  • Current: 0.05 to 3A
  • Capacity Used: 99,999mAh Maximum
  • Energy Delivered: 999Wh Maximum
  • Resistance: 400 ohms Maximum
  • Elapsed Time: Up to 999 Hours, 59 Min, 59 Secs
  • USB Compatibility: USB-A; Qualcomm Quick ChargeŽ Compatible
  • Drop Protection: 2 m (6.6')
  • Ingress Protection: IP20
  • Display: LCD
  • Material: Polymer
  • Overall Length: 2.84" (72.1 mm)
  • Overall Height: 0.565" (14.4 mm)
  • Overall Width: 1.25" (31.8 mm)
  • Weight: 1.1 oz (31 g)

    • Click Here to View the Operation Manual
