The Scout® Pro 3 Tester with Locator Remote Kit (VDV501-852) is a versatile cable tester that locates and tests voice, data and video cables. Identify multiple cable runs with 18 location mapping remotes (included). Test for Power over Ethernet (PoE) and measure cable length. This kit verifies accurate cable installations each time. Backlit display assists in reading results in lower light.
Features:

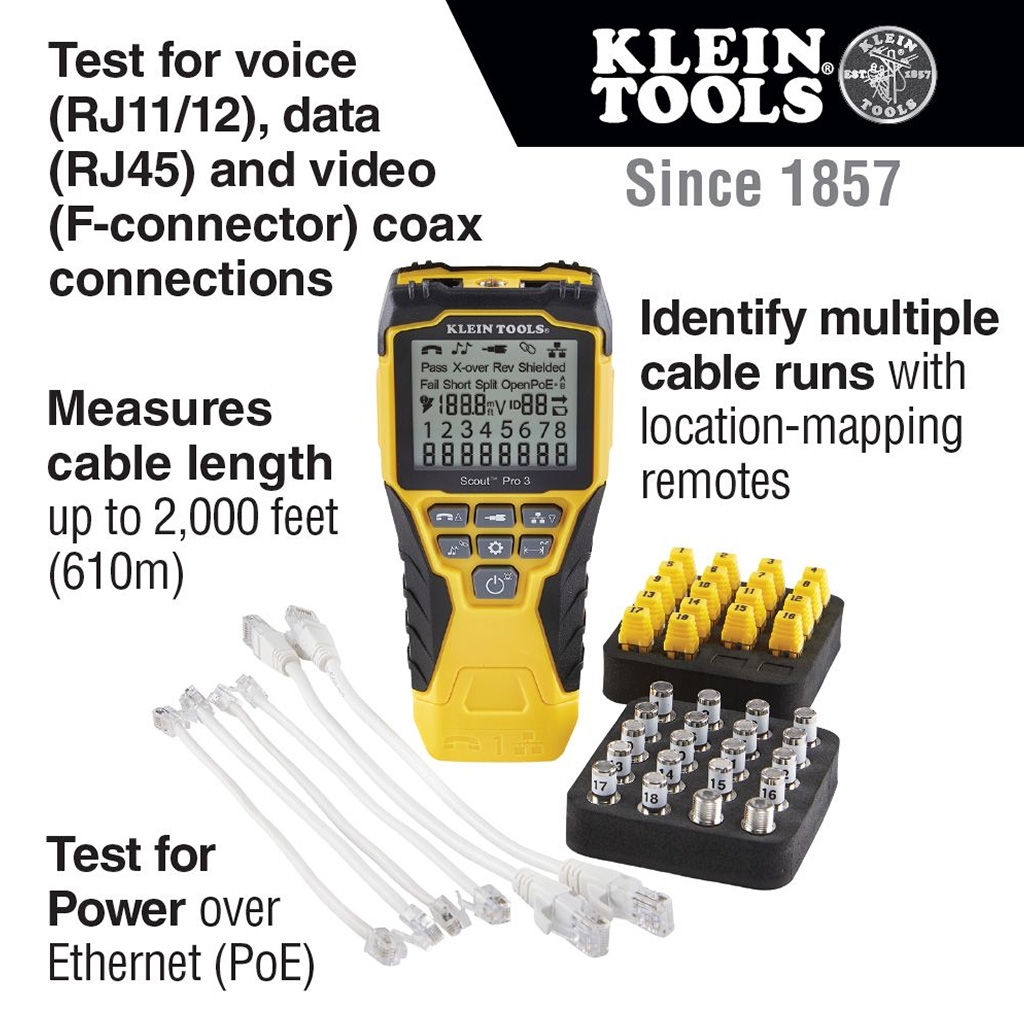

Cable tester for voice (RJ11/12), data (RJ45) and video (F-connector) coax connections

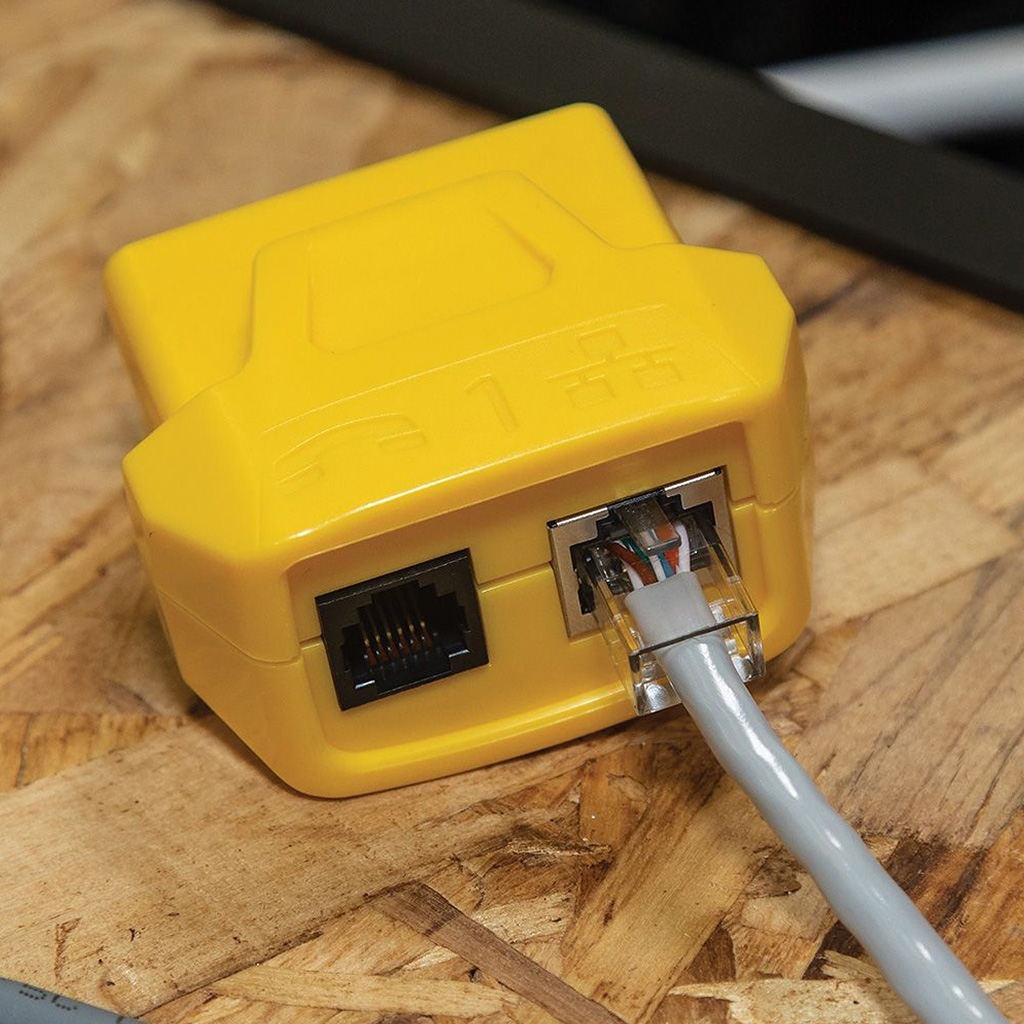

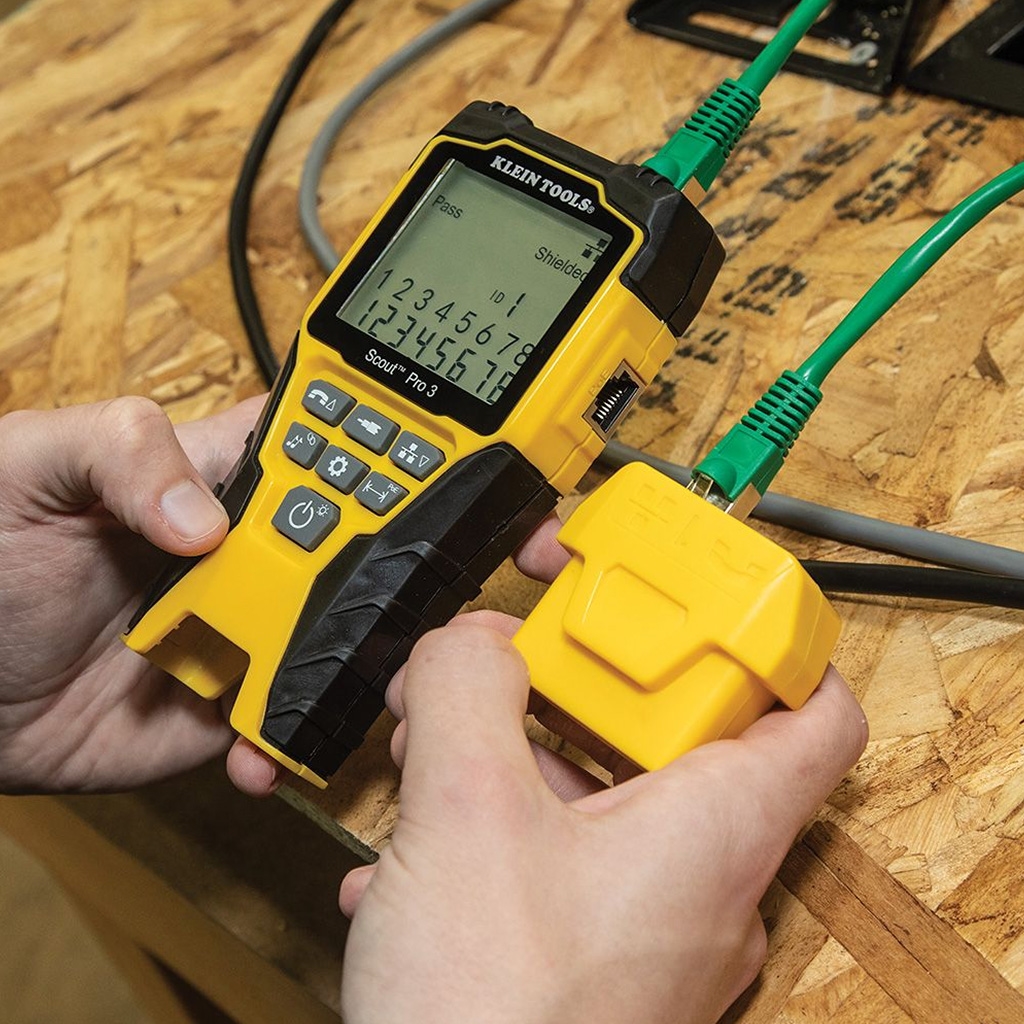

Self-storing Test + Map™ Remote (#1) tests, maps and IDs a cable run in a single step

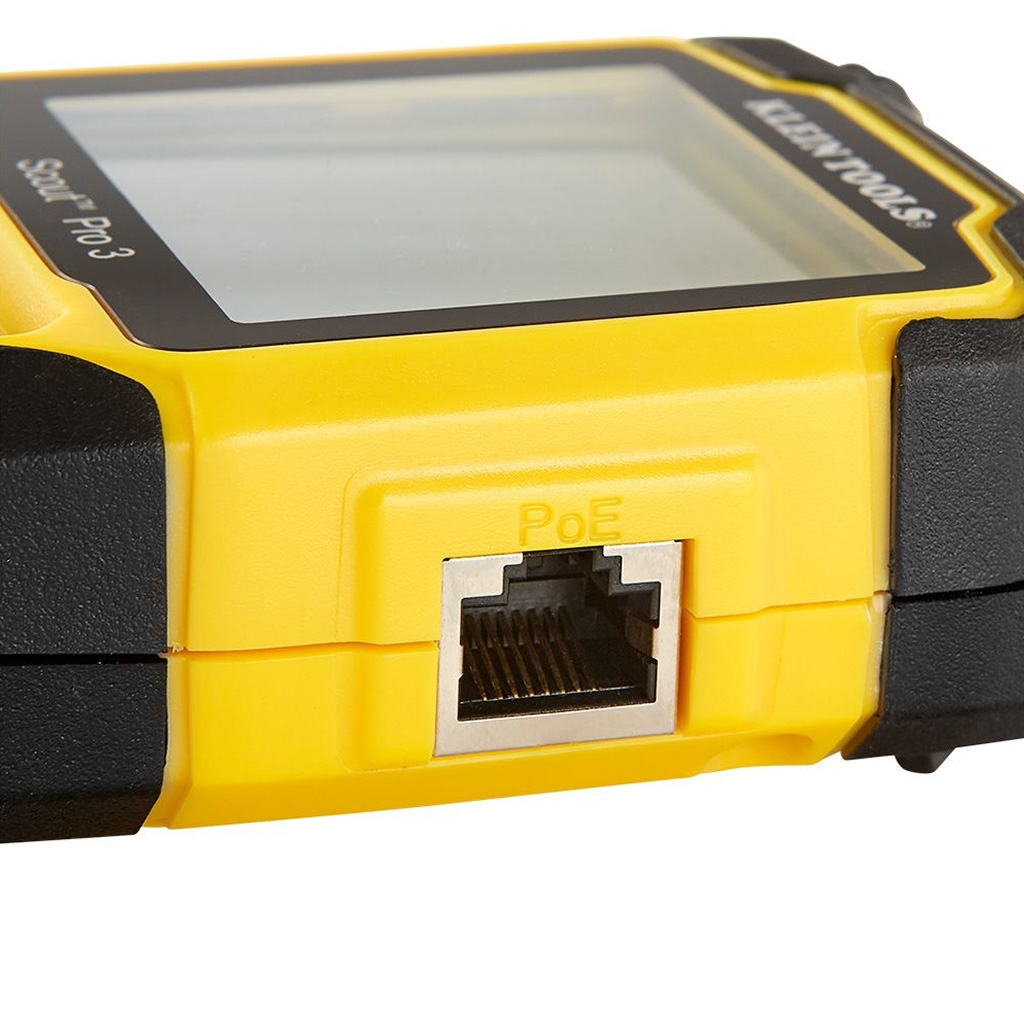

Power over Ethernet Tester that displays PoE wire and Voltage
Trace cables, wire pairs and individual conductor wires with a tone generator (requires analog probe Cat. No. VDV500-123; sold separately)

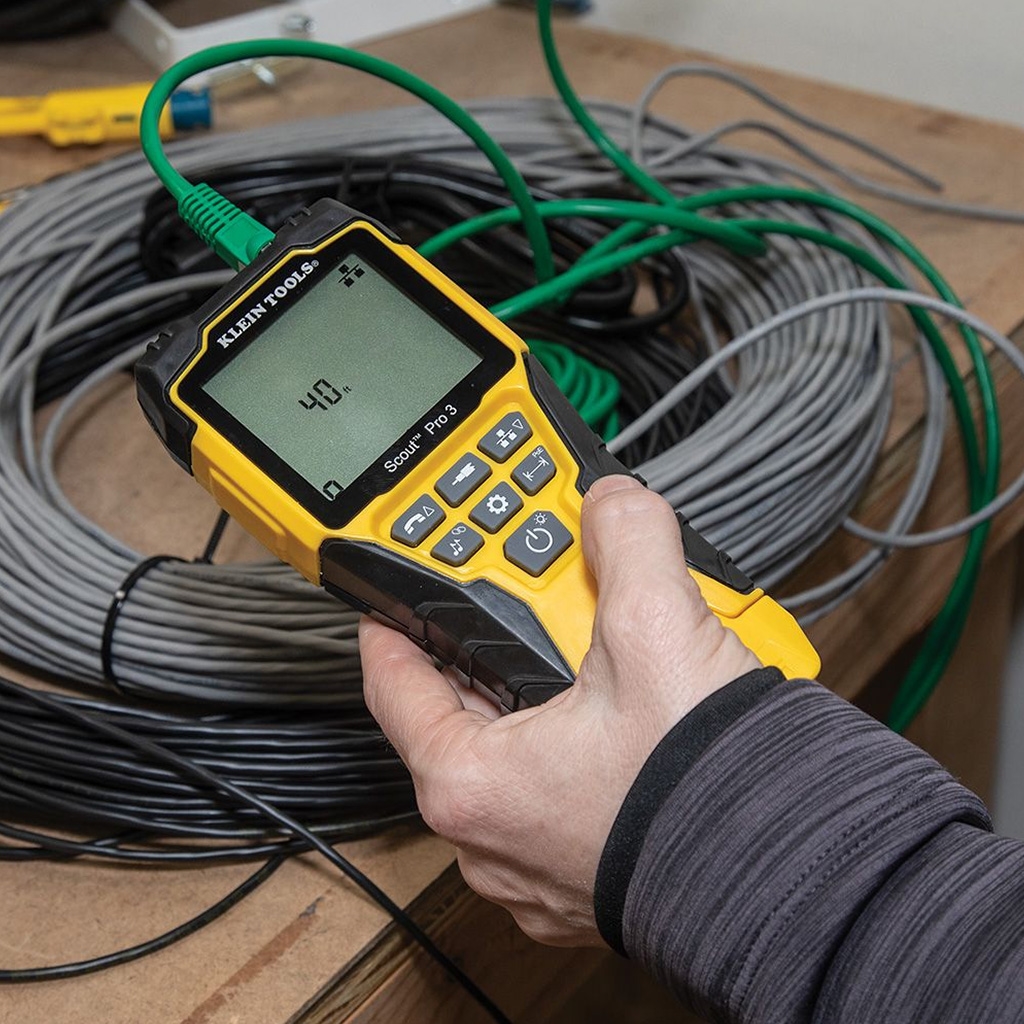

Measures cable length up to 2,000 feet (610 m)
Identify multiple cable runs with location-mapping remotes Identify
Identify 18 RJ45 and 18 F-connector drop locations with large easy-to-read numbers

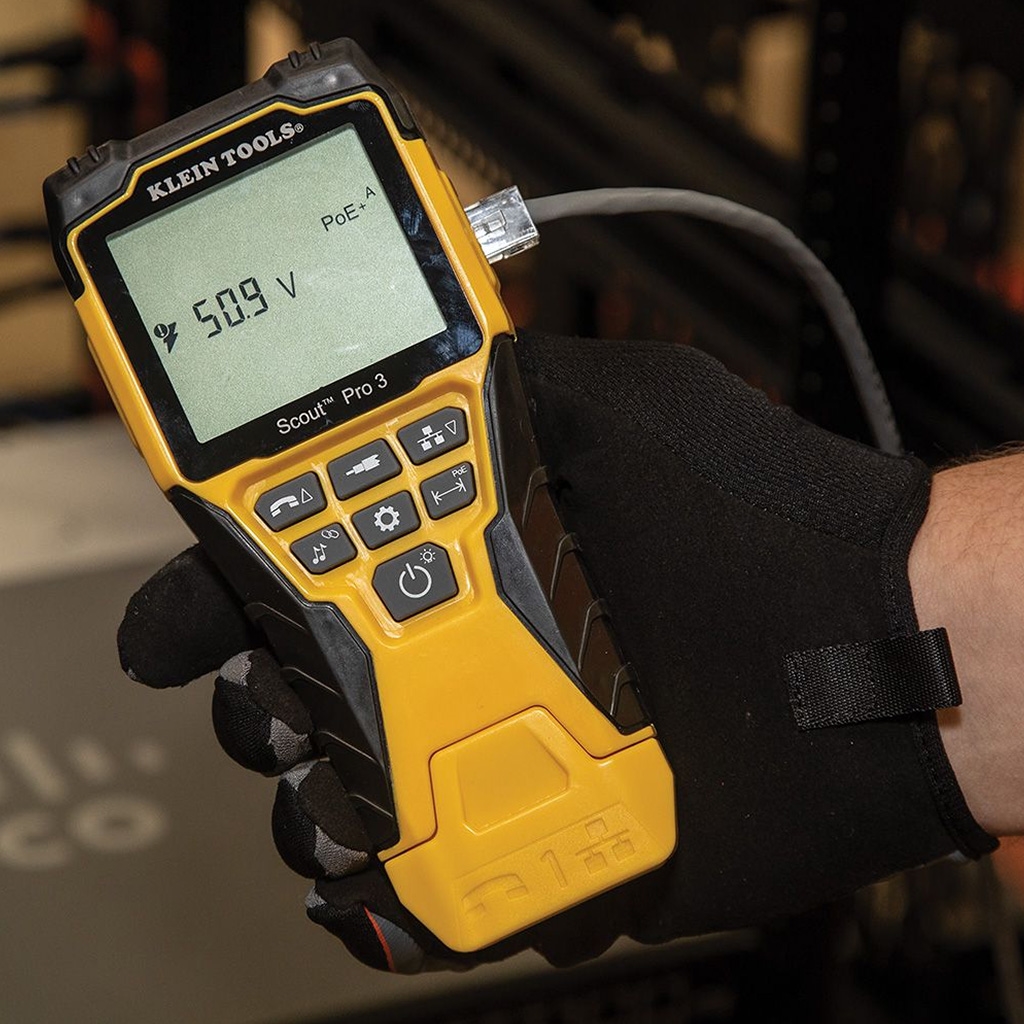

Detect, identify and test Power over Ethernet (PoE)

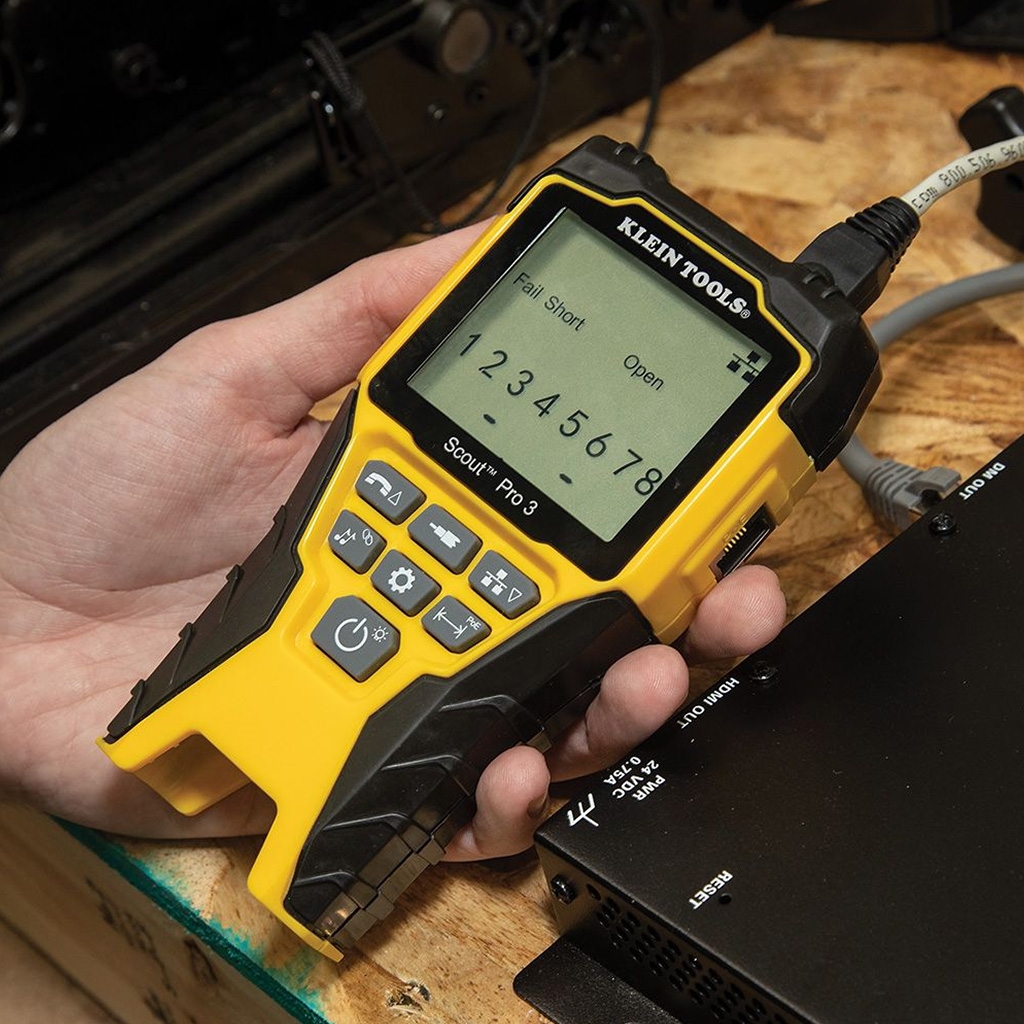

Backlit LCD screen displays cable length, wiremap, cable ID and test results

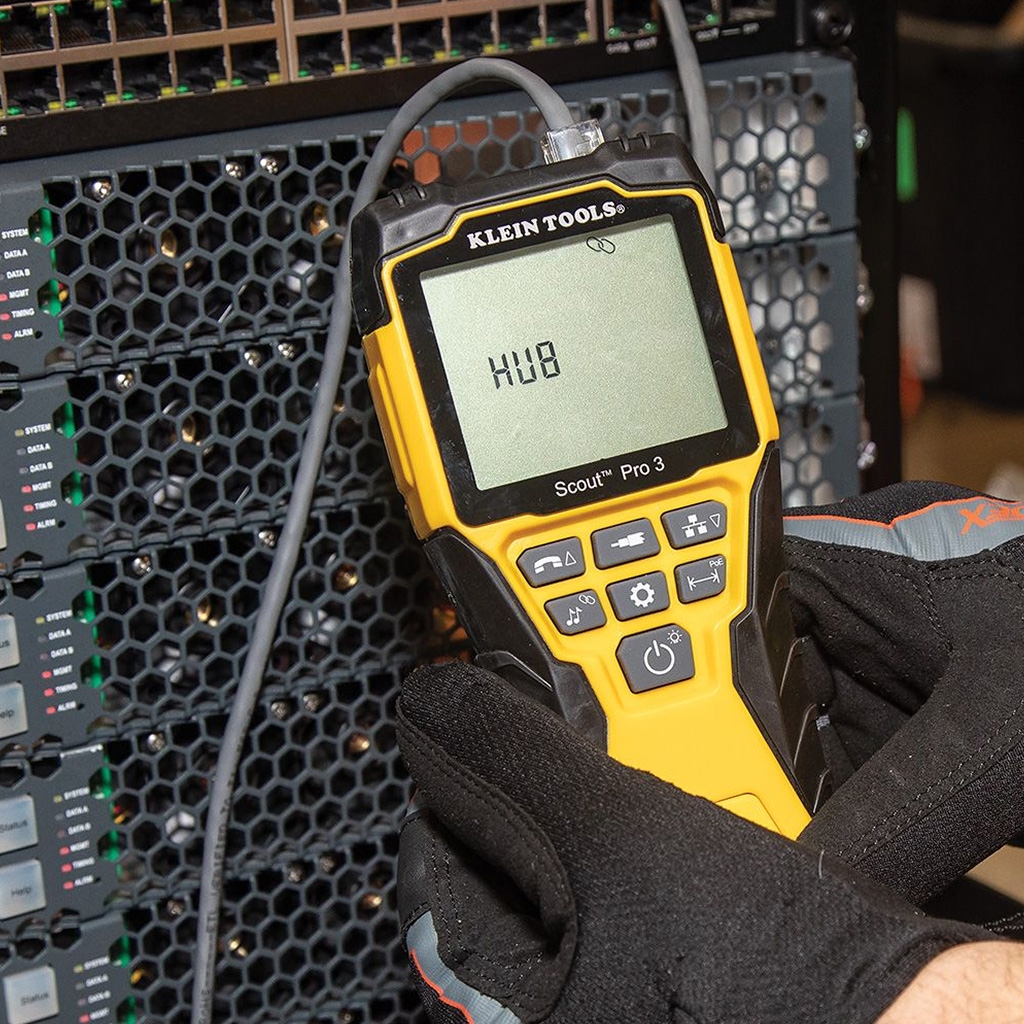

Hub blink mode to identify port location on a hub or a switch
Includes 1 Self-storing Test + Map Remote (31), 18 RJ45 LAN locator remotes, 18 F coax locator remotes, 2 female-to-female coax adapters and a 9V battery
Includes a 9V battery and convenient carrying case
Specifications:
Type: Twisted Pair, DATA, Voice, LAN, and Coaxial
Application: Cable Testing
Special Features: Measures Cable Length; Power over Ethernet; Backlit LCD; Hub Blink
Cable Type: DATA:, Shielded or Unshielded, CAT3, CAT5E, CAT6, CAT6A, CAT7; COAXIAL: RG59, RG6/6Q
Overall Length: 7'' (17.8 cm)
Overall Height: 3.2'' (8 cm)
Overall Width: 1.5'' (3.8 cm)
Material: Plastic and Metal
Test-n-Map ID Remotes: (1) Self-Storing
Location ID: (18) RJ45 Data and (18) F-Coax Locator Remotes

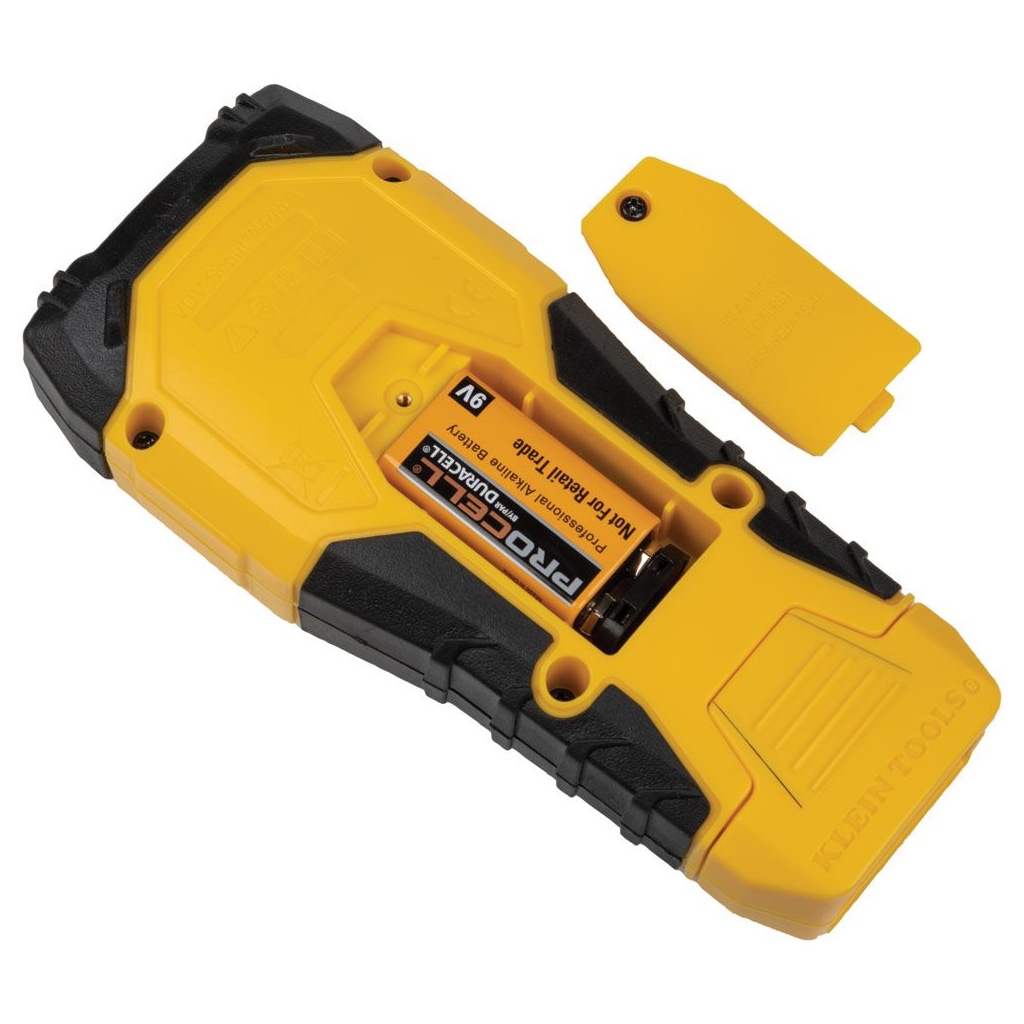

Batteries: 9V Alkaline
Battery Life: Active: 50 hr
Drop Protection: 2 m
Supported Remotes: 18
Connection & Adapter Types: RJ11, RJ12, RJ45, Coax F
Display: Backlit LCD
Multiple Style Tone Generator: Yes (5); Requires Tracing Probe (Cat. No. VDV500-123); Sold Separately
Faults Detected: Open, Short, Miswire
Test & Measure Types: Ethernet, Data, Coaxial
Standard: CE
Weight: 1.2 lb (0.5 kg)

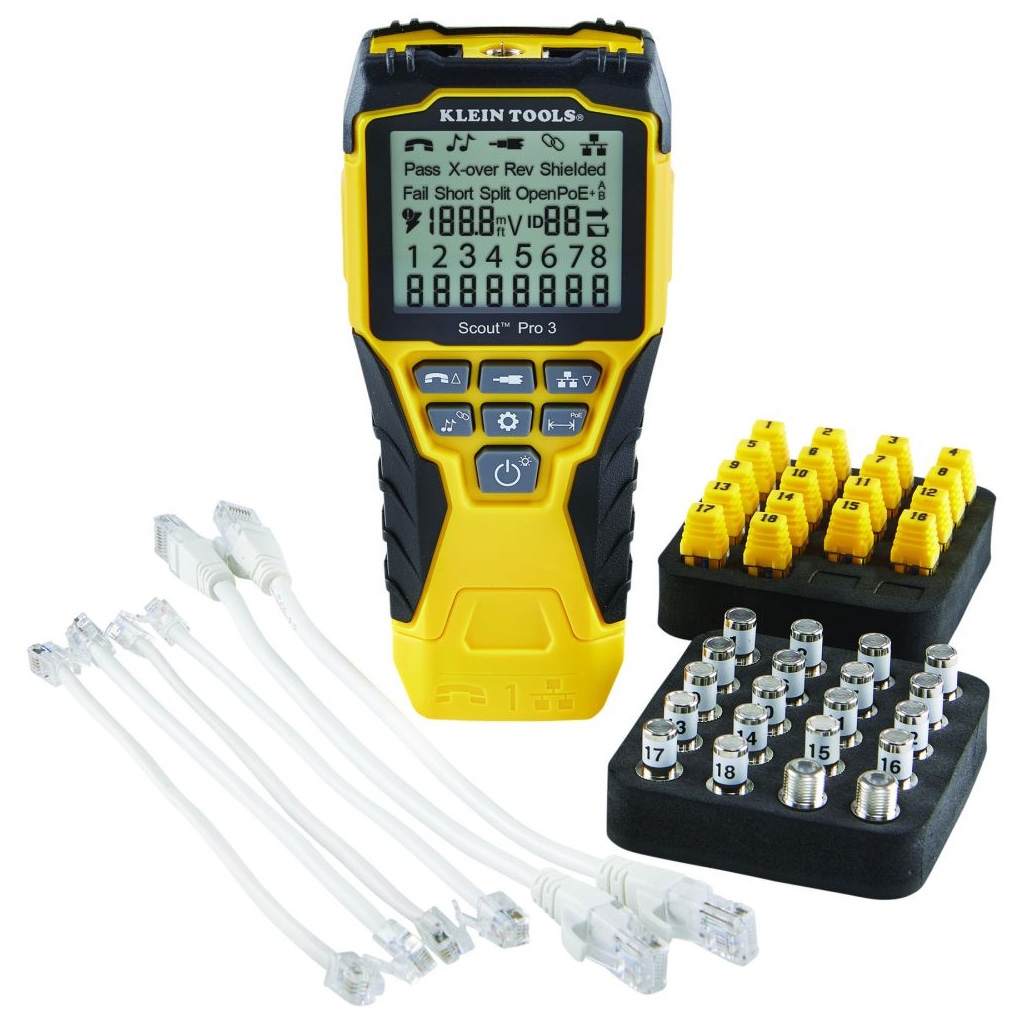

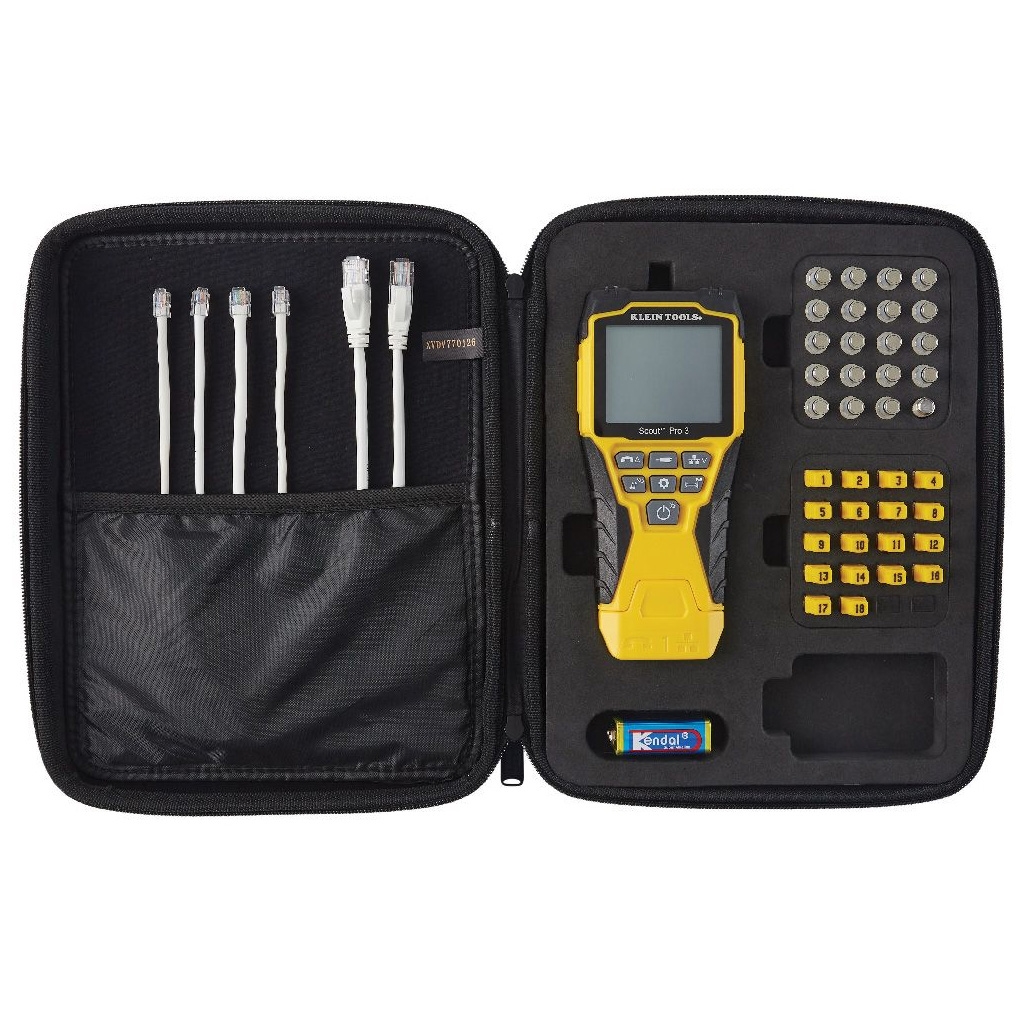

Kit Includes:
1 - Tester, Self-storing Test + Map™ Remote (#1)
18 - RJ45 LAN Locator Remotes
18 - F Coax Locator Remotes
2 - Coaxial Barrel Adapters (female-to-female)
2 - RJ45 Jumper Cables (6'')
2 - RJ11 Jumper Cables
2 - RJ12 Jumper Cables
1 - Carrying Case
1 - 9V Battery
|
|
|
 |
|
 |
|
