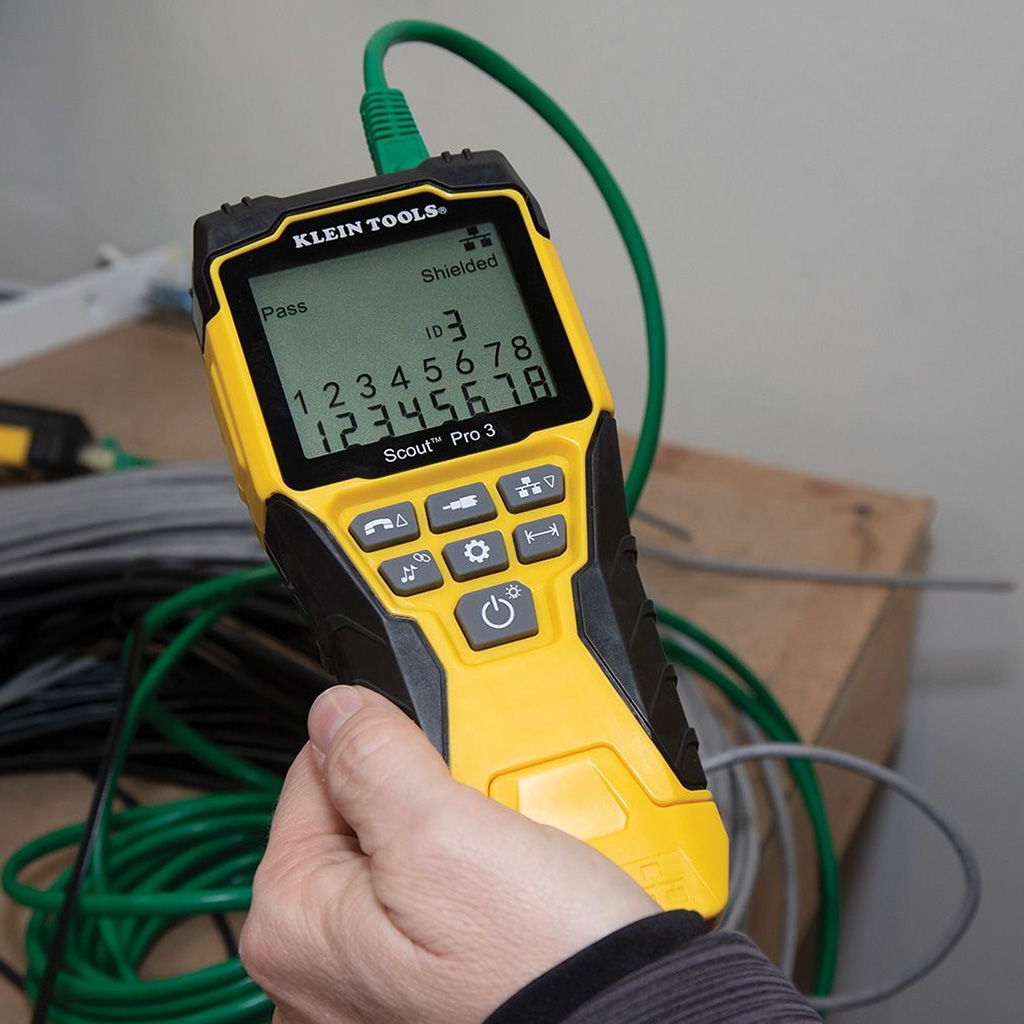

The Scout® Pro 3 Tester Starter Kit from Klein Tools is a versatile cable tester that locates and tests voice, data and video cables. Identify multiple cable runs with included location mapping remotes. This kit verifies accurate cable installations each time. Backlit display assists in reading results in lower light.
Features:
Cable tester tests voice (RJ11/12), data (RJ45) and video (coax F-connector) terminated cables with clearly defined results
Measure cable length up to 2000 feet (610 m)
Test for Open, Short, Miswire or Split-Pair faults

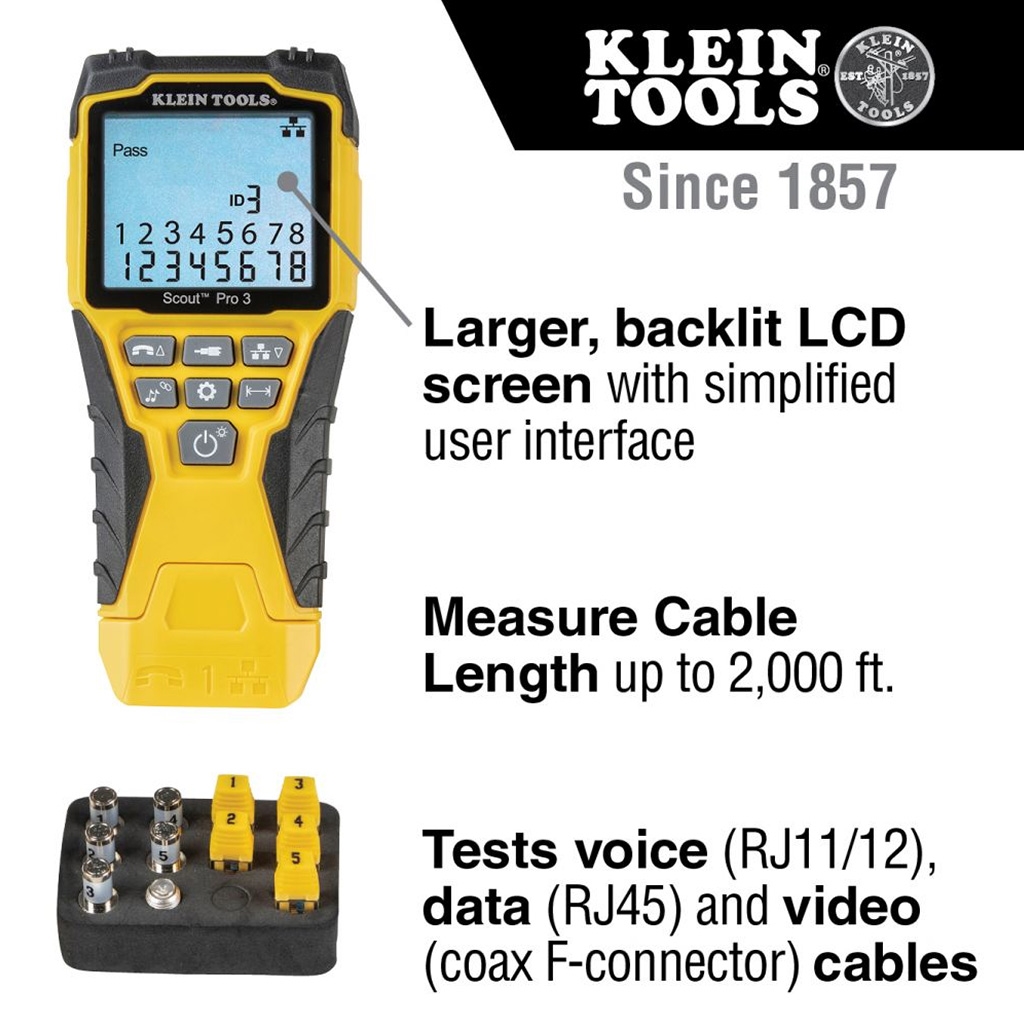

Backlit LCD screen displays cable length, wiremap, cable ID and test results
Trace cables, wire pairs and individual conductor wires with multiple style tone generator (requires analog probe Cat. No. VDV500-123; sold separately)

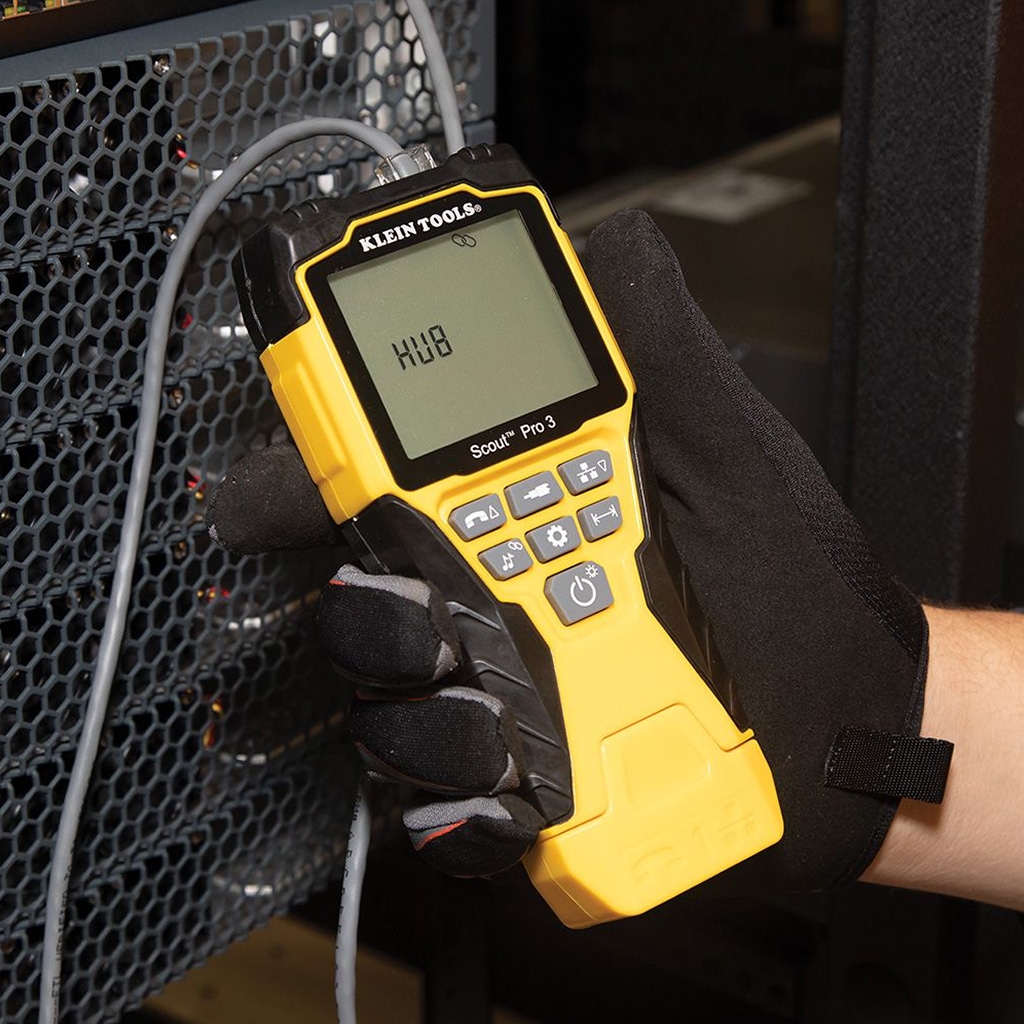

Hub blink mode to identify port location on a hub or a switch
LanMap™ and CoaxMap™ Location Remotes (5 each) map and ID multiple cable runs in a single step

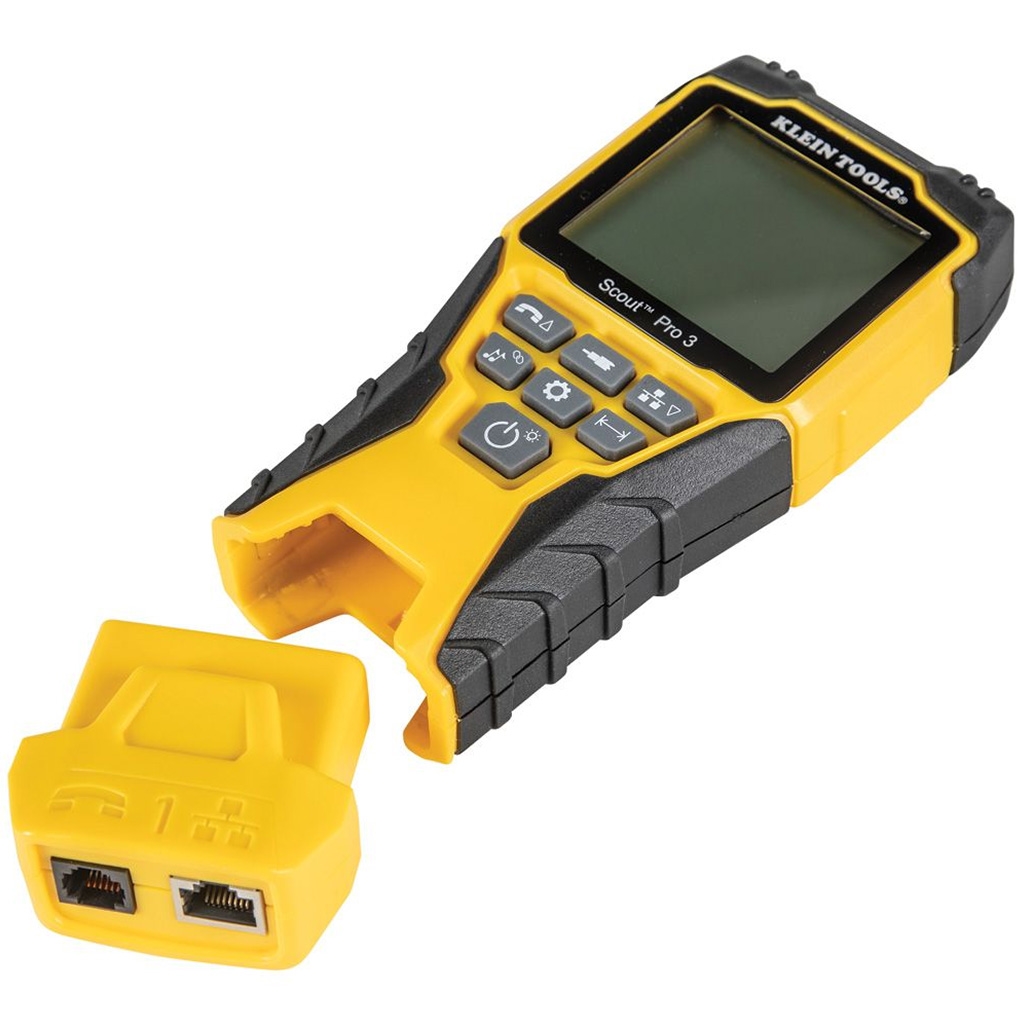

Includes voltage warning, shield detection, auto power off, low battery indicator and a self-storing remote
Auto Power-off feature to conserve battery life (9V included)
Specifications:
Type: Twisted Pair, DATA, Voice, LAN, and Coaxial
Application: Cable Testing
Special Features: Measures Cable Length; Backlit LCD; Hub Blink
Cable Type: DATA:, Shielded or Unshielded, CAT3, CAT5E, CAT6, CAT6A, CAT7; COAXIAL: RG59, RG6/6Q
Overall Length: 7'' (17.8 cm)
Overall Height: 3'' (7.6 cm)
Overall Width: 1.25'' (3.2 cm)
Material: Plastic and Metal
Test-n-Map ID Remotes: (1) Self-Storing
Location ID: (5) RJ45 Data and (5) F-Coax connector Locator Remotes
Batteries: 9V Alkaline
Battery Life: Active: 50 hr
Drop Protection: 2 m
Supported Remotes: 18
Connection & Adapter Types: RJ11, RJ12, RJ45, Coax F
Display: Backlit LCD
Multiple Style Tone Generator: Yes (5); Requires Tracing Probe (Cat. No. VDV500-123); Sold Separately
Faults Detected: Open, Short, Miswire
Test & Measure Types: Ethernet / Data and Coaxial
Standard: CE
Location ID: (5) RJ45 Data and (5) F-Coax connector Locator Remotes
Batteries: 9V Alkaline
Battery Life: Active: 50 hr
Weight: 1.2 lb (0.5 kg)

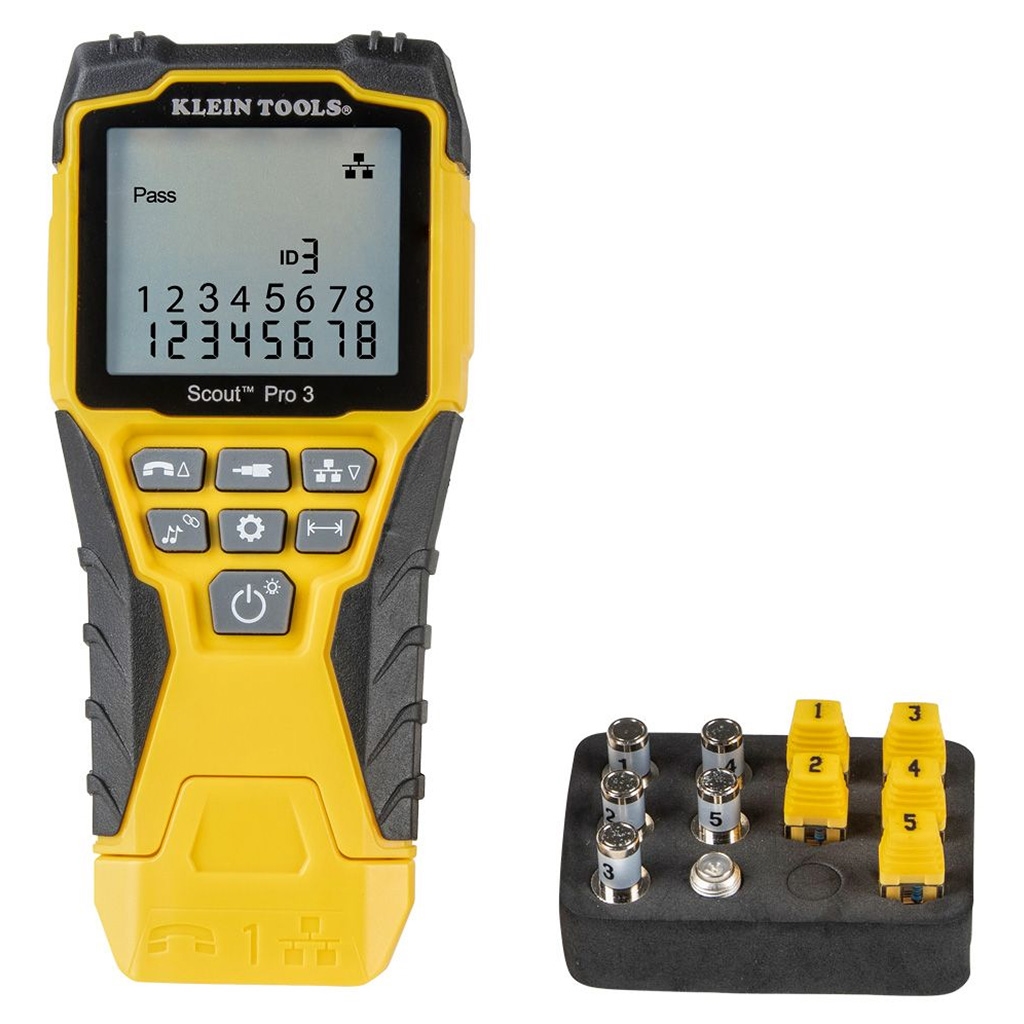

Kit Includes:

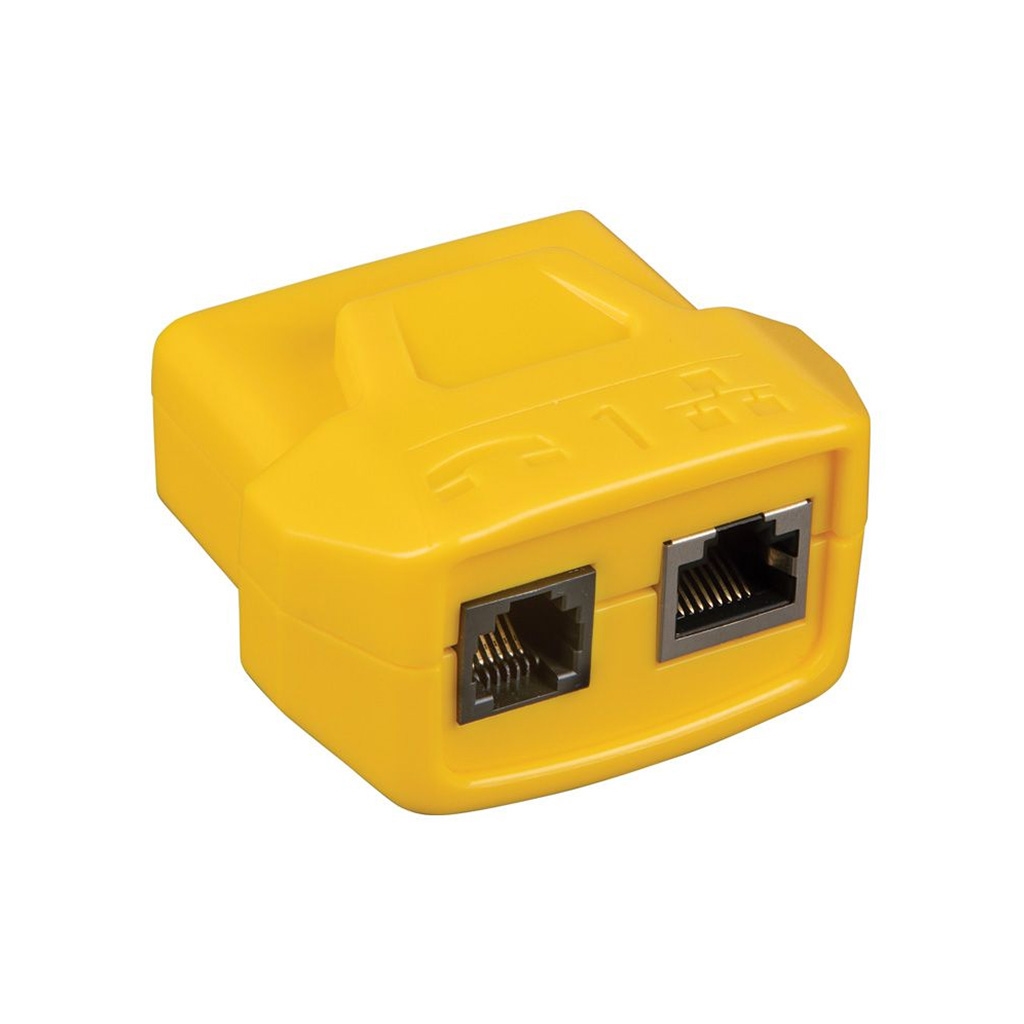

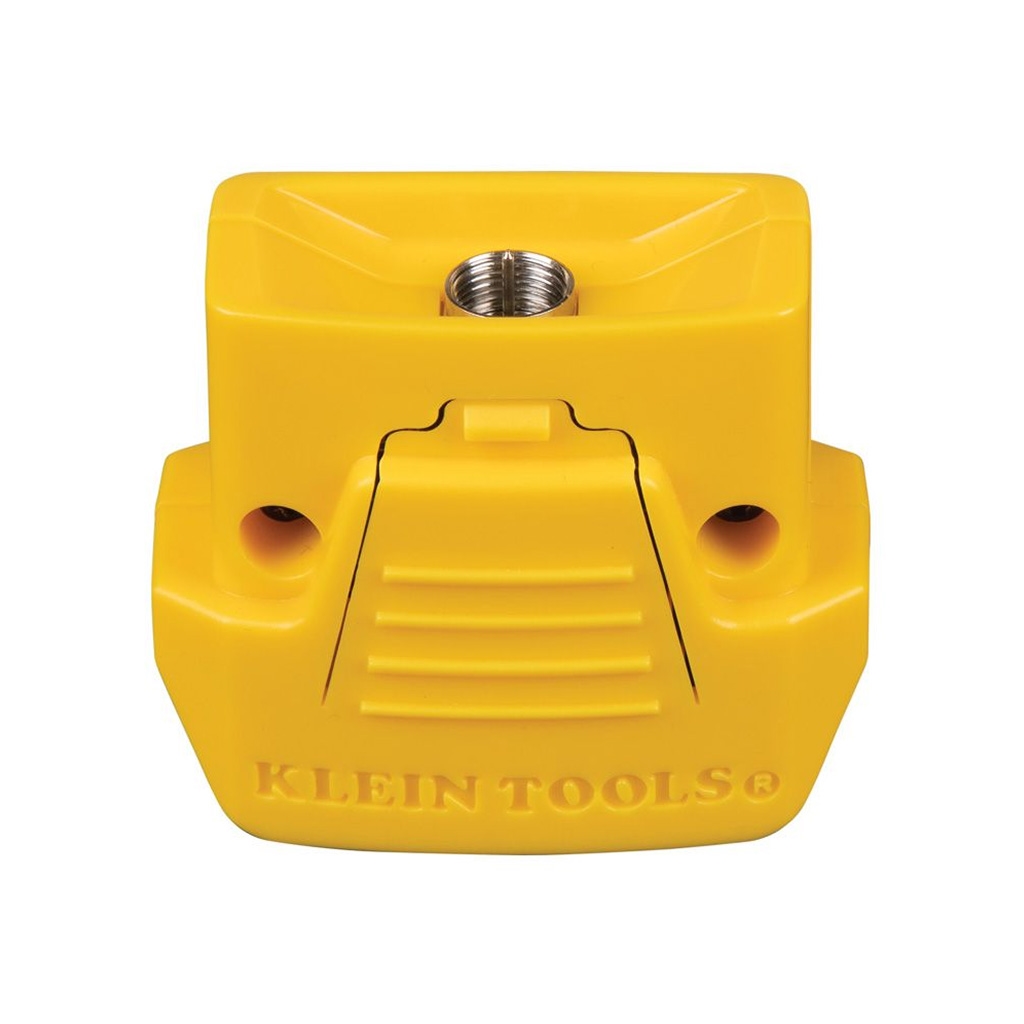

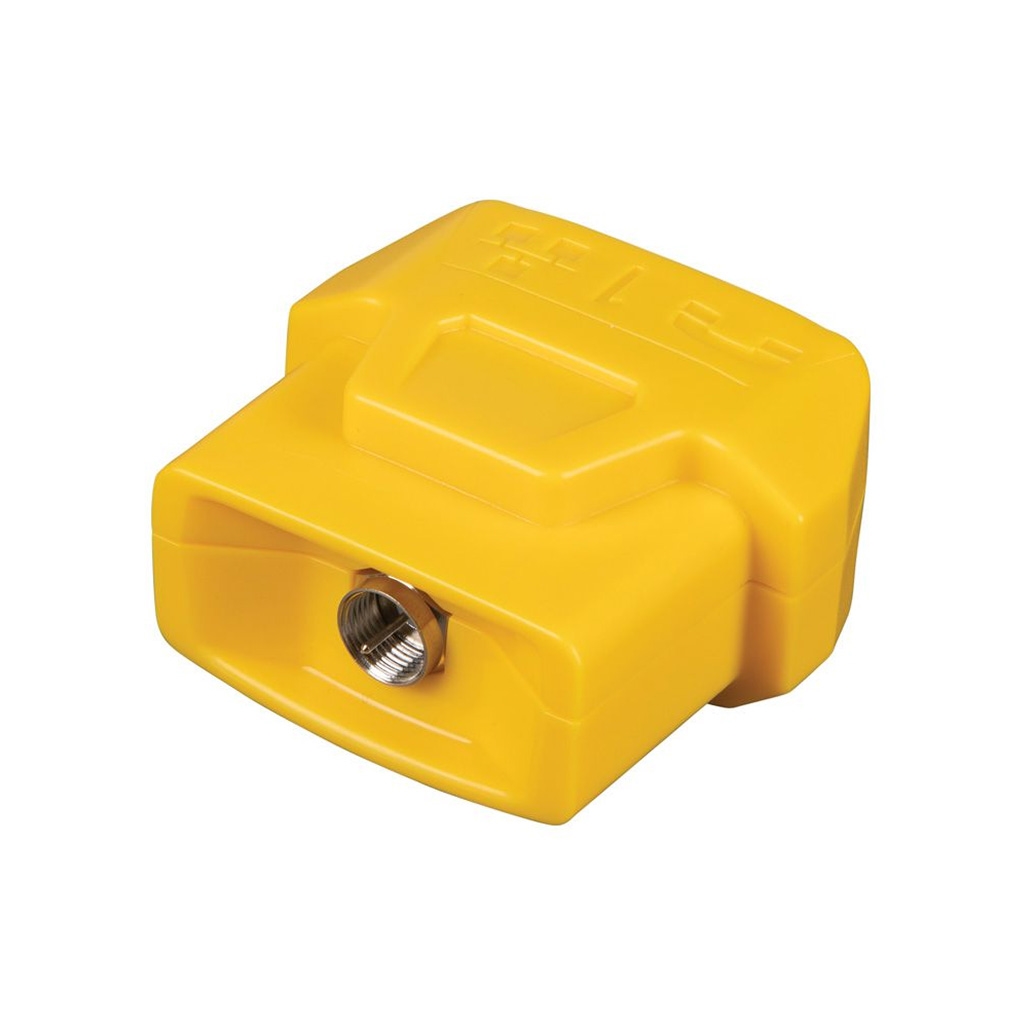

1 - Tester, Self-Storing Remote

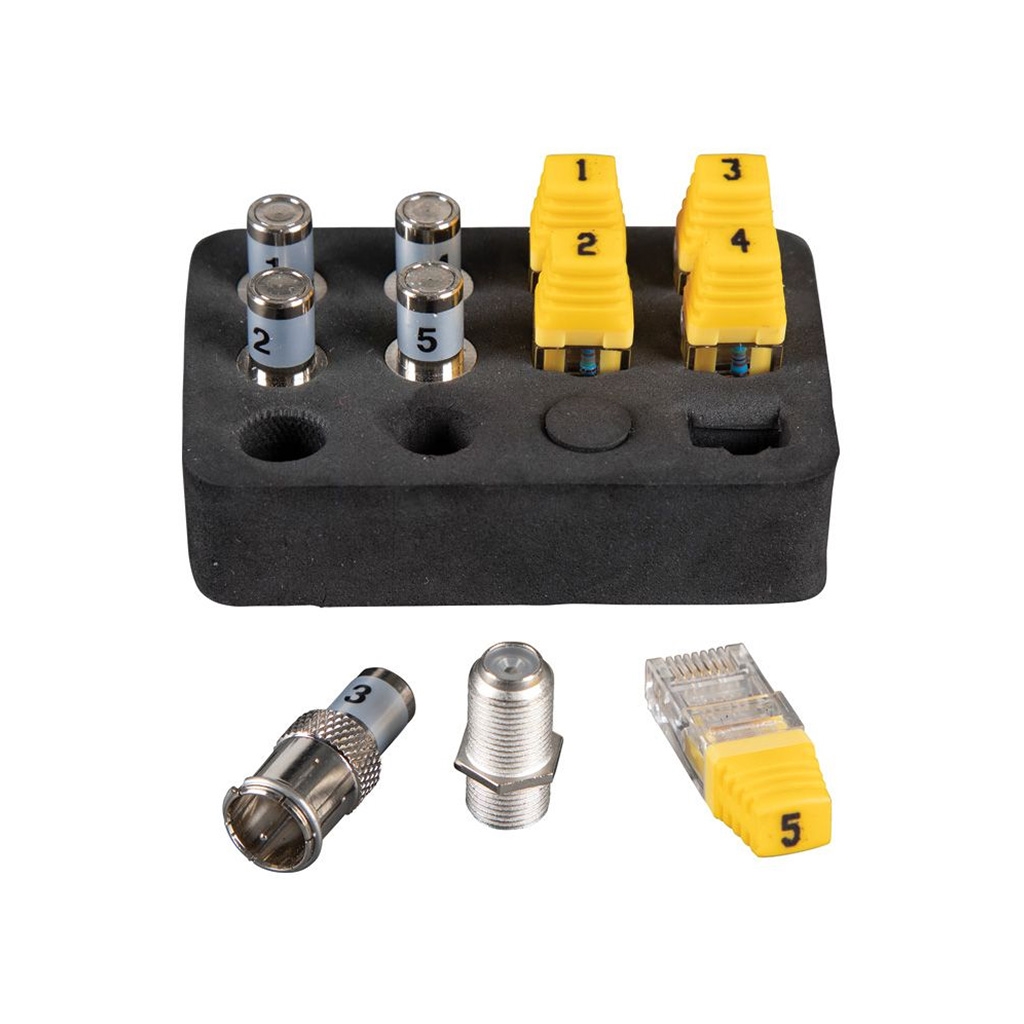

5 - LanMap RJ45 Locator Remotes
5 - CoaxMap F-connector Locator Remotes
1 - Coax F-adapter
1 - Manual
1 - 9V Battery
Kit Upgrades (not included/sold separately):
Klein Tools Scout Pro 3 Upgrade Kit
Klein Tools Scout Pro 3 Remotes 7 to 12 Kit
|
|
|
 |
|
 |
|
