Klein Tools Digital Clamp Meter AC Auto-Ranging - LoZ

Klein Tools Digital Clamp Meter AC Auto-Ranging - LoZ


Alternative Views:
TTS PRICE: $109.97

STATUS:  IN STOCK

Free Shipping

Availability:
Normally Ships Same Day

PRODUCT CODE: KLN-CL700
QUANTITY:

PRODUCT DESCRIPTION

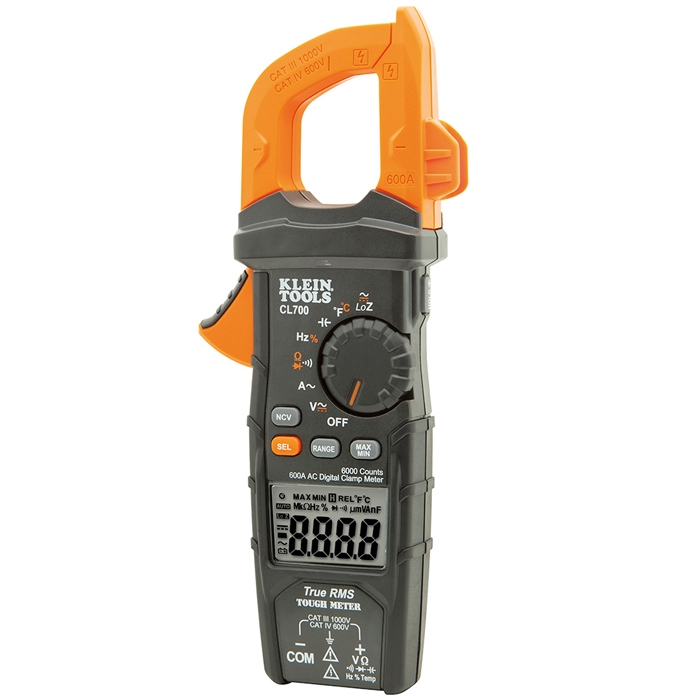

Klein Tools CL700 is an automatically ranging true root mean squared (TRMS) digital clamp-meter that measures AC current via the clamp, and measures AC/DC voltage, resistance, continuity, frequency, capacitance, and tests diodes via test-leads, and temperature via a thermocouple probe. It also features a Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages.

Features:
  • Automatically ranging true mean squared (TRMS) technology for increased accuracy
  • Clamp measures AC current and thermocouple probe measure temperature
  • Test leads measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes
  • Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
  • CAT IV 600V, CAT III 1000V, Class 2, Double insulation safety rating
  • Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
  • Built to withstand a 6.6' (2 m) drop
  • Includes low battery indicator and has an easily accessible battery compartment
  • Operating altitude to 6,562 ft (2,000 m)

    • Specifications:
  • AC Current: 600A
  • AC Voltage: 1000V
  • Application: Measures AC Current
  • Audible Continuity: Yes
  • Auto Ranging: Yes
  • Auto-Power Off: Yes
  • Backlight: Yes
  • Capacitance Test: 6000µF
  • DC Millivolts: Yes
  • DC Voltage: 1000V
  • Data Hold: Yes
  • Diode Test: Yes
  • Ingress Protection: IP40
  • Drop Protection: 6.6 ft. (2 m)
  • Frequency/Duty Cycle: 1Hz - 500 KHz
  • Jaw Size: 1-3/8'' (34.92 mm)
  • LCD Display Count: 6000
  • Max/Min: Yes
  • Ohms (Resistance): 60MO
  • Non-Contact Voltage Testing: Yes
  • Range Hold: Yes
  • Safety Rating: CAT IV 600V
  • Standard: CE Certified
  • Temperature Range: -14° - 1000°F (-26° - 538°C)
  • True RMS: Yes
  • Number of Batteries: 2 x AAA
  • Depth: 1.54'' (39.11 mm)
  • Dimensions: 9.09 x 3.82 x 1.54''
  • Height: 9.09'' (230.88 mm)
  • Weight: 11.8 oz. (335 g)
  • Width: 3.82'' (97.02 mm)

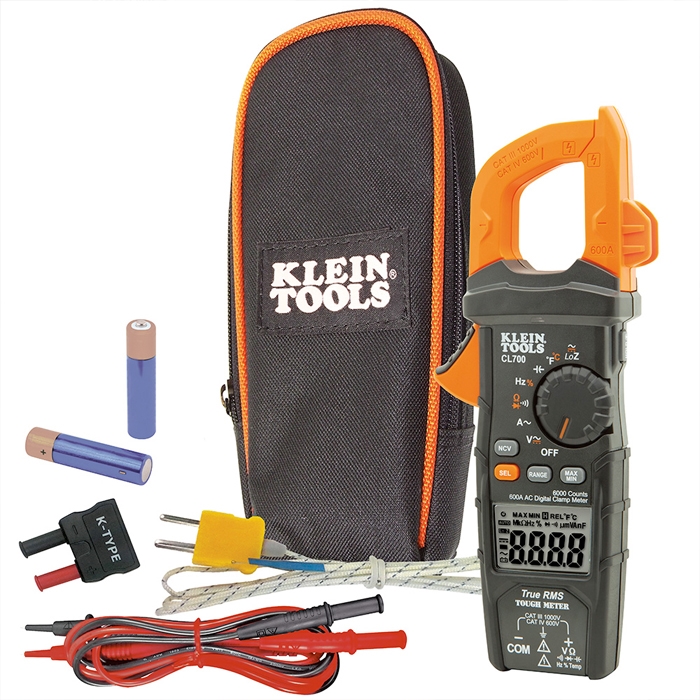

    • Included Accessories:
  • Carrying Pouch
  • Test Leads
  • Thermocouple with Adapter
  • Batteries

    • Klein Tools CL700 Instruction Sheet
    Klein Tools Clamp Meter Comparison Sheet
