Klein Rechargeable Self-Leveling Green Planar Laser Level

Home > Categories > Hand Tools > Tape Measures >

Alternative Views:

TTS PRICE: $299.99

STATUS: ON ORDER

Availability:

Normally Ships Same Day

PRODUCT CODE: KLN-93PLL

QUANTITY:

PRODUCT DESCRIPTION

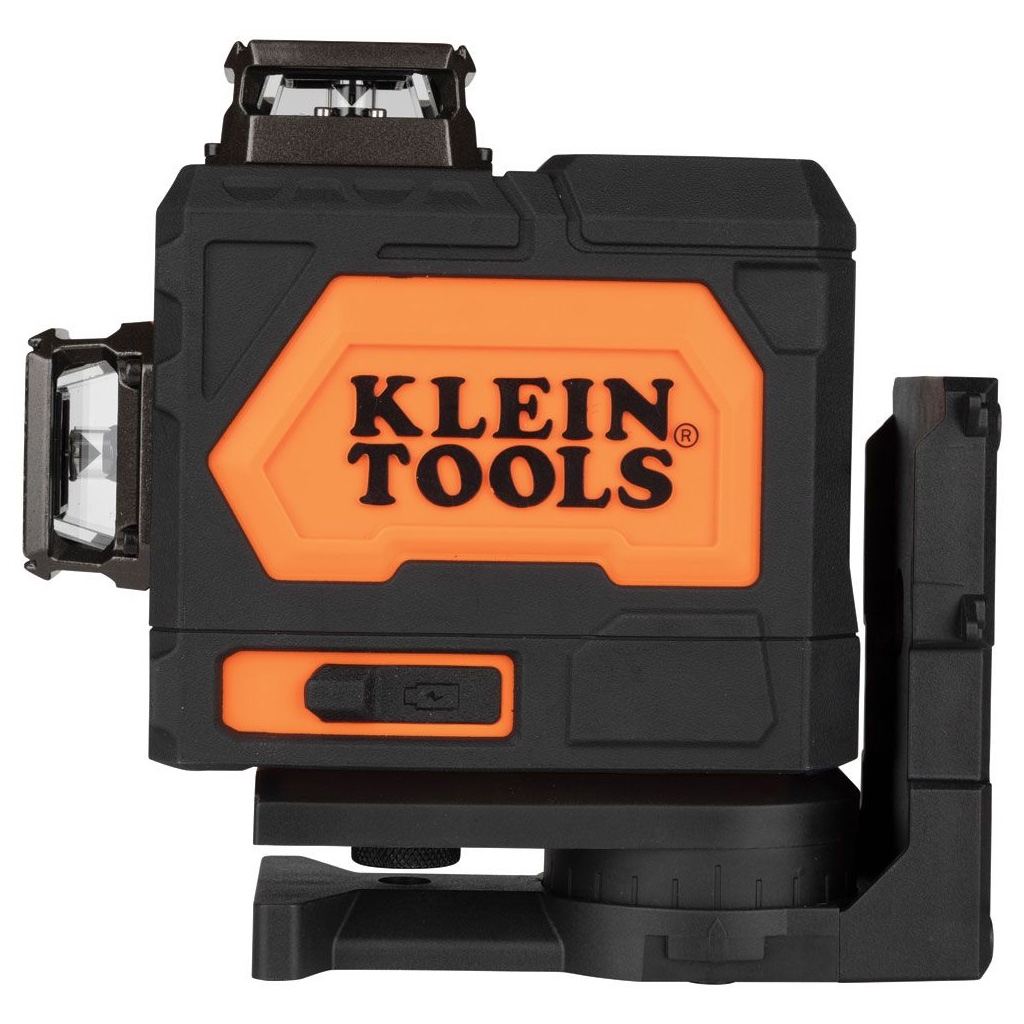

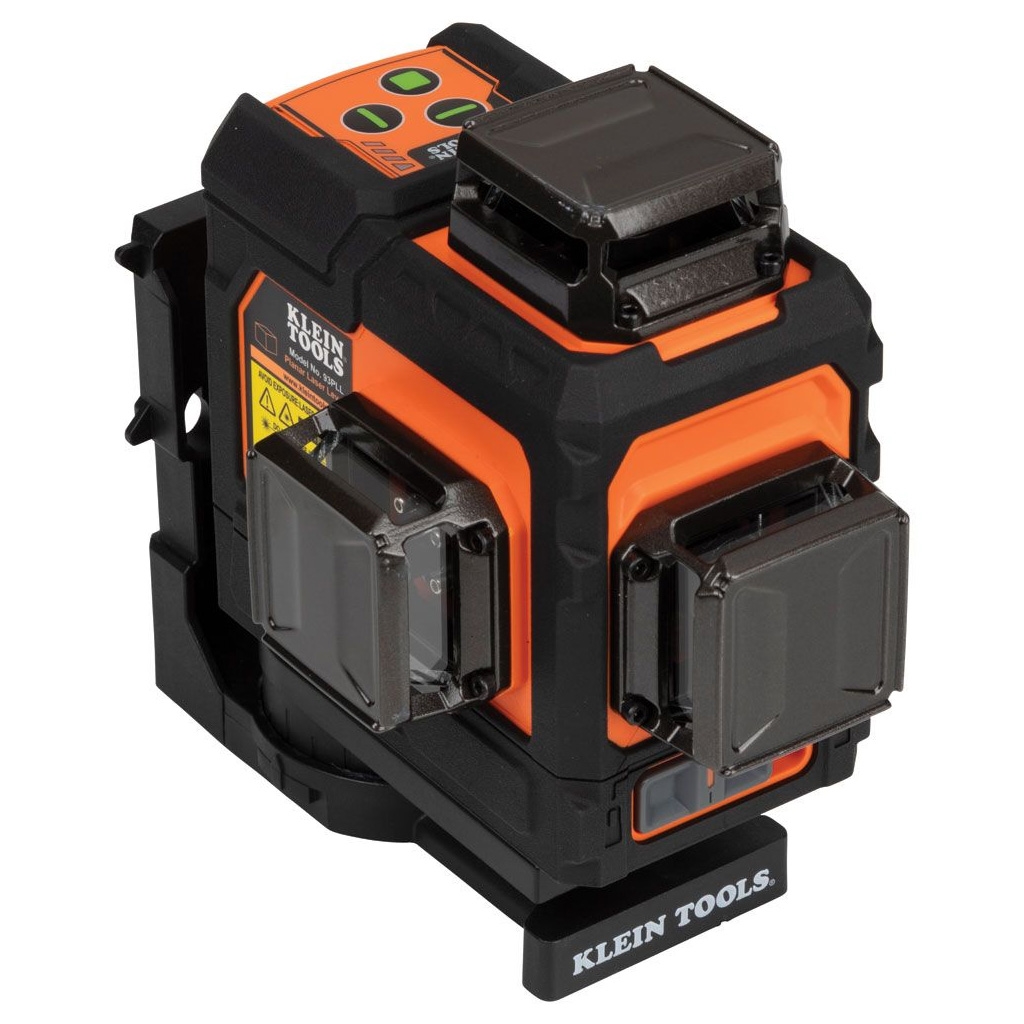

The Klein Tools’ 93PLL Rechargeable Self-Leveling Green Planar Laser Level is a high-performance laser leveling and alignment tool for professionals. Clear, bright green 360-Degree lines in the X-, Y- and Z-planes project from this level, and offers plumb up and plumb down marks. Equipped with an integrated magnetic mount and 1/4-20 tripod mounting threads, Klein's self-leveling laser level enables a multitude of alignment and layout applications. This product is classified as a Class II laser product according to IEC/EN 60825-1:2014, (Power ≤1mW @ 510-530nm).

Features:

Rechargeable Self-Leveling Green Planar Laser Level has easy-to-read with high visibility green horizontal and vertical laser lines

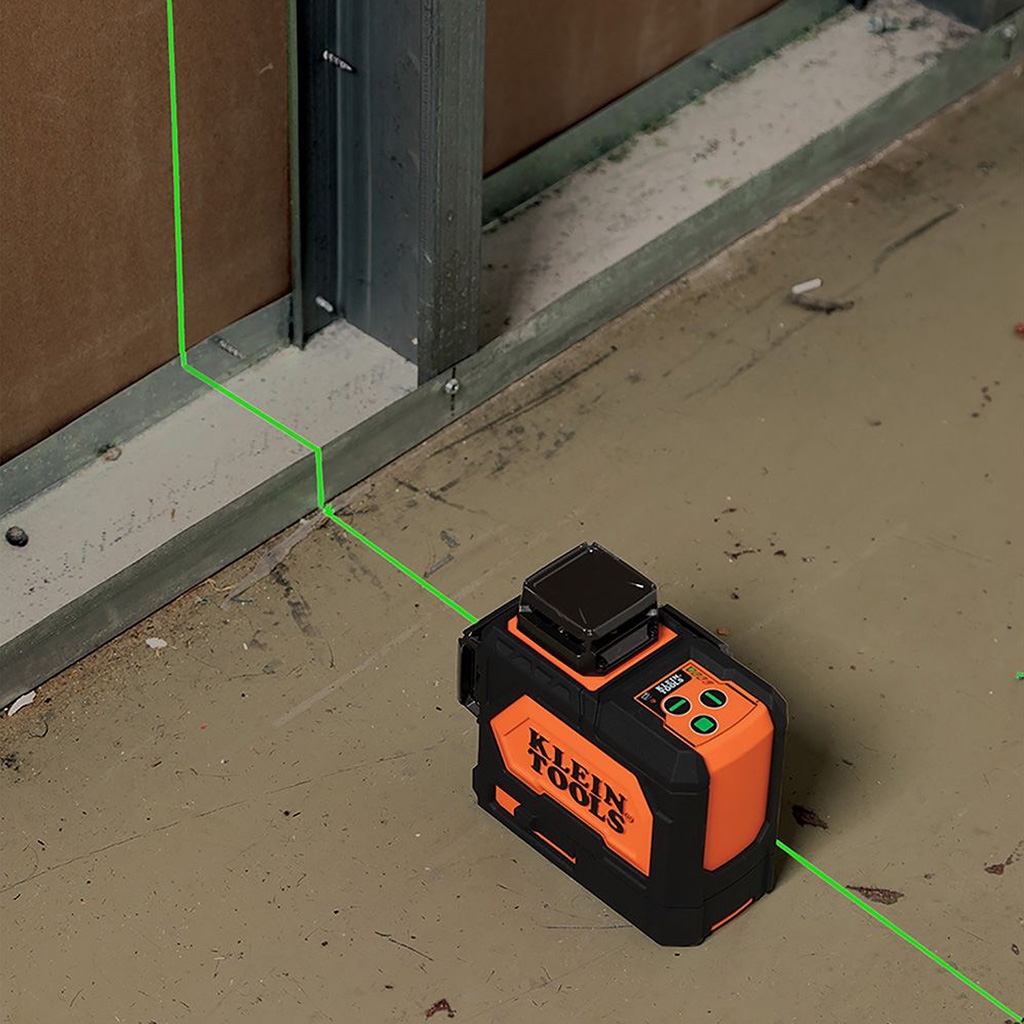

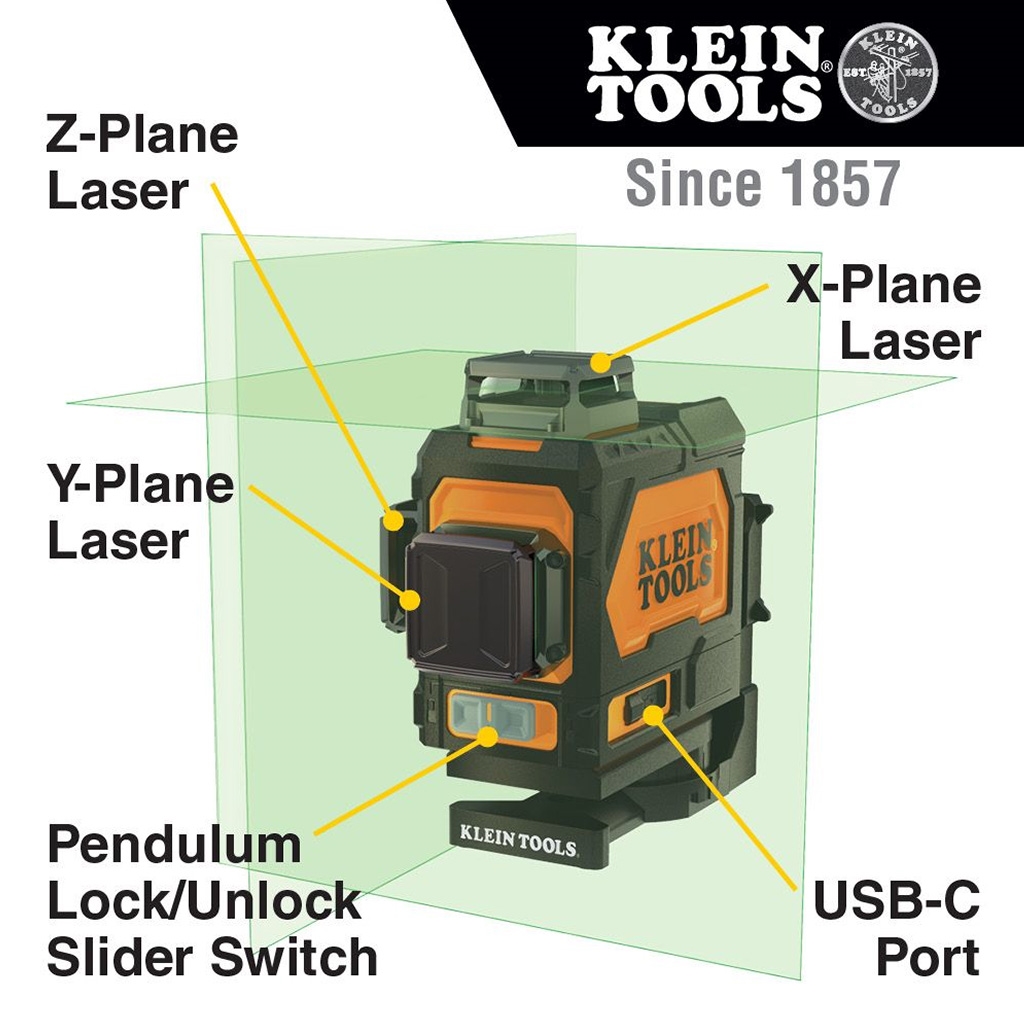

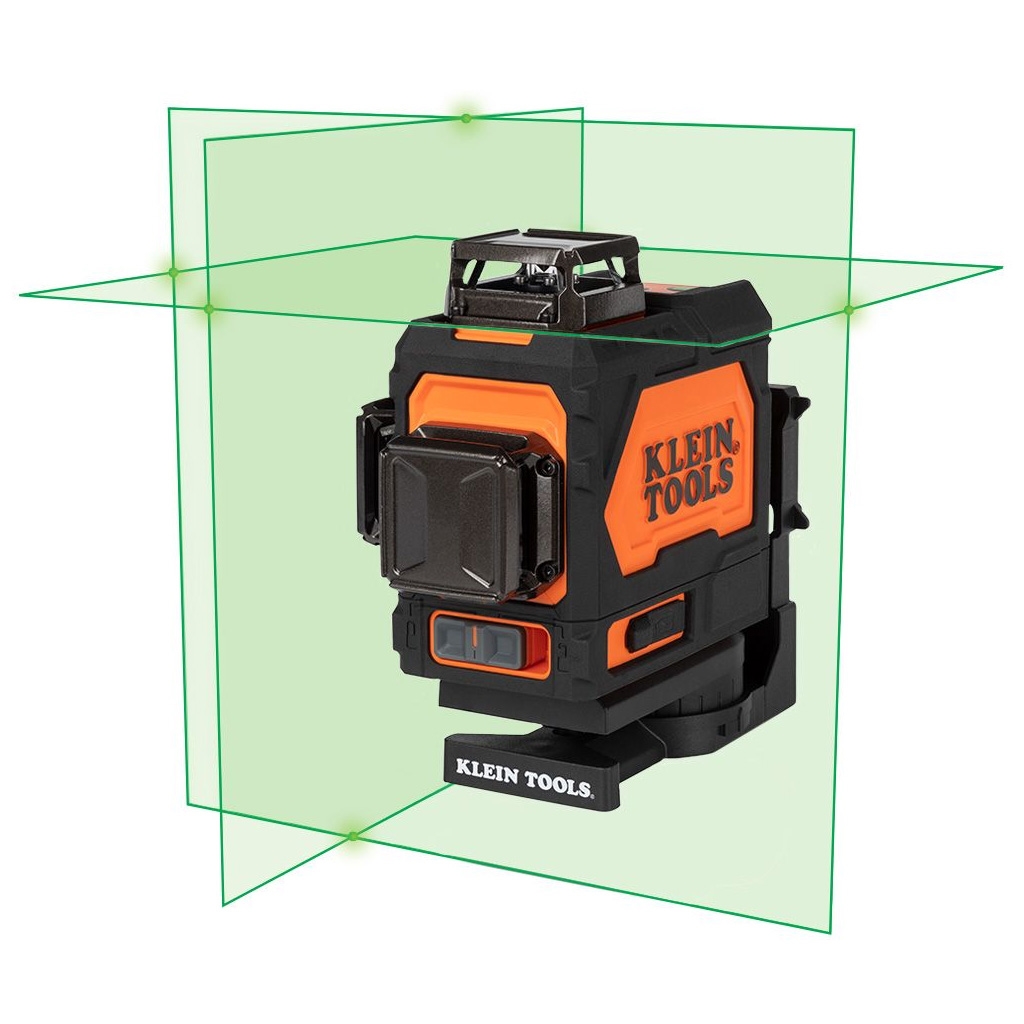

Projects independently or together in X-, Y- and Z-planes for various layout and alignment options

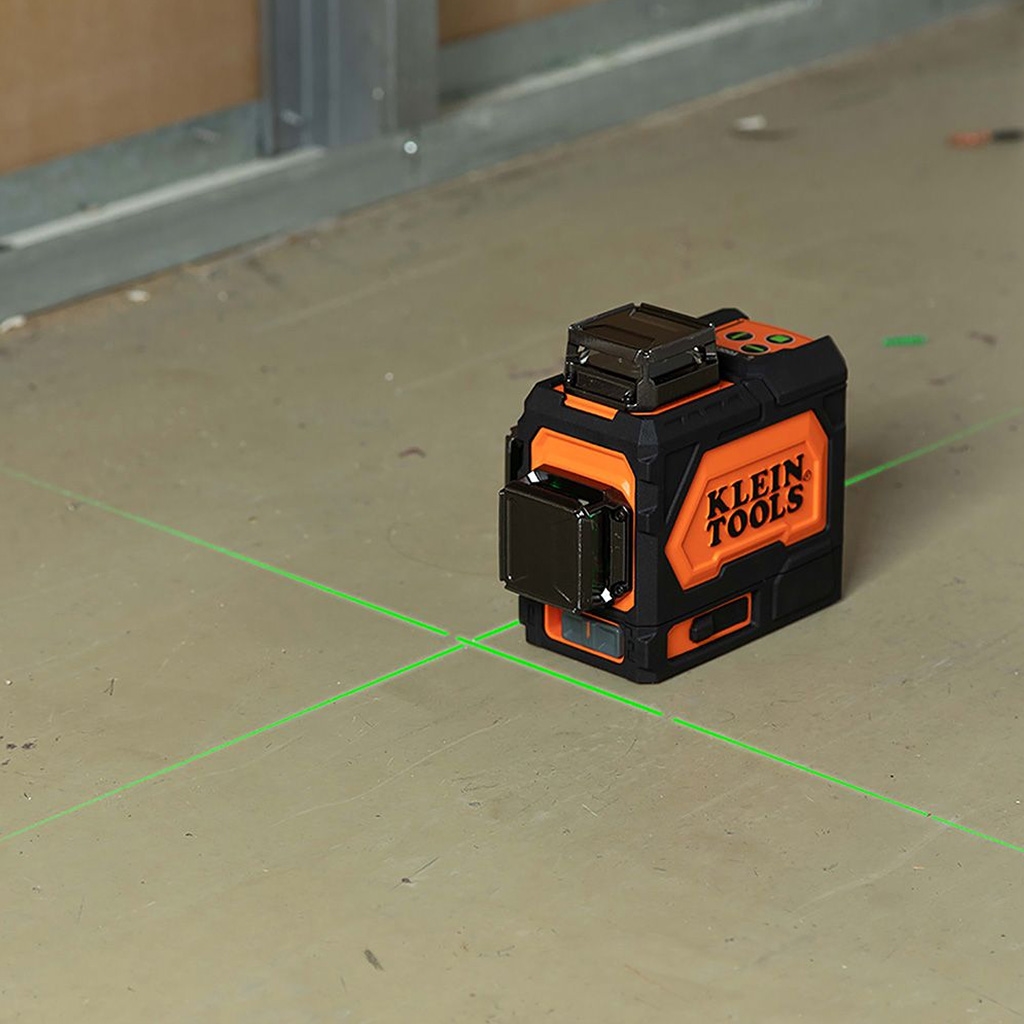

View the upward and downward plumb marks at the intersection of the Y-plane and Z-plane

More than 9 hour run time with integrated rechargeable Li-Ion battery

This product is classified as a Class II laser product according to IEC/EN 60825-1:2014, (Power ≤1mW @ 510-530nm)

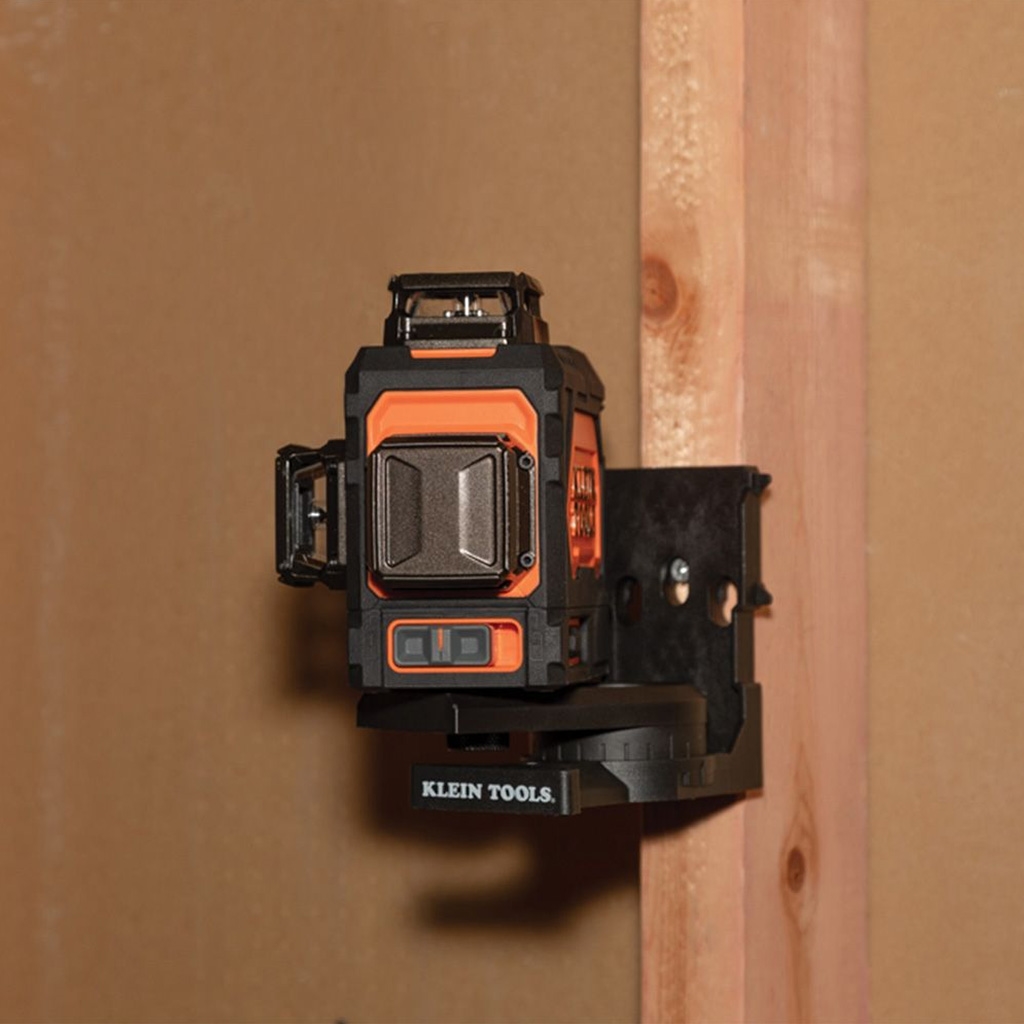

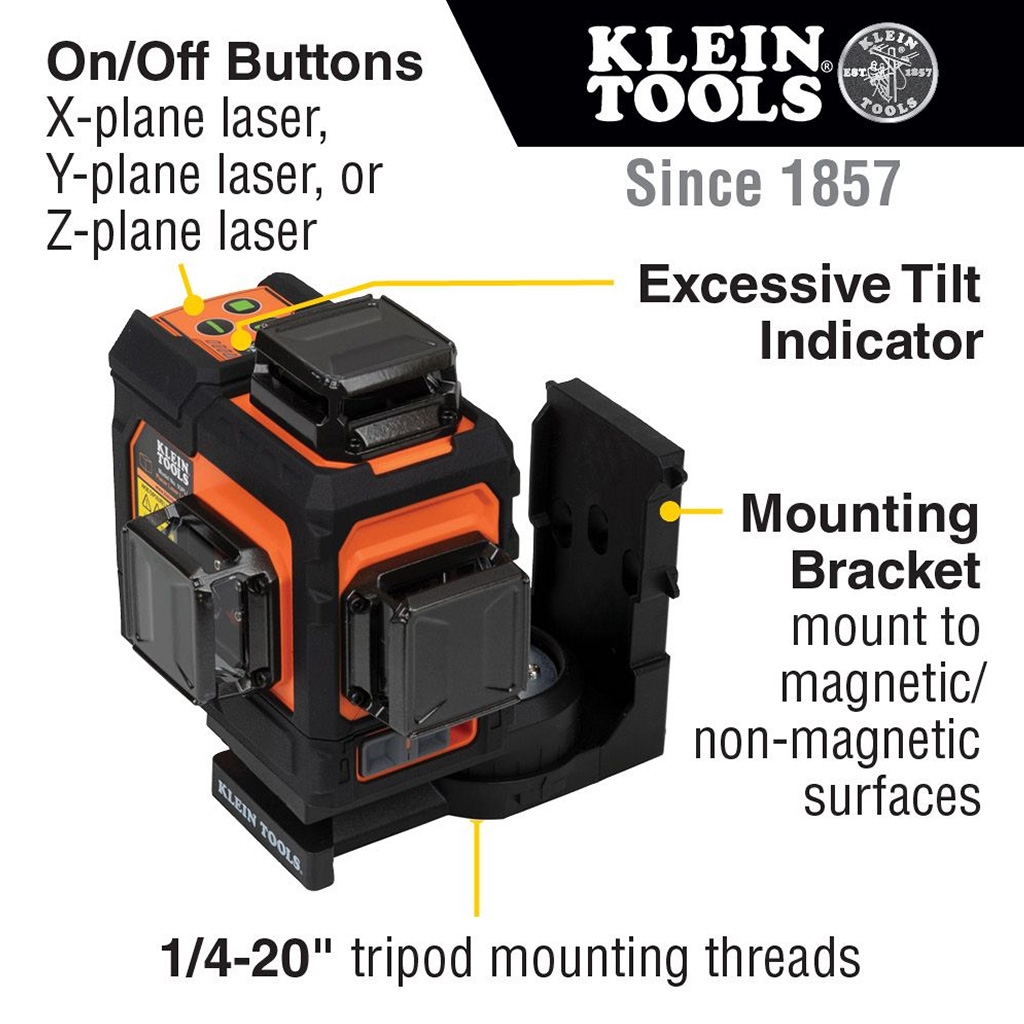

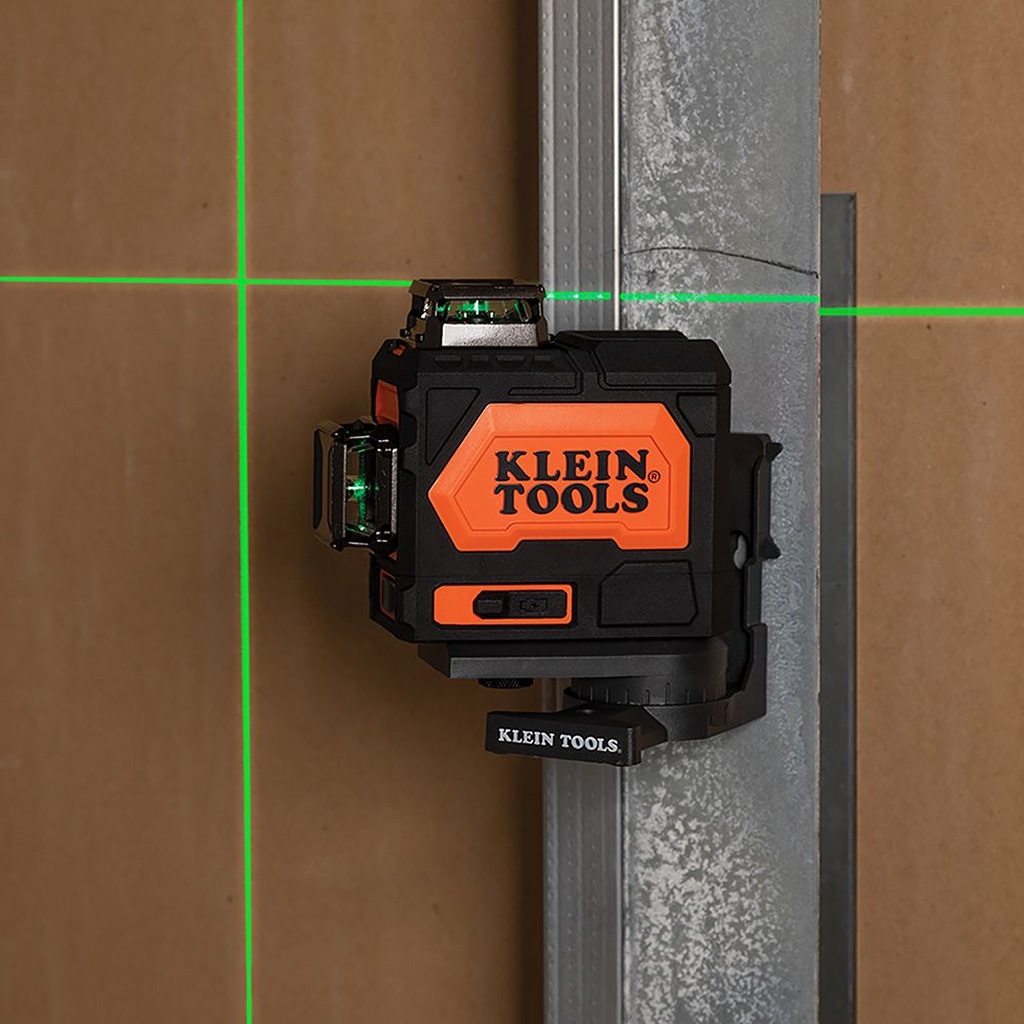

Integrated magnetic mounting bracket with 1/4-20 tripod mounting threads

Rugged body provides IP54 water and dust resistance; hard plastic carrying case included

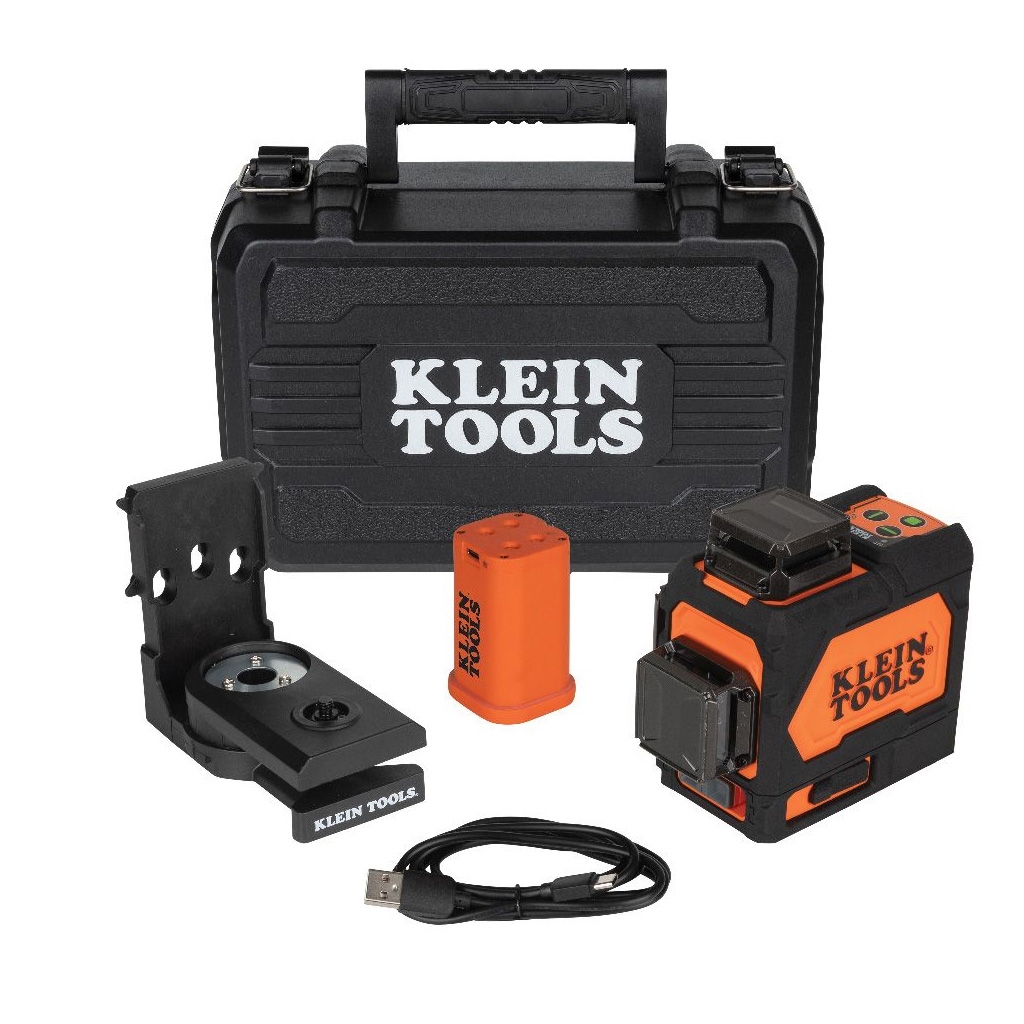

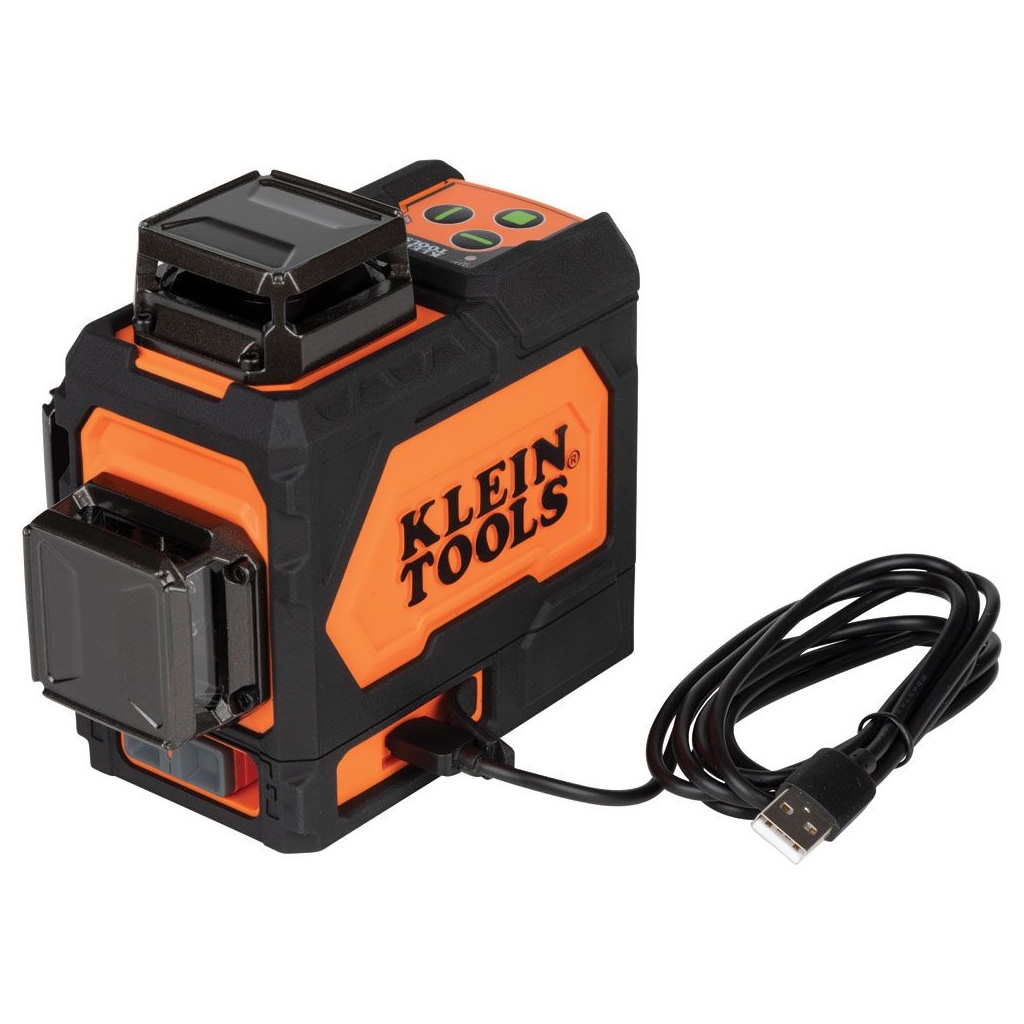

Includes Li-Ion battery pack, USB-A to USB-C charging cable, magnetic mounting bracket, protective hard carrying case, and instructions

Specifications:

Type: Laser

Application: Self-Leveling Laser Alignment Instrument

Special Features: Rechargeable Battery, Magnetic Mounting Bracket with 1/4-20 Tripod Mounting Threads; 3 Orthogonal 360° Planar Lines

Material: ABS Housing and Electronic Components

Batteries: Lithium-Ion

Laser Wavelength: 510-530 nm

Laser Safety: ≤1mW Each Beam, Class 2 Laser Product

Number of Beams: 3

Laser Color: Green

Plumb Laser: No

Indoor Range: 91' (28 m)

Outdoor Range: 91' (28 m)

Maximum Distance: 91' (28 m)

Accuracy: +/- 4.5 mm per 10 m

Pulse Mode: No

Receiver: No

Magnet Type: Rare Earth Magnets

Drop Protection: 3.3' (1 m)

Ingress Protection: IP54: Water and Dust Resistant

Transit Locking Mechanism: Yes

Low Battery Indicator: Yes

Standard: EN61326-1:2013, EN60825-1:2014, NOM-001-SCFI-2018 and 21 CFR 1040.1 and 1040.11 Except for Deviations Pursuant to Laser Notice No. 50, Dated June 24, 2007

Bag or Case: Hard Carrying Case

Included: Li-Ion Battery, USB-A to USB-C Cable, Magnetic Mounting Bracket, and Hard Carrying Case

Need a tri-pod? Find Klein Tools Tripod here: KLN-69345
