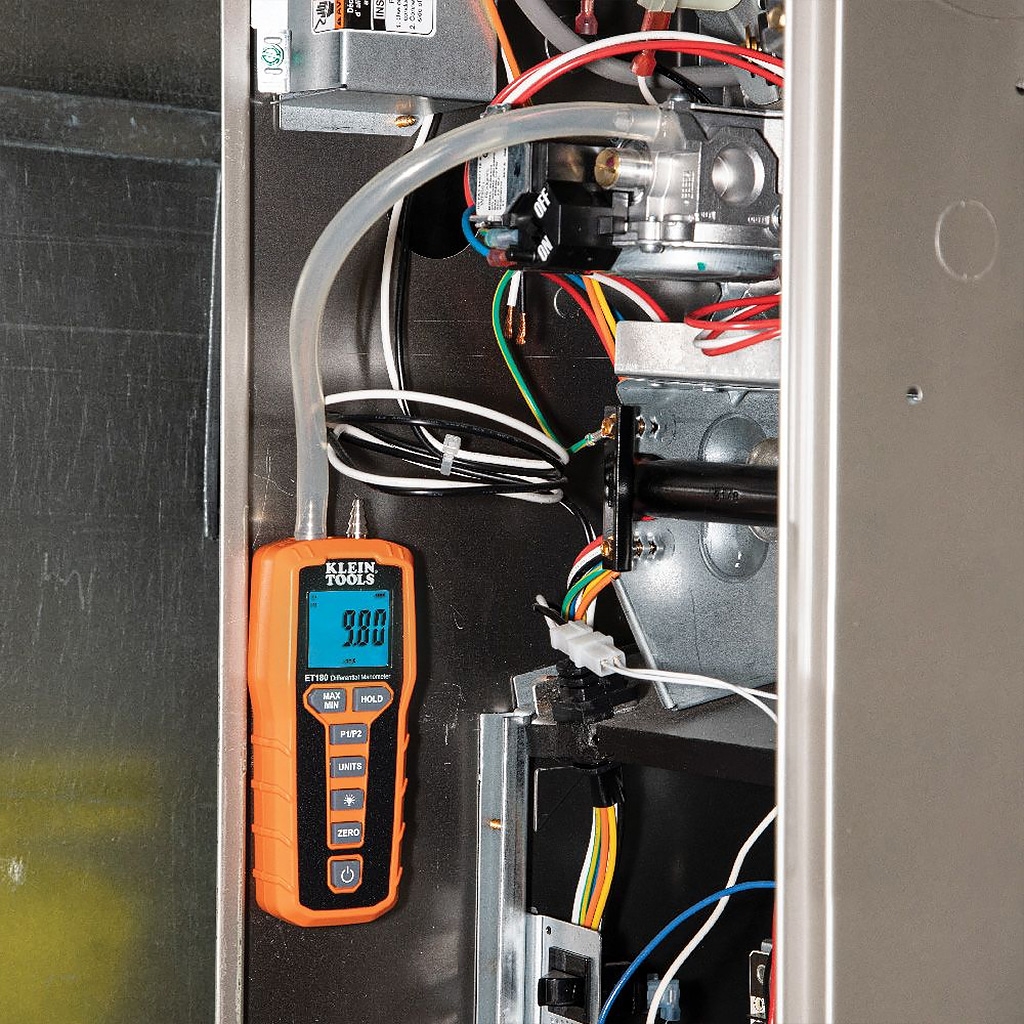

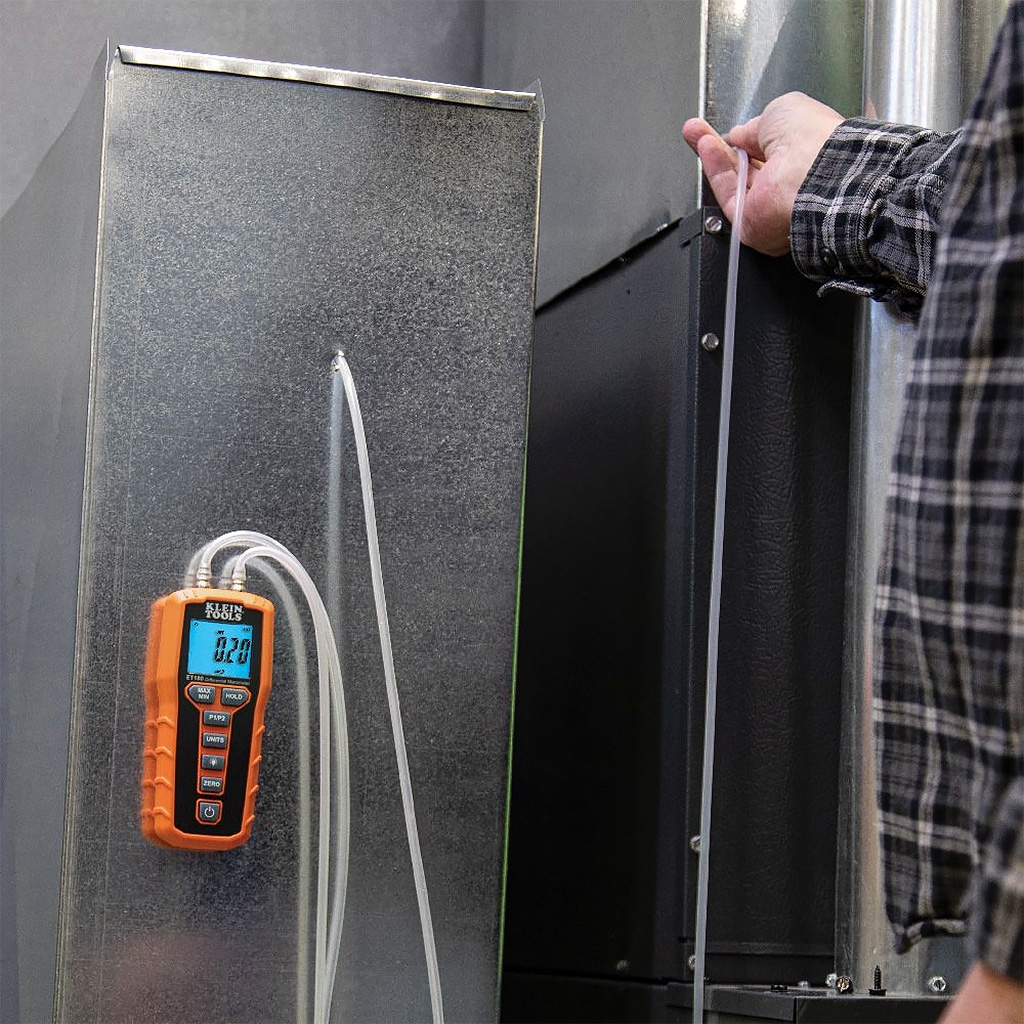

“This new addition to Klein Tools HVAC product line is an essential tool for every HVAC professional,” says Sabrina Kalsi, product manager at Klein Tools. “It measures static and differential pressure, as well as identifying pressure drops at filters and pressure loss in ducts. Tapered ports allow for a variety of tubing size attachments, and the magnet on the back allows professionals to free up their hands for easier operation.”

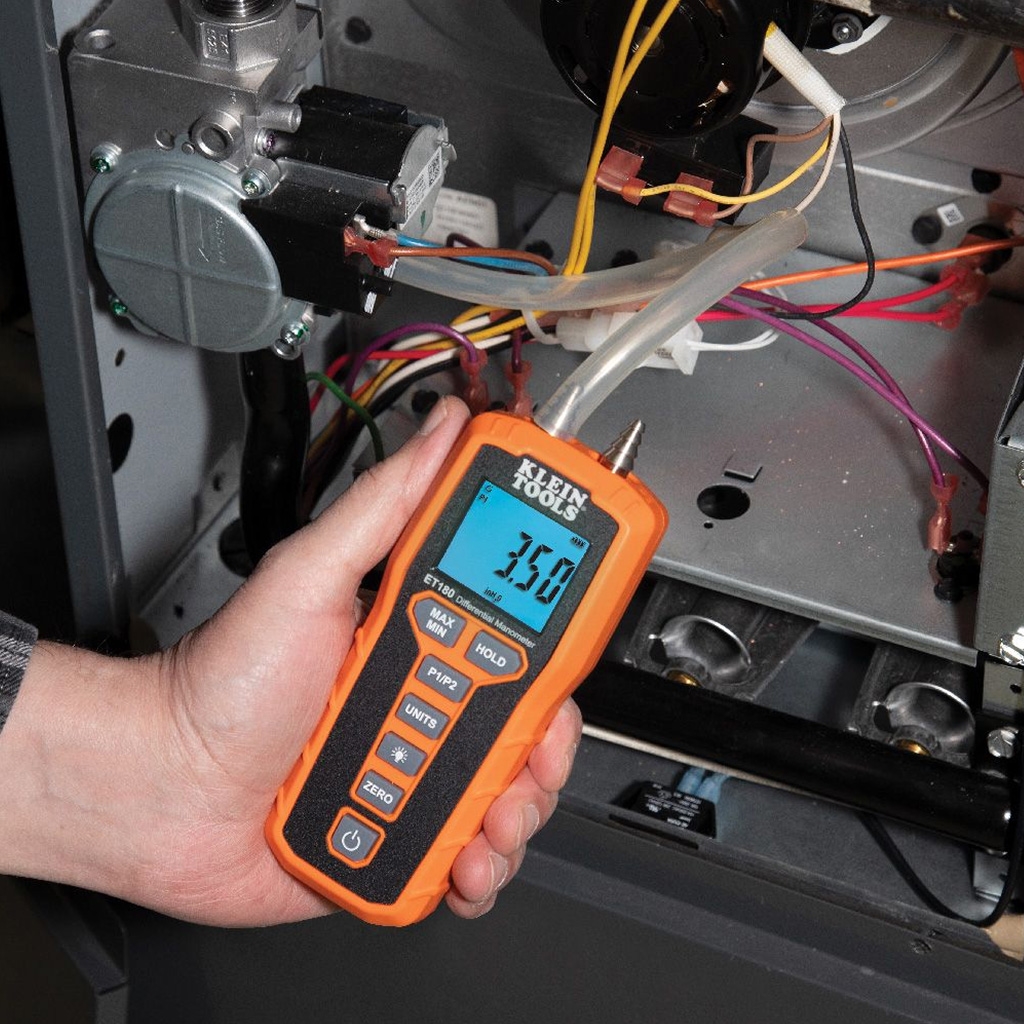

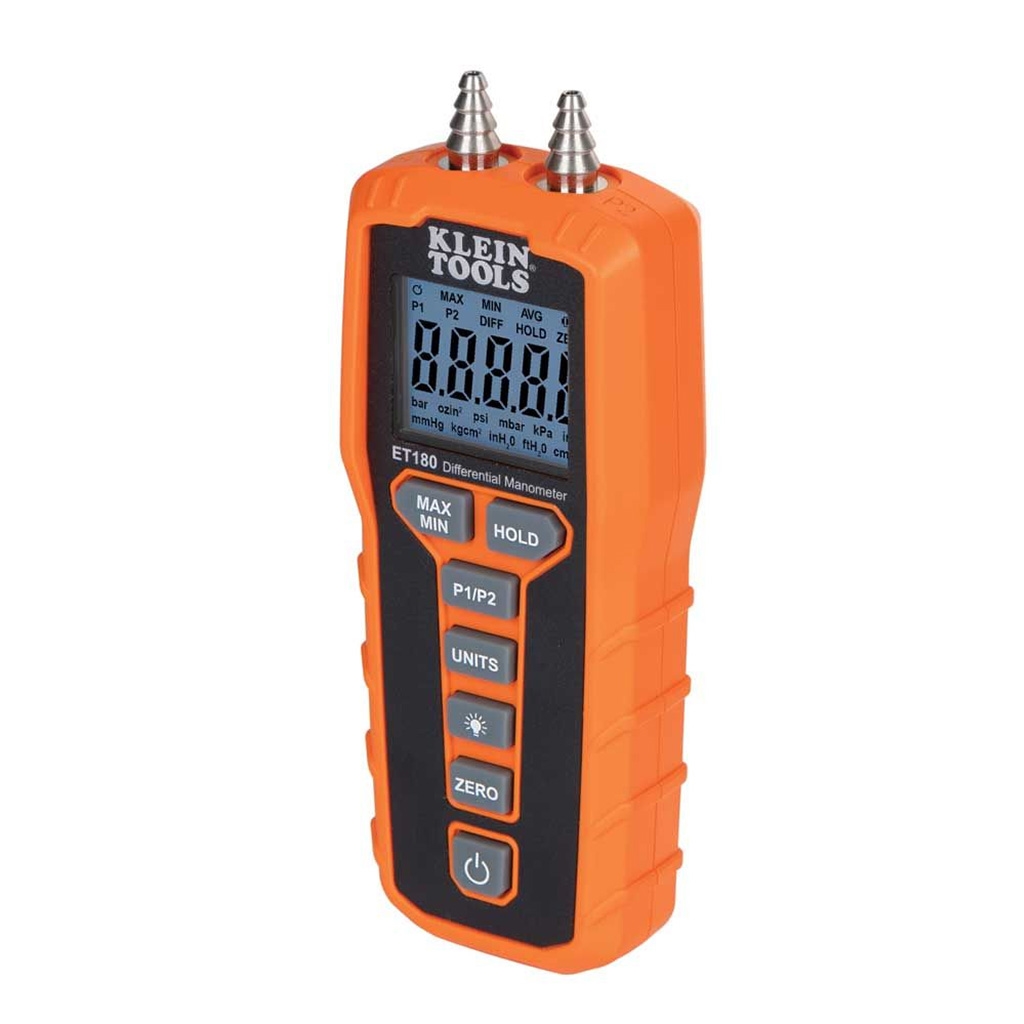

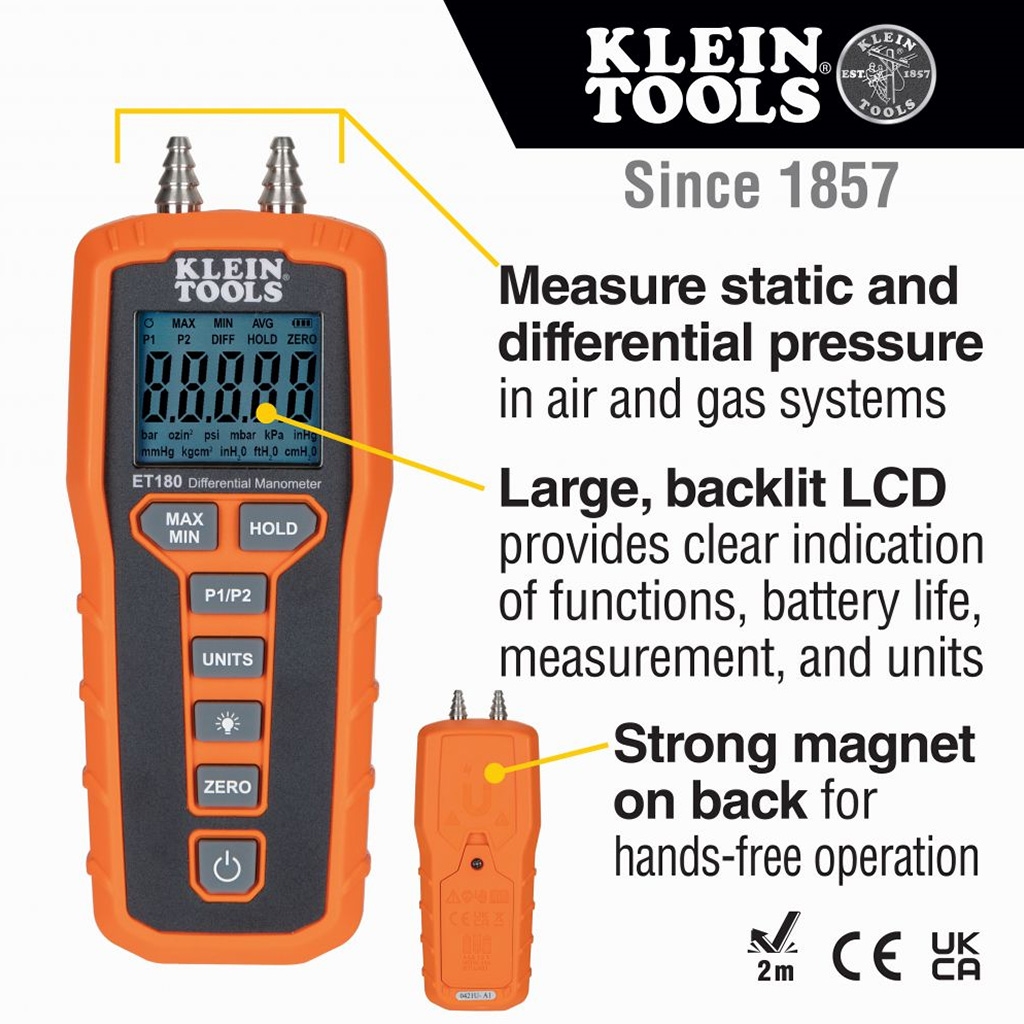

The ET180 Digital Differential Manometer from Klein Tools measures air and gas pressure for port 1, port 2, and measures the differential between the ports. Easily toggle between units: inH2O, bar, oz/in2, psi, mbar, kPa, inHg, mmHg, kg/cm2, ftH20, and cmH2O. Large, backlit LCD shows minimum, maximum, and average values. Magnet on back for hands-free operation.
Features:
Digital Manometer measures air and gas pressure for ports P1, P2, and differential
Range of +/- 60 inH2O and full scale accuracy of +/-1.5-Percent

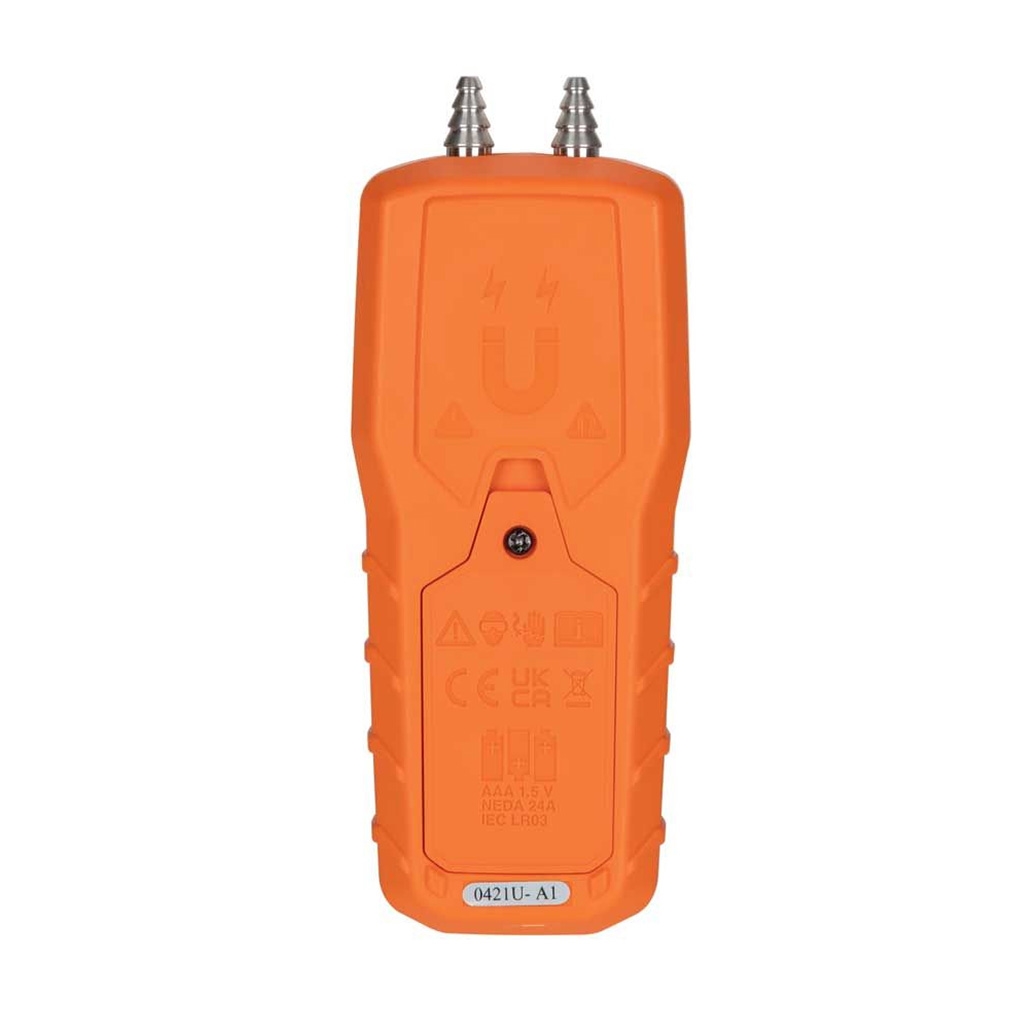

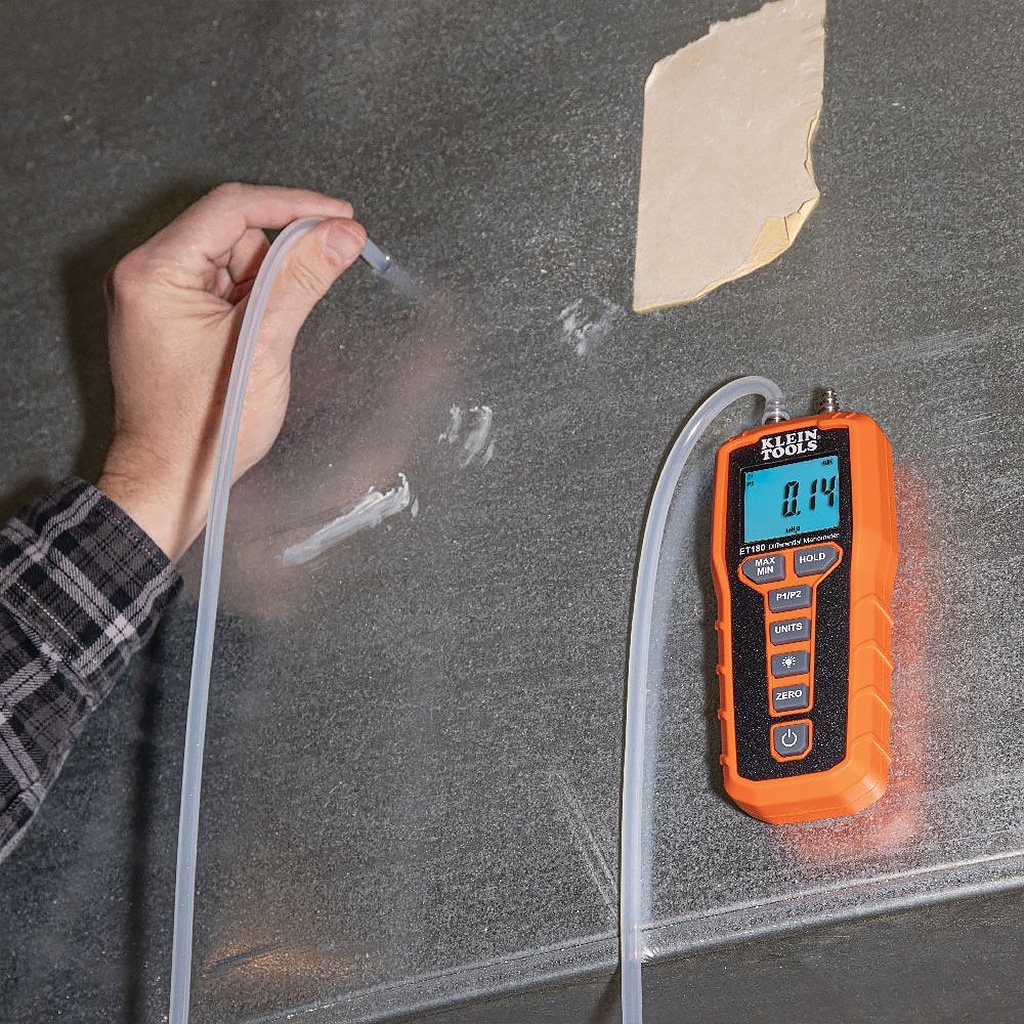

Strong magnet on back for hands-free operation
Units measured: inH2O, bar, oz/in2, psi, mbar, kPa, inHg, mmHg, kg/cm2, ftH20, and cmH2O
Calculates minimum, maximum and average values
Large LCD is backlit for easy viewing in low light conditions
Auto-power off feature conserves battery life
Hold button locks current reading on the display

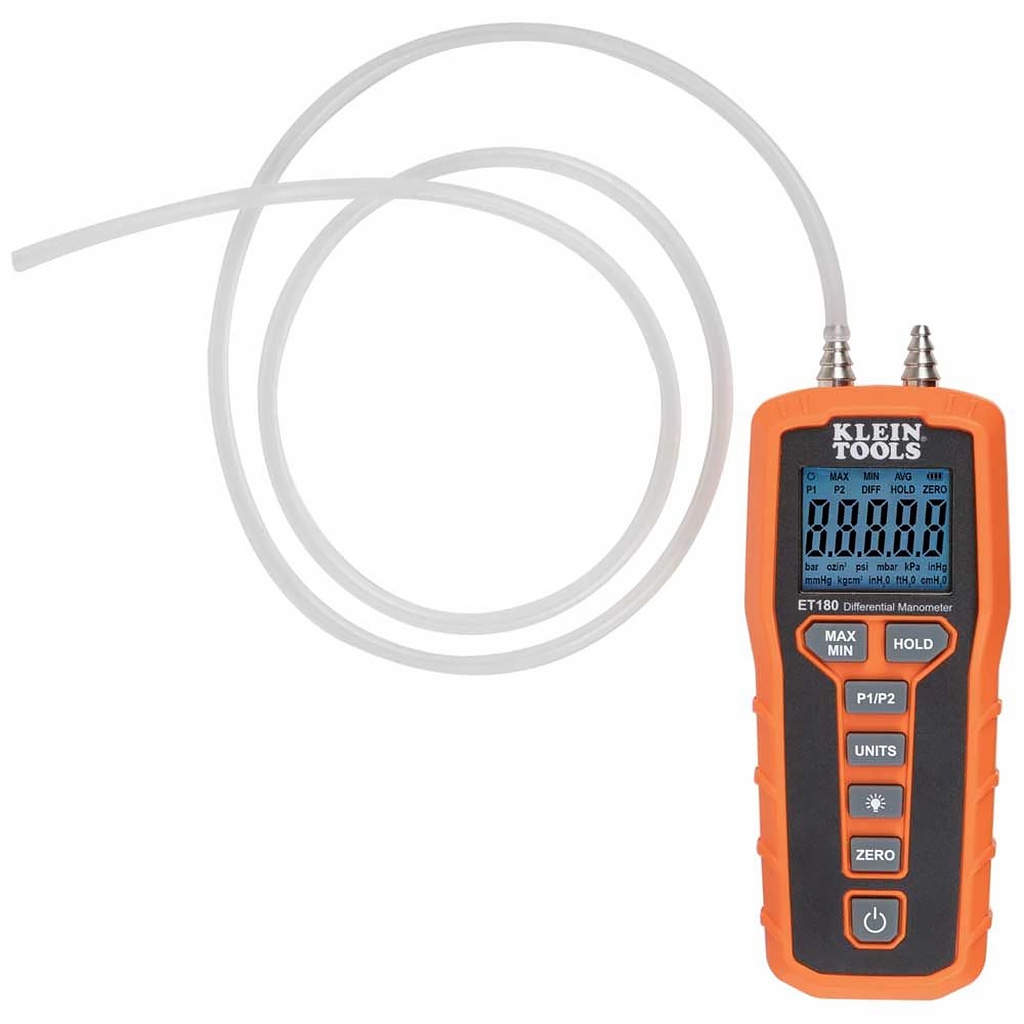

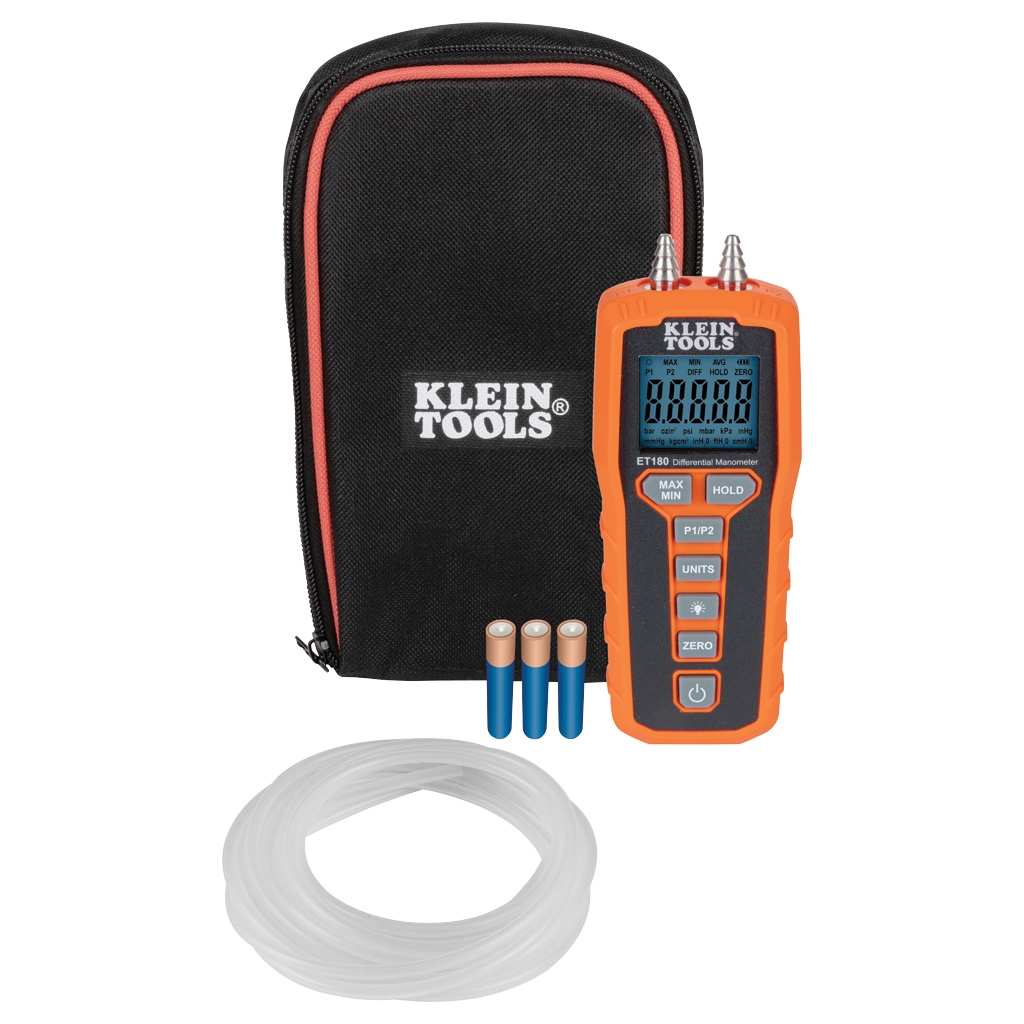

Silicon tubing, 3 x AAA batteries, and storage pouch included
Specifications:
Type: Differential Pressure
Application: Measure Static and Differential Pressure
Special Features: Magnet on Back of Housing
Modes: P1, P2, Differential
Pressure Measurement Range: +/- 60 inH2O
Maximum Pressure (psi): 2.16 PSI
Maximum Pressure Reading (wc): 60.0
Minimum Pressure Reading (wc): -60.0
Accuracy: +/-1.5% Full Scale
Measurement Units: bar, oz/in2, psi, mbar, kPa, inHg, mmHg, kg/cm2, inH2O, ftH20, and cmH2O
Number of Ports: 2

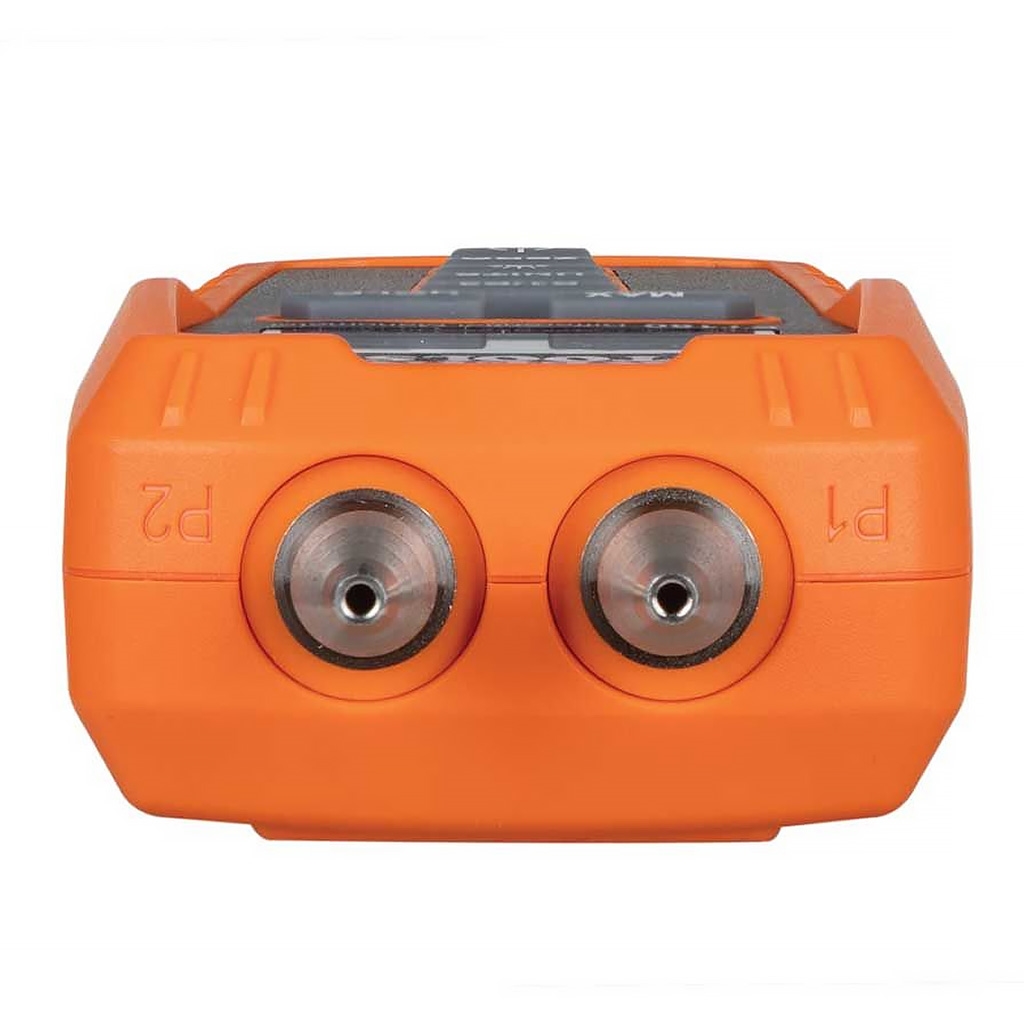

Connector Type: Tapered Stainless Steel Ports from 1/8'' to 5/15''
Temperature Range: 32° to 122° F (0° to 50° C)
Display: Backlit LCD
Batteries: 3 x AAA
Low Battery Indicator: Yes
Auto-Power Off: Yes
Material: ABS, Stainless Steel
Overall Length: 2.47'' (6.3 cm)
Overall Height: 6.19'' (15.7 cm)
Overall Width: 1.38'' (3.5 cm)
Included: 6.56' (2 m) x 1/8'' (3 mm) Inside Diameter Silicon Tubing, 3 x AAA Batteries, Pouch, Instruction Manual
Standard: Conforms to EN 61326-1:2013; EN61326-2-3:2013; CE and UKCA Certified
Weight: 7.2 oz (202 g)
