Jonard Singlemode Fiber Optic Launch Cable SC/UPC-SC/APC - 350m

TTS PRICE: $199.95

STATUS: ON ORDER

Availability:

Normally Ships Same Day

PRODUCT CODE: JON-FLC-3505

QUANTITY:

PRODUCT DESCRIPTION

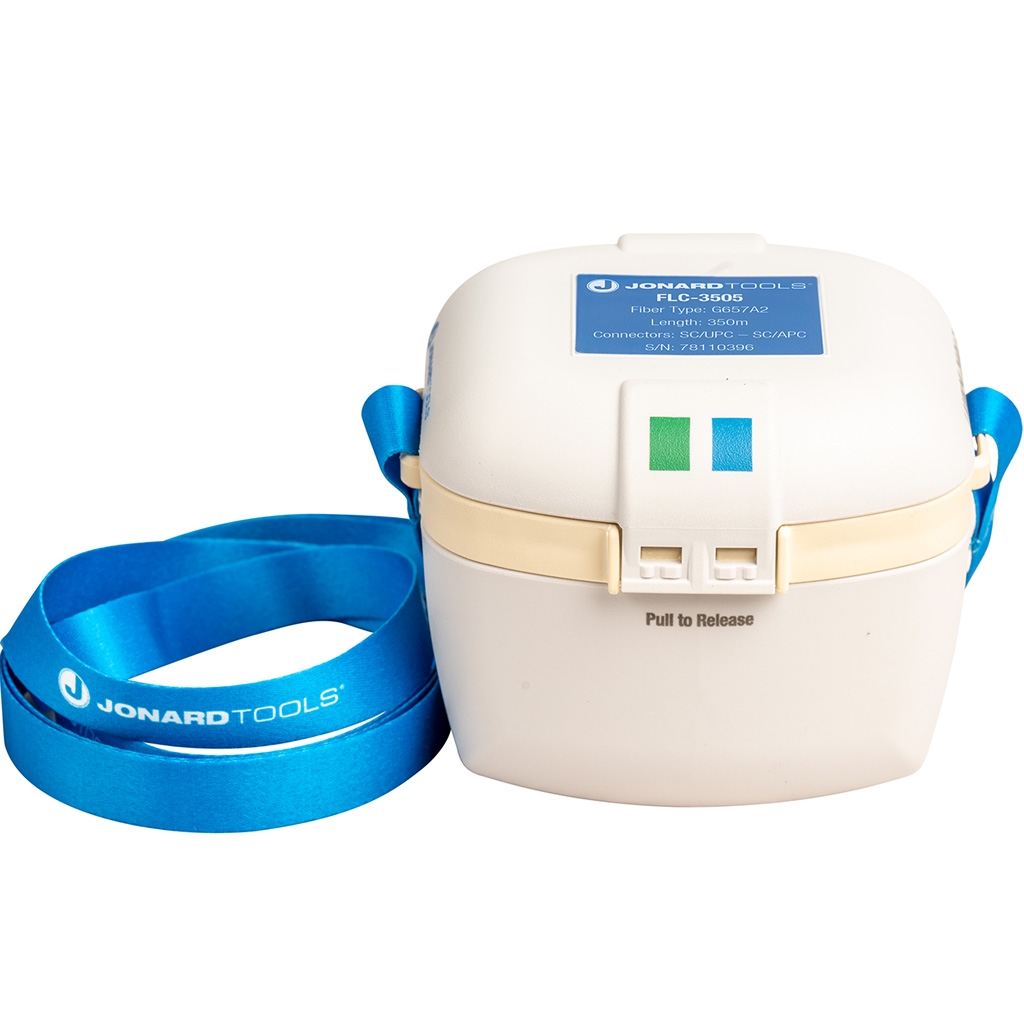

Jonards FLC-3505 is designed with unique compact housing and 350 meters of fiber. This launch cable is perfect for eliminating dead zones in reflectometric tests using an OTDR.

Features:

Compact housing and shoulder strap make this perfect for on-the-go use

Terminated with an SC/UPC connector on one side and an SC/APC connector on the other side for versatility

Steel, interlocked armor under the fiber jacket protects the fiber from accidental damage

Polishing types are color coded for quick and easy identification of the launch cable

Convenient magnet on bottom of housing allows for quick and easy mounting to fiber racks

1148 ft (350 m) length of fiber is perfect for most OTDR testing applications

Specifications:

Cable Length: 1148.29 ft (350 m)

Connector Types: SC/UPC, SC/APC

Input/Output Length: 4.9 ft (1.5 m)

Max Insertion Loss @ 1310 nm: ≤ 0.35 dB/km

Max Insertion Loss @ 1550 nm: ≤ 0.22 dB/km

Max Insertion Loss @ 800 nm: ≤ 2.50 dB/km

Max Insertion Loss @ 1300 nm: ≤ 0.70 dB/km

SM Connector Insertion Loss: ≤ 0.1 dB

MM Connector Insertion Loss: ≤ 0.15 dB

Return Loss: RL ≥ 65 dB (APC); RL ≥ 55 dB (UPC)

Dimensions: 3.75 in x 3.75 in x 3.46 in (9.53 cm x 9.53 cm x 8.79 cm)

Weight: 0.78 lb (354.12 g)
