Jonard Singlemode Fiber Optic Launch Cable SC/UPC-LC/UPC - 1000m

Alternative Views:

TTS PRICE: $248.99

STATUS:

IN STOCK

Availability:

Normally Ships Same Day

PRODUCT CODE: JON-FLC-1001

QUANTITY:

PRODUCT DESCRIPTION

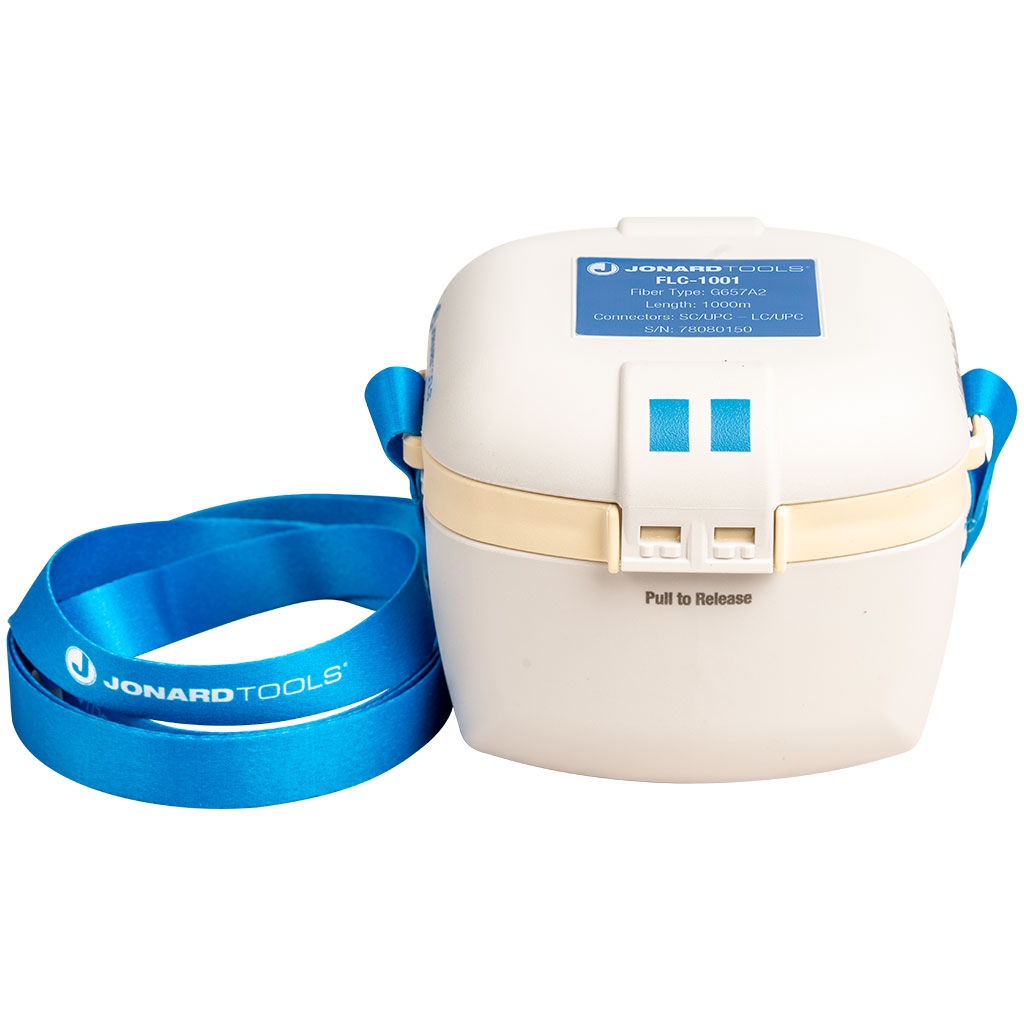

Jonard Tools FLC-1001 is designed with unique compact housing and 1000 meters of fiber. This launch cable is perfect for eliminating dead zones in reflectometric tests using an OTDR.

Features:

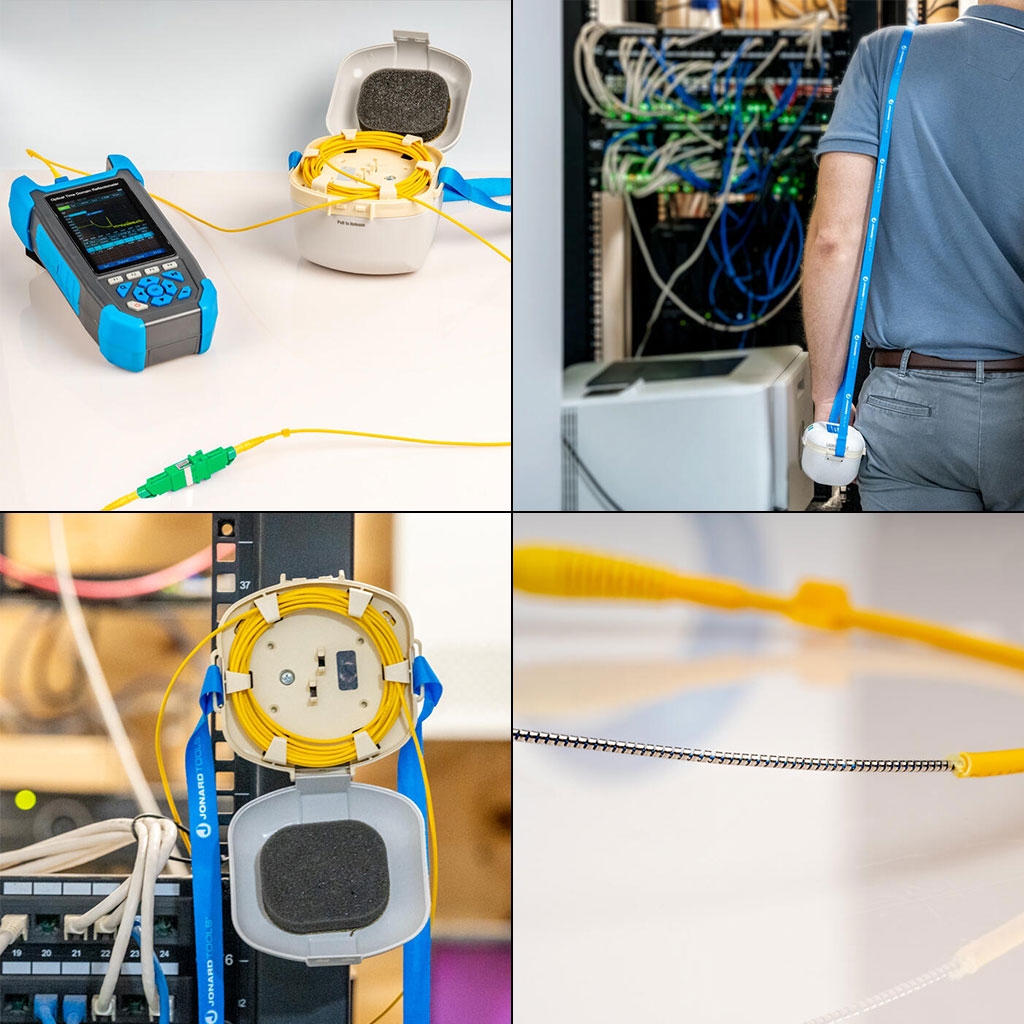

Compact housing and shoulder strap make this perfect for on-the-go use

6.56 ft (2 m) long pigtails are terminated with an SC/UPC connector on one side and an LC/UPC connector on the other side for versatility

Steel, interlocked armor under the fiber jacket protects the fiber from accidental damage

Polishing types are color coded for quick and easy identification of the launch cable

Convenient magnet on bottom of housing allows for quick and easy mounting to fiber racks

3281 ft (1000 m) length of fiber is perfect for most OTDR testing applications

Specifications:

Cable Length: 3281 ft (1000 m)

Connector Types: SC/UPC, LC/UPC

Input/Output Length: 4.9 ft (1.5 m)

Max Insertion Loss @ 1310 nm: ≤ 0.35 dB/km

Max Insertion Loss @ 1550 nm: ≤ 0.22 dB/km

Max Insertion Loss @ 800 nm: ≤ 2.50 dB/km

Max Insertion Loss @ 1300 nm: ≤ 0.70 dB/km

SM Connector Insertion Loss: ≤ 0.1 dB

MM Connector Insertion Loss: ≤ 0.15 dB

Return Loss: RL ≥ 65 dB (APC); RL ≥ 55 dB (UPC)

Product Main Color: White

Dimensions: 3.75 in x 3.75 in x 3.46 in (9.53 cm x 9.53 cm x 8.79 cm)

Weight: 0.78 lb (353.80 g)
