Jonard Optical Fiber Identifier

Jonard Optical Fiber Identifier


TTS PRICE: $584.99

STATUS: ON ORDER

Free Shipping

Availability:
Normally Ships Same Day

PRODUCT CODE: JON-OFI-50
QUANTITY:

PRODUCT DESCRIPTION


Jonards OFI-50 is designed to quickly identify the direction of transmitted fiber and display the relative core power without damaging the fiber. This fiber identifier is the perfect tool for identifying fiber in network systems without disrupting the network.

Features:
  • Easy-to-use one key operation
  • Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with an audible warning
  • The display shows you the relative core power clearly
  • Includes 3 mm, 2 mm, 900 nm (0.90 mm) and 250 nm (0.25 mm) adapters for different sized fiber optic cables
  • Included sunshade protects the fiber optic cable from interference to provide more accurate readings
  • Durable metal housing provides long life and durability
  • LED indicator lets you know when the battery is running low

    • Specifications:
  • Identified Wavelength Range: 800-1700 nm
  • Identified Signal Type: CW, 270Hz±5%，1kHz±5%，2kHz±5%
  • Detector Type: Ø1mm InGaAs 2pcs
  • Adapter Type: Ø0.25 (Applicable for Bare Fiber), Ø0.9, Ø2.0 , and Ø3.0
  • Signal Direction: Left & Right LED
  • Signal Direction Test Range: -46~+10 dBm (1310 nm, CW/0.9 mm bare fiber), -50~+10 dBm (1550 nm, CW/0.9 mm bare fiber)
  • Signal Frequency Display: 270 Hz, 1 kHz, 2 kHz
  • Insertion Loss: 0.8 dB (1310nm), 2.5 dB (1550nm)
  • Battery Type: 9V

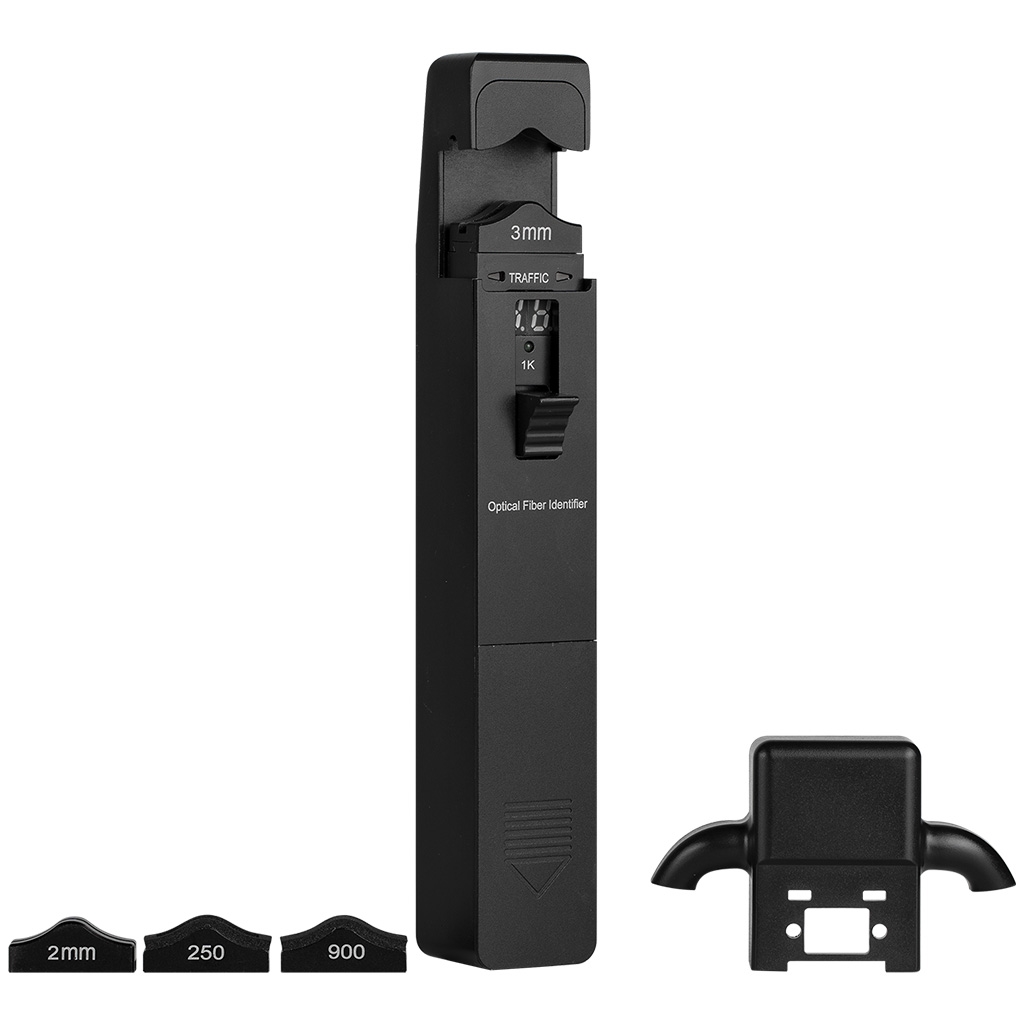

    • Included:
  • Fiber Identifier
  • 3 mm, 2 mm, 900 nm (0.90 mm), and 250 nm (0.25 mm) adapters
  • Sunshade
  • Carrying pouch

    • Jonard OFI-50 User Instructions
