Jonard Mid-Span Shaving Tool - 1mm

Home > Categories > Fiber Prep & Termination >

Jonard Mid-Span Shaving Tool - 1mm - 3.3mm

TTS PRICE: $75.99

STATUS:

IN STOCK

Availability:

Normally Ships Same Day

PRODUCT CODE: JON-MS-600

QUANTITY:

PRODUCT DESCRIPTION

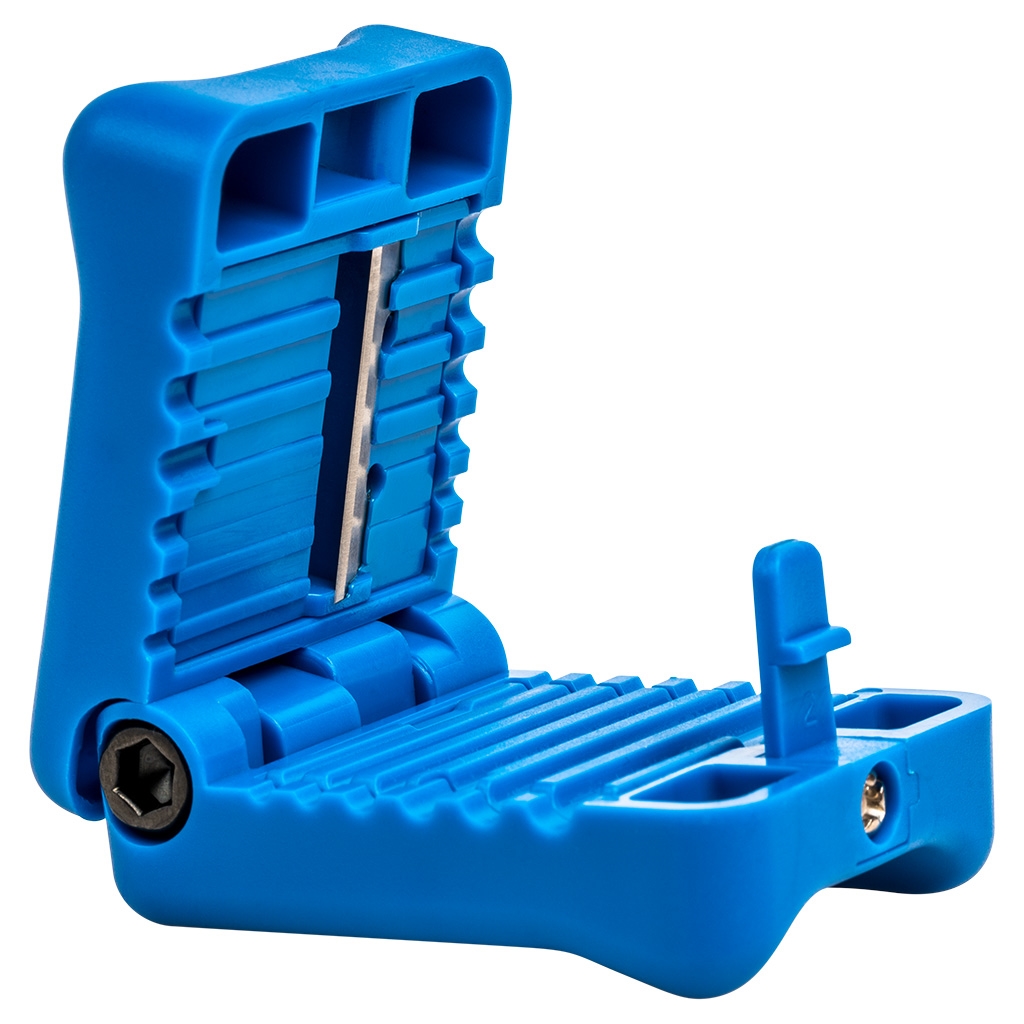

The MS-600 Mid Span Shaving Tool by Jonard Tools is designed to provide easy access to optical fibers in outer jackets and loose buffer tubes. With 6 precision grooves to handle various cable sizes, the sleek ergonomic design allows you to open a fiber jacket or buffer tube without damaging the fiber inside.

Groove Sizes:

1.0-1.4 mm

1.4-1.8 mm

1.8-2.1 mm

2.1-2.5 mm

2.5-2.9 mm

2.9-3.3 mm

Features:

Consists of 6 precision slitting grooves ranging in size from 1.0 mm to 3.3 mm

Compact design weighing less than 2.5 oz with included tethering hole makes it perfect to use in tight spaces or on the go

Indicator line on top of the unit indicates the position of the blade for accurate slitting and ringing

This tool was specially designed for use on OFS EZ-Bend® 3.0 mm cable and also works with Corning's outdoor ALTOS® loose tube, Microduct MiniXtend® HD and MiniXtend® cable with binderless FastAccess® Technology, indoor/outdoor FREEDM® and LSZH® loose tube cables, PPC Semiflex 3 mm cable, and other similar style cables

Specifications:

Cut Type: Shave

Number of Shaving Grooves: 6

Cable Type: Outer Jackets, Loose Buffer Tubes

Cable Diameter: 1.0 mm - 3.3 mm

Weight: 0.08 lb (38.136 g)
