Jonard Adjustable Round Hole Cutter w/ Vacuum Port

Jonard Adjustable Round Hole Cutter w/ Vacuum Port


Alternative Views:
TTS PRICE: $131.99

STATUS: ON ORDER

Free Shipping

Availability:
Normally Ships Same Day

PRODUCT CODE: JON-AHC-19
QUANTITY:

PRODUCT DESCRIPTION

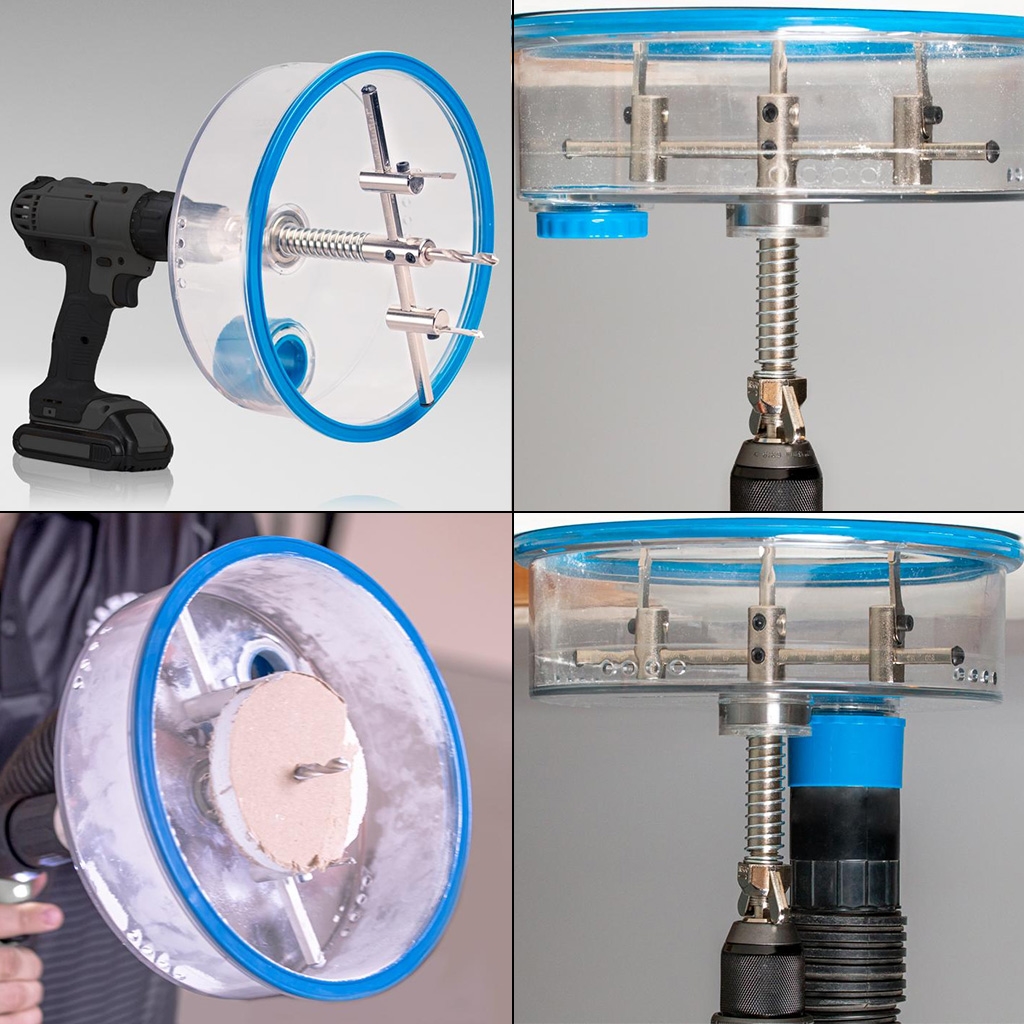

Jonard's AHC-19 is designed for cutting round holes in ceilings, walls, and floors without making a mess, the AHC-19 is the perfect tool for installing recessed speakers, lighting, or other round objects.

Features:
  • Can be hooked up to vacuums, with 2.5" (63.5 mm) diameter hose nozzles, to suck up debris as you go
  • Cuts plywood, sheetrock, plasterboard, and acrylic sheet up to 1 1/16” (27 mm) thick
  • Cutting depth is adjustable via hex locknut and compression spring
  • Cuts hole sizes from 2.2" to 9" (56 mm - 228.6 mm) in diameter
  • Polycarbonate transparent dust shield collects dust and prevents chips from flying into eyes while cutting
  • Rubber gasket provides surface protection against damage, tight seal against flat surfaces, and prevents fallout from debris
  • Compression spring absorbs vibrations while cutting
  • Can be used with any variable-speed drill
  • Power drill and vacuum not included with hole cutter

    • Specifications:
  • Cut Type: Round Hole
  • Works On: Plywood, Sheetrock, Plasterboard, Acrylic Sheet
  • Cutting Diameter Range: 2.2"- 9" (56 mm-228.6 mm)
  • Vacuum Port Size: 2.5" (63.5 mm)
  • Maximum Cutting Depth: 1.1" (27 mm)
  • Bit Diameter: 0.236” (6.0 mm)
  • Bit Length: 2.17” (55 mm)
  • Bit Material: Steel
  • Hex Chuck Size/Arbor Size: 3/8" (9.53 mm)
  • Dimensions: 13" x 4.50" x 13" (33 cm x 33 cm x 11.4 cm)
  • Weight: 5.43 lb (2.47 kg)

    		•
