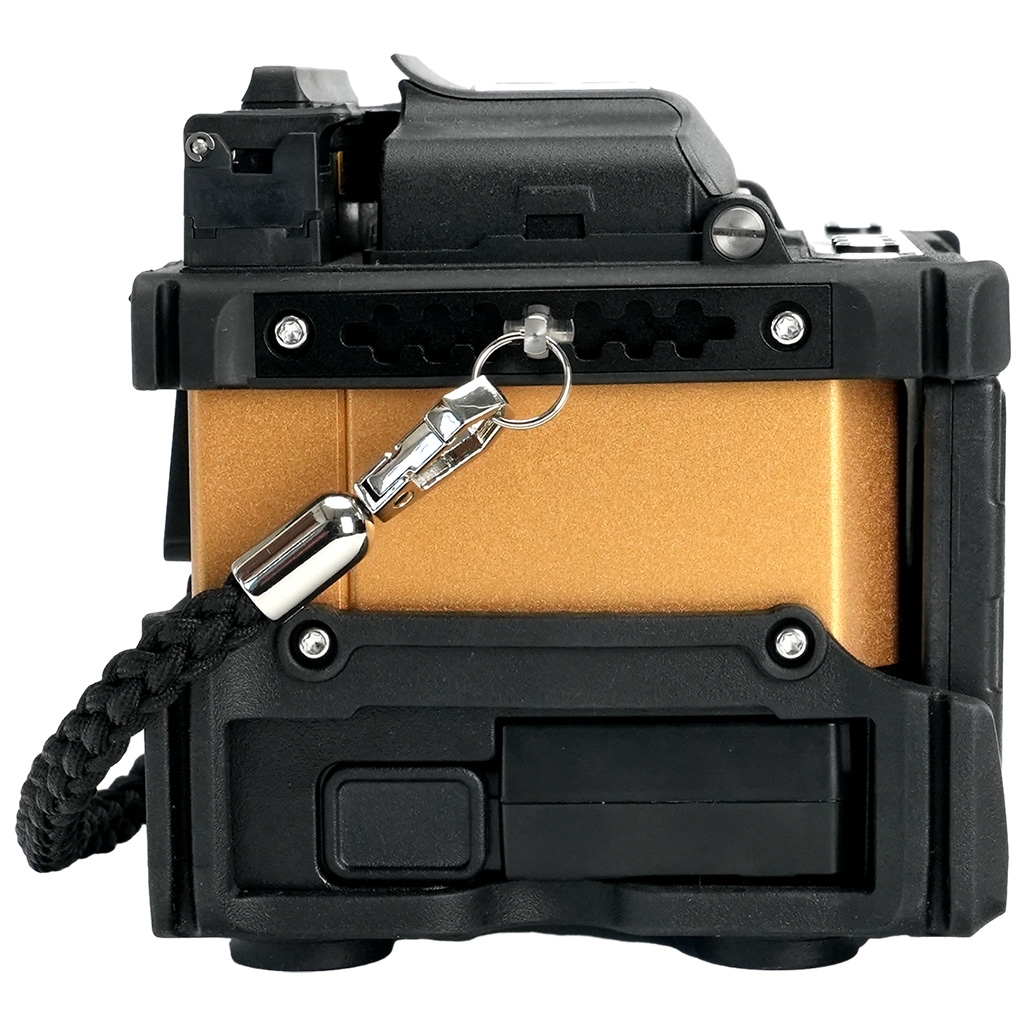

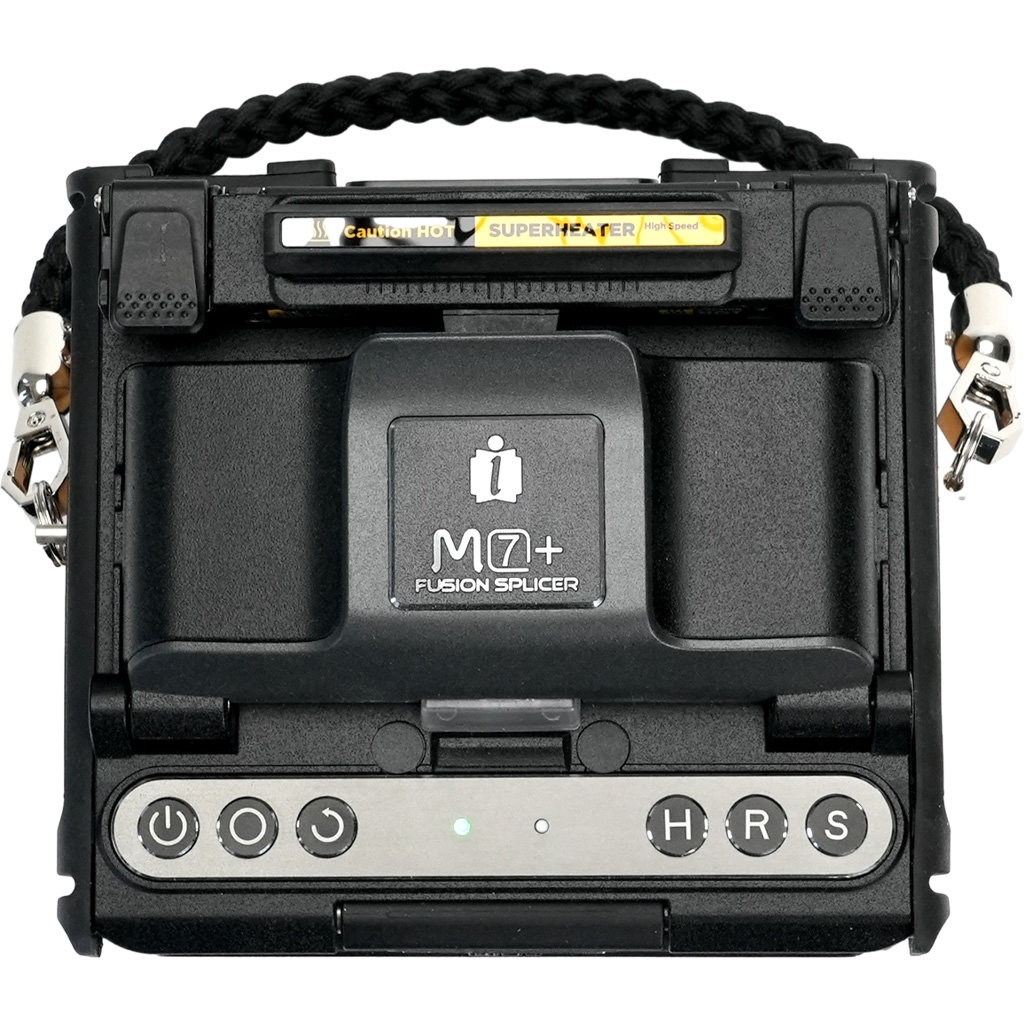

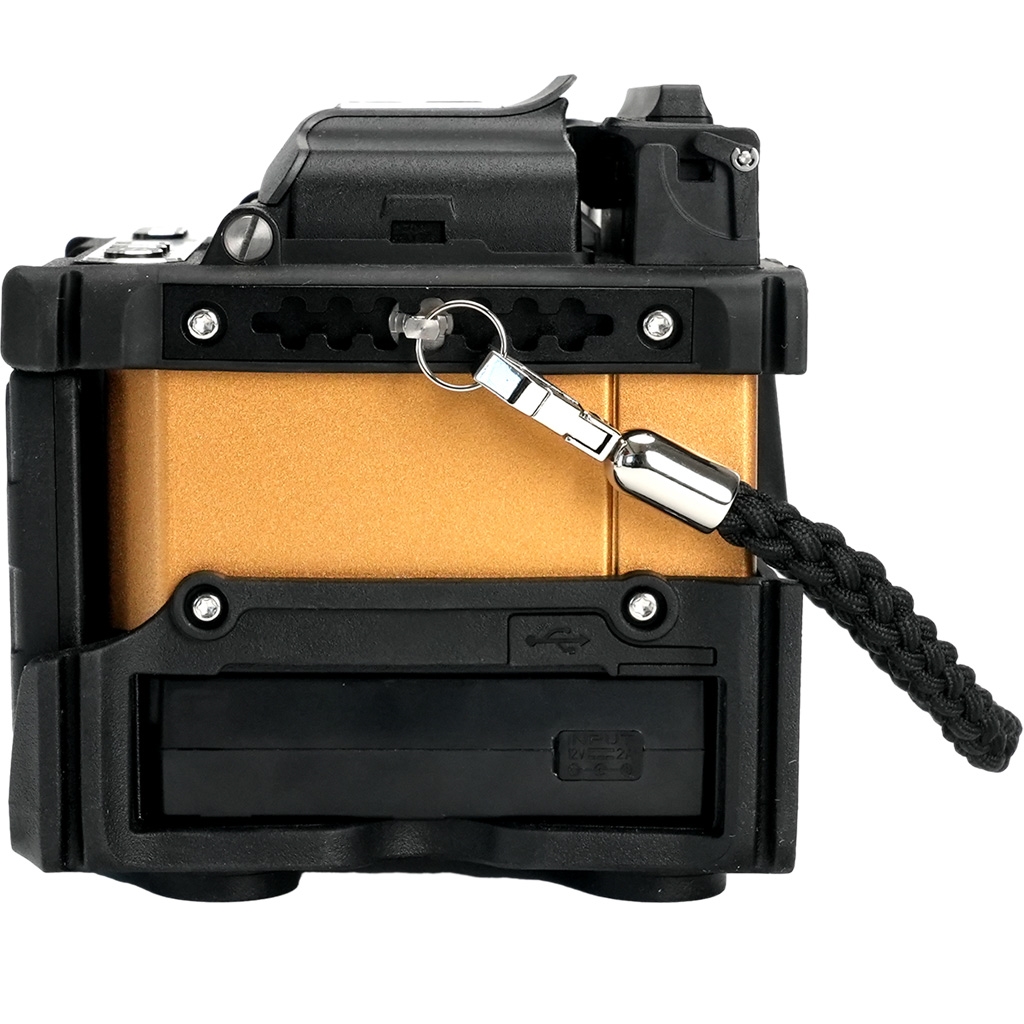

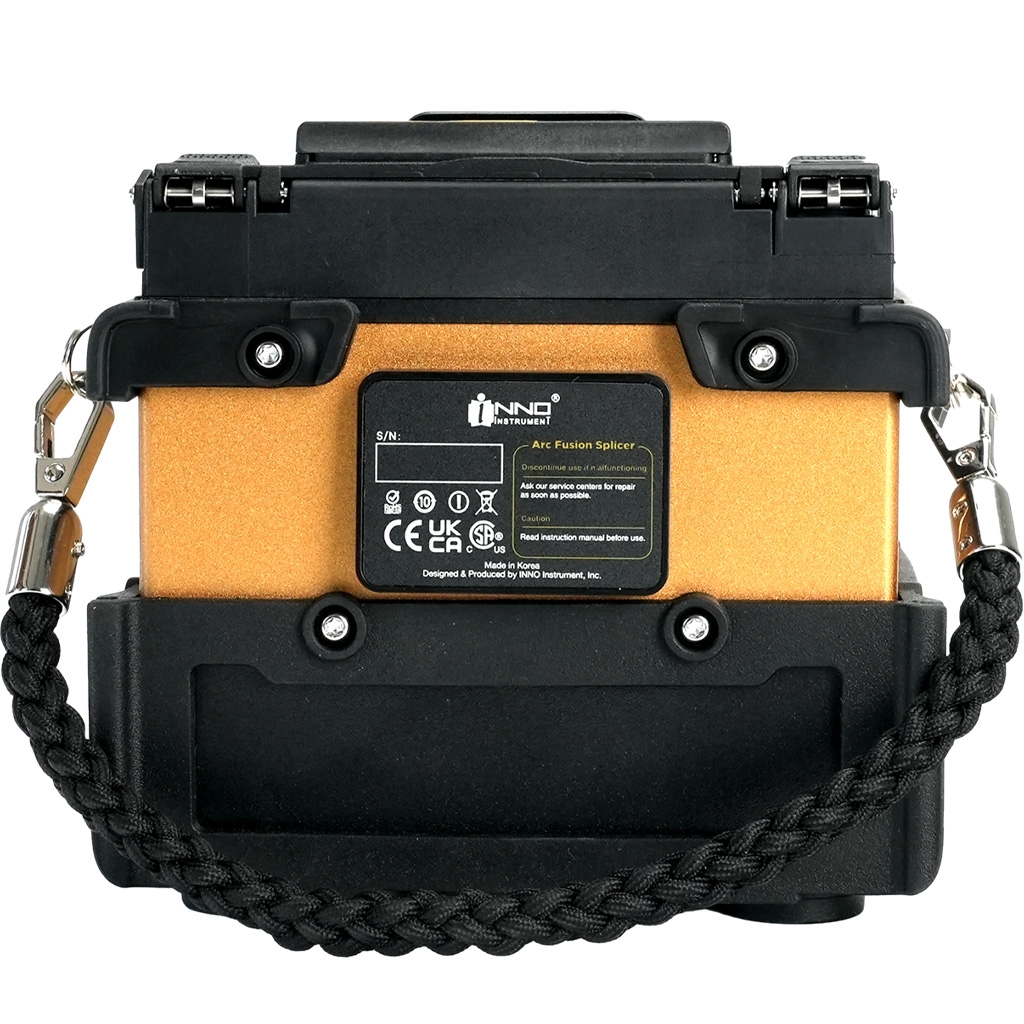

Inno M7+ Active V-Groove Fusion Splicer

Home > Categories > Fiber Prep & Termination >

Alternative Views:

TTS PRICE: $3,039.99

STATUS:

IN STOCK

Availability:

Normally Ships Same Day

PRODUCT CODE: INNO-M7-PLUS

QUANTITY:

PRODUCT DESCRIPTION

The M7+ from Inno Instruments is a Lightweight and compact Active V-groove cladding Alignment Fusion Splicer with AI-driven features and embedded IoT and GPS Modules.

Stepping forward with the compact elegance of the M+ Series, the M7+ combines advanced features with practical design. With IoT and GPS capabilities, it brings smart connectivity to the forefront. Specializing in cladding alignment, the M7+ ensures fibers are perfectly aligned for consistent splicing results. Its compactness makes it a favorite for on-the-go tasks but doesn’t compromise on the high-tech features professionals demand. For those seeking a blend of portability with top-tier technology, the M7+ stands out in the fiber optics arena.

Features:

The Fastest Splicing Time, Splicing Operation reduced to as little as 4 seconds

Pressure Heater Technology, Reducing Operation to Only 9 seconds

Versatile Fiber Holder, Switch easily between Standard and Loose-Tube

Improved Lighting, For better visibility in dark environment

Rapid Response Time, Intuitive Interface | Experience Redefined

Increased Energy Efficiency, Increased number of cycles, even with the same battery capacity

Water resistance (IPx2)

Shock resistance (Drop from 76cm (29.9in))

Dust resistance (IP5X)

Specifications:

Model: VIEW M7+

Alignment Method: Active V-Groove Clad Alignment

Number of Fibers: Single

Applicable Fibers: SM (ITU-T G.652& T G.657) / MM (ITU-T G.651) / DS (ITU- T G.653) / NZDS (ITU-T G.655)

Coating Diameter: 100µm - 3mm

Cladding Diameter: 80 - 150µm

Cleave Length: 5 -16mm

Typical Splice Loss: SM: 0.03dB I MM: 0.01 dB / DS: 0.05dB / NZDS: 0.05dB I G.657: 0.03dB

Return Loss: >>60dB

Splice Time: Quick mode: Avg. 4 sec / SM mode: Avg. 5 sec

Splice Programs: Max 128 modes

Automatic Calibration: Automatic Arc Calibration by air pressure & temperature

Electrode Life Span: 6000 Arc Discharges

Heating Programs: Max 32 modes

Heating Time: Quick: 9s / Average: 13s

Protection Sleeve: 20mm - 60mm

Data Output: Cloud (View Pro Manager)+ USB-C

Splice Memory: 20,000 Splice data / 10,000 Splice image

Battery Capacity: 3000mAh / Operation Cycle: 200 cycles (Splicing + Heating)

Power Supply: AC Input 100 - 240V, DC Input 9 - 19V

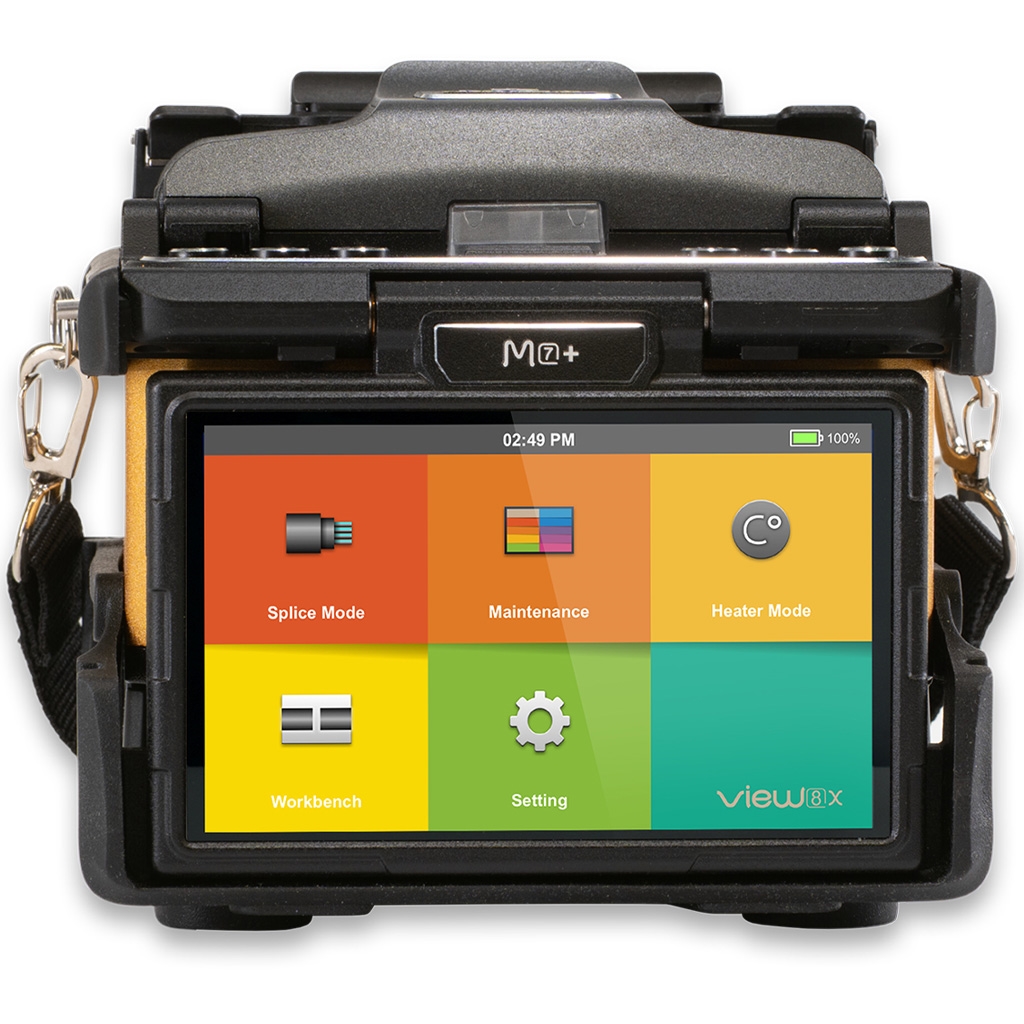

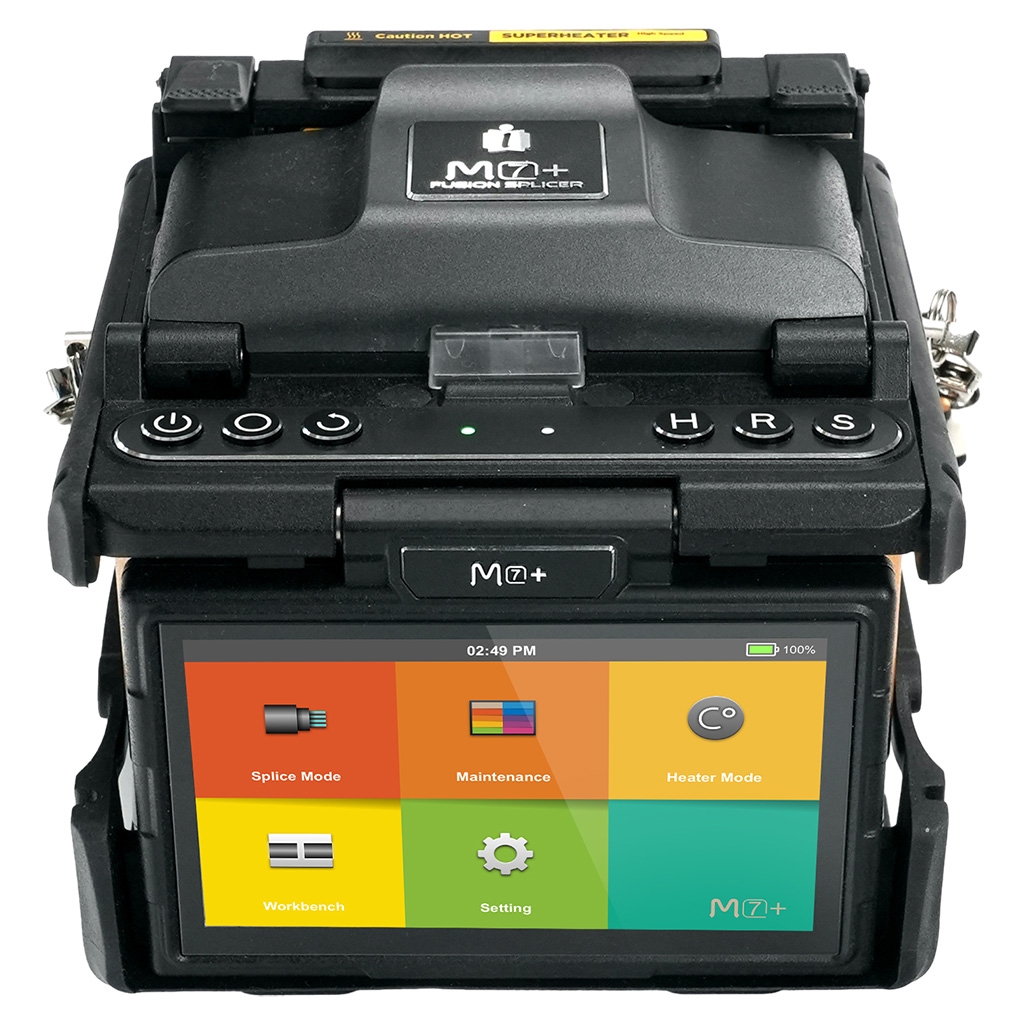

Monitor: 4.3" Color LCD display, Full Touch Screen

Magnification: x320

Size: 124 x 144 x 131mm

Weight: 1.49kg

Pull Test: 1.96 - 2.25N

Operating Conditions:

Altitude: 0 - 5000m

Humidity: 0 - 95%, non-dew

Temperature: -10 - 50°C

Wind: up to 15m/sec

Storage Conditions:

Humidity: 0 - 95%, non-dew

Temperature: -40 - 80°C

Resistance Tests:

Shock Resistance: 76cm for bottom surface drop

Exposure to Dust: 0.1 to 500µm diameter aluminum silicate

Rain Resistance: 10mm/h for 10 mins

Applications:

Network Maintenace

FTTH Splicing

Medium Fiber Count Projects

Non-Precision-Critical Systems

SOC Splicing & Termination

Multimode Splicing

Included:

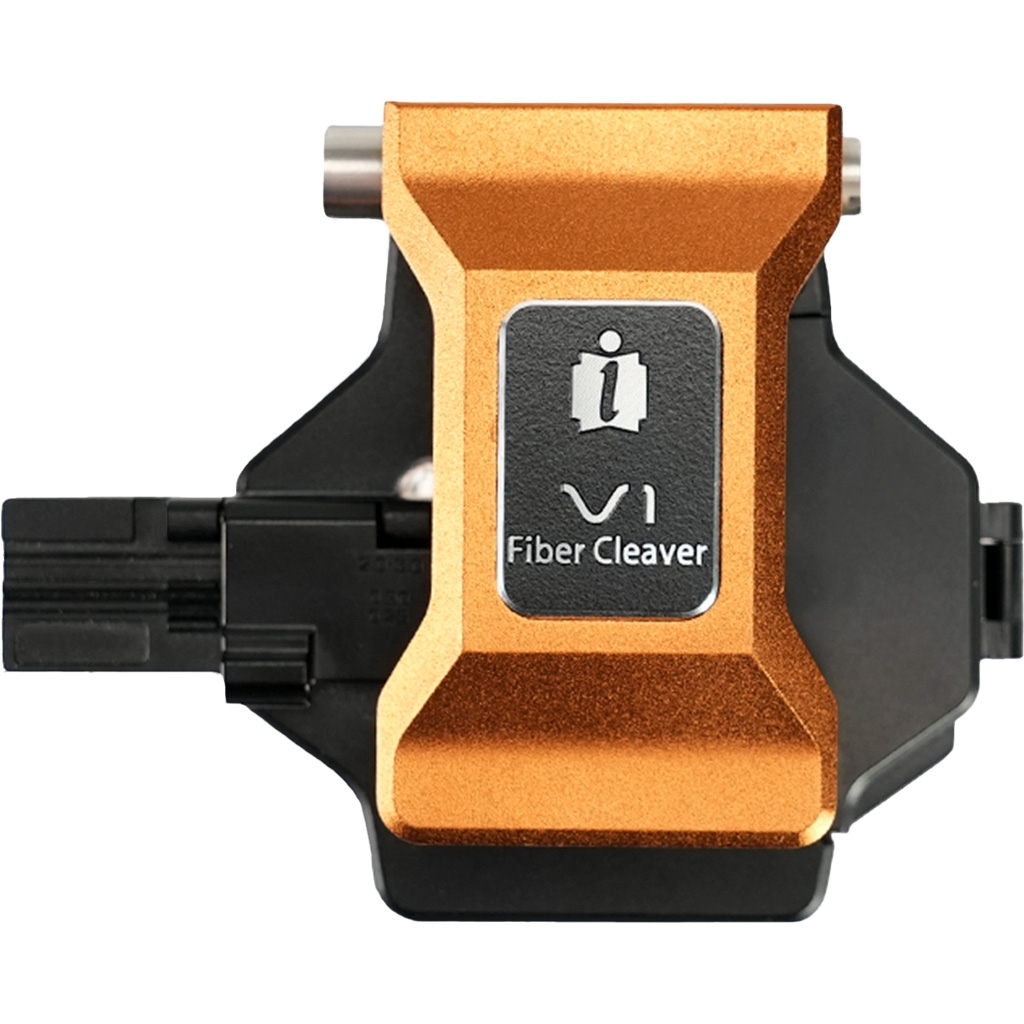

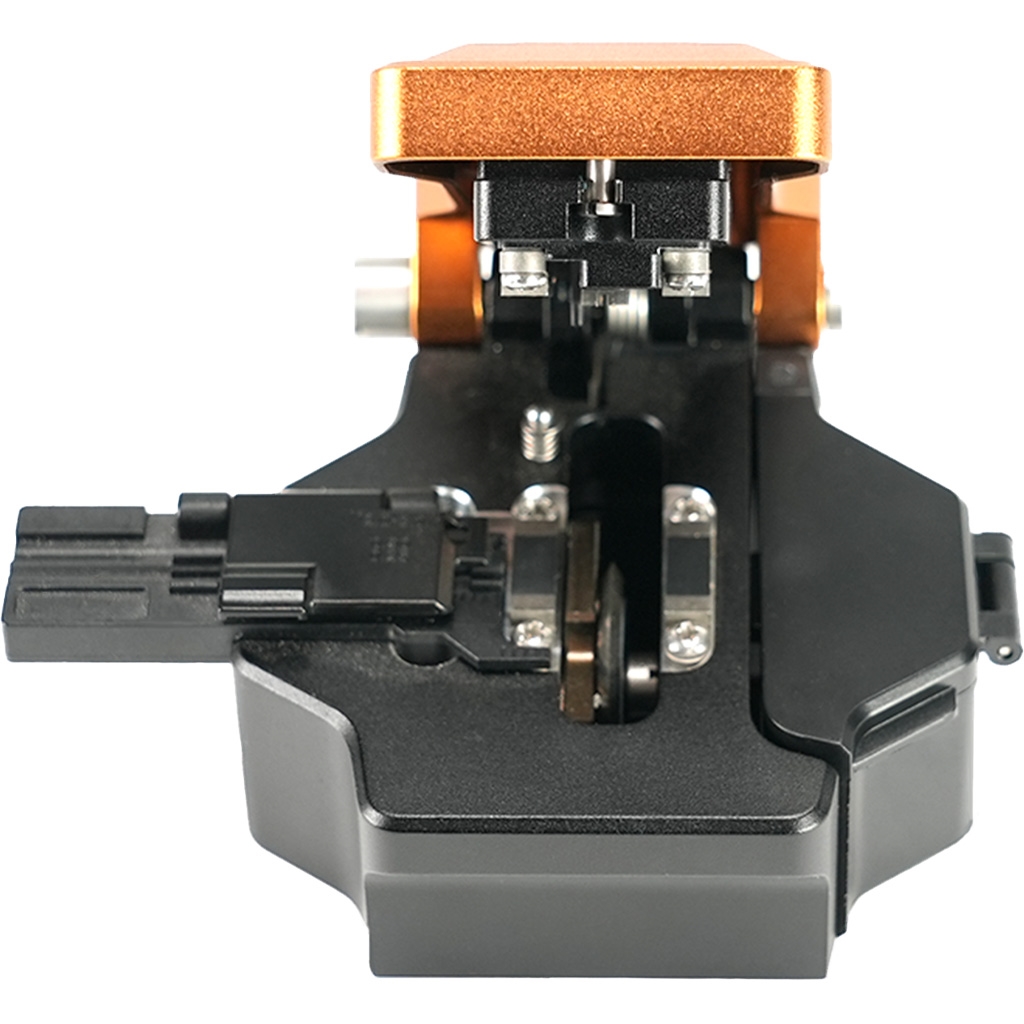

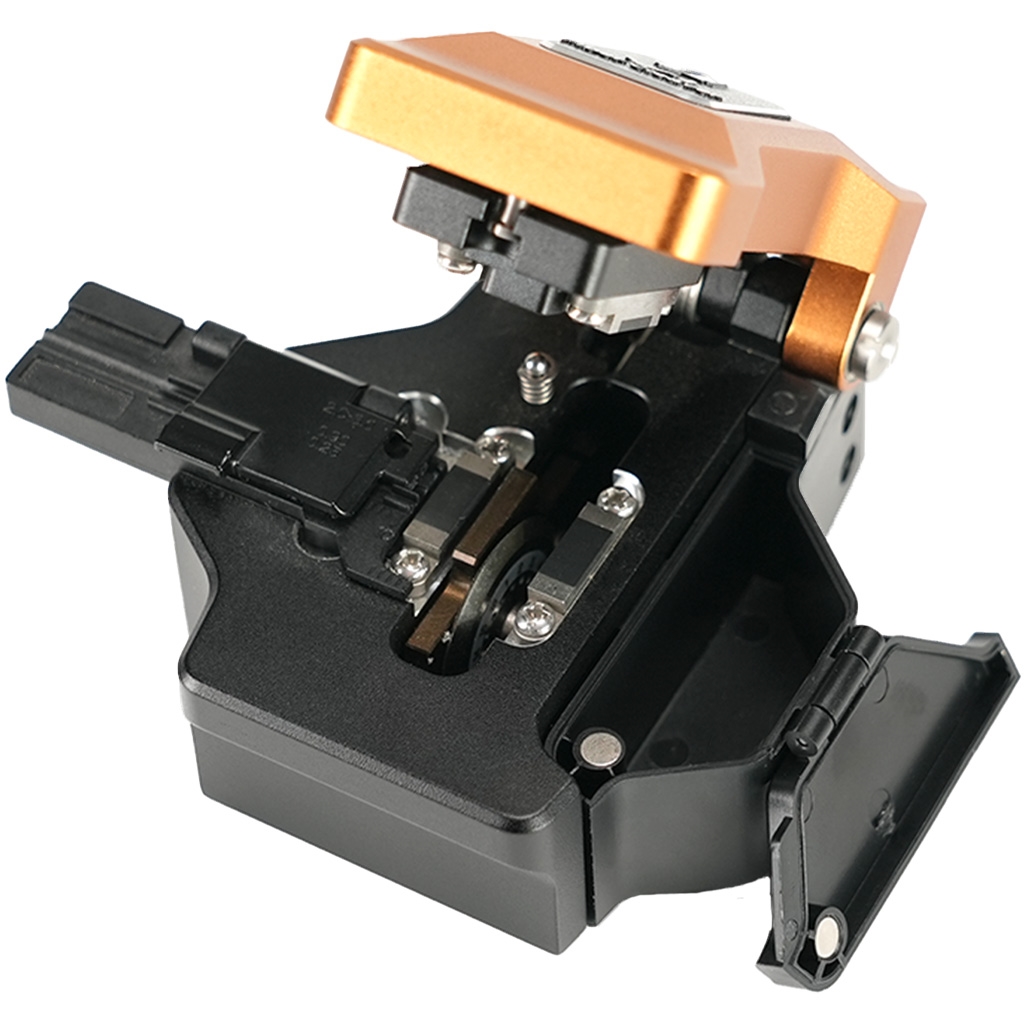

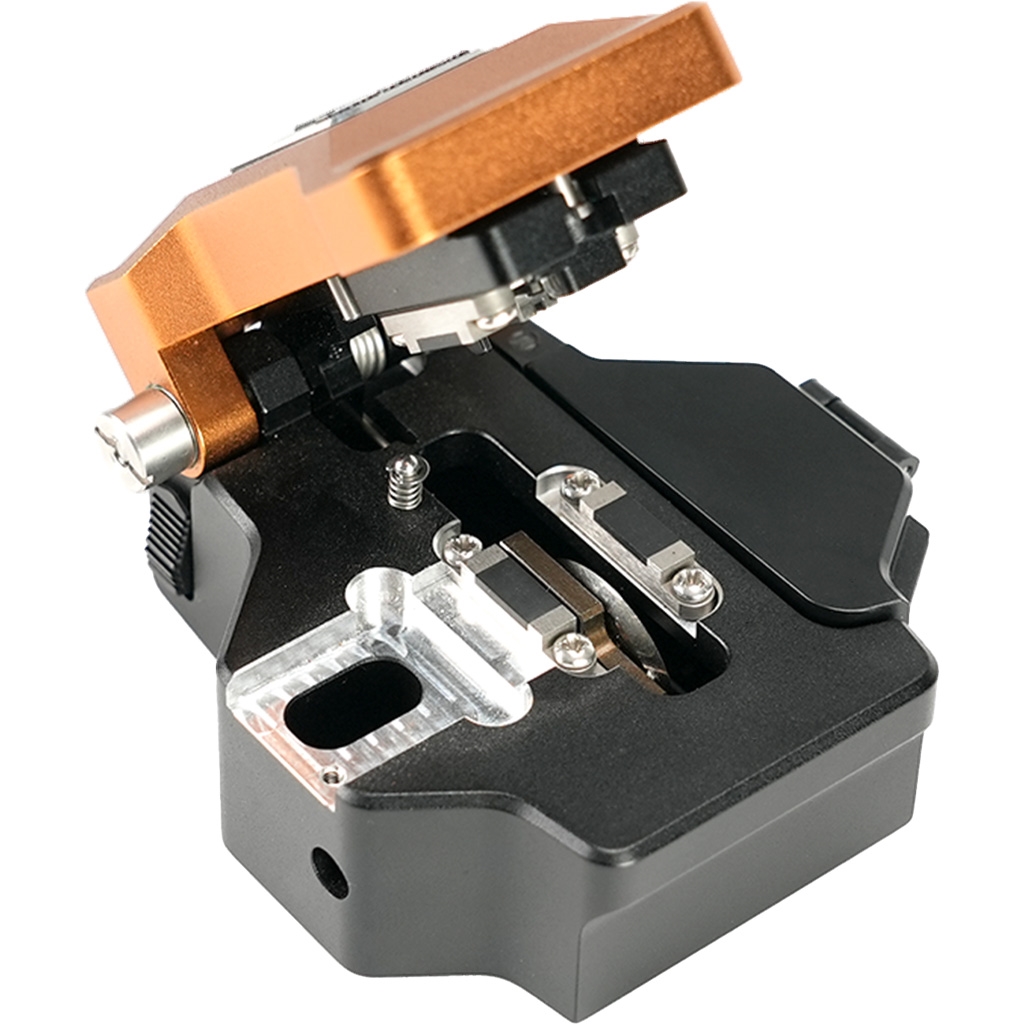

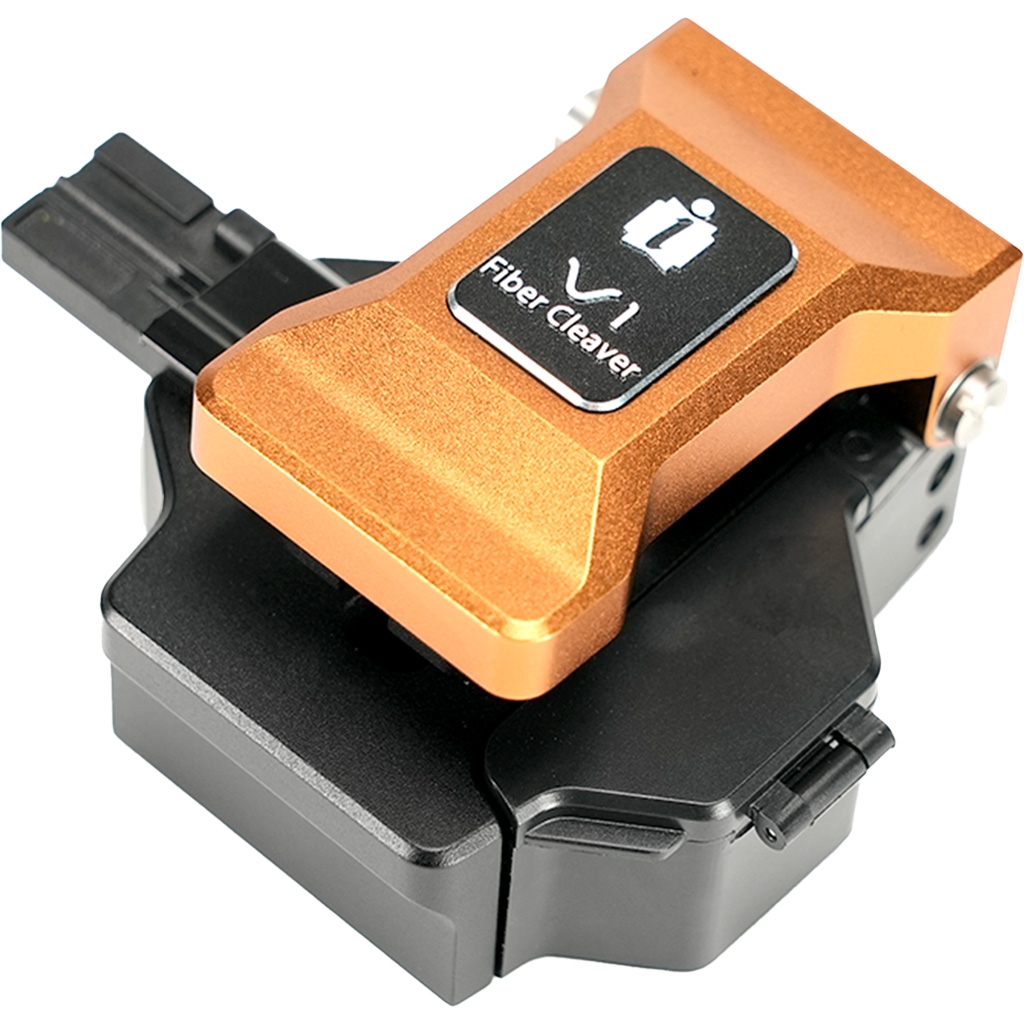

Cleaver (V1)

SOC Holder (FH-SOC-R)

SOC Heater Cover (HTS-SOC-02)

AC Adapter (JS-180300)

Cooling Tray (CG-23)

Electrodes (E-70)

Battery Pack (LBT-30)

Power Cable (ACC-25)

USB Cable (USB-7P)

Carrying Case (ICC-55)

Shoulder Strap (ST-01)

Optional Accessories (NOT INCLUDED):

Alcohol pump (TK02-AP01)

Stripper (TK02-MP01)

Cigarette Lighter Cable (CJ-11)

Electrode Grinder (EG-18)

60mm Heating sleeve (PS-60S)

If you are looking to purchase any of the optional accessories, please contact a sales representative at 877-208-6657.
