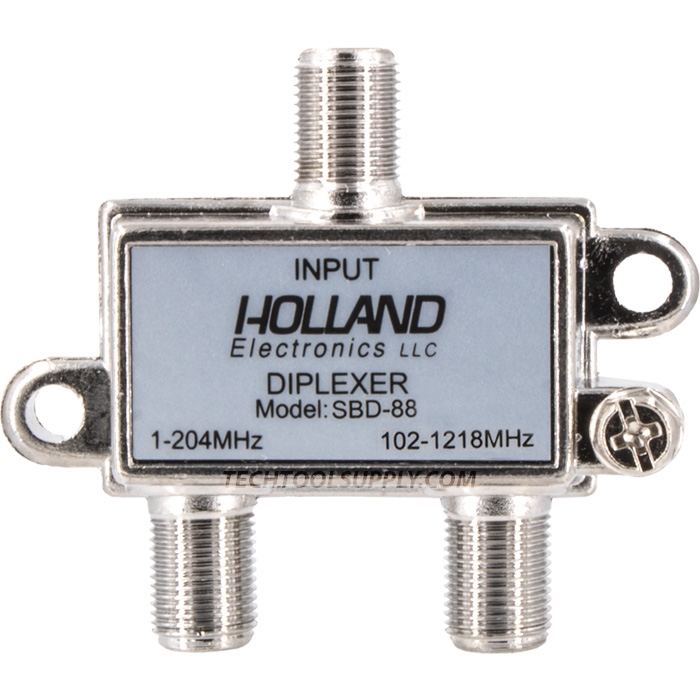

Holland Sub-Band Diplexer - 1-88Mhz, 102-1218Mhz

Holland Sub-Band Diplexer - 1-88Mhz, 102-1218Mhz


TTS PRICE: $44.99

STATUS:  IN STOCK

Free Shipping

Availability:
Normally Ships Same Day

PRODUCT CODE: HOL-SBD-88
QUANTITY:

PRODUCT DESCRIPTION


The Holland Electronics' SBD-88 diplexer is utilized for either combining or separating sub-band and forward path signals. The SBD-88 operates from 1-88.2Mhz within the sub-band, and from 102-1218 Mhz in the forward path. Offers excellent insertion loss performance from distribution system to head-end. This diplexer can also be used to enable unidirectional amplifiers to provide bi-directional amplification.

Features:
  • Designed to Meet the Critical Requirements for DOCSIS 3.1 Upgrades
  • High Isolation, High Rejection, and Excellent Group Delay
  • Expanded Pass-Band
  • Built-in Ground Screw
  • Small Form Factor

    • Specifications:
  • Low Band Frequency Range: 1 - 88MHz
  • High Band Frequency Range: 102 - 1218MHz
  • Insertion Loss:
    Typical: 1.7dB
    QC Limit: 2.5 Max
    Low Band: 1 - 88MHz
    High Band: 102 - 1218MHz
  • Passband Flatness:
    Typical: 0.8dB
    Q.C. Limit: 1.0dB Max
  • Return Loss:
    Low Band: -13dB
    High Band: -12dB Min
  • Stop Band Attenuation:
    Low Band: -50dB
    High Band: -45dB Min
  • Group Delay:
    Q.C. Limit: 20ns Max
    Low Band: P-P over any 1 MHz Band
    High Band: P-P over any 3.58 MHz Band
  • Operating Temperature: -40°C ~ +60°C
  • Impedance: 75 Ohm
  • Connector: F-Type Female
    •
