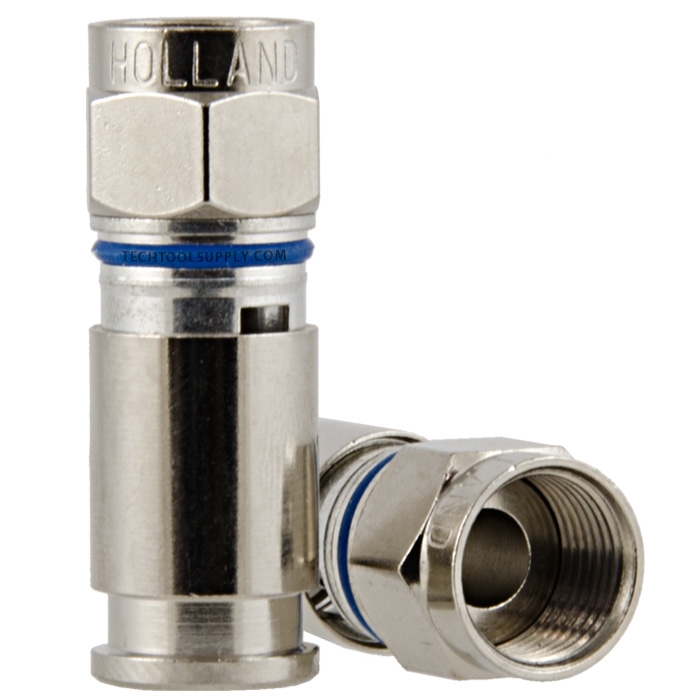

Holland's signature Superlok series compression connector utilize two independent compression points to seal and hold the coaxial cable to the connector. These connectors are constructed of 100% metal with out any plastic parts to degrade with sun or acidic vapors. A channel on the body of the connector is designed for Holland's optional color rings; Great for installers trying to keep a large bundle of cables organized.
Features:
All-Metal Construction
Dual O-Ring Moisture Sealing (F Type)
Dual Compression Points
Patented Cable Viewing Window
Patented Internal-Grip Ring
Color-Coded Application Bands (SRR)
Specifications:
Quantity: 50 Connectors
Cable Type: Standard RG6
Frequency: DC - 3 GHz
Insertion Loss (Max): .1 dB
Return Loss (Min): 30 dB
Material: Brass
Cable Strip Length: 1/4” x 1/4”
Compliance(s):
SCTE 60 2004: Moisture Migration Pass
SCTE 48-1 2007: Shielding >90 dB @ 1002 MHz
SCTE IPS-TP-406: Salt Spray Pass
SCTE IPS-TP-400: Tightening Torque Pass
SCTE 73 2007: Insertion Force < 20 lbs.
SCTE 04 2007: Return Loss > 30 dB @ 1002 MHz
