Holland Quad RG6 Compression F Connectors 50 Pack

Holland Quad RG6 Compression F Connectors 50 Pack


TTS PRICE: $29.99

STATUS:  IN STOCK

Free Shipping

Availability:
Normally Ships Same Day

PRODUCT CODE: SLCU-6Q_50
QUANTITY:

PRODUCT DESCRIPTION

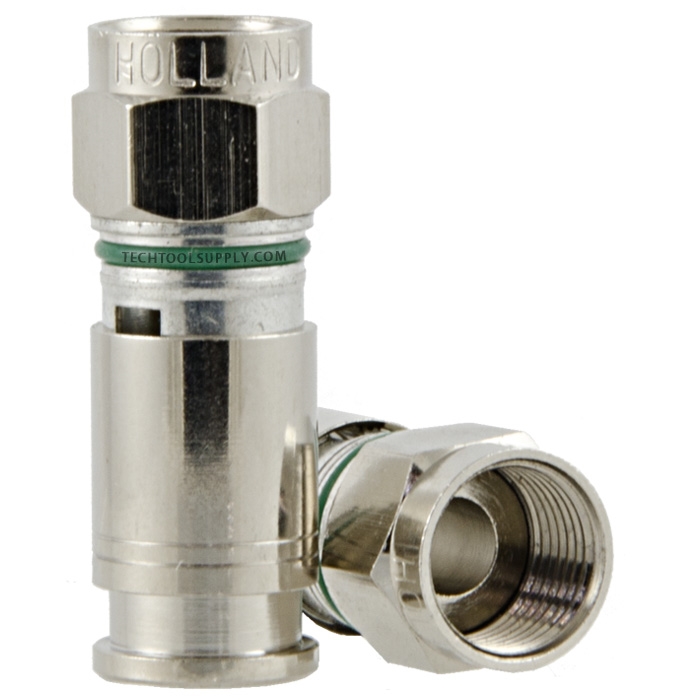

Holland's signature Superlok series compression connector utilize two independent compression points to seal and hold the coaxial cable to the connector. These connectors are constructed of 100% metal with out any plastic parts to degrade with sun or acidic vapors. A channel on the body of the connector is designed for Holland's optional color rings; Great for installers trying to keep a large bundle of cables organized.

Features:
  • All-Metal Construction
  • Dual O-Ring Moisture Sealing (F Type)
  • Dual Compression Points
  • Patented Cable Viewing Window
  • Patented Internal-Grip Ring
  • Color-Coded Application Bands (SRR)

    • Specifications:
  • Quantity: 50 Connectors
  • Cable Type: Quad Shield RG6
  • Frequency: DC - 3 GHz
  • Insertion Loss (Max): .1 dB
  • Return Loss (Min): 30 dB
  • Material: Brass
  • Cable Strip Length: 1/4” x 1/4”

    • Compliance(s):
  • SCTE 60 2004: Moisture Migration Pass
  • SCTE 48-1 2007: Shielding >90 dB @ 1002 MHz
  • SCTE IPS-TP-406: Salt Spray Pass
  • SCTE IPS-TP-400: Tightening Torque Pass
  • SCTE 73 2007: Insertion Force < 20 lbs.
  • SCTE 04 2007: Return Loss > 30 dB @ 1002 MHz
    •
