Holland Mini Agile Digital Modulator

Holland Mini Agile Digital Modulator


Alternative Views:
TTS PRICE: $429.99

STATUS:  IN STOCK

Free Shipping

Availability:
Normally Ships Same Day

PRODUCT CODE: HOL-HMMQ
QUANTITY:

PRODUCT DESCRIPTION

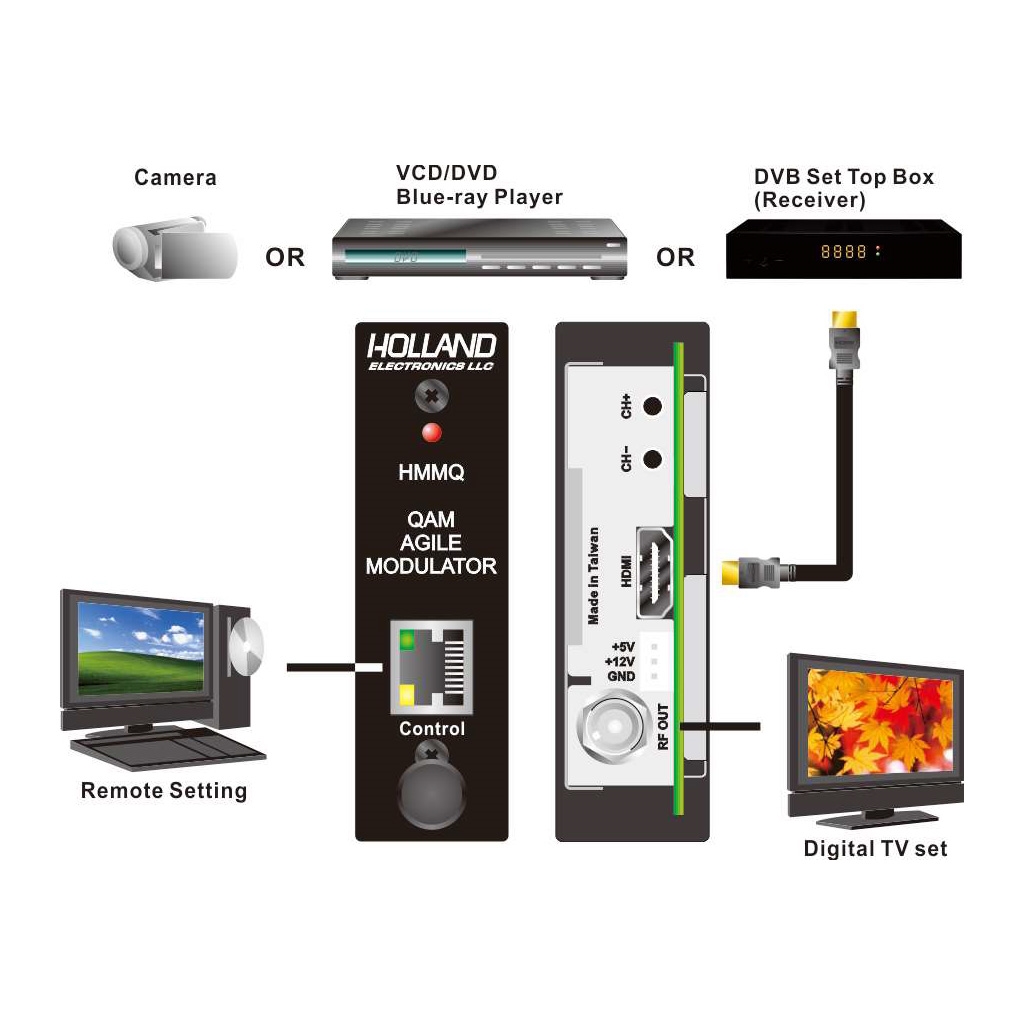

The HMMQ from Holland Electronics is a High Definition Frequency Agile Digital Encoder / Modulator. It has an industry-standard HDMI input which it then encodes in MPEG2 and modulates the signal in either QAM or 8VSB. The QAM can be set to QAM256 or QAM64 as is used in MMDS applications.

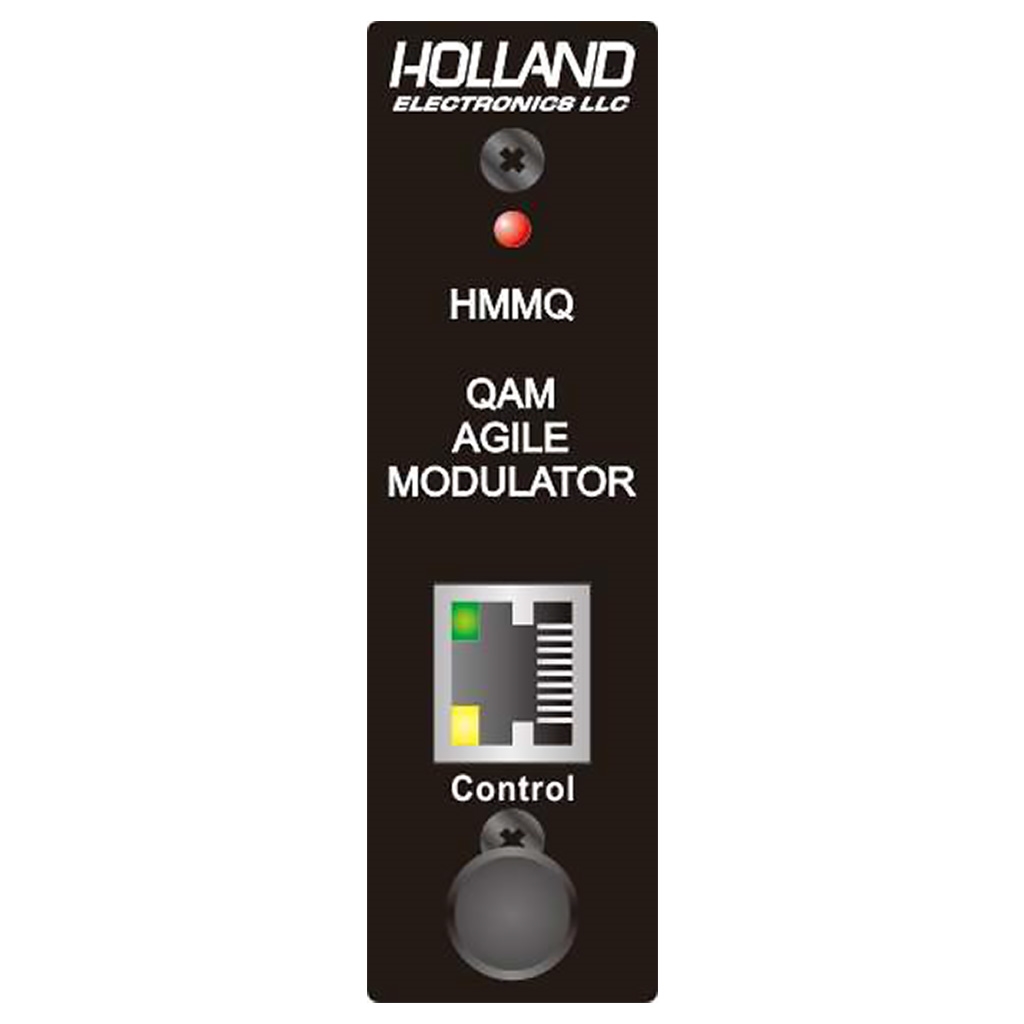

The HMMQ is a Mini Mod type device that fits in all of the various Mini Mod chassis like the Holland HMR and is powered by the associated Power Supply like the HMPS. The HMMQ only uses one module space meaning the Chassis can hold up to 12 units. Set up and programming is easily accomplished via a GUI interface and RJ45 Ethernet jack on the front.

Features:
  • Support 1080p full HD and HD/SD ready for digital TV sets and CCTV security
  • Channelized with standard channel number for easy and fast channel change
  • Ready to consolidate or combine existing or new RF coaxial cabling
  • Compatible with any terrestrial/cable tuner-ready digital TV set/box
  • Mini modular type compatible and fitting in with existing rack and power supply
  • Supports MPEG2 1080p with video resolution 1080 i/p, 720p, 576 i/p, 480 i/p
  • Supports major/minor channels
  • Supports AC3 Dolby and AAC
  • HDCP access compliant
  • HDMI input for HD/SD encoding
  • PMT, video/audio PID, service/network name programmable
  • Friendly configuration & management control remotely thru RJ45 ethernet connection

    • Specifications:
  • Video Input: Single-link Compliant with HDMI 1.4a, HDCP 1.4 Integrated pre-programmed HDCP keys
  • Audio Input: Stereo (Standard Audio)
  • Video Encoding: MPEG-2 HD/SD Profile 2: ISO13818-2 MP@HL 1080p@30fps, 1920x1080 full HD resolution
  • Video Encoding Data Rates: Variable
  • Color Profile: 4:2:0
  • Audio Encoding: MPEG/AC3 Dolby/AAC
  • Modulation Type (optional): 8VSB/ Cable QAM
  • Constellation: 8VSB for ATSC, 64QAM/256QAM for Cable QAM Annex B
  • Bandwidth: 6 MHz
  • Output Power Gain: 5 dBmV; 20dB adjustment
  • Cable Standard: ATSC
  • Frequency Range: 57 - 999MHz
  • Frequency Stability: ± 5KHZ
  • MER: 37 dB typical
  • Spurious: 55 dB typical
  • Symbol Rate (for cable QAM): 5057Mbps for 64QAM ; 5360Mbps for 256QAM
  • Phase Noise: 1k ≧ 70 dBc/Hz; 10k ≧ 80 dBc/Hz; 100k ≧ 90 dBc/Hz
  • Connector: F type female, 75 Ohms
  • Network Interface: 10M Ethernet via RJ45 connection
  • DC Power Input: 12V/200mA, 5V/260mA
  • Operating Temperature: 0℃ to +50℃
  • Size: 1”W * 3.5”H * 7.5”D
  • Weight: 0.5Kg
    •
