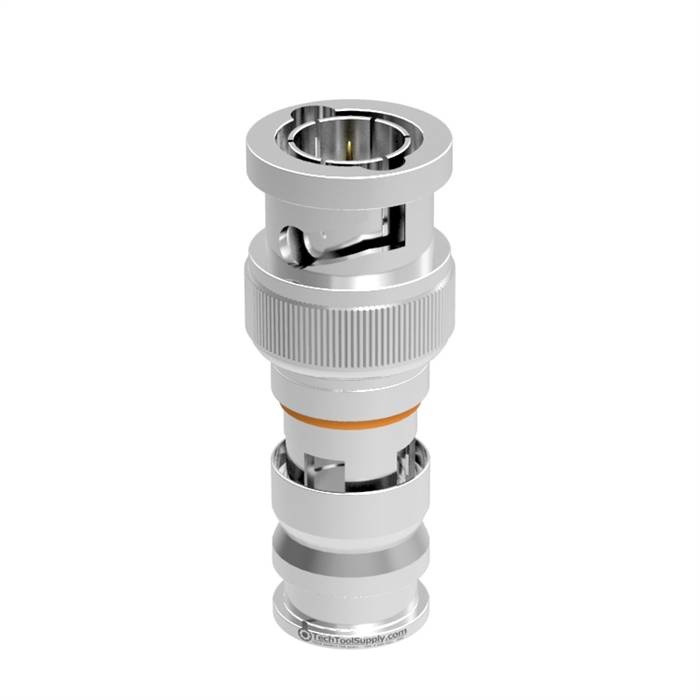

Super-Fast MCV RG6Q BNC Compression Connector - 25pc

Super-Fast MCV RG6Q BNC Compression Connector - 25pc


TTS PRICE: $44.99

STATUS:  IN STOCK

Free Shipping

Availability:
Normally Ships Same Day

PRODUCT CODE: HOL-BNC6L-MCV-25
QUANTITY:

PRODUCT DESCRIPTION


If you install compression connectors, you know that folding the braid back on your cable can be time consuming, and often times painful. Holland Electronics new MCV connectors do NOT require you to fold the braided shielding back! You are not going to believe how fast and simple these connectors are to install!

Holland Electronics created this compression connectors with the Commercial AV Installer in mind. The MCV Universal Compression Connectors fits a wide variety of coaxial cables that vary in size between manufacturers. Some differences often include thickness of jacket or diameter of insulation depending on variance in materials used in the cable manufacturing process.

Features:
  • Easy insertion
  • All metal construction
  • Optimized for digital video applications
  • Patented viewing window
  • Accommodates color-coded application bands (Found Here)

  • Specifications:
  • Quantity: 25
  • Cable Type: RG6 QUAD
  • Connector: BNC
  • Frequency Range: DC - 3,000 MHz
  • Return Loss (1 GHz): > -27dB
  • Return Loss (3 GHz): > -21dB
  • Insertion Loss (1 GHz): < .15 dB Max
  • Jacket O.D. Range: 6.6 - 7.4
  • Pull Force: 70 lbs. typical

  • Feature Sheet & Sizing Info

    Average Customer Review: Average Customer Review: 5 of 5 5 of 5 Total Reviews: 1 WRITE A REVIEW

      So far, this Product Review was helpful to 1 TTS Customers.

    5 of 5 Finally Found What Works! September 17, 2016
    Reviewer: Tyler Hanson from Trenton, MI United States
    I have some RG6Q and have tried 4 different types of connectors.

    - 3 Different Crimp Ends
    - 2 Different Compression Ends
    - Even Twist-on's

    These were the ones that worked around the sheer girth of the cables and made solid connections.  Good quality.

    I had to contact the manufacturer of the RG6Q cable to find this, but they work!

    Was this review helpful to you?
