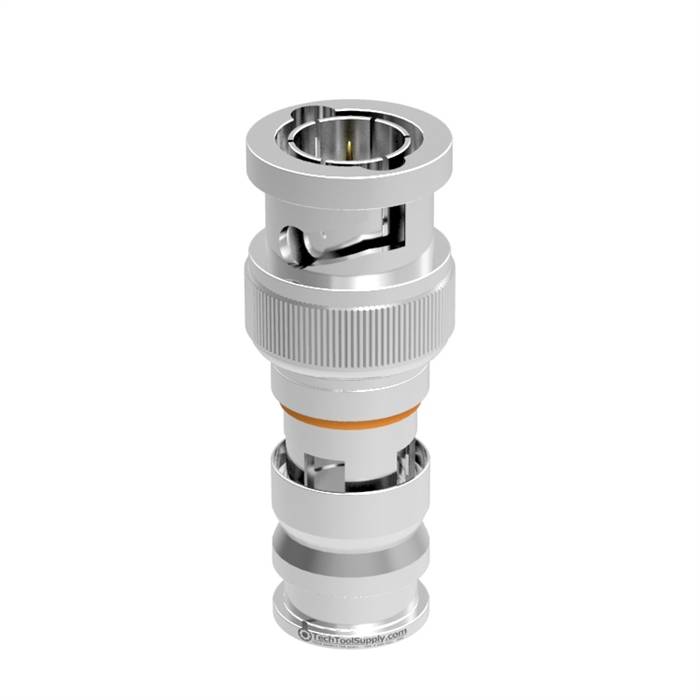

Super-Fast MCV RG6Q BNC Compression Connector - 1pc

Super-Fast MCV RG6Q BNC Compression Connector - 1pc


TTS PRICE: $1.89

STATUS: ON ORDER

Free Shipping

Availability:
Normally Ships Same Day

PRODUCT CODE: HOL-BNC6L-MCV
QUANTITY:

PRODUCT DESCRIPTION


If you install compression connectors, you know that folding the braid back on your cable can be time consuming, and often times painful. Holland Electronics new MCV connectors do NOT require you to fold the braided shielding back! You are not going to believe how fast and simple these connectors are to install!

Holland Electronics created this compression connectors with the Commercial AV Installer in mind. The MCV Universal Compression Connectors fits a wide variety of coaxial cables that vary in size between manufacturers. Some differences often include thickness of jacket or diameter of insulation depending on variance in materials used in the cable manufacturing process.

Features:
  • Easy insertion
  • All metal construction
  • Optimized for digital video applications
  • Patented viewing window
  • Accommodates color-coded application bands (Found Here)

  • Specifications:
  • Quantity: 1
  • Cable Type: RG6 QUAD
  • Connector: BNC
  • Frequency Range: DC - 3,000 MHz
  • Return Loss (1 GHz): > -27dB
  • Return Loss (3 GHz): > -21dB
  • Insertion Loss (1 GHz): < .15 dB Max
  • Jacket O.D. Range: 6.6 - 7.4
  • Pull Force: 70 lbs. typical

  • Feature Sheet & Sizing Info
