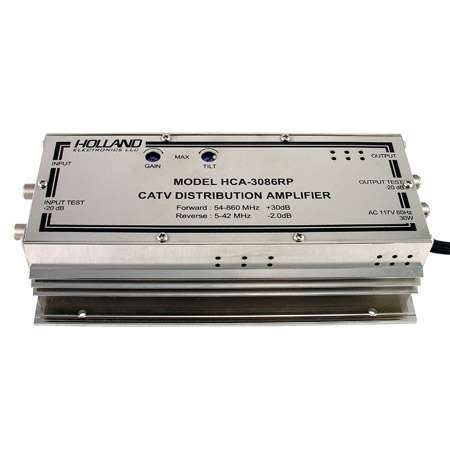

Holland HCA-3086 30dB Amplifier

Holland HCA-3086 30dB Amplifier


TTS PRICE: $247.99

STATUS:  IN STOCK

Free Shipping

Availability:
Normally Ships Same Day

PRODUCT CODE: HCA3086RP
QUANTITY:

PRODUCT DESCRIPTION


Holland's HCA-3086RP are high-output hybrid wall-mountable amplifiers perfect for any head-end system.

These high performance amplifiers use push-pull CATV hybrid circuitry providing extremely low noise and distortion. Front panel adjustable slope and gain controls allow easy system balancing.

Features:
  • Push-Pull CATV Hybrid Circuitry
  • High Output
  • Adjustable Gain & Slope
  • Auxiliary AC Outlet
  • Return Passive

    • Specifications:
  • -30 dB Output Test Port
  • Gain: 30dB
  • Gain Adjustment: 18dB
  • Channels: 2-135
  • Frequency Range: 54-860MHZ
  • Maximum Input: 11 dBmV (134 Ch.)
  • Maximum Output: 41 dBmV (134 Ch.)
  • Slope: 15 dB (Adj.)
  • Flatness:±1 dB
  • Noise Figure: 6.5 dB
  • Input Return Loss (Min.): 12 dB
  • Output Return Loss (Min.): 12 dB
  • Cross Modulation (XMOD): -58 dB
  • Composite Second Order (CSO): -75 dB
  • Composite Triple Beat (CTB): -60 dB
  • Power Requirements: 117VAC, 60Hz, 8 W
  • Operating Temperature: -20 ̊ to 60 ̊ Celsius
  • Dimensions: 8 x 3 x 1.75
  • Weight: 2.55 lbs.

    • More Information.
