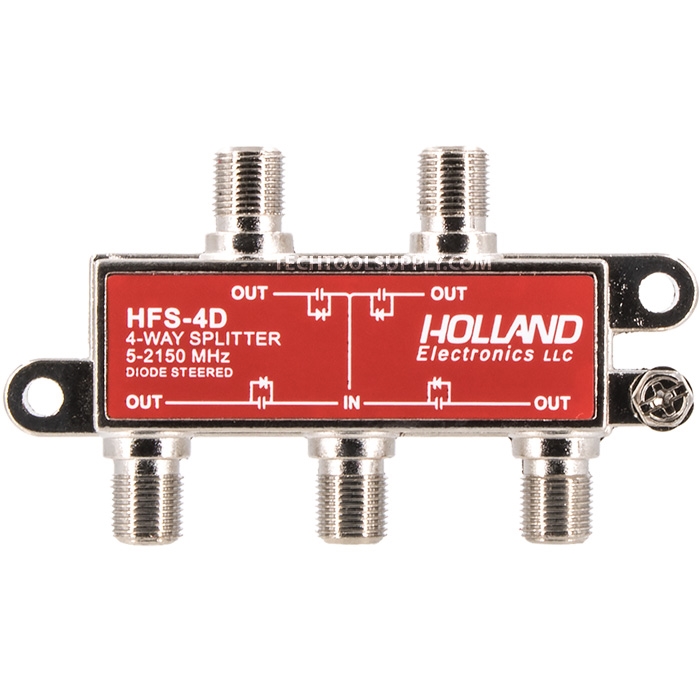

Holland 4-Way Diode Steered Splitter

Holland 4-Way Diode Steered Splitter


TTS PRICE: $3.99

STATUS:  IN STOCK

Free Shipping

Availability:
Normally Ships Same Day

PRODUCT CODE: HFS-4D
QUANTITY:

PRODUCT DESCRIPTION



Holland Electronics? HFS-4D high-frequency splitter has been designed with diode steered circuitry, which allows the DC power to pass from any output port to the input port and prevents DC backfeeding.

Features:
  • 5 - 2150 MHz Wideband Operation
  • Higher Return Loss
  • Ultra-Flat Response
  • Flat F Ports
  • Solder Back Sealed

    • Specifications:
  • Max Voltage: 35V
  • Max Current Rating: 1.0 A
  • Temperature Range: -40° to 60° C
  • Port Spacing: 1"
  • RFI: >130 dB
  • Impedance: (ohms): 75

    • Insertion Loss (dB) (Max):
  • 5 - 40: Typ. 8.2 / QC. 8.5
  • 41 - 550: Typ. 9.0 / QC. 9.3
  • 551 - 950: Typ. 9.2 / QC. 9.5
  • 951 - 1450: Typ. 10.5 / QC. 10.8
  • 1451 - 2150: Typ. 10.9 / QC. 11.2
    •
