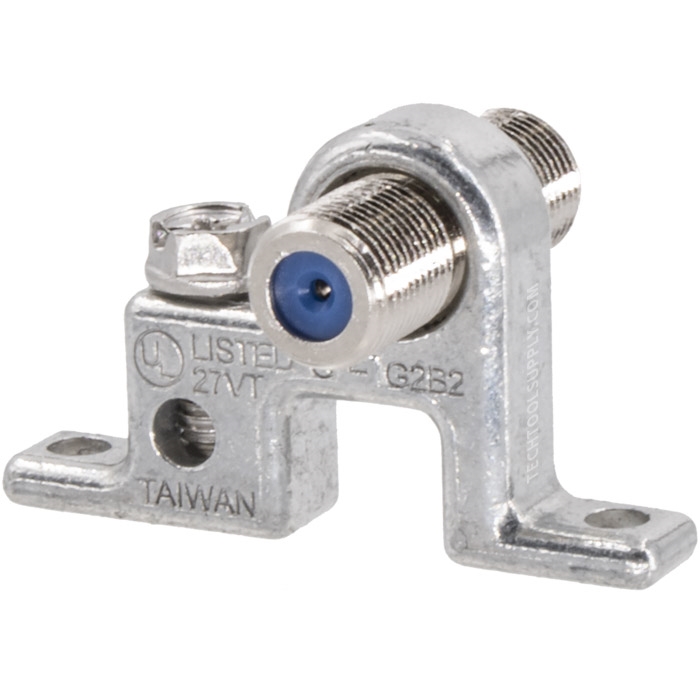

Holland 3Ghz Single Ground Block

Holland 3Ghz Single Ground Block


TTS PRICE: $1.49

STATUS:  IN STOCK

Free Shipping

Availability:
Normally Ships Same Day

PRODUCT CODE: HOL-G-G2B2
QUANTITY:

PRODUCT DESCRIPTION


Holland Electronics’ high-performance G-G2B2 ground block utilizes a zinc base and brass splice. The G-G2B2 ground block accepts a wide range of ground wire sizes.

Features:
  • Higher Electrical Performance for Satellite Frequencies
  • Single, Dual & Extended Lengths
  • Patented Splice Design
  • UL-Listed Models Available
  • High Return Loss (>35 dB)
  • Lower Insertion Loss Splice
  • SCTE Compliant Flat Port Ends
  • Machined Threads

    • Specifications:
  • Frequency: DC - 3 GHz
  • Insertion Loss:
    • < .1 dB (1 GHz)
    • < .2 dB (2 GHz)
    • < .3 dB (3 GHz)
  • Return Loss (1 GHz/2 GHz /3 GHz): 35 / 30 / 26
  • Pin Holding Force (Initial): 200g
  • Splice Length (mm): 25.7
  • Body Material: Zinc / Brass
  • Groundscrews / Material: 1 / Steel
  • Groundwire Range (AWG): 10 - 14 (UL listing applies to 10 gauge wire only)
  • Contact Pin: BeCu
  • Insulator: HDPE
    •
