Holland 3.0GHz Flat Coax Cable Window Adapter

Holland 3.0GHz Flat Coax Cable Window Adapter


TTS PRICE: $14.99

STATUS:  IN STOCK

Free Shipping

Availability:
Normally Ships Same Day

PRODUCT CODE: HOL-144823
QUANTITY:

PRODUCT DESCRIPTION

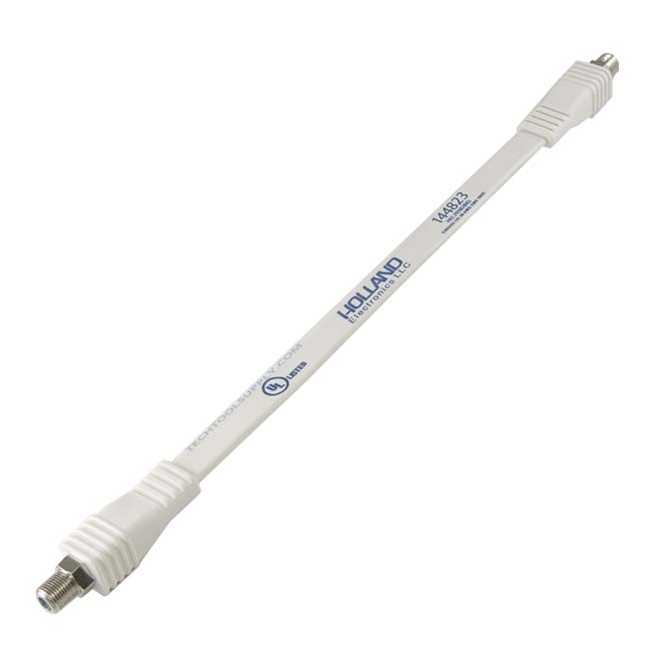

Model 144823 Flat Window Jumper from Holland Electronics is a rail-protected coaxial cable jumper assembly for use indoor and window jams when drilling through walls is not permitted. The patent-pending rail system protects the precision teflon coaxial cable from deformation due to bending or repetitive impact with in a window or doorframe.

Features:
  • True Coaxial Cable: 18 dB return loss @ 2150 MHz - Good to 3GHz
  • Electrical specs do not degrade with bending, impact, or temperature
  • Higher connector-cable holding force
  • Less than 3mm thin cable
  • Employs a metal structure to hold sharper bends

    • Specifications:
  • Frequency Range: 5 MHz - 2150 MHz
  • Insertion Loss: 0.2 dB - 0.8 dB
  • Return Loss: 20 dB - 18 dB
  • Connector Holding Force: >60 lbs
  • Coax Center Holding Force: >150g

    • Holland Electronics 144823 Data Sheet
