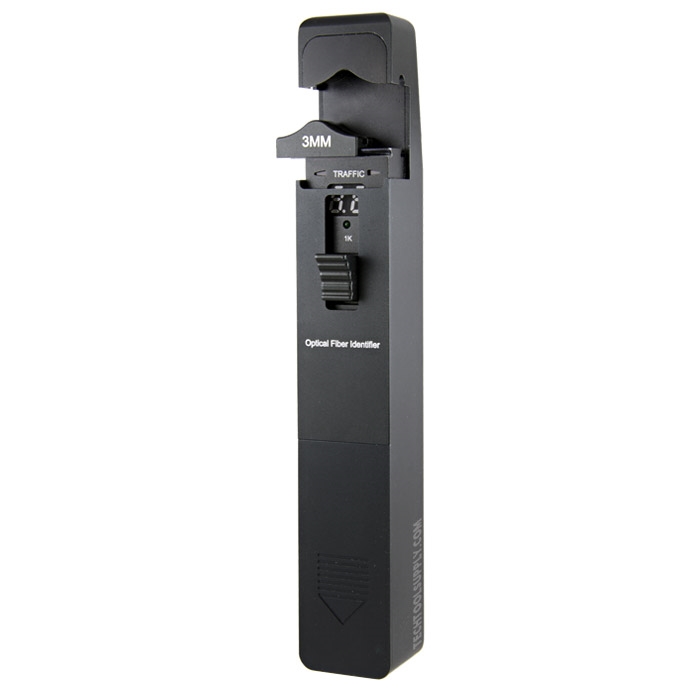

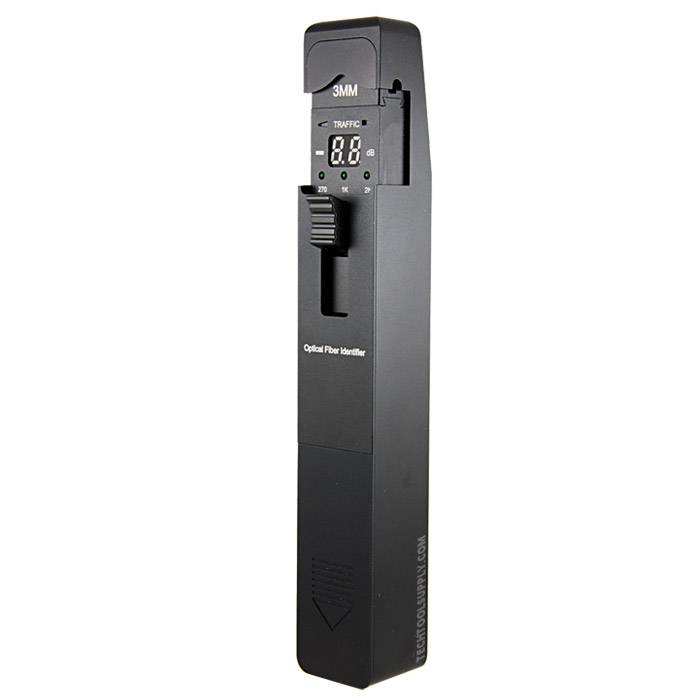

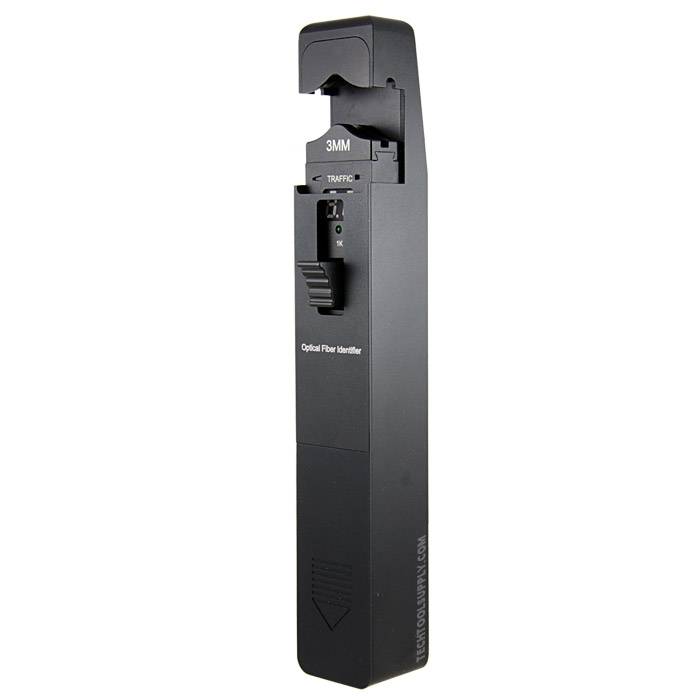

The ST820B Optical Fiber Identifier is an essential instrument for the installation and maintenance of optical fiber projects. It can easily detect any spot of SM fiber cables. Through inserting a 1310 or 1550 modulated signal into the fiber, it is used to indicate the direction of the transmitting signals, find and locate the specific fiber without interrupting the current work during the installation, cabling and maintenance.
This Optical Fiber Identifier also recognizes the modulations 270Hz, 1kHz and 2kHz .When they are used to detect the frequency, the continuously audible tone is activated.
Features:
Easy-to-use with “ONE KEY” operation
Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning
Displays the relative core power
More accurate test with sunshade
Easy-to-replace adapters
Durable metal housing and quality construction
Lower power indication

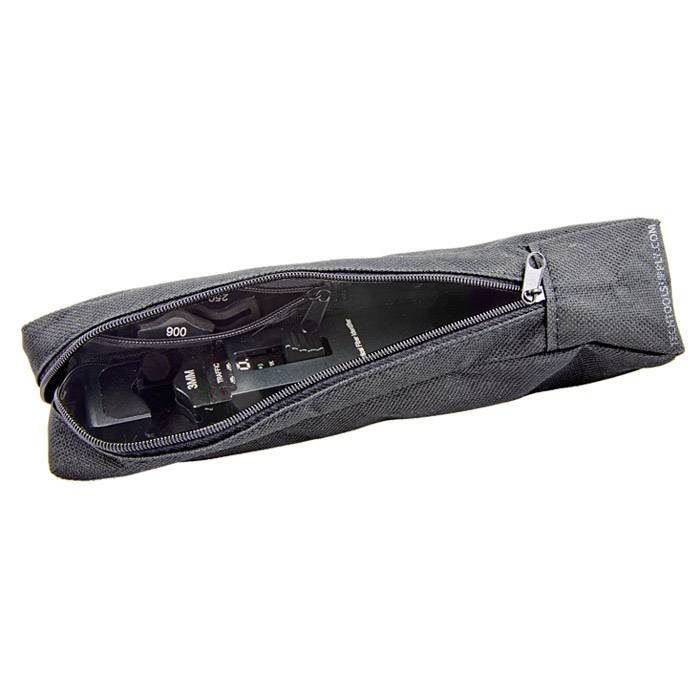

Carrying pouch for storage
Specifications:
Identified Wavelength Range: 800-1700 nm
Detector Type: Ø1mm InGaAs 2pcs
Identified Signal Type: CW, 270Hz, 1kHz, 2kHz
Detection sensitivity: -40dBm
Adapter Type: H 0.9/0.25 for bare fiber; H 2.0/3.0 for pigtail

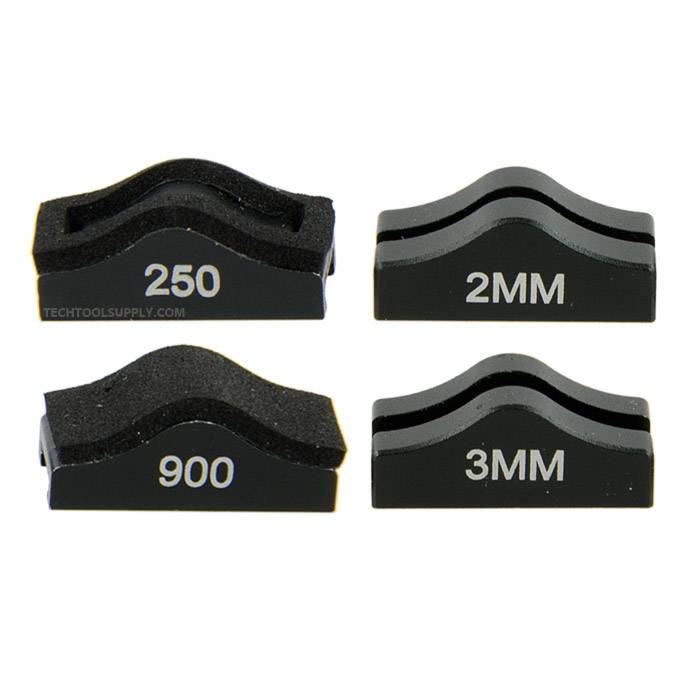

Adapters: Ø0.25, Ø0.9, Ø2.0, Ø3.0
Signal Direction: Left & Right LED
Signal Intensity: 3 Levels of signal intensity
Power Supply: (2) AAA 1.5V (included)
Operating Temperature: -10－+50°
Storage Temperature: -20－+70°
Weight: 210 grams
Dimensions: 200 x 30 x 27mm
Insertion Loss:
H 0.25～H 0.9: 0.1dB
H 2.0～H 2.5: 0.5dB
H 2.5～H3.0: 1.0 dB
