Fox & Hound Fox 2 & Hound 3

Fox & Hound Fox 2 & Hound 3


Alternative Views:
TTS PRICE: $94.99

STATUS:  IN STOCK

Free Shipping

Availability:
Normally Ships Same Day

PRODUCT CODE: BBR-3399
QUANTITY:

PRODUCT DESCRIPTION


The 3399 Triplett Fox & Hound Premium is a lightweight easy to use wire tracing kit, constructed with high quality materials. The portable design allows you to trace wires whenever needed.

Find non-energized wires in walls, ceilings, and floors. The inductive tracer with two probes indicates magnetic fields with audio and visual signals. A built-in filter helps suppress 60 Hz and high-frequency noise. The tone generator has three tones for guiding the tracer to wires.

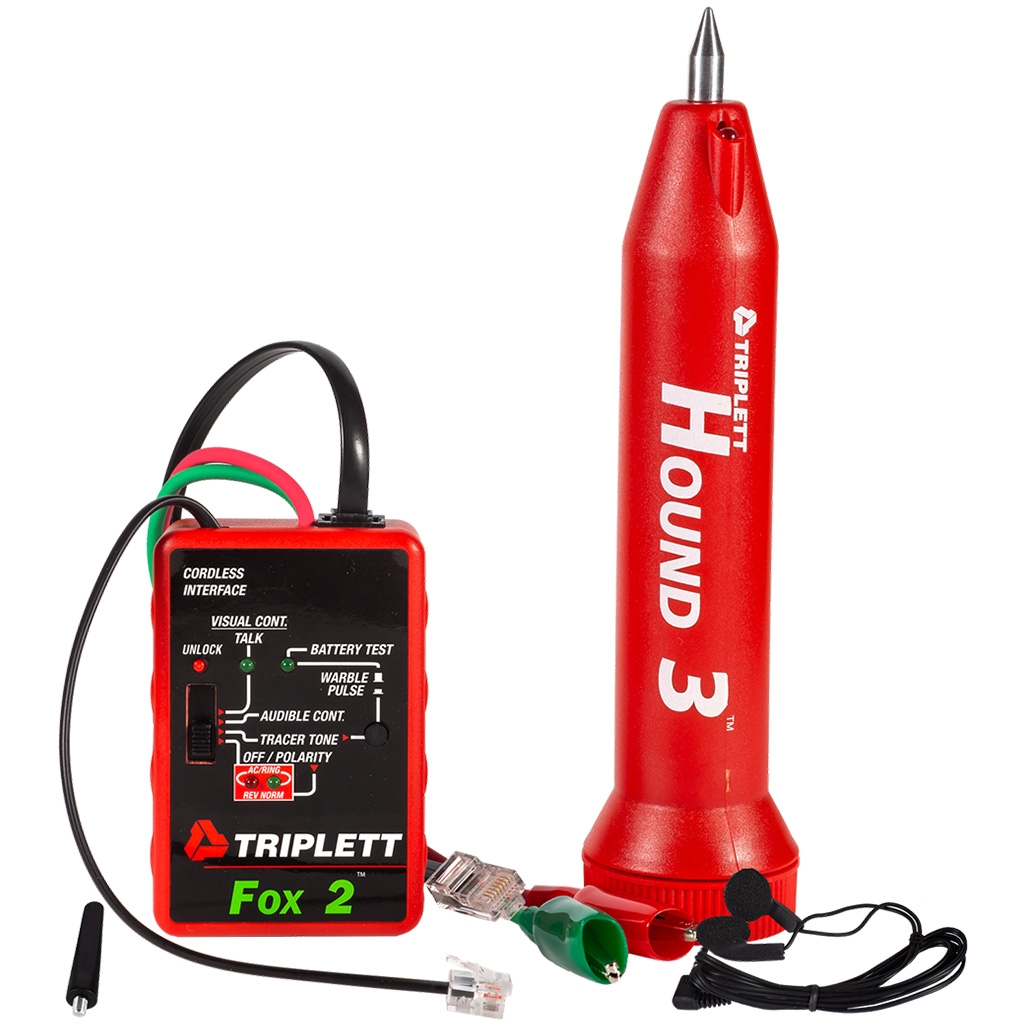

The Triplett Fox & Hound wire and cable tracing kit consists of the versatile Fox 2 Tone Generator (Toner) and the high-performance Hound 3 Inductive Amplifier (Probe).

Features:
  • The Fox & Hound wire tracing kit consists of a versatile Fox 2 Tone Generator (Toner) and a high-performance Hound 3 Inductive Amplifier (Probe). This kit includes Fox 2, Hound 3, RJ-11 to RJ-45 adapter, plastic duckbill, metal duckbill, headphones, and a sturdy weatherproof carry case. 3-year warranty.

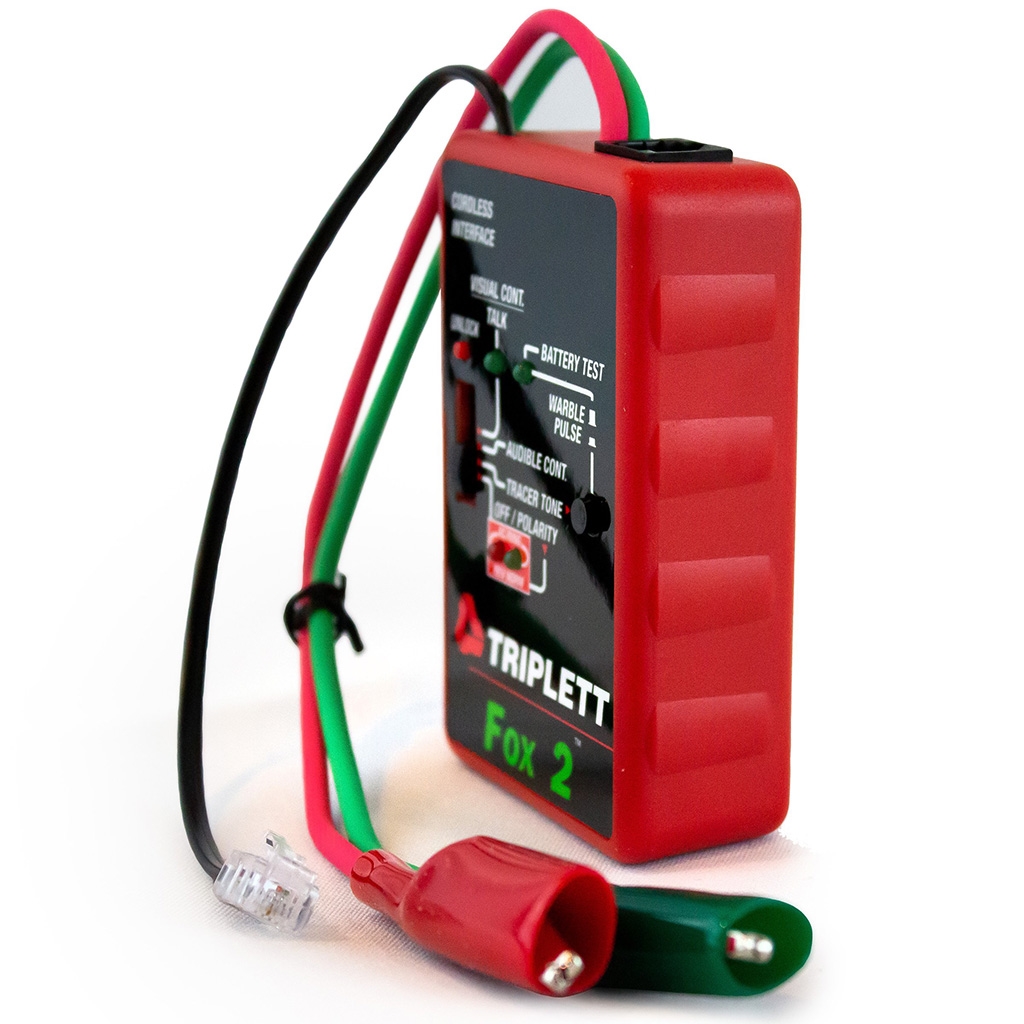

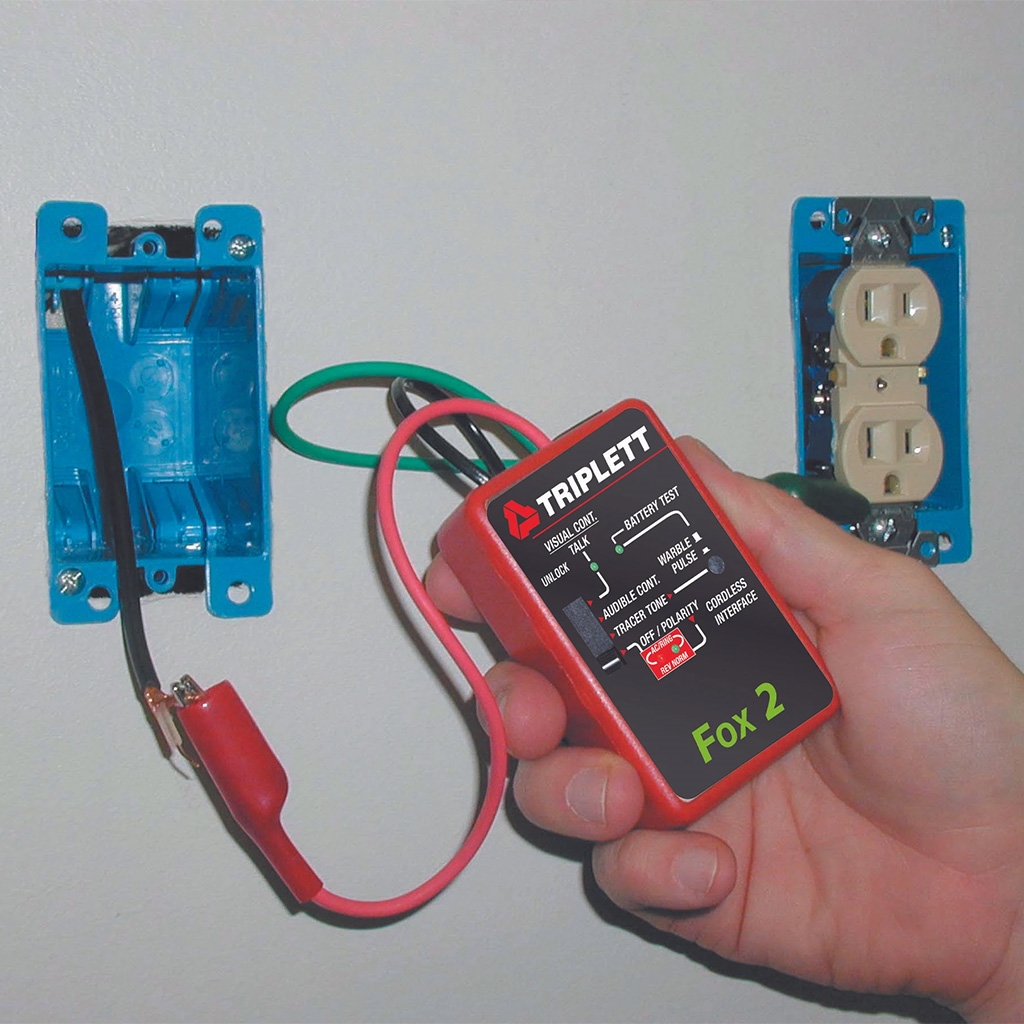

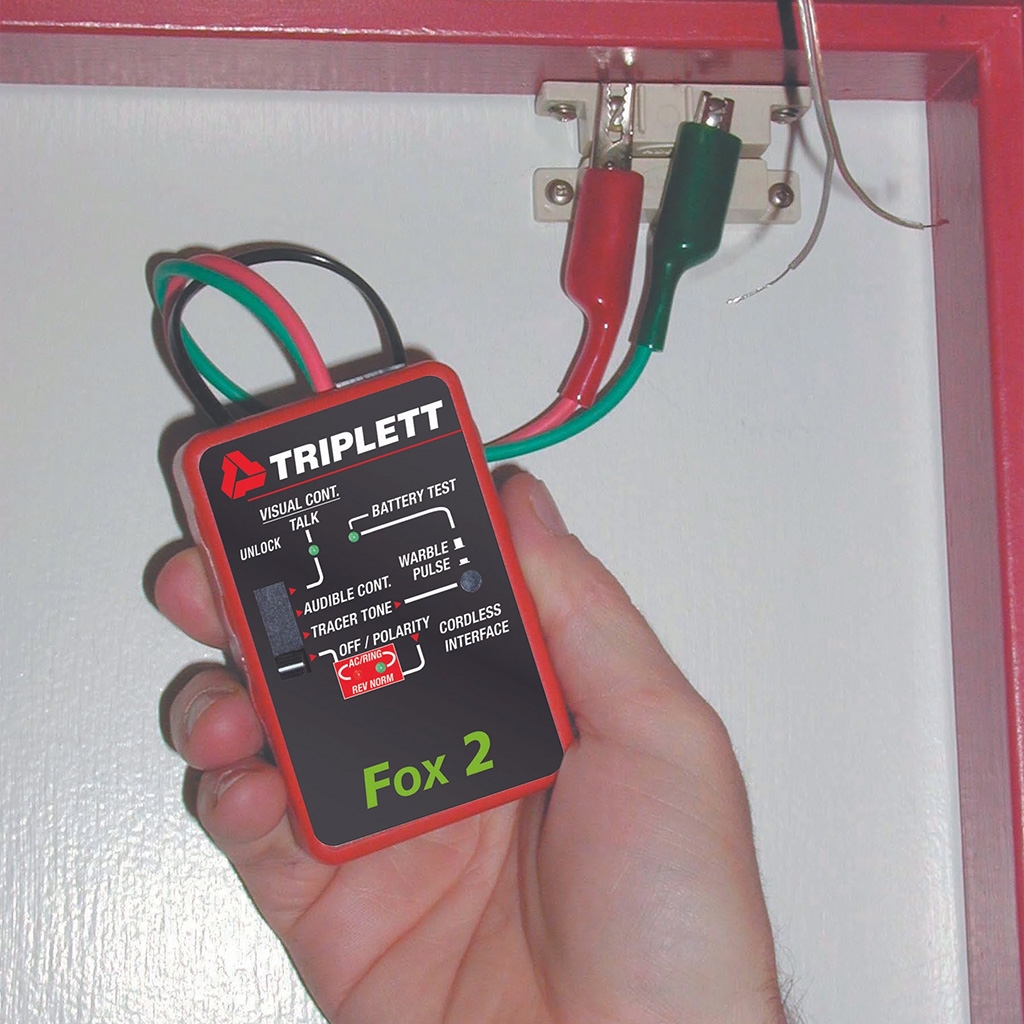

  • The Fox 2 is a battery-operated handheld multi-function Toner that generates multiple tones (Pulse or Warble), performs some basic telephone line tests (loop mA, line polarity, and ringing voltage), provides a visual and audible continuity test, and integrates our own True Trace and TripLatch tests while providing overload protection up to 120 VAC.

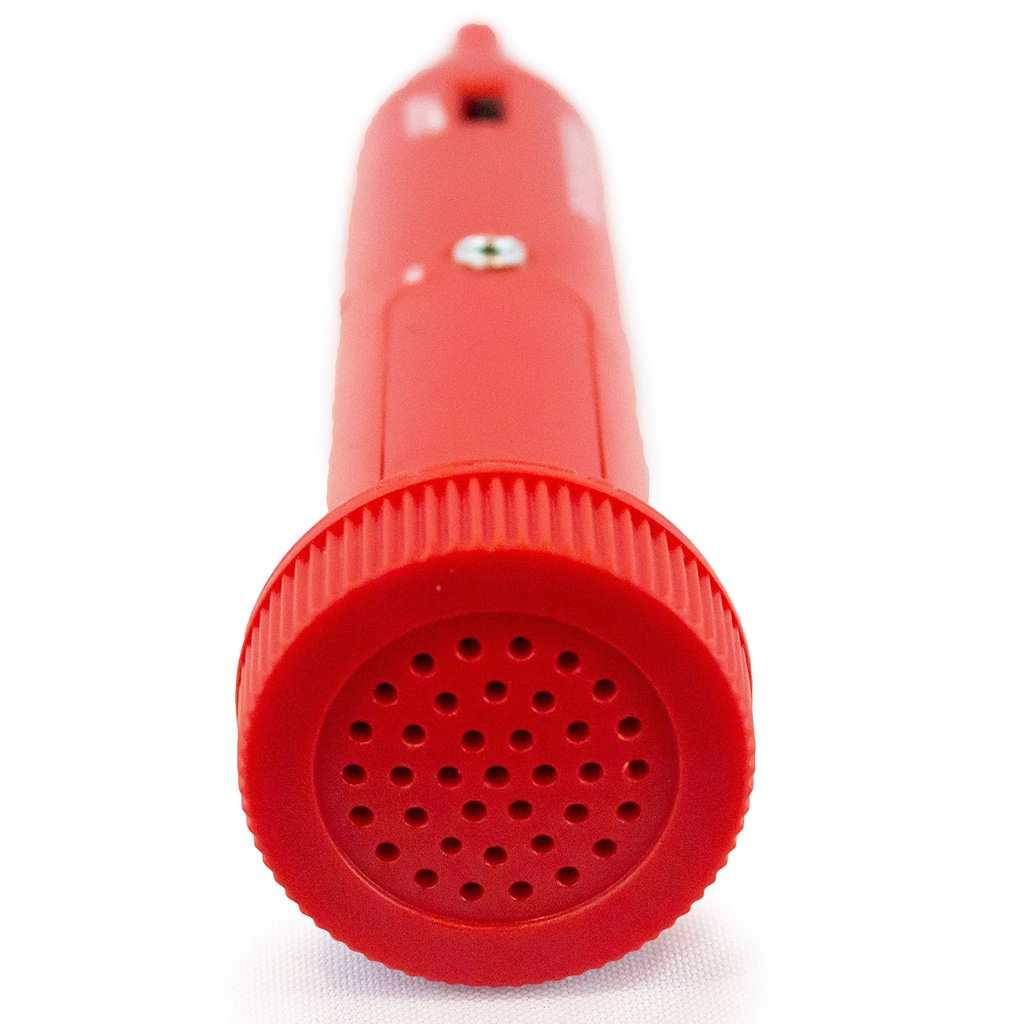

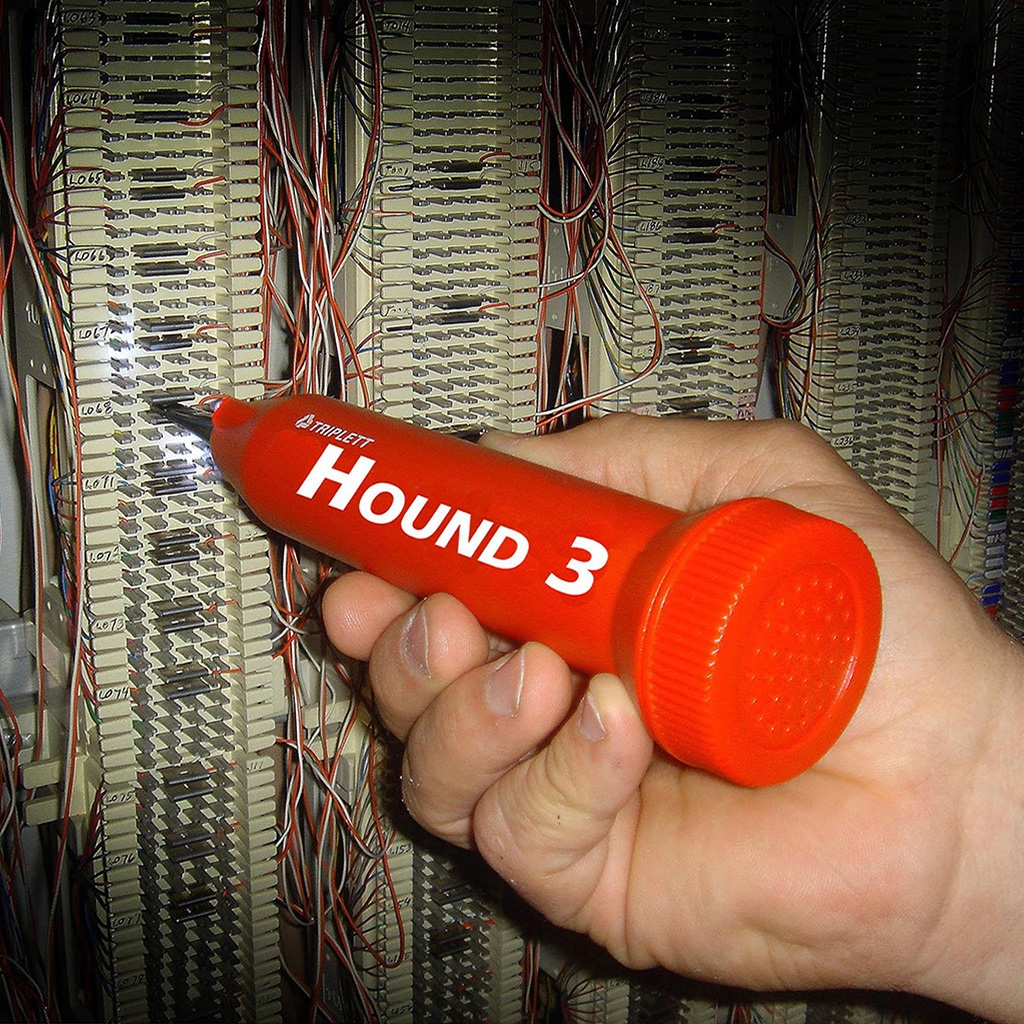

  • The Hound 3 is a battery-operated handheld lightweight Probe, with a thumbwheel Sensitivity control and Signal Strength indicator LED. It improves on previous designs with built-in LED headlights to illuminate dark areas and reduce fluorescent light noise, a bandpass filter to suppress unwanted frequencies, an earphone jack for noisy or quiet work areas, and an easy-access battery cover.

  • This Wire tracing kit is a lightweight easy to use kit, constructed with high-quality materials. Portable design allows you to trace wires whenever needed. Find non-energized wires in walls, ceilings, and floors. An inductive tracer with two probes indicates magnetic fields with audio and visual signals. Tracer filter helps suppress 60 Hz and high-frequency noise. The tone generator has three tones for guiding the tracer to wires.

  • The toner can generate a signal up to 1000 feet

    • Specifications:
  • Operating Frequency (RF): 400kHz to 500kHz
  • Operating Frequency (AF): 800Hz to 2400Hz
  • Output Voltage (RF): adjustable 5vpp to 30vpp (open circuit)
  • Output Voltage (AF): fixed 10vpp (open circuit)
  • Tracer Tone: Warble or Pulsed, High or Low Pitch
  • Max. AC/DC Live Voltage: 250V
  • Continuity Test: upto 5,000 ohms with audible beeper
  • AC Voltage Test: 30VAC to 250VAC
  • DC Voltage Test: Positive applied to red test lead 40VDC to 250VDC
  • Dimensions: 3.5 x 4.5 x 1.5"
  • Weight: 7 oz.

    • Hotwire Hound Specifications:
  • Operating Frequency (RF): 400kHz to 500kHz
  • Signal Indicators: Speaker outputs Tracer signal and LED indicates signal strength
  • Earphone Jack: Accepts 1/8" mono or stereo earphone plug (mutes speaker)
  • Headlights: 2 High Brightness White LEDs
  • Speaker: 1.5" Mylar cone with Alnico magnet
  • Dimentions: 1-7/8" dia at speaker; 1-3/8" dia at body; 7.5" long
  • Weight: 9 oz.

    • Kit Includes:
  • Fox 2
  • Hound 3
  • RJ-11 to RJ-45 Adapter
  • Plastic Duck Bill
  • Metal Duck Bill
  • Headphones
  • Weatherproof Carry Case

    • Fox & Hound 2 w/ Hound 3 User Manual
