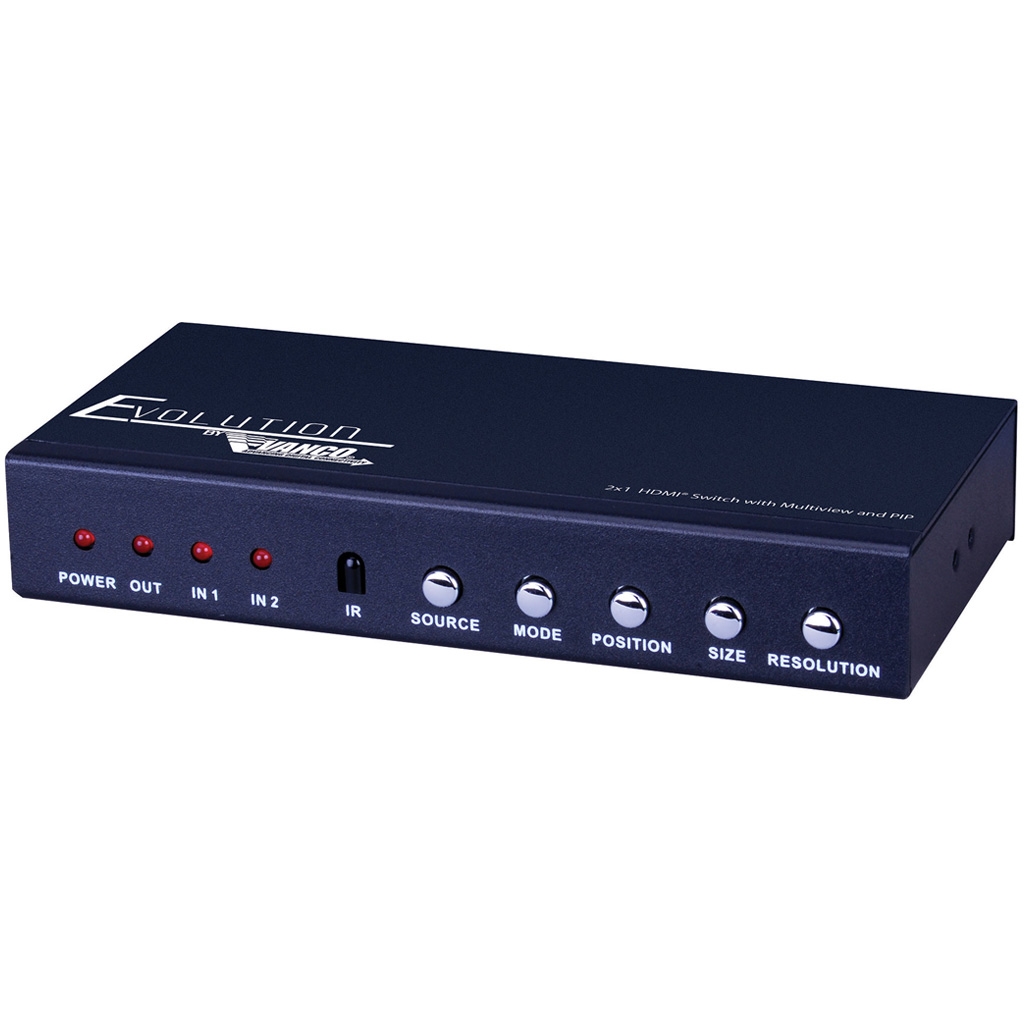

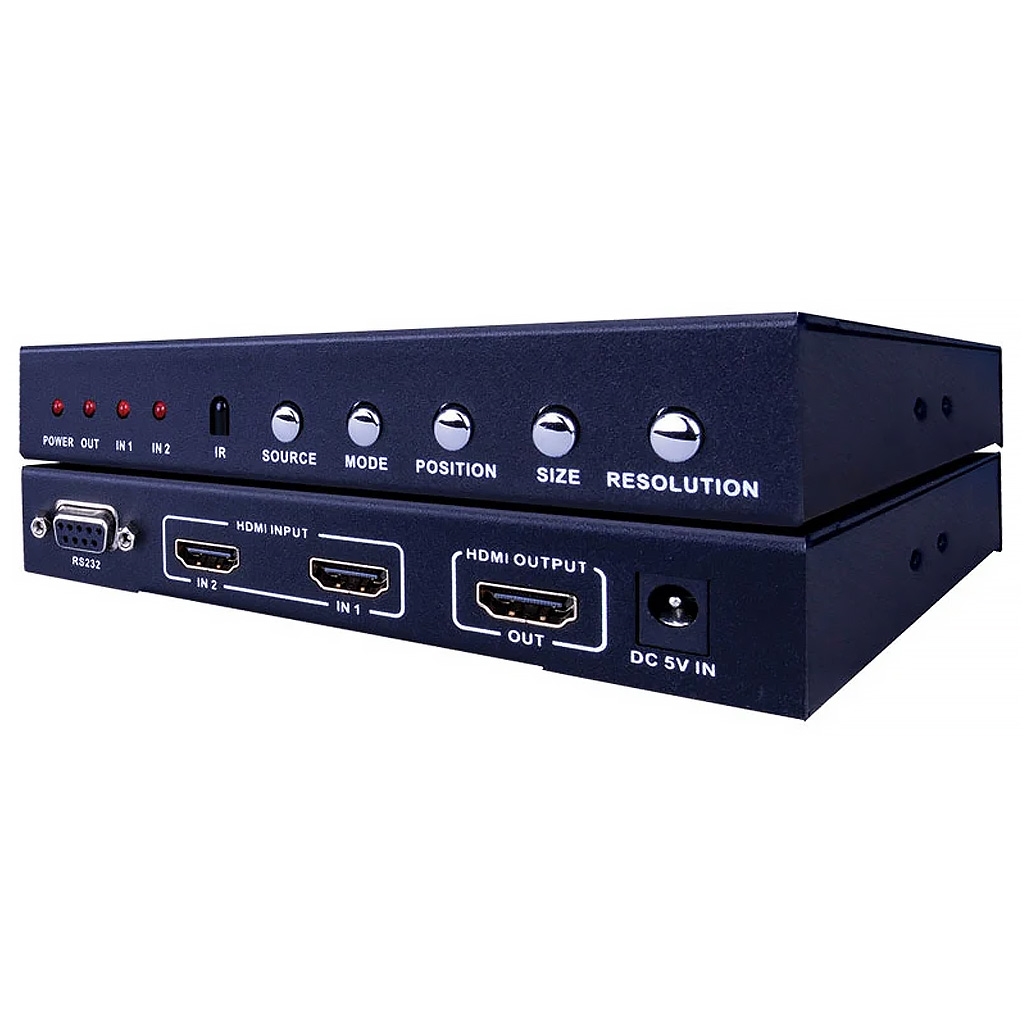

The Evolution by Vanco EVSW21MV 2x1 HDMI Switch with Multiview and PIP allows for two sources to be connected
and be viewed one at a time like a standard switcher, or allows for Multiview. Tired of switching channels back and forth? Multiview allows for both sources connected to be viewed on the same display! There are two modes for Multiview; Side-by-side is a configuration that shows both sources in a split-screen format, while PIP (Picture in Picture) shows a smaller screen within a larger screen that can be switched. For connectivity and control, the EVSW21MV includes an IR remote control and RS-232 serial cable for any custom control setup. The EVSW21MV is the perfect solution for watching multiple sporting events, having multiple people share the same display, or to show advertisements in a commercial application.
Features:
Multiview 2x1 HDMI switcher that allows both sources to be displayed simultaneously

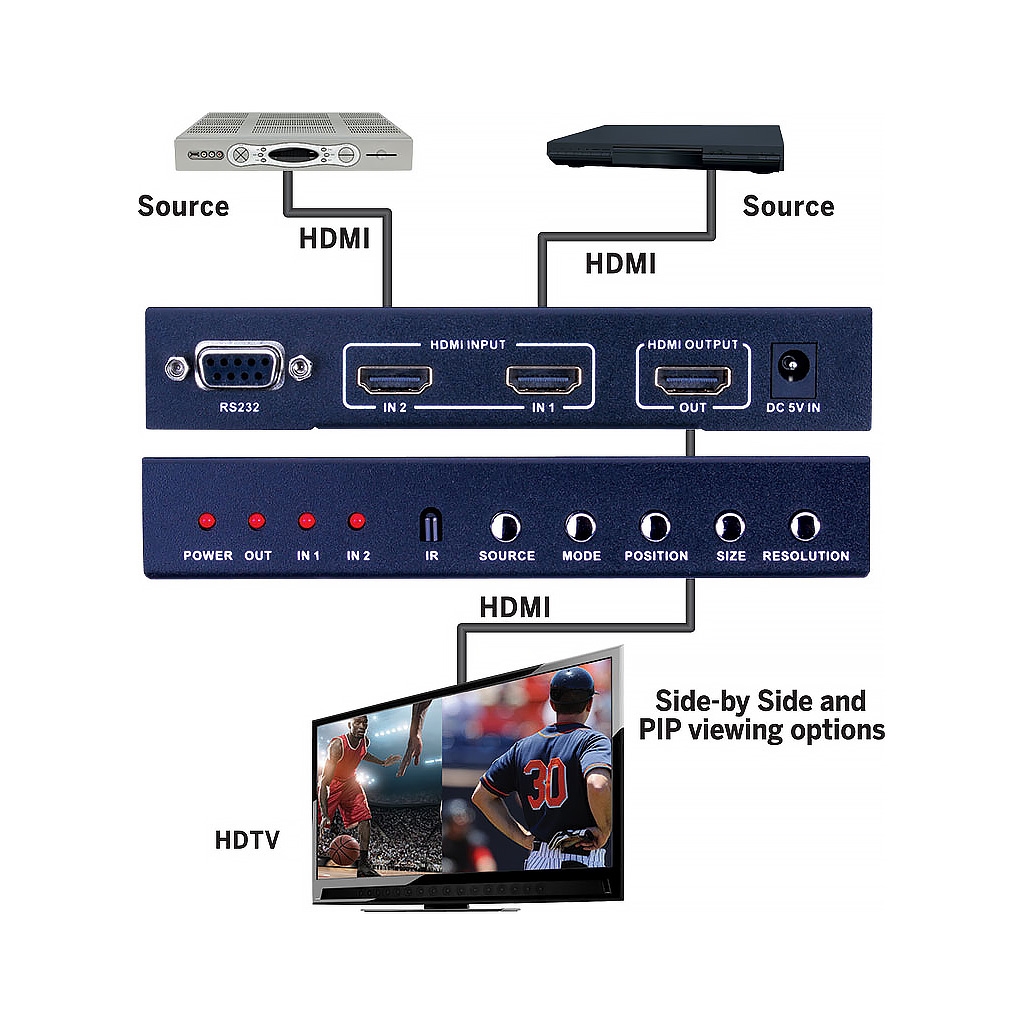

Two multiview modes available: Side-by-side (split screen) and PIP (Picture in Picture)
Capable of passing and scaling 16:9 and 4:3 aspect ratios
Side-by-side and PIP viewing options
Output can be scaled to 6 different resolutions: 1080p, 720p, 1080i, 1024x768, and 1360x768
Supports inputs up to 1080p/60Hz High Definition Resolution
Up/Down scaler video function
Supports multiple output resolutions in PIP mode
Compatible with LPCM, Dolby, and DTS audio formats
Dimensions: 5.5” W x 1” H x 2.75” D
Specifications:
Video Bandwidth: 225MHz [6.75Gbps]

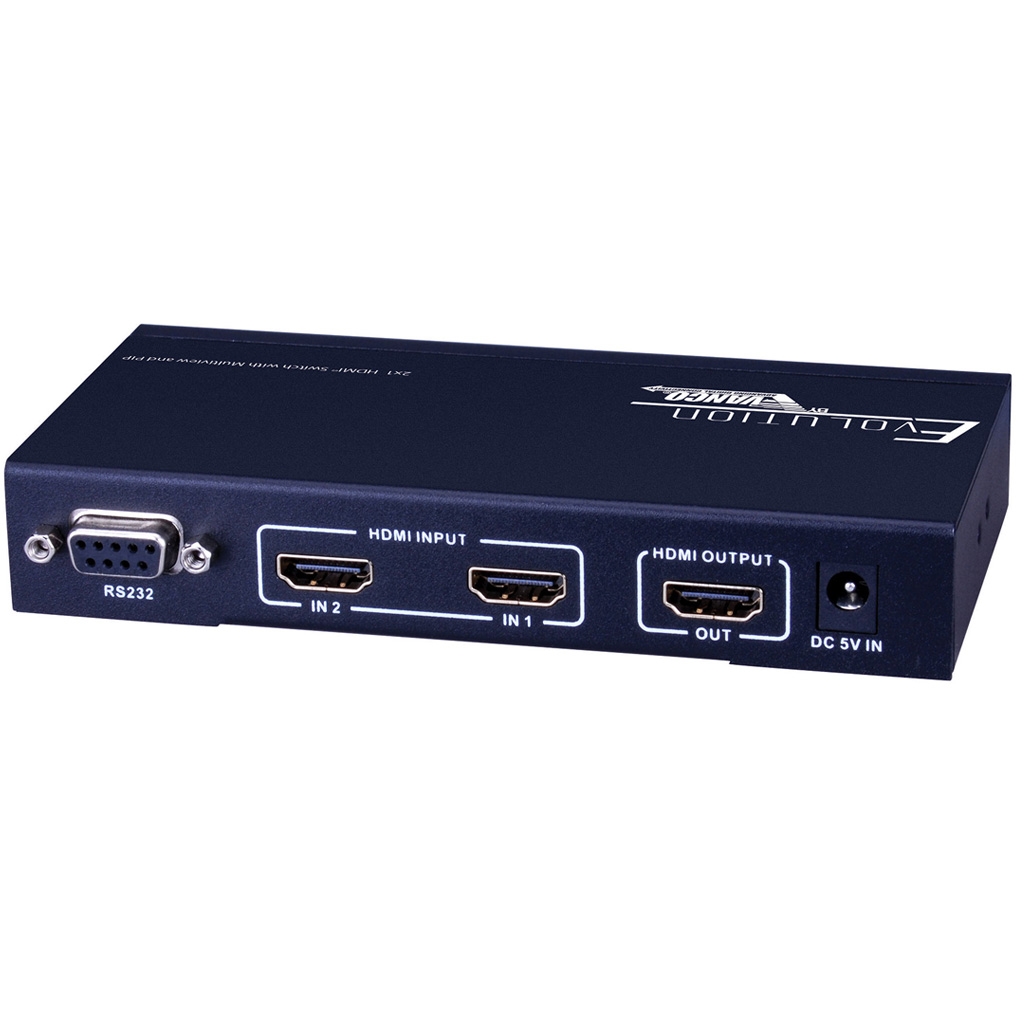

Input Ports: 2 × HDMI (Female type)
Output Ports: 1 × HDMI (Female type)
Audio Output: PCM, 5.1, 7.1CH, Dolby 5.1, DTS5.1
Input Resolution: 480i60Hz, 480p60Hz, 576i50Hz, 576p50Hz, 720p50/60Hz, 1080i50/60Hz, 1080p24/30/5/60Hz, 800x600@60, 1024x768@60, 1280x720@60, 1920x1080@60
Output Resolution: 1080p, 720p, 1080i, 1024x768, 1360x768
ESD Protection: Human Body model:±8 kV (air-gap discharge) ±4 kV (contact discharge)
Power Supply: 5V/1A DC (US/EU standards, CE/FCC/UL certified)
Dimensions: 70 mm (W)×140mm (D)×25 mm (H)
Weight: 300 g
Chassis Material: Metal
Operating Temperature: 0 °C~40 °C/ 32 °F~104 °F
Storage Temperature: −20 °C ~ 60 °C/−4 °F ~140 °F
Relative Humidity: 20~90 % RH (non-condensing)
Power Consumption (Max): 10W
Contents:
EVSW21MV HDMI Switcher
5V DC Power Supply
IR Remote Control
RS-232 Serial Cable
Product Manual
|
|
|
 |
|
 |
|
