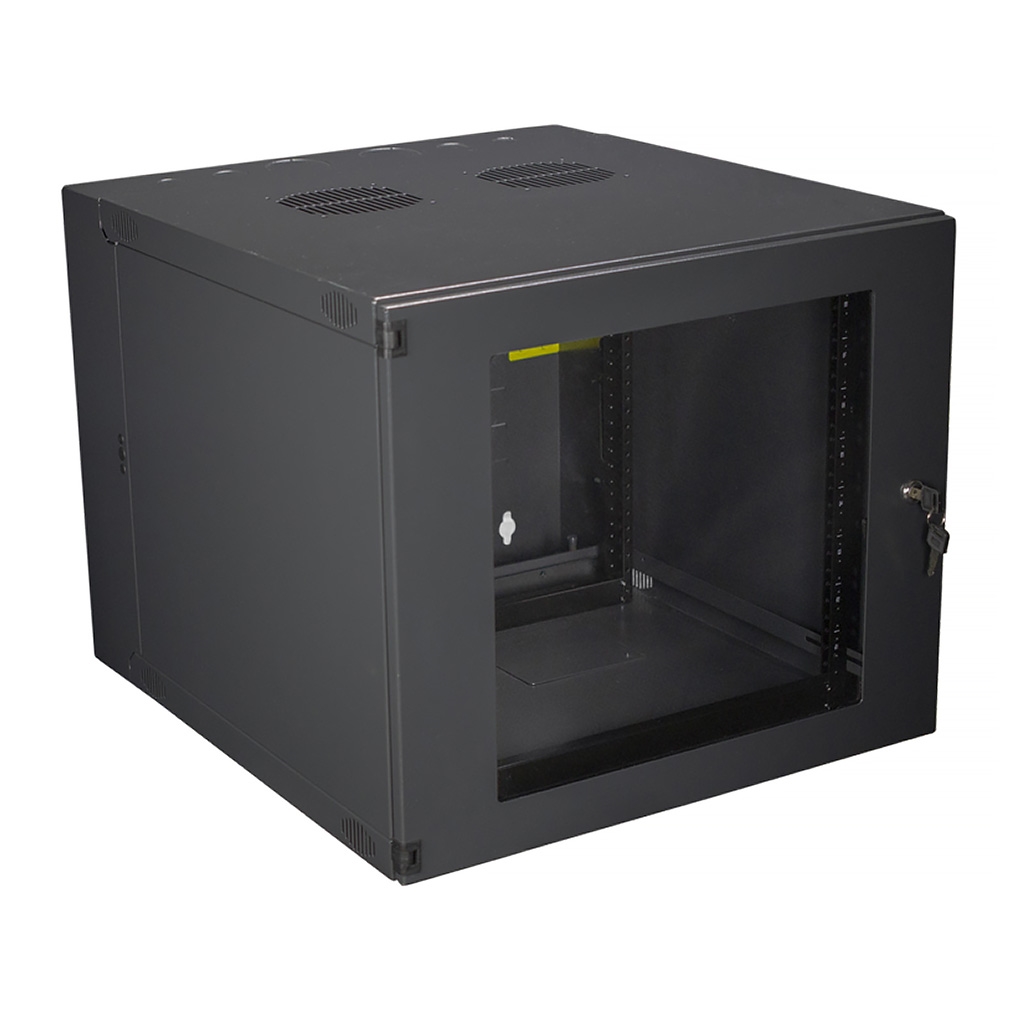

Vericom's VW1-6121 Double Hinge Swing-Out Wall Mount Cabinet is a great solution for networking, security, and AV installations where access to the back of the equipment is important. Compatible with all standard 19-inch EIA equipment, these cabinets feature a swing-out design that also allows the rear section to completely disconnect from the cabinet, making installation a breeze.
The VW1-6121 is constructed of cold-rolled, powder-coated 19-gauge steel, this swing-out wall mount cabinet has a maximum load capacity of 100 pounds and is 12U rack height. It ships unassembled and flat packed for easy on-site handling.
Security & Protection:
Locking front and rear doors prevent unauthorized access to equipment
Two sets of rails provide a stable mounting structure
Door is grounded to the cabinet frame
Flexibility:
Multiple cable entry options provide greater flexibility during installation
Mounting rails are adjustable to match a variety of equipment sizes
Doors are removable for convenient access to equipment
Multi-Use:
Top and bottom panel vents to optimize cooling of equipment
Adaptable for use in network, security and audio/video installations
Features:
Cabvle entry on top, bottom and back
Lace points to reduce cable clutter
Lockable acrylic front door is removable and reversible
Lockable rear door swings out 90° from wall for accessibility
Specifications:
Frame Material: Cold rolled steel
Finish: Black powder coat
Dimensions (HxWxD): 23.43" x 21.25” x 23.62”
Maximum Usable Depth: 20.5"
Rack Unit Quantity: 12U
Front Door: Removable, reversible & lockable steel frame with full panel acrylic window, opens full 180°
Rear Door: Swings out from wall 90° from either left or right corner, 12” x 12” removable panel, wall mounting keyholes spaced 16” apart, multiple lace points
Side Panels: Solid, built into frame
Top Panel: Ventilation holes for optional fans, (6) knock-out cable entry holes located at back: (2) ¾”,(2) 1” and (2) 2” knock-outs
Bottom Panel: (6) Knock-out cable entry holes located at back: (4) 3” and (2) 1” knock-outs
Equipment Support: Two pairs of mounting rails, adjustable depth rails (3” range), 1.75” RU spacing, marked & numbered
On Rails; 19” W, EIA-310-D Universal vertical hole spacing, 10-32 threaded holes
Grounding: 14 AWG ground wire connects doors & side panels to cabinet frame
Static Loading Capacity: 100 lbs.
Included Accessories: (48) 10-32 Mounting screws & washers, (2) Grounding kits, (1) Paper mounting template, (2) keys
Compliance & Standards: ANSI/EIA RS-310D, IEC60297-2, DIN41194; Part 1, DIN41494; Part 7
Optional Accessories (NOT INCLUDED):
RAMP5D1: Horizontal D-Ring Cable Manager- 5 Rings, Plastic, 1U
RAFND02: Double Fan, 150 CFM
RASC122: 12” Cantilever Shelf, 2U
RASA231: Adjustable Depth Wall Cabinet Shelf, 1U
RAMSFD1: Horizontal Finger Duct Cable Manager- Steel, 1U
RARGKWC: Rubber Grommet Kit for Fixed or Double Hinge Wall Cabinets
|
|
|
 |
|
 |
|
