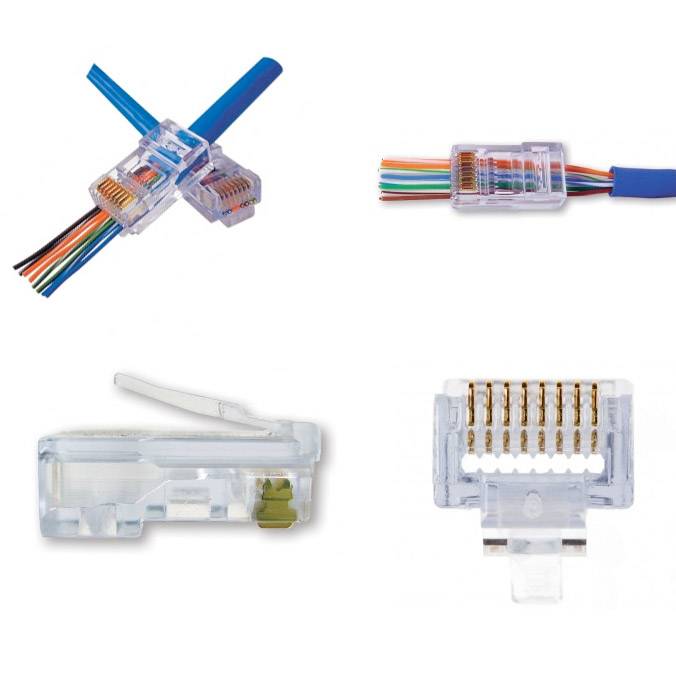

The patented EZ-RJ45 Connector simplifies twisted pair terminations by allowing the wires to be inserted through the connector and out the front. This allows the technician to easily verify the proper wiring order. Electrical performance of the termination is optimized by pulling the connector down over the cable jacket and seating it tightly in the rear of the connector. Reducing the distance between the wire twists and contacts improves performance! Reduces scrap, no wasted crimps. More reliable, higher performance. Crimp with the patented EZ-RJ45 Crimp Tool...crimps and trims in one cycle. Manufactured in the USA.

Features:

Thru holes allow wire pairs to be inserted thru front of connector

Works with solid or stranded wire

Simple one piece design...no bars or liners

FCC & RoHS compliant, UL rated

EZ to verify wire sequence

Faster terminations

Reliable/High performance

Specifications:

Use in category 3, 5, 5E compliant data networks

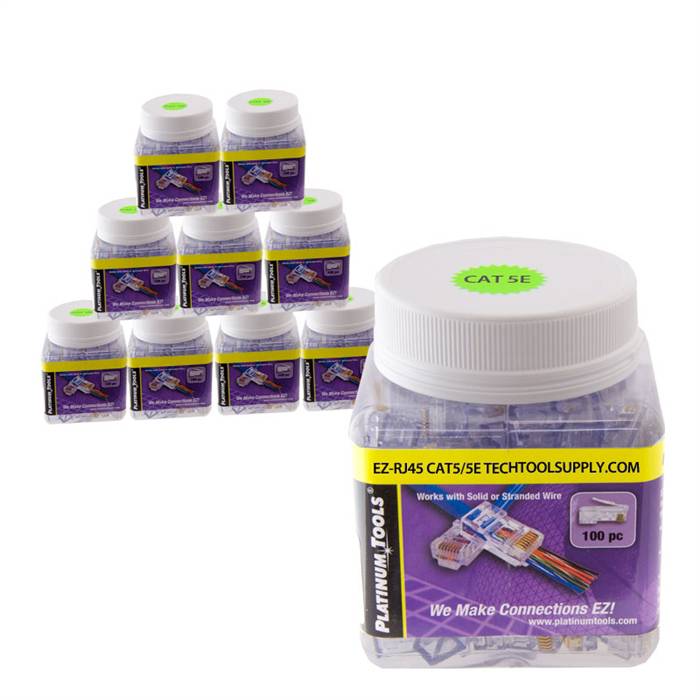

Quantity: 1000 (10 Jars of 100)

Manufactured in the U.S.A.

EZ-RJ45 Instruction Sheet.
