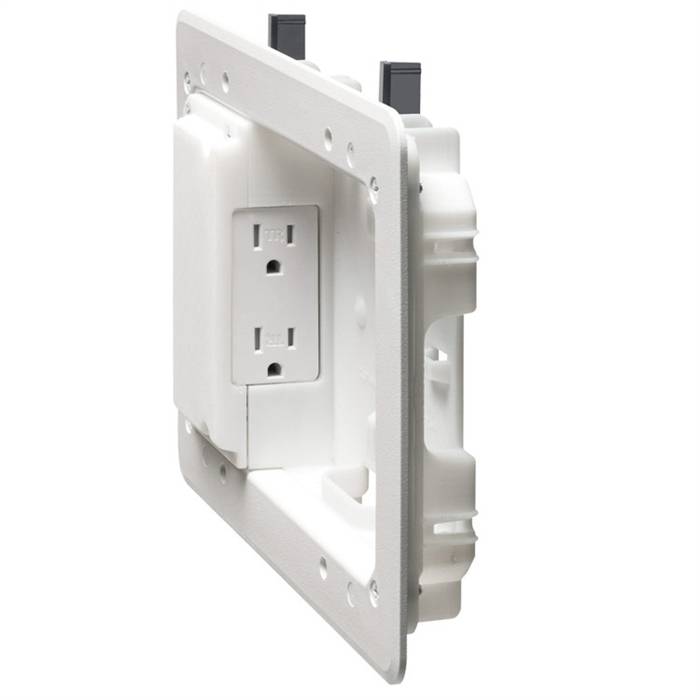

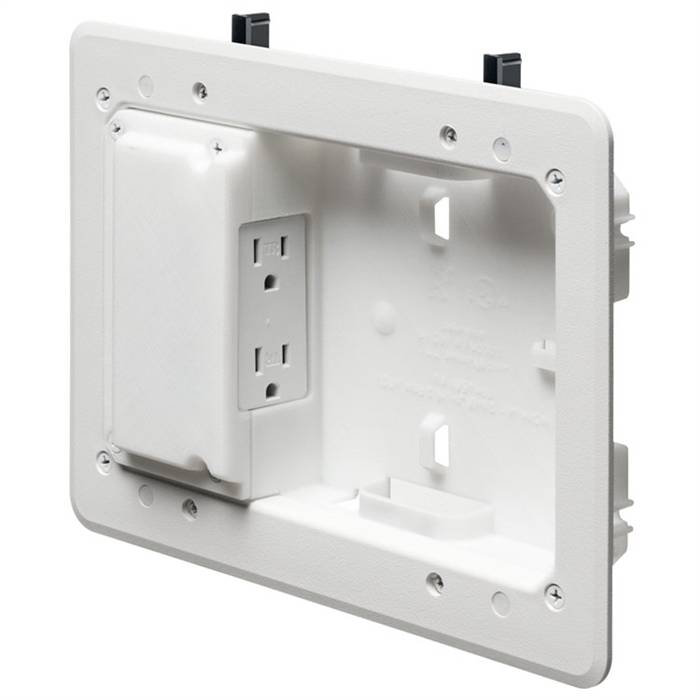

Arlington Low Profile Power TV 5" x 8" Box

Arlington Low Profile Power TV 5" x 8" Box


Alternative Views:
TTS PRICE: $32.99

STATUS:  IN STOCK

Free Shipping

Availability:
Normally Ships Same Day

PRODUCT CODE: ARL-TVL508
QUANTITY:

PRODUCT DESCRIPTION

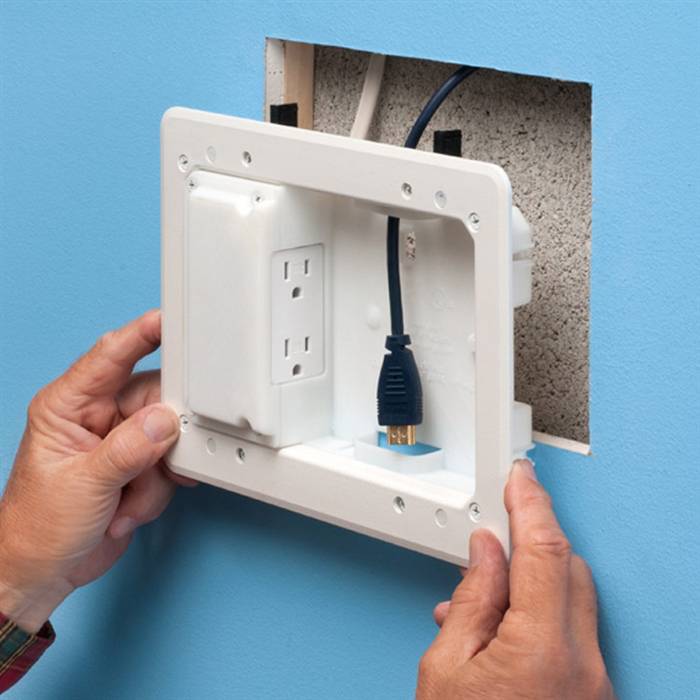

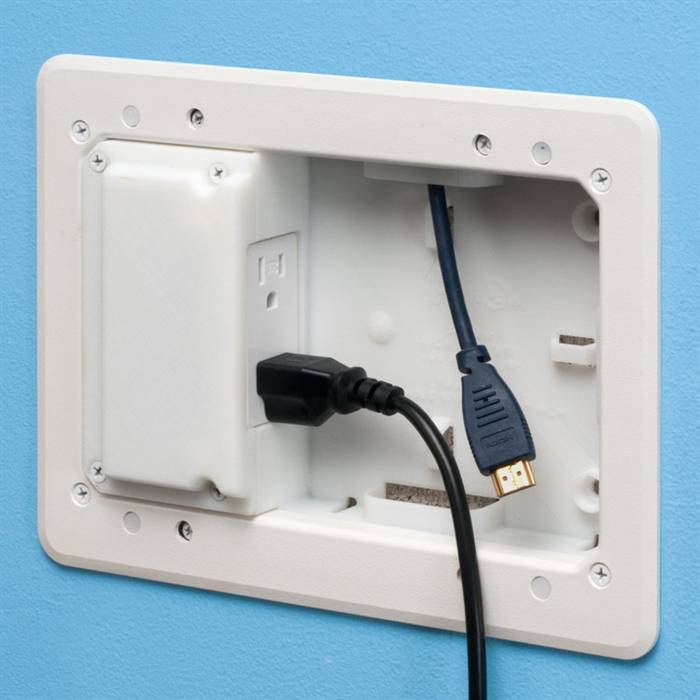

Arlington's low profile 5" x 8" TV BOX™ is ideal for flat screen TV installations on 1/2" or 5/8" drywall with wall cavity depths 3/4" and larger.

Applications in new work or retrofit include:
  • Furring strips on concrete block walls
  • 2x2, 2x3 and 2x4 or larger studs

    • The low profile TVL508 box is also helpful when plumbing or other obstructions run within the wall cavity. It has lots of room inside for multiple cables and brackets for tying them off - keeping the installation neat and organized.

    Features:
  • Plugs stay inside box so TV mountscloser to the wall
  • Mounting wing screws hold box securely in the wall
  • Includes UL Listed decorator style receptacle
  • cULus Listed

    • Specifications:
  • Weight: 1.08lbs
  • Dimensions: 5" x 8" x 1-1/4"
  • Color: White
  • Material: Plastic
  • Single Gang Box Size
  • Made in USA

    • Includes:
  • (1) TVL508 Low-Profile TV Box
  • (1) UL Listed Decorator Style Receptacle

    • Line Drawing


    Average Customer Review: Average Customer Review: 5 of 5 5 of 5 Total Reviews: 10 WRITE A REVIEW

      So far, this Product Review was helpful to 0 TTS Customers.

    5 of 5 Excellent all-in-one solution January 19, 2021
    Reviewer: Anonymous Person from Wauconda, IL United States
    This junction box is very well built. It feels and looks high quality. It met my needs for supplying both high voltage and low voltage lines with just the right footprint. The company that makes it (Arlington) quickly answered the technical question that I had when I called them. The only thing that could be improved is the instruction sheet, but it was good enough. Install options are available for both new construction and for mounting in existing wall.

    Was this review helpful to you?

      So far, this Product Review was helpful to 0 TTS Customers.

    5 of 5 Hide the cords November 2, 2018
    Reviewer: Paul Romans from Hood River, OR United States
    Easily installed in new work.

    Was this review helpful to you?

      So far, this Product Review was helpful to 0 TTS Customers.

    4 of 5 Pretty good product November 29, 2017
    Reviewer: Maurice Allsopp from Oakmont, PA United States
    I am pleased with the concept and think it makes for a professional installation. I have a couple problems with the product. I The instructions say to cut a hole 6 7/8 high. This leaves too large of a space if you ask me. I think the opening should be somewhat les for a tighter fit. 2. The screws provided to fasten the plastic parts are a bit too big, or the pre-drilled holes are too small. It's a tough job to screw in the various parts.

    Was this review helpful to you?

      So far, this Product Review was helpful to 0 TTS Customers.

    5 of 5 Arlington Low Profile TV Box October 18, 2017
    Reviewer: Terry Freiberg from Scottsdale, AZ United States
    Perfect for my project.

    Was this review helpful to you?

      So far, this Product Review was helpful to 0 TTS Customers.

    5 of 5 As adverized August 23, 2017
    Reviewer: don hewitt from pleasanton, CA United States
    Good experience

    Was this review helpful to you?
